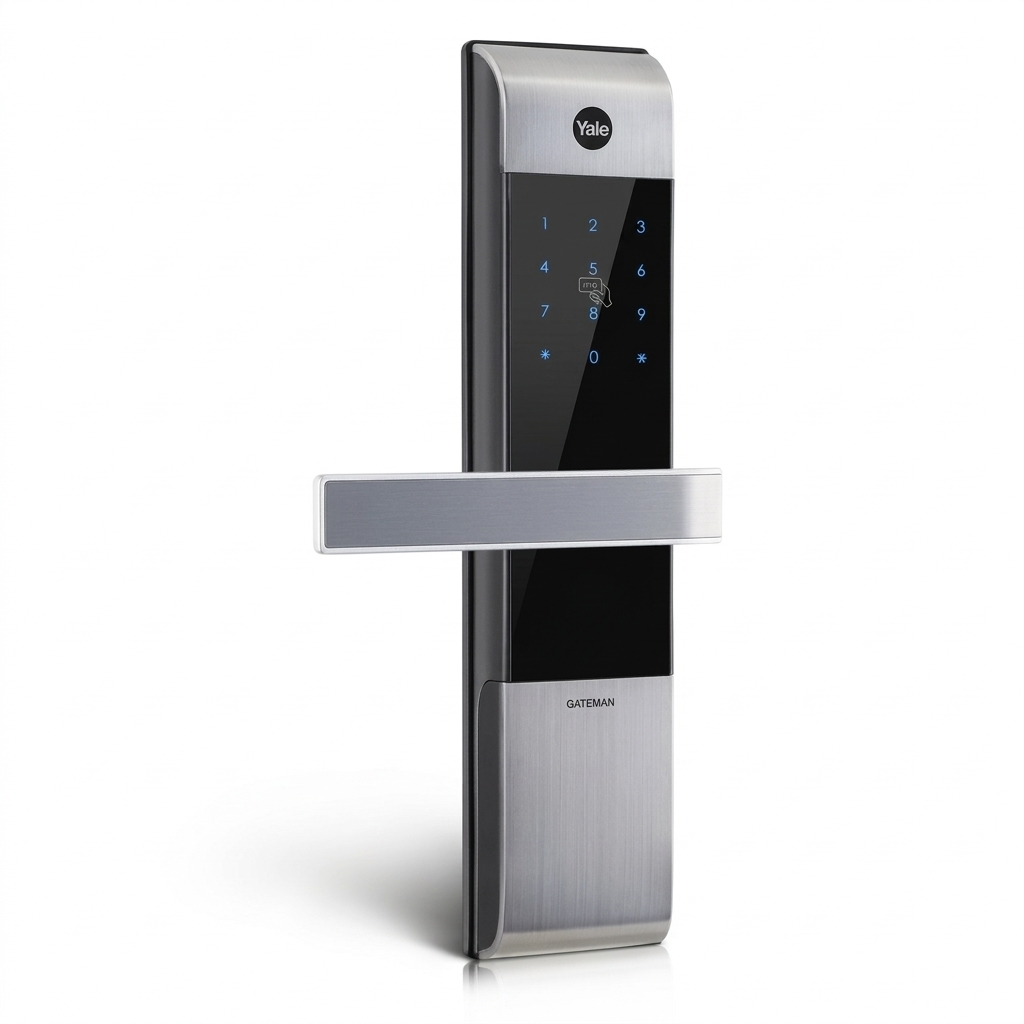

Introduction of the Yale Door Lock YDM3109

The Yale Door Lock YDM3109 is a state-of-the-art digital locking solution designed to enhance the security of your home or office. Featuring a sleek design, this lock utilizes proximity card technology, allowing for keyless entry and easy registration of user cards. It supports up to 40 cards and includes a voice guide feature for user convenience. With advanced security features such as break-in alarms and fire detection, the YDM3109 ensures peace of mind. Priced at $438.12, it combines modern technology with robust safety measures.

Components OvetView

Basic Contents

The contents of this product may be subject to change without notice for performance or quality improvement.

Accessories

• 4 Card Keys
• 4 AA Batteries
• Emergency Keys
• Striker
• Screws

Optional Accessory

• Remote controller
• Remote control module
• Z-wave module
• Zig bee module
• BLE module

Identification

Front body

(Front Body, Installation on the outside of the door)

Main body

(Main Body, Installation on the inside of the door)

Specifications

• Battery life may vary depending on temperature, moisture levels, frequency of use and the quality of the batteries.
• Please make sure that all parts are included when purchasing the product.
• Optional products may not be available depending on your country or local dealer.

Product Features

1. Alarmed Door Lock
   Yale Digital door lock has a built-in damage alarm. If the keypad area is damaged an alarm will sound.
2. Proximity card identification
   You can use your ISO 14443 A type RFID card such as a credit card or pass card as your card key.
3. Electronic Code System
   You can open the door conveniently with Code.
   Yale Digital door lock gives you the freedom and convenience of key-free.
4. Emergency power backup
   A 9V battery source is available if your batteries run out.
5. Fake Code
   To prevent the Code from being exposed.
   Yale Digital door lock allows you to enter decoy numbers before or after entering your Code.
6. Auto Locking
   The handle automatically disengages on the outside once you have entered your home, preventing anyone from following you.
7. Remote control System (Optional)
   Use a Remote control to unlock/Lock your door "remotely''.
8. Zwave I Zigbee (Optional)
   Use them to connect with the Controller.
9. BLE (Optional)
   Use it to pair with a Smartphone.

Description

The Yale Door Lock YDM3109 is a smart lock that provides keyless convenience and advanced security features for your home. The touchscreen keypad allows for easy access, while the compatibility with home automation systems enables you to control your lock from anywhere. The voice control feature provides hands-free operation, and the weatherproof design ensures durability in any environment. The lock also features advanced encryption for secure communication and tamper-proof design with alarms and notifications to prevent unauthorized access.

Yale Door Lock YDM3109 Configuration

User Code Registration (4 ~10 digits)

1. Press I button.
2. Enter New User Code.
3. Press I button to complete.

User Card Key Registration (Upto40ea)

1. Press I button.
2. Contact all Card Keys you wish to register on the Card Key reader one by one.
3. Press I  button to complete.

Caution

• Make sure to leave the door open when registering your User Code and Card Keys because you may accidentally lock the door while trying to register or change a credential.
• The previously registered User Code will automatically be deleted when a new credential is registered.
• It is recommended to change the User Code regularly.
• It is impossible to make the same number for Master code /Visitor code /Onetime code/User code.

Change the Master code

1. Enter the Master Code.
2. Press I button.
3. Enter [ 7 ] , and [#] buttons to change the Master code.
4. Enter the New Master Code and [#] button.
5. Again enter the Master Code and [#] button.

6. Press the [*] button to continue.
   OR
   Press I button to complete.



Register User Code

1. Enter the Master Code.
2. Press the I button.
3. Enter [ 2], and [#] buttons.
4. Enter [ 7 ] , and [#] buttons to register the User code.
5. Enter the  User Number (01 ~30) and # button.
6. Enter the  User Code (4 ~ 10 digits) and # button.
7. Press I*] button to continue.
   OR
   Press I button to complete.

Delete User code

Register Card

1. Enter the Master Code.
2. Press I button.
3. Enter [ 3], [ ##] buttons.
4. Enter [ 7], and [ #] buttons to register Card.
5. Enter the User Number (01~40) and [#] button.
6. Contact Card Key you wish to register on the Card Key reader and [##] button.
7. Press the [*] button to continue.
   OR
   Press I button to complete.

Delete Card

Register Onetime Code

1. Enter the Master Code.
2. Press I button.
3. Enter [4], [ ##] buttons.
4. Enter [ 1], and [ #] buttons to register the Onetime Code.
5. Enter the Onetime Code (4 digits) and [ #] button.
6. Press the [*] button to continue.
   OR
   Press I button to complete.

Delete Onetime Code

Delete All Credentials

1. Enter the Master Code.
2. Press button.
3. Enter [5], [ ##] buttons.
4. Enter the Master Code and [ #] buttons.

5. Press the [* ] button to continue.
   OR
   Press I button to complete.



Lock Setting

1. Enter the Master Code.
2. Press I button.
3. Enter [6], and [ #] buttons.
4. Enter [ 11, [ #] buttons to change to Normal mode.
5. Enter the New
6. User Code and [#] button. Again enter the User Code
   OR
   Press I button to complete.

Register Remote control

1. Enter the Master Code.
2. Press I button.
3. Enter [8]. [#] buttons.
4. Enter [7]. [#] buttons to register Remote control.
5. Enter the User Number (01~05) and [ #] button.
6. Press the registration button on  Remote controller followed by pressing the [#] button to complete after the beep sound from the digital door lock.
7. Press the [*] button to continue.
   OR
   Press I button to complete.

Delete Remote control

Register Controller

1. Enter the Master Code.
2. Press button.
3. Enter [9], [#] buttons.
4. Enter [7], and [ #] buttons to register the controller.
5. Register Controller followed by pressing [#] button to complete after the beep sound from the digital door lock
6. Press the [*] button to continue.
   OR
   Press I button to complete.

Delete Controller

Setup Guide

To operate the Yale Door Lock YDM3109, follow these steps:

1. Install the lock on your door using the included hardware and instructions.
2. Activate the lock by inserting batteries and following the prompts on the touchscreen keypad.
3. Create a master code for yourself and up to 250 user codes for guests and family members.
4. Connect the lock to your home automation system or voice control device if desired.
5. Customize the auto-lock and auto-unlock features for added convenience.

Troubleshooting

If you encounter any issues with your Yale Door Lock YDM3109, try these troubleshooting steps:

• Check the battery level and replace if necessary.
• Ensure the lock is properly aligned with the door and strike plate.
• Restart the lock by removing and reinserting the batteries.
• Reset the lock to factory settings and reprogram user codes.
• Contact Yale customer support for further assistance.

Pros & Cons

Pros

• Keyless convenience
• Advanced security features
• Compatibility with home automation systems
• Voice control capability
• Up to 250 user codes

Cons

• Higher price point
• Requires battery replacement
• May require professional installation

Customer Reviews

"I recently installed the Yale Door Lock YDM3109 on my front door and I absolutely love it! The touchscreen keypad is easy to use and the voice control feature is a game changer. I also appreciate the added security features and customization options. Highly recommend!" - Sarah L.

"I had some trouble installing the lock myself, but the customer support team was very helpful and walked me through the process. Overall, I'm very happy with the lock and feel much more secure in my home." - John D.

Common Complaints: Some users have reported issues with the touchscreen keypad freezing or becoming unresponsive, as well as difficulty with the initial setup and installation process.
