Setup: Beurer Nebuliser IH-55 User Manual

Introduction — beurer Nebuliser IH-55 (Overview, benefits, use cases)

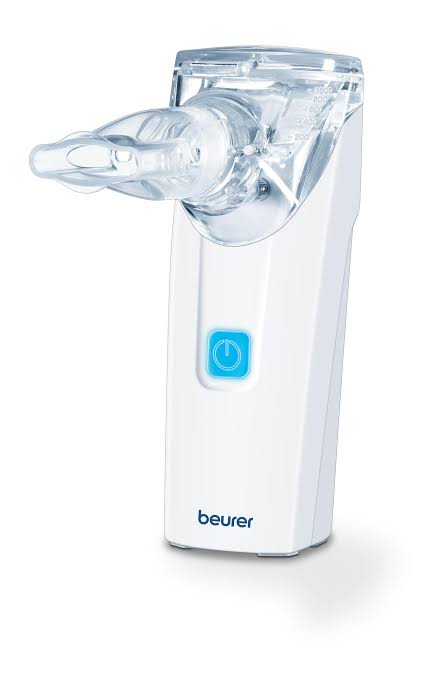

The beurer Nebuliser IH 55 is a compact, travel‑friendly mesh nebuliser that delivers fine aerosol medication for effective treatment of the upper and lower airways, including colds, asthma and other respiratory conditions. The device uses vibrating membrane (mesh/diaphragm) technology to produce a high proportion of respirable particles (<6.0 µm) and a nebulisation rate of approximately 0.25 ml/min, enabling short inhalation times and quiet operation — features that make it suitable for both adults and children.

Key benefits and unique selling points include: vibrating mesh technology for efficient atomisation and silent running, a built‑in self‑cleaning function to reduce mesh blockages, dual power options (mains adaptor or 4 × AA batteries) for true portability, disinfectable medication parts, and a compact low‑weight design (about 228 g including batteries) that fits a travel bag. The IH 55 typically ships with a mouthpiece, adult and child masks, a mesh atomiser medication container and storage box, and a mains adaptor.

Target audience and use cases: travelers who require on‑the‑go inhalation therapy, parents of young children needing short, quiet treatments, and patients with intermittent asthma or COPD who want a portable, easy‑to‑use alternative to compressor nebulisers. Typical settings include home, work, holidays, schools and clinics where quiet, rapid therapy is preferred.

Estimated price range and availability: retail price varies by region and retailer, commonly found in the mid‑price portable nebuliser bracket; typical online and pharmacy retailers list the IH 55 at a competitive consumer price (check local suppliers for current pricing and promotions). The product is sold through authorized Beurer distributors and medical supply stores and is listed as a medical device with available manufacturer warranty options.

Specifications

• Dimensions (L x W x H): 146 x 51 x 85 mm
• Weight: 228 g (including batteries)
• Battery Type: 4 x 1.5 V AA, Mignon (LR6)
• Expected Product Life Cycle: 5 years
• Filling Volume: Maximum 10 ml
• Medication Flow Rate: > 0.25 ml/min
• Vibration Frequency: 100 kHz
• Housing Material: ABS
• Operating Temperature: +10 °C to +40 °C
• Operating Relative Humidity: < 93% (non-condensing)
• Operating Atmospheric Pressure: 860 to 1060 hPa
• Storage and Transportation Temperature: -10 °C to +45 °C
• Storage and Transportation Relative Humidity: < 93% (non-condensing)
• Storage and Transportation Atmospheric Pressure: 860 to 1060 hPa

Description of the device and accessories

1. Medication Container
2. Mesh Atomiser
3. On/Off Button with LED Indicators:
   • Blue: Device ready for operation
   • Orange: Change batteries
   • Violet: Start of self-cleaning function
4. Housing
5. Battery Compartment
6. Adult Mask
7. Children’s Mask
8. Mouthpiece

9. Storage Bag



Initial use

Before Using the Device for the First Time

Note

• Clean and disinfect the atomiser and accessories before using them for the first time. See "Cleaning and disinfection" on page 6.

Installation

Take the device out of the packaging.

• Push the medication container (1) with mesh atomiser (2) from the front horizontally into the guide provided in the housing (4), respectively the base of the device, so that it audibly clicks into place.



Insert the Batteries

• Open the battery compartment (5) on the underside of the device by pressing gently and pulling at the same time, and folding open the battery compartment.
• Insert four batteries (type AA, LR6). Ensure that the correct battery polarity is observed (diagram inside battery compartment).

• Close the battery compartment lid again.



Note

• When replacing the batteries, ensure that the medication container is completely empty; otherwise, there is a risk of droplets leaking out.
• As soon as the orange-coloured LED indicators (3) light up, please change all four batteries, as the efficiency of the nebulisation decreases significantly when the batteries are low.

Operation

Preparing the Atomiser

• For hygiene reasons, it is essential to clean the atomiser and the accessories after each treatment and to disinfect them after the last treatment of the day.
• If the therapy involves inhaling several different medications one after the other, please be aware that the atomiser must be rinsed under warm tap water following every usage. See "Cleaning and disinfection" on page 6.

Filling the Atomiser

• Open the medication container (1) by releasing the clip and fill the medication container with an isotonic saline solution or pour the medication straight in. Avoid overfilling.
• The maximum recommended filling quantity is 10 ml.

• Use medication only as instructed by your doctor and ask about the appropriate inhalation period and quantity for you.



Closing the Atomiser

• Close the lid of the medication container (1) and fasten the clip.

Connecting an Accessory

• Firmly connect the desired accessory (mouthpiece, adult mask or children’s mask) to the outlet of the mesh atomiser (2) by inserting it.
• Now place the device to your mouth and put your lips firmly around the mouthpiece. When using the mask(s), please place the mask over your nose and mouth.
• Start the device using the On/Off button (3).
• The spray mist pouring out of the device and the LEDs glowing blue (3) indicate that the device is operating correctly.

Note: The most effective form of nebulisation is by using the mouthpiece. Nebulisation using a mask is only recommended if it is not possible to use a mouthpiece (e.g. for children who are not yet able to inhale using a mouthpiece). When using a mask to inhale, take care to ensure the mask fits well and the eyes are unobstructed.

Inhaling Correctly

Breathing Technique

• It is important to use the correct breathing technique to ensure that the particles are distributed as widely as possible across the airways. To ensure that the particles reach your airways and lungs, you must breathe in slowly and deeply, then hold your breath briefly (5 to 10 seconds) and then breathe out quickly.
• Nebulisers should only be used for the treatment of respiratory diseases after consultation with your doctor. He or she will advise you about the selection, dosage, and use of medications suitable for inhalation therapy.
• Certain medications are only available with a prescription.

Note: You should hold the device as vertically as possible. However, a slight angle will not affect the application, as the container is leak-proof. For full functionality of the device, ensure when using it that the medication is in contact with the mesh.

Important

Essential oils, cough syrups, gargling solutions and drops to be used as a rub or in a steam bath are wholly unsuitable for inhalation using a nebuliser. These additions are often viscous and can impair the correct functioning of the device and therefore the effectiveness of the application in the long term.

Stopping Inhalation

• When you have finished the treatment, switch off the device using the On/Off button (3).
• The LED indicators (3) go out.
• If the inhalant is nebulised, the device switches off automatically. For technical reasons, a small amount of medication remains in the medication container (1).
• Do not use this.

Cleaning and disinfection

Cleaning

The mesh atomiser with container and the used accessories such as mouthpiece, mask, etc. must be washed with hot water after each use. Dry the parts carefully using a soft cloth. Put the parts together again if they are completely dry and place them in a dry, sealed container or disinfect them.

• Remove the mouthpiece and the relevant accessory from the atomiser.
• Pour 6 ml of clean water into the medication container (1) and switch the device on to first clean the mesh of any medication residue (please nebulise all of the liquid).
• Remove the batteries.
• Remove the add-on parts such as the mesh atomiser or the medication container and the cover from the device.

Disassembling

• Remove the medication container (1) with mesh atomiser (2), by pressing the button on the back of the device and pulling the unit off horizontally towards the front.

• Reassembly is carried out in reverse order.



Important: We recommend carrying out inhalation without interruptions since the inhalant may clog the mesh atomiser during a long pause in treatment, and the effectiveness of the application may be impaired as a result.

Self-Cleaning Function

To completely remove medication residue and eliminate any blockages, you can use the device’s self-cleaning function. To do this, proceed as follows:

1. Pour 0.5 to 1.0 ml of tap water or distilled water mixed with vinegar (1/4 vinegar and 3/4 distilled water) into the opening of the mesh atomiser (2). To avoid leakage through the lateral openings, please do not overfill.
2. Press and hold the On/Off button (3) until the LED indicator (3) briefly lights up violet.

The cleaning liquid is now drawn out of the opening in the mesh atomiser into the medication container (reverse mode). During this process, droplets of this liquid can leak out of the medication container. Therefore, place some protection under the nebuliser if necessary.

Disinfection

Please carefully observe the points below when disinfecting your atomiser and accessories. We recommend disinfecting the individual parts on a daily basis after the last use as a minimum measure. You can disinfect the IH 55 and its accessories in two ways: using ethyl alcohol or boiling water. First, clean the atomiser and accessories as described in the "Cleaning" section. Then continue with the disinfection.

Important: Make sure that you do not touch the mesh (2), as this can destroy it.

Disinfection with Ethyl Alcohol (70–75%)

• Pour 8 ml of ethyl alcohol into the medication container (1). Close the container. Leave the alcohol in the container for at least 10 minutes.
• For better disinfection, shake the unit gently from side to side.
• Once this is complete, pour the ethyl alcohol out of the container.
• Repeat the process, but this time using water.
• Position the medication container (1) so that you can drip a few drops of ethyl alcohol onto the mesh (2). Leave this to work for 10 minutes.
• Then clean all the parts again under running water.

Disinfection with Boiling Water

• The medication container with mesh atomiser should be placed with the lid open into bubbling, boiling water together with the mouthpiece for 15 minutes. Contact between the parts and the hot base of the pan should be avoided.
• You can also disinfect the medication container with mesh atomiser and the mouthpiece using a standard steriliser. For more information, please see the instructions for use of the steriliser manufacturer.
• The atomiser must not be placed in the microwave.

Drying

• Dry the parts carefully using a soft cloth.
• Shake the mesh atomiser (2) gently from side to side (5–10 times), so that the water inside the mesh is removed from the tiny holes.
• Place the individual parts on a clean, dry and absorbent surface and leave them to dry completely (at least 4 hours).

Durability of Materials

• The following point should be observed when selecting the cleaning product or disinfectant: only use a mild cleaning product or disinfectant in the concentration and volume prescribed by the manufacturer.
• As with any plastic parts, the medication container with mesh atomiser and the accessories are affected by a certain amount of wear and tear when used and hygienically prepared on a frequent basis. Over time, this can lead to a change in the aerosol, which can have a negative effect on the efficiency of the therapy. We therefore recommend that you replace the medication container with mesh atomiser and the accessories after no more than a year.

Storage

• Do not store in damp conditions (such as in a bathroom) and do not transport with any damp items.
• When storing and transporting, protect from prolonged direct sunlight.

Troubleshooting — Common issues, error indicators and fixes for beurer Nebuliser IH 55

• Common problem: device won’t start. Solution: verify either the mains adaptor is correctly connected to a compatible 100–240 V supply or that 4 × AA batteries are fresh and inserted with correct polarity; ensure the medication chamber is correctly clipped into place and the device’s release clip is engaged.
• Common problem: little or no aerosol produced. Solution: check that medication volume is within the allowed range (follow manufacturer instructions), ensure the mesh atomiser is clean and not blocked — run the unit’s self‑cleaning cycle and, if needed, gently clean the mesh per manufacturer instructions (do not scratch the mesh); replace the mesh cartridge if permanently clogged.
• Common problem: noisy or irregular operation. Solution: vibrating mesh units are generally quiet; if unusual noise or vibration occurs, check for loose parts, ensure masks/mouthpiece are fitted correctly, and confirm the unit is on a flat surface. If persistent, stop using and contact support for inspection.
• Error codes and indicators: the IH 55 uses simple LED indication and automatic switch‑off rather than complex error codes; if the LED indicates a fault (or the device fails to run after correct assembly) follow the user manual steps: re‑assemble, swap power source, run self‑cleaning; if the issue persists, contact Beurer support or your supplier for service or replacement under warranty.
• Preventive measures: always follow cleaning and disinfection guidance (medication container and mouthpiece can usually be disinfected or boiled where specified; face masks often should not be boiled — consult manual), use only approved medications and volumes, run the self‑cleaning function after each use, store in the supplied box, avoid dropping the device, and use recommended adaptor or fresh batteries to avoid power faults.
• Warranty and support: Beurer typically offers manufacturer warranty coverage (regional warranty terms vary; some vendors list a 3– or 5‑year guarantee); keep the original purchase receipt and serial number for claims. For technical support or warranty service, contact Beurer customer service or your point‑of‑sale medical supplier — consult your local Beurer website or the printed manual included with the device for exact contact points and service procedures.

Pros & Cons — Honest assessment of the beurer Nebuliser IH 55

• Pros — Efficient vibrating mesh technology: Produces fine particles (<6.0 µm) with ~0.25 ml/min nebulisation performance for shorter treatment sessions and deeper lung delivery, helpful for asthma and lower airway therapy.
• Pros — Portable and dual‑power operation: Lightweight (~228 g incl. batteries) and works from mains or 4×AA batteries, making it ideal for travel and use outside the home.
• Pros — Quiet and user‑friendly: Very low noise compared with compressor nebulisers and includes a self‑cleaning function to reduce downtime between treatments.
• Cons — Lower output vs. some compressor units: At ~0.25 ml/min, the IH 55 is slower on absolute volume delivery than some high‑output compressor nebulisers, which may lengthen sessions for larger medication volumes; suitable for most uses but consider if very high flow is required.
• Cons — Mesh sensitivity and maintenance: The performance depends on keeping the mesh clean; improper cleaning or abrasive handling can damage the mesh, requiring replacement and potentially service costs.
• Value for money and alternatives: For users needing mobility, the IH 55 represents strong value due to portability, included accessories (adult/child masks, storage box) and warranty; users who prioritise highest nebulisation rate or continuous heavy home use may prefer a compressor nebuliser (e.g., jet compressors) as an alternative.

Customer reviews, ratings and real‑world feedback for beurer Nebuliser IH 55

Typical user feedback highlights quiet operation, portability and ease of use as the most praised attributes, with many users noting the convenience of battery operation for travel and the included child mask for pediatric use. Common praises: rapid, comfortable treatments and a compact storage box for accessories. Several reviewers report that the self‑cleaning function helps maintain performance between manual cleans.

Common complaints include sensitivity of the mesh to improper cleaning, occasional reduced aerosol output if residue builds up (resolved by running the self‑cleaning cycle or replacing the mesh), and that the nebulisation rate is lower than some bulkier compressor models, extending treatment time for larger medication volumes. Average star ratings on retailer pages typically fall in the good‑to‑very‑good range where available; many reviewers recommend the IH 55 for travelers and parents seeking a quiet, portable nebuliser.

Sample testimonials & star summary

• ★★★★★ — “Small, silent and ideal for trips — the battery option is great.”
• ★★★★ — “Works well for my child’s asthma; mesh needs careful cleaning, but the self‑clean helps.”
• ★★★ — “Good portability but treatments take longer than my home compressor.”
