Setup: Beurer Upper Arm Blood Pressure Monitor BM 27+ User Manual

Introduction — beurer Upper Arm Blood Pressure Monitor BM 27+

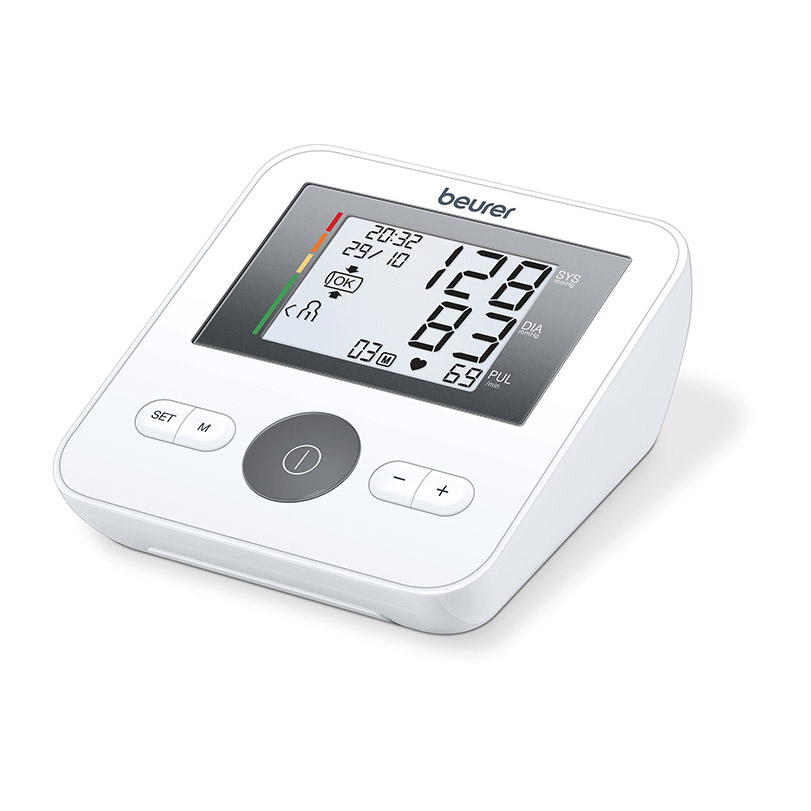

The beurer Upper Arm Blood Pressure Monitor BM 27+ is a compact, user-friendly upper-arm device designed for accurate home monitoring of blood pressure and pulse for adults. It uses oscillometric measurement technology and displays systolic, diastolic and pulse values on a large, easy-to-read display with a colour-coded WHO/LED risk indicator for fast interpretation, plus an automatic cuff-fit check and arrhythmia (irregular heartbeat) detection to help users spot potential issues quickly (ideal for routine self-monitoring and sharing results with clinicians).

Key benefits and unique selling points include automatic inflation and deflation for comfortable measuring, a cuff-fit confirmation (“OK” indicator) to reduce user error, multi-user memory (4 x 30 memory spaces) for household tracking, and a clear coloured classification scale to simplify result interpretation for non-experts.

Target audiences and use cases: adults managing hypertension or cardiovascular risk, caregivers tracking relatives’ vitals at home, and consumers who want clinically meaningful home measurements to share with doctors during consultations. The BM 27+ is also suited for older users because of its large display and simple single-button operation.

Estimated price range and availability: retail pricing typically falls into the entry-to-mid-level home monitor category; expect an approximate price range of USD/GBP/EUR equivalent for a basic upper-arm monitor (commonly stocked by medical suppliers, pharmacies and online retailers). The device is widely available from official Beurer outlets and authorised resellers in many regions.

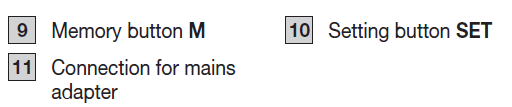

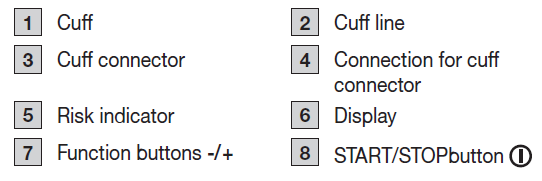

Parts

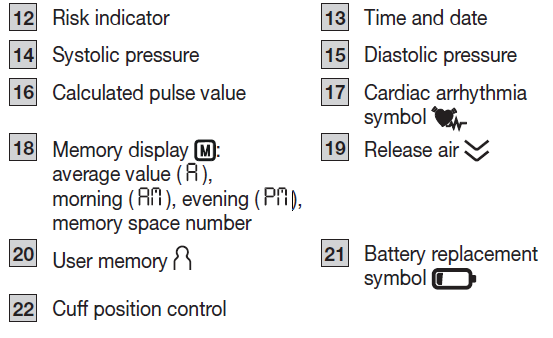

Information on the display

Specifications — Technical details & performance

• Measurement method: Oscillometric, non‑invasive upper-arm measurement (systolic, diastolic, pulse).
• Measurement ranges: Cuff pressure 0–300 mmHg; systolic 50–280 mmHg; diastolic 30–200 mmHg; pulse 40–199 beats/min (typical device ranges).
• Accuracy & display: Display accuracy typically ±3 mmHg for systolic/diastolic and ±5% for pulse; large LCD with colour/LED risk classification for quick interpretation.
• Memory & users: 4 x 30 memory spaces (store up to 120 readings across four user profiles) for trend tracking and average calculation functions.
• Cuff size & fit: Universal cuff for upper-arm circumferences ~22–42 cm; cuff-fit check indicator to confirm correct placement and improve measurement reliability.
• Features: Automatic inflation/deflation; arrhythmia/irregular heartbeat detection; average-value calculation (including 7-day averages); date/time stamp; battery low indicator; storage pouch and blood pressure passport included.
• Power: Battery operation (typically 4 × AAA) with ~300 measurements per set of batteries depending on usage.
• Dimensions & weight: Compact footprint (approx. 112 × 110 × 53 mm) and light weight (~341 g without batteries with cuff), making it portable for travel and storage.
• Standards: Marketed as a medical device; consult local regulatory listings for region-specific approvals.

Comparison with similar products: Versus basic single-user cuffs, the BM 27+ adds multi-user memory and cuff-fit confirmation; compared with high-end connected monitors it lacks integrated Bluetooth/app syncing but competes on ease-of-use, price and clear LED risk classification—making it a strong value choice for users who prioritise simplicity and reliable oscillometric measurement.

INTENDED PURPOSE

Intended Use

• The blood pressure monitor (hereinafter, the device) is intended for the fully automatic, non-invasive measurement of arterial blood pressure and pulse values on the upper arm.
• It is designed for self-measurement by adults in a domestic environment.

Intended Users

The blood pressure measurement is suitable for adult users whose upper arm circumference is within the range printed on the cuff.

Clinical Benefits

• The user can record their blood pressure and pulse values quickly and easily using the device.
• The recorded values are classified according to internationally applicable guidelines and evaluated graphically.
• Furthermore, the device can detect any irregular heartbeats that occur during measurement and inform the user via a symbol in the display.
• The device saves the recorded measurements and can also output average values of previous measurements.
• The recorded data can provide healthcare service providers with support during the diagnosis and treatment of blood pressure problems, and therefore it plays a part in the long-term monitoring of the user’s health.

Indications

• In the event of hypertension or hypotension, the user can independently monitor their blood pressure and pulse values at home.
• However, the user does not need to be suffering from hypertension or arrhythmia in order to use the device.

Contraindications

WARNING

• Do not use the blood pressure monitor on newborns, children or pets.
• Persons with reduced physical, sensory or mental capabilities should be supervised by a person responsible for their safety and receive instructions from that person on how to use the device.
• Do not use the device if you are using electrical implants (e.g. pacemakers).
• Do not use the device if you have metal implants.
• Do not use the cuff on people who have undergone a mastectomy or who have had their lymph nodes removed.
• Do not place the cuff over wounds as this may cause further injury.
• Make sure that the cuff is not placed on an arm whose arteries or veins are undergoing medical treatment, e.g. intravascular access or intravascular therapy, or an arteriovenous (AV) shunt.
• Do not use the device on people with allergies or sensitive skin.

Undesirable Side Effects

• Skin irritation.
• Negative influence on blood circulation.

WARNINGS AND SAFETY NOTES

General Warnings

• The measurements you take are for your information only – they are not a substitute for a medical examination! Discuss your measured values with your doctor and never make your own medical decisions based on them (e.g. regarding medicine doses).
• The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or incorrect use.
• Using the blood pressure monitor outside your home environment or while on the move (e.g. while travelling in a car, ambulance or helicopter, or while undertaking physical activity such as playing sport) can influence the measurement accuracy and cause incorrect measurements.
• Cardiovascular diseases may lead to incorrect measurements or have a detrimental effect on measurement accuracy.
• If you have any of the following conditions, you must consult your doctor before using the device: cardiac arrhythmia, circulatory disorders, diabetes, pregnancy, pre-eclampsia, hypotension, chills or shivering.
• Do not use the device at the same time as other medical electrical devices (ME equipment). This could cause the measuring device to malfunction and/or an inaccurate measurement.
• Do not use the device outside of the specified storage and operating conditions. This could lead to incorrect measurements.
• Only use the cuffs included in delivery or described in these instructions for use with the device. Using a different cuff may lead to inaccurate measurements.
• Note that when inflating the cuff, the functions of the limb affected may be impaired.
• Do not perform measurements more frequently than necessary. Due to the restriction of blood flow, some bruising may occur.
• Blood circulation must not be stopped for an unnecessarily long time during the blood pressure measurement. If the device malfunctions, remove the cuff from the arm.
• Place the cuff on the upper arm only. Do not place the cuff on other parts of the body.
• The air line poses a risk of strangulation for small children.
• Small parts may present a choking hazard for small children if swallowed. They should therefore always be supervised.
• Keep packaging material away from children. There is a risk of suffocation.
• Keep away from children, pets and pests.
• Do not drop, step on or shake the device.
• Do not disassemble the device as this may cause damage, faults and malfunctions.
• Do not modify the device.
• To rule out a difference between sides, the measurement should initially be taken on both arms.
• Never operate the device during maintenance work. Maintenance work includes maintenance, inspection and repair.
• Use a mains connection that is easily accessible so that the mains plug can be removed quickly if necessary.

General Precautions

CAUTION

• The blood pressure monitor is made from precision and electronic components. The accuracy of the measurements and service life of the device depend on its careful handling.
• Protect the device and its mains adapter from impacts, humidity, dirt, drastic changes in temperature and direct sunlight.
• Ensure the device is at room temperature before taking a measurement. If the measuring device has been stored close to the maximum or minimum storage and transport temperatures and is placed in an environment with a temperature of 20 °C, it is recommended that you wait approximately 2 hours before using the measuring device.
• Do not use the device in the vicinity of strong electromagnetic fields and keep it away from radio systems or mobile telephones.
• We recommend removing the batteries if the device is not going to be used for a prolonged period of time.
• Avoid any mechanical restriction, compression or bending of the cuff line.

Notes on Handling Batteries

WARNING

• Risk of explosion! Risk of fire! Failure to comply with the following points can result in personal injury or cause overheating, leakage, venting, breakage, explosion, or fire involving the battery.
• This device contains non-rechargeable batteries which must not be charged.
• Do not throw batteries into a fire.
• Never charge, forcibly discharge, heat, disassemble, open, crush, deform, encapsulate, or modify batteries.
• Never short-circuit batteries or battery compartment contacts.
• Protect the batteries from direct sunlight, rain, heat, and water.
• Exposure of batteries to an environment with extremely high temperatures or extremely low air pressure may result in explosion or leakage of flammable liquids and gases.
• Dispose of defective and discharged batteries immediately and properly (see chapter on disposal).
• Do not use modified or damaged batteries.
• Always select the correct battery type.
• Always insert the batteries correctly, taking into account the polarity (+ / -).
• Never mix batteries of different manufacturers, capacities (new and used), sizes, or types within a device.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• If fluid from a battery comes into contact with your skin or eyes, wash the affected areas with water and seek medical assistance.
• Choking hazard! Keep batteries out of the reach of children. Seek medical attention immediately if swallowed. Swallowing them may cause burns, severe internal injuries, and death.
• Never allow children to replace batteries without adult supervision.

CAUTION

• Store batteries in a well-ventilated, dry, and cool place in a non-conductive container in which the batteries cannot be short-circuited to each other or by other metal objects.
• Keep batteries clean and dry.
• Keep batteries away from water.
• If the device is not going to be used for a long period of time, remove the batteries from the battery compartment.

NOTICE

Do not use rechargeable batteries.

Notes on Electromagnetic Compatibility

CAUTION

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
• The device may not be fully usable in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.
• The use of accessories and/or replacement parts other than those specified or provided by the manufacturer of this device could lead to an increase in electromagnetic emissions or a decrease in the device’s electromagnetic immunity; this can result in faulty operation.
• Keep portable RF communication devices (including peripheral equipment, such as antenna cables or external antennas) at least 30 cm away from all device parts, including all cables included in delivery.
• Failure to comply with the above can impair the performance of the device.

 USAGE

Inserting the Batteries

• Remove the battery compartment cover on the back of the device A.
• Insert the batteries (see chapter “Technical specifications”). Insert the batteries, making sure the polarity is correct according to the label A.
• Close the battery compartment cover.

Operation with the Mains Part

You can also operate this device with a mains part (not included in delivery). However, before connecting the device with the mains part, please ensure that you have removed the batteries from the device. During mains operation, there must not be any batteries in the battery compartment, as this could damage the device.

• To avoid any potential damage, the device may only be operated with a mains part that meets the specifications described in the chapter “Technical specifications”.
• Furthermore, the mains part must only be connected to the mains voltage that is specified on the type plate.
• Insert the mains adapter into the connection provided for this purpose on the blood pressure monitor.
• Then insert the mains plug of the mains part into the mains socket.
• After using the blood pressure monitor, unplug the mains part from the mains socket first and then disconnect it from the blood pressure monitor. As soon as you unplug the mains part, the blood pressure monitor loses the date and time setting, but the saved measured values are retained.

Adjusting the Settings

Make sure that the device’s settings have been set correctly so you can make full use of all its functions. Otherwise, you will not be able to save your measured values with the date and time and access them later. There are two different ways to access the settings menu:

• Before initial use and after each time you replace the battery: When inserting batteries into the device, you will be taken to the relevant menu automatically.
• If the batteries have already been inserted: With the device switched off, press and hold the setting button SET for approximately 5 seconds.

Set these settings in the order shown below:

Time Format

The time format flashes:

• Press -/+ to select the time format.

Date

The year flashes:

• Press -/+ to select the year.

The month flashes:

• Press -/+ to select the month.

The day flashes:

• Press -/+ to select the day.

If the time format is set to the 12-hour format, the order in which the day and month are displayed is reversed.

Time

The hour flashes:

• Press -/+ to select the hour.

The minutes flash:

• Press -/+ to select the minutes.

User

The user symbol flashes:

• Press -/+ to select the user.
• The device switches off automatically.

Before the Blood Pressure Measurement

General Rules When Measuring Your Own Blood Pressure

• In order to generate an informative profile of changes in your blood pressure that can be used for comparisons, you should measure your blood pressure regularly and always at the same time of day.
• Measure your blood pressure twice a day: once in the morning after getting up and once in the evening.
• Always perform the measurement when you are sufficiently physically rested. Avoid taking measurements at stressful times.
• Do not measure within 30 minutes of eating, drinking, smoking or exercising.
• Before the initial blood pressure measurement, make sure always to rest for about 5 minutes.
• If you want to take several measurements in succession, always make sure that you leave 5 minutes between each measurement.
• Repeat the measurement if you have doubts about the measured value.

Attaching the Cuff

You can measure your blood pressure on either arm. Some deviations between the values in the right and left arm are perfectly normal. Always perform the measurement on the arm with the higher blood pressure values. Consult your doctor about this before starting self-measurement.

• Always measure your blood pressure on the same arm.
• Only use the device with the cuff supplied, based on your upper arm circumference.
• Before taking the measurement, check the fit using the index mark described below.
• Expose your upper arm. The circulation of the arm must not be hindered by tight clothing or similar.
• The cuff must be placed on the upper arm so that the bottom edge is positioned 2–3 cm above the elbow and over the artery. The line should point to the centre of the palm here B.
• The cuff should be fastened so that two fingers fit under the cuff when it is closed C.
• Now insert the cuff line into the connection for the cuff connector.
• The cuff is suitable for you if the index mark is within the OK range after fitting the cuff.

Adopting the Correct Posture

• Sit in a comfortable upright position when taking the blood pressure measurement. Lean back so that your back is supported.
• Place your arm on a surface D.
• Place your feet flat on the ground next to one another.
• The cuff must be level with your heart.
• Stay as still as possible during the measurement and do not talk.

Selecting the User

• This device can have up to 4 users with 30 memory spaces each, allowing you to separately save measurements from 4 different people. If multiple people are using the device, make sure that the correct user has been selected before each measurement:
• Use M to select the desired user.

Taking a Blood Pressure Measurement

Requirement: Cuff attached, user selected.

Measurement

• Press the Start/Stop button. All display elements are briefly displayed.
• The cuff inflates itself automatically, and the measurement process starts.
• The pulse symbol is displayed as soon as a pulse is detected.
• To cancel the measurement, press the Start/Stop button.
• The systolic pressure, diastolic pressure and pulse measurements are displayed.
• The error indicator “_” is displayed if the measurement could not be performed properly. In this case, please refer to the “Troubleshooting” section.
• If necessary, re-attach the cuff after 1 minute.
• The device switches off automatically after approximately 30 seconds.
• The measured value is saved to the selected or most recently used user.

Evaluating the results

General Information About Blood Pressure

• Blood pressure is the force with which the bloodstream presses against the arterial walls. Arterial blood pressure constantly changes in the course of a cardiac cycle.
• Blood pressure is always stated in the form of two values:
  • Systolic Blood Pressure: The highest pressure is the systolic blood pressure. This occurs when the heart muscle contracts and blood is pumped into the blood vessels.
  • Diastolic Blood Pressure: The lowest pressure is the diastolic blood pressure. This occurs when the heart muscle has completely relaxed again and the heart is filling with blood.
• Fluctuations in blood pressure are normal. Even during repeat measurements, there may be considerable differences between the measured values.
• One-off or irregular measurements therefore do not provide reliable information about the actual blood pressure. Reliable assessment is only possible when you perform the measurement regularly under comparable conditions.

Cardiac Arrhythmia

• The device can identify heart rhythm abnormalities during the blood pressure measurement.
• If the arrhythmia symbol is displayed after the measurement, this indicates that an irregularity has been detected in your pulse.
• Repeat the measurement if the arrhythmia symbol is displayed.
• When assessing your blood pressure, only use the results that have been recorded without any irregularities in your pulse.
• Consult your doctor if the arrhythmia symbol is displayed frequently. Only they can determine, through an examination, whether there is an abnormality.

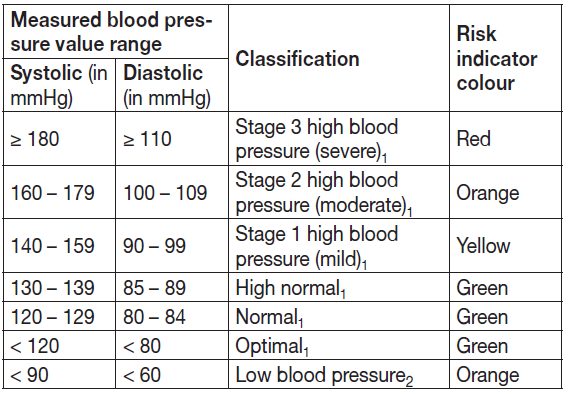

Risk Indicator

• The risk indicator 5 / 12 indicates which category the recorded blood pressure values fall into.

• If the measured values are in two different categories (e.g. systolic pressure in the “high normal” range and diastolic pressure in the “normal” range), the risk indicator always indicates the higher range – “high normal” in the example described.



Low Blood Pressure

WARNING

• Low blood pressure (hypotension) can be a health hazard and cause dizziness or fainting.
• Blood pressure is considered low if systolic and diastolic pressure are below 90/60 mmHg (source: National Health Service, 2023).
• Seek medical attention if you suddenly suffer from low blood pressure.

Displaying and Deleting Measured Values

User

• The results of every successful measurement are saved with the date and time.
• If there are more than 30 saved measurements, the oldest measurement records are deleted.
• Press the memory button M.
• Select the desired user memory by pressing the memory button M again.

Average Value

• Press +. The average value symbol flashes, and the average value of all this user's saved measured values is displayed.
• Press + again. The morning average symbol flashes, and the average value of the morning measurements for the last 7 days is displayed (morning: 5:00–9:00).
• Press + again. The evening average symbol flashes, and the average value of the evening measurements for the last 7 days is displayed (evening: 18:00–20:00).

Individual Measured Values

• Press + again to display the last individual measurement.
• Press + again to view the individual measured values.
• Press the Start/Stop button to switch the device off again.

Deleting Measured Values

• To delete the entire memory for the respective user, press the memory button M.
• Press and hold the memory button M and the setting button SET simultaneously for 5 seconds.

CLEANING AND MAINTENANCE

• Clean the device and cuff carefully using only a slightly damp cloth.
• Do not use any cleaning solutions or solvents.
• Under no circumstances hold the device or cuff under water, as this can cause liquid to enter and damage the device and cuff.
• If you store the device and cuff, do not place heavy objects on the device and cuff. The cuff line should not be bent sharply.
• Remove the batteries if the device is not going to be used for a long period of time.

Troubleshooting — Common problems, error codes and fixes

• No power/device won’t switch on: Replace batteries (device typically uses 4 × AAA) and ensure correct polarity; clean battery contacts if corroded.
• “Lo” or cuff error / poor reading: Ensure cuff is wrapped snugly on the upper arm (22–42 cm) at heart level; an “OK” cuff-fit indicator should appear—reposition and retake measurement after sitting quietly for 5 minutes.
• Irregular heartbeat alert: The monitor flags possible arrhythmia during measurement; repeat the reading after 5 minutes and consult a healthcare professional if irregularities persist.
• Inconsistent or implausible values: Check cuff placement, remain still and silent during measurement, avoid caffeine/exercise 30 minutes before testing, and measure the same arm (left preferred) at consistent times for accurate trends.
• Error symbols and fixes: Follow the device manual for specific symbols — common solutions are re-applying the cuff, replacing batteries, and retaking measurements. Persistent errors may indicate a fault requiring authorised service.
• Preventive measures: Store in supplied pouch, avoid dropping, keep cuff dry and clean, follow calibration/validation guidance from your clinician, and replace batteries when low to avoid corrupted measurements.
• Warranty & support: Beurer products typically include manufacturer warranty and local support; keep proof of purchase and serial number (on device/battery compartment). For technical support and warranty claims contact Beurer customer service or the authorised retailer from which you purchased the unit.
• Contact for help: Use the official Beurer support channels or the retailer’s support line listed on your purchase paperwork for repairs, spare cuffs or replacement parts.

Pros & Cons — Balanced assessment

• Pros — Easy, reliable home monitoring: Large, easy-to-read display and WHO/LED risk classification make results simple to understand for non-clinical users; cuff-fit check reduces measurement errors.
• Pros — Multi-user tracking: 4 × 30 memory spaces let multiple family members store readings and view averages for trend analysis without smartphone syncing.
• Pros — Comfort and safety: Automatic inflation/deflation and arrhythmia detection add comfort and early-warning capability for irregular heartbeats.
• Cons — Limited connectivity: No integrated Bluetooth/app connectivity on many BM 27 variants, so data export requires manual logging—less convenient than smart monitors.
• Cons — Mid-range precision vs validated alternatives: While clinically useful, some sources note that equivalence to MDR validation standards or specific clinical validation publications may be limited relative to top-tier validated models; users needing certified clinical-grade validation should compare published validation studies when choosing a device.
• Value for money: For users prioritising clear results, affordability and multi-user memory, the beurer Upper Arm Blood Pressure Monitor BM 27+ offers strong value; users wanting app integration or advanced analytics might consider alternative models with Bluetooth or validated clinical study backing.

Customer reviews — Real user feedback, ratings & recommendations

Typical user feedback rates the beurer Upper Arm Blood Pressure Monitor BM 27+ positively for ease-of-use, clear display and reliable everyday monitoring, often scoring 4–4.5 stars out of 5 in retailer listings. Common praises include the visible LED risk scale, cuff-fit confirmation and multi-user memory, which reviewers say make trend tracking straightforward.

Common complaints are about the lack of smartphone connectivity and occasional guidance that readings should be repeated if arm or body position is incorrect; a small number of users request more detailed clinical validation information when comparing models. Users frequently recommend the BM 27+ for home monitoring and as a budget-friendly option for families, while advising those who need app integration or clinical-grade connectivity to consider higher-tier alternatives.

Ratings & testimonials

• Average user rating: typically around 4/5 stars in consumer listings (varies by retailer).
• Sample testimonial: “Simple to use, clear colour indicator and cuff-fit help — great for daily checks.”
• Purchase recommendation: Recommended for adults seeking an affordable, easy-to-read upper-arm monitor for routine home checks; consult a clinician for interpretation of abnormal results.
