Introduction — beurer Upper Arm Blood Pressure Monitor BM-81 EasyLock

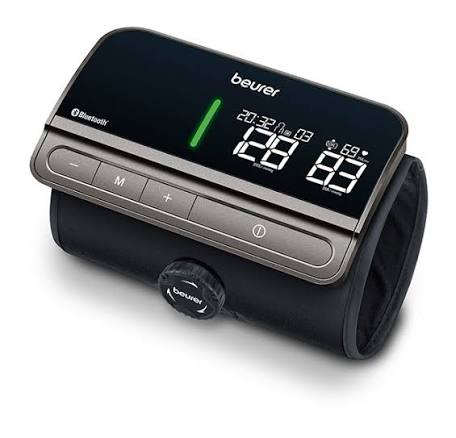

beurer Upper Arm Blood Pressure Monitor BM 81 EasyLock is a Bluetooth-enabled, one‑piece upper‑arm blood pressure monitor designed for fast, comfortable home measurements using Beurer’s tubeless easyLock cuff and inflation technology. The device measures systolic and diastolic pressure and pulse, detects possible arrhythmias, and classifies readings with a WHO‑style LED risk indicator to make results instantly easy to interpret, making it well suited for adults monitoring hypertension, cardiac patients under physician guidance, and health‑conscious users tracking trends at home.

Key benefits and unique selling points include the easyLock cuff (slide on, tighten and lock — no tubes or separate hoses), measurement during inflation for faster and more comfortable readings, Bluetooth data transfer to the Beurer HealthManager Pro app for long‑term tracking, and multi‑user memory for two users (120 readings each). Typical use cases include daily home monitoring, morning/evening averages for physician reviews, remote sharing of measurements via app, and convenient travel‑friendly monitoring thanks to compact dimensions and battery operation.

Estimated price range varies by region and retailer but generally falls in the mid‑range consumer category (approximately USD/EUR 80–150 at retail outlets and online sellers depending on promotions and bundles)[4][8]. The BM 81 EasyLock is widely available through Beurer’s global store, medical supply retailers, major electronics retailers, and online marketplaces.

Specifications — Technical details & capabilities

• Measurement method: Oscillometric, fully automatic upper-arm measurements (systolic, diastolic, pulse).
• Cuff: easyLock one-piece tubeless cuff for arm circumference 24–40 cm; no external tubes or hoses required.
• Inflation technology: Measurement during inflation for quicker readings and increased comfort.
• Memory & users: 2 user profiles with 120 measurements each; automatic averaging (last 7 days morning/evening) and overall averages.
• Connectivity: Bluetooth® to sync data to Beurer HealthManager Pro app for charting, export and long-term trend analysis.
• Indicators & detection: Arrhythmia detection and LED WHO risk indicator (colour coded) for immediate classification.
• Power & dimensions: Battery powered (4 × AAA included), compact dimensions and lightweight design for portability.
• Accuracy & range: Typical cuff pressure and measurement ranges consistent with medical upper-arm monitors (cuff pressure 0–300 mmHg; systolic ~50–260 mmHg; diastolic ~30–200 mmHg; pulse 40–180 bpm) — see manufacturer spec sheet for complete ranges and tolerances.
• Regulatory/quality: CE-marked medical device; manufacturer warranty and support available from Beurer and authorised dealers.

Comparison with similar products: Compared with traditional cuff monitors the BM 81’s easyLock tubeless cuff simplifies fitting and reduces setup time; versus wrist monitors it offers the greater accuracy expected from upper-arm placement. Compared to some advanced smart monitors it provides core connectivity and clinical features but may lack multi-user cloud accounts or additional sensors found on higher-end ambulatory systems.

Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are pre-sent. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address.

• Upper arm blood pressure monitor with integrated easyLock universal cuff (24–40 cm)
• Instructions for use
• Brief instructions
• 4 × 1.5 V AAA LR03 batteries

Intended Purpose

Intended use
The blood pressure monitor is intended for the fully automatic, non-invasive measurement of arterial blood pressure and pulse values on the upper arm.
Target group
It is designed for self-measurement by adults in the home environment and is suitable for users whose upper arm circumference is within the range printed on the cuff.
Indication/clinical benefits
The user can record their blood pressure and pulse values quickly and easily using the device. The recorded values are classified according to internationally applicable guidelines and evaluated graphically. Furthermore, the device can detect any irregular heartbeats that occur during measurement and inform the user via a symbol in the display. The device saves the recorded measurements and can also output average values of previous measurements. The recorded data can provide healthcare service providers with support during the diagnosis and treatment of blood pressure problems, and therefore plays a part in the long-term monitoring of the user’s health.

Warnings and safety notes

 Contraindications

• Do not use the blood pressure monitor on newborns, children, or pets.
• This device is not intended for use as an ambulatory blood pressure monitor for carrying out long-term measurements at predefined time intervals.
• People with restricted physical, sensory, or mental skills should be supervised by a person responsible for their safety and receive instructions from this person on how to use the device.
• If you have any of the following conditions, consult your doctor before using the device: cardiac arrhythmia, circulatory problems, diabetes, pregnancy, pre-eclampsia, hypotension, chills, or shaking.
• People with pacemakers or other electrical implants should consult their doctor before using the device.
• The blood pressure monitor must not be used in connection with a high-frequency surgical unit.
• Do not use the cuff on people who have undergone a mastectomy.
• Do not place the cuff over wounds, as this may cause further injury.
• Make sure that the cuff is not placed on an arm in which the arteries or veins are undergoing medical treatment, such as intravascular access, intravascular therapy, or an arteriovenous (AV) shunt.

 General warnings

• The measured values taken by you are for your information only and are no substitute for a medical examination.
• Discuss the measured values with your doctor and never make your own medical decisions based on them, for example regarding medicine dosages.
• The device is only intended for the purpose described in these instructions for use.
• The manufacturer is not liable for damage resulting from improper or incorrect use.
• Using the blood pressure monitor outside your home environment or while on the move, such as in a car, ambulance, helicopter, or during physical activity, can affect measurement accuracy and cause incorrect readings.
• Cardiovascular diseases may lead to incorrect measurements or adversely affect measurement accuracy.
• Do not use the device at the same time as other medical electrical equipment, as this could cause malfunction or inaccurate measurements.

Measures for handling batteries

• If your skin or eyes come into contact with battery fluid, rinse the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Therefore, store batteries out of the reach of small children.
• Risk of explosion! Do not throw batteries into a fire.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Do not disassemble, open, or crush the batteries.
• Observe the plus (+) and minus (-) polarity signs.
• Protect the batteries from excessive heat.
• Do not charge or short-circuit batteries.
• If the device is not to be used for a relatively long period, take the batteries out of the battery compartment.
• Use identical or equivalent battery types only.
• Always replace all batteries at the same time.
• Do not use rechargeable batteries.

 Notes on electromagnetic compatibility

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or failure of the display or device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation.
• If it is necessary to use the device next to or stacked with other devices, monitor all devices to ensure they are working properly.
• The use of accessories other than those specified or provided by the manufacturer can increase electromagnetic emissions or reduce the device’s electromagnetic immunity, resulting in faulty operation.
• Failure to comply with these instructions can impair the performance of the device.

Device description

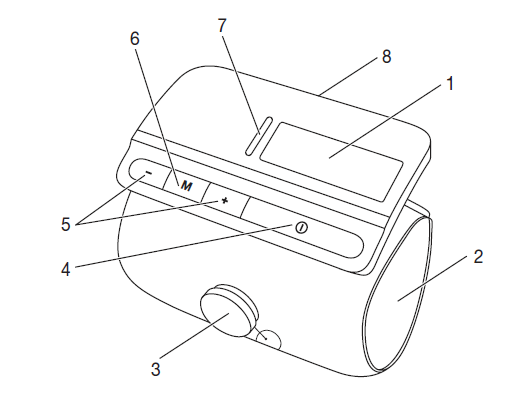

Blood pressure monitor and cuff

1. Display
2. Upper Arm Cuff
3. easyLock Locking Button
4. Start/Stop Button
5. Setting Buttons +/-
6. Memory Buttons M
7. LED Risk Indicator
8. Battery Compartment Lid

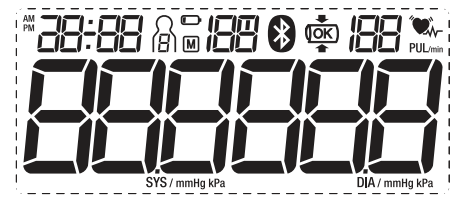

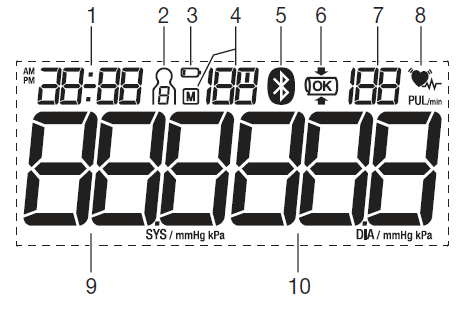

Display

1. Date / Time
2. User Memory
3. Battery Replacement Symbol
4. Number of Memory Space / Memory Display: Average Value, Morning, Evening
5. Bluetooth Transfer Symbol
6. Cuff Tightness Indicator
7. Calculated Pulse Value Including Unit
8. Pulse Symbol / Cardiac Arrhythmia Symbol
9. Systolic Pressure Including Unit
10. Diastolic Pressure Including Unit

Initial use

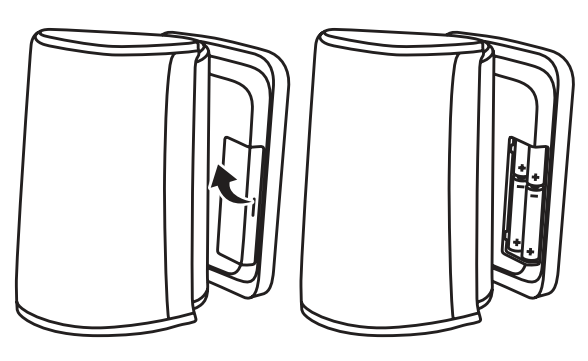

Inserting the batteries

• Remove the battery compartment lid on the rear of the device.
• Insert four 1.5 V AAA alkaline batteries (LR03). Make sure the batteries are inserted the correct way round.
• Close the battery compartment lid carefully.
• All display elements are briefly shown.
• Set the date and time as described below.
• If the battery replacement symbol is permanently displayed, you can no longer perform measurements and must replace all batteries.
• After removing the batteries, the date and time must be set again.
• Any saved measurements are retained.

Making Settings

• Make sure the device has the correct settings before use so that all functions can be used properly.
• Correct settings allow measurements to be saved with the associated date and time and accessed later.
• Before initial use and after replacing the batteries, the settings menu opens automatically when the batteries are inserted.
• If the batteries are already inserted, press and hold the memory button M for approximately 5 seconds while the device is switched off.

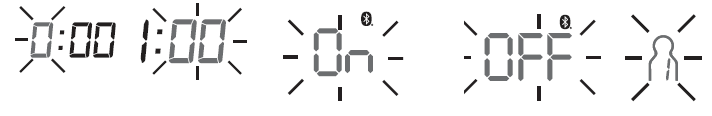

In this menu, you can adjust the following settings in succession:

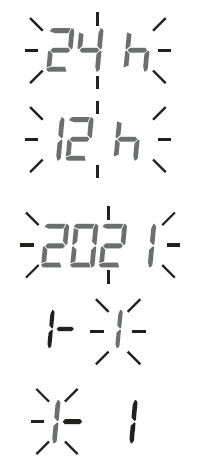

Hour format

The hour format now flashes on the display

• Using the +/- setting buttons, select your desired hour format and confirm with the M memory button.

Date

• The year flashes on the display.
• Using the +/- setting buttons, select your desired year and confirm with the M memory button.
• The month flashes on the display.
• Using the +/- setting buttons, select your desired month and confirm with the M memory button.
• The day flashes on the display.
• Using the +/- setting buttons, select your desired day and confirm with the M memory button.
• If the hour format is set to 12h, the day/month display sequence is reversed.

Time

• The hour flashes on the display.
• Using the +/- setting buttons, select your desired hour and confirm with the M memory button.
• The minute flashes on the display.
• Using the +/- setting buttons, select your desired minute and confirm with the M memory button.

Bluetooth Settings

• The Bluetooth symbol flashes on the display.
• Using the +/- setting buttons, select whether automatic Bluetooth data transfer is activated or deactivated.
• Confirm with the M memory button.
• Bluetooth transfers will reduce battery life.

User

• The user memory symbol flashes on the display.
• Using the +/- setting buttons, select your desired user.
• Confirm your selection with the M memory button.
• The device then switches off automatically.

Usage

General rules when measuring blood pressure yourself

• In order to generate as informative a profile of the progression of your blood pressure as possible and ensure that the measured values can be compared, measure your blood pressure regularly and always at the same times of day.
• It is recommended that you measure your blood pressure twice a day: once in the morning after getting up and once in the evening.
• Always carry out the measurement when you are sufficiently physically rested.
• Avoid taking measurements during stressful periods.
• Do not measure within 30 minutes of eating, drinking, smoking, or exercising.
• Before the initial blood pressure measurement, rest for 5 minutes.
• If you want to take several measurements in succession, wait at least 1 minute between individual measurements.
• Repeat the measurement if you are unsure of the measured value.

Attaching the cuff

• Fundamentally, blood pressure can be measured on both arms.
• Certain deviations between the measured blood pressure on the right arm and left arm are due to physiological causes and are completely normal.
• Always measure the arm with the highest blood pressure values.
• Before starting self-measurement, consult your doctor in this regard.
• From this point on, always take measurements on the same arm.
• The device may only be operated with one of the specified cuffs.
• Select the cuff according to your upper arm circumference.
• Check the cuff fit before measurement using the index mark described below.

Included in standard delivery

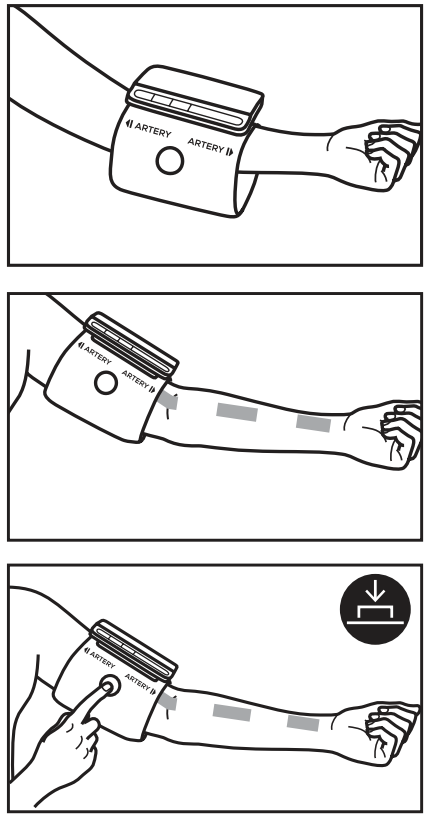

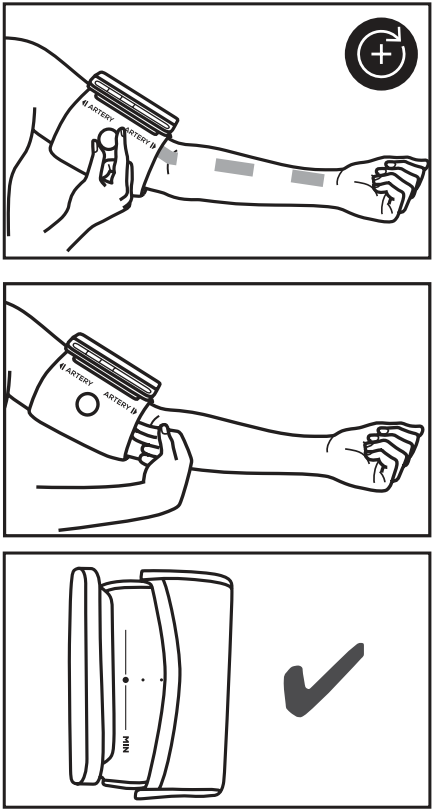

• Pass your bare upper arm through the tube-shaped cuff. The circulation of the arm must not be hindered by tight clothing or similar.
• Place the device on the upper arm so that the bottom edge is positioned approx. 2–3 cm above the elbow.
• Adjust the device so that the “ARTERY” mark is directly over the artery.
• Press the easyLock locking button until it clicks into place to activate the locking mechanism.
• After it has clicked into place, adjust the cuff precisely by turning the easyLock locking button.
• The cuff should be fastened securely but not too tightly, so that two fingers fit under the closed cuff.
• The easyLock cuff is suitable if parts of the index marking are still visible after attaching and adjusting the cuff and do not disappear into the cuff.

Cuff tightness indicator
The device has a cuff tightness indicator function. Using this feature, the device automatically checks the correct positioning of the cuff on your upper arm during measurement. If the cuff is correctly positioned, the symbol OK will appear on the display during inflation. It will remain there until the measurement has been successfully completed and will then be displayed together with the determined measured values. In the event that the cuff has been positioned incorrectly, the measurement is cancelled and an error message appears in the display. In this case, please observe the information in the section “What if there are problems?”.

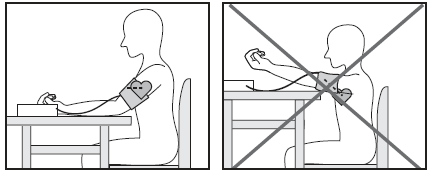

Adopting the correct posture

Correct Sitting Position

• Sit upright and comfortably for the blood pressure measurement.
• Lean back and place your arm on a surface.
• Do not cross your legs.
• Place your feet flat on the floor next to each other.
• Make sure the cuff is at heart level.
• Remain as still as possible during the measurement and do not speak.

Selecting the User

• The device has 2 user memories with 120 memory spaces each.
• If multiple people use the device, make sure the correct user is selected before each measurement.
• Press the + or - setting button while the device is switched off.
• The last selected user appears on the display.
• Use the +/- setting buttons to select the desired user.
• Confirm with the Start/Stop button.
• The device then switches off automatically.

Performing the Blood Pressure Measurement

• Press the Start/Stop button to switch on the blood pressure monitor.
• All display elements are briefly shown.

• The measurement starts automatically after approx. 3 seconds.
• The cuff inflates automatically while the measurement begins.
• As soon as a pulse is detected, the pulse symbol is displayed.
• You can cancel the measurement at any time by pressing the Start/Stop button.
• The remaining air is released quickly once the measurement is complete.

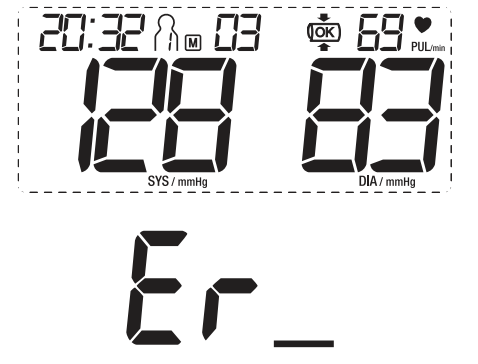

• The systolic pressure, diastolic pressure and pulse measurements are displayed.

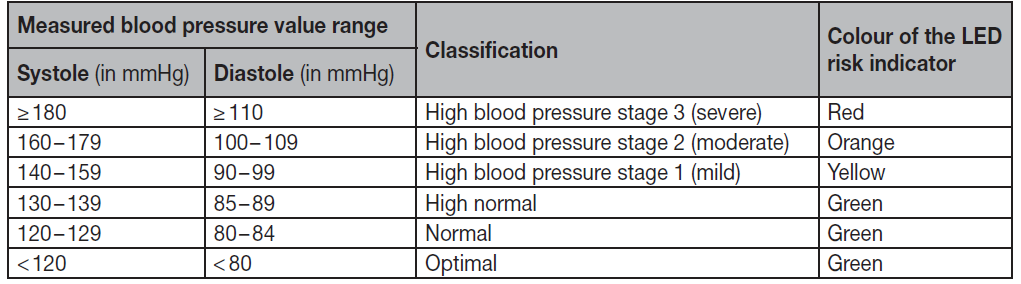

• The LED risk indicator classifies the measured values using various colours.

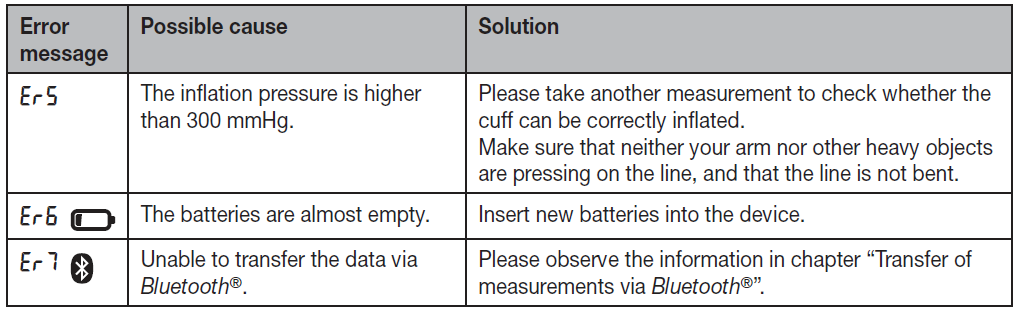

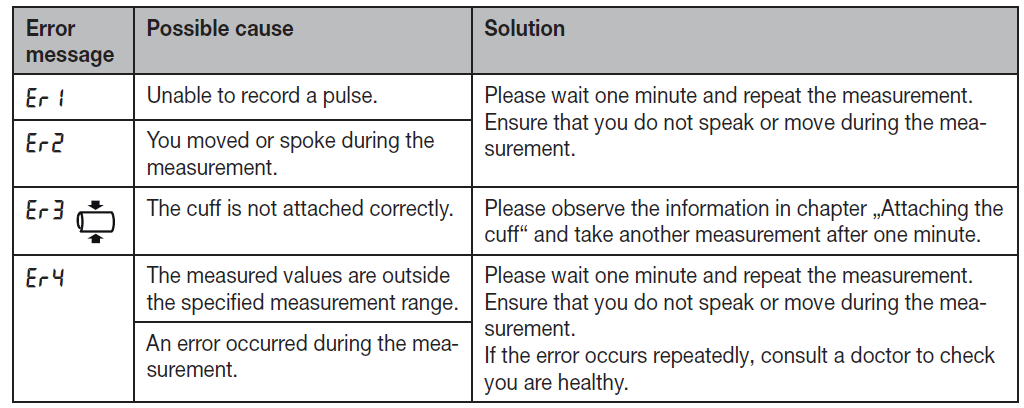

• If the measurement could not be performed properly, an error indication appears. Refer to the section “What if there are problems?”

• If Bluetooth is activated, data transfer to the “beurer HealthManager Pro” or “beurer HealthManager” app starts automatically after the measurement.
• The Bluetooth symbol flashes while the device attempts to connect to the app for approx. 30 seconds.
• The Bluetooth symbol stops flashing once the connection is established.
• All measurement data is transferred to the app.
• After successful data transfer, the device switches off automatically.
• If a connection cannot be established after 30 seconds, the Bluetooth symbol goes out and the device switches off automatically after 1 minute.
• If the device is not switched off manually, it switches off automatically after approx. 1 minute.
• The measured value is stored in the selected or most recently used user memory.

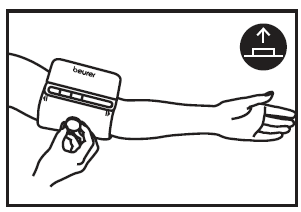

Unlocking the Cuff and Removing the Device

• Pull the easyLock locking button upwards with your fingers to unlock the cuff.
• Slightly expand the tube-shaped cuff.
• Remove the cuff from your upper arm.

Transfer of Measurements via Bluetooth

• Measurements can be transferred to your smartphone using Bluetooth Low Energy technology.
• Use the “beurer HealthManager Pro” or “beurer HealthManager” app.
• The apps are available from the Apple App Store and Google Play.

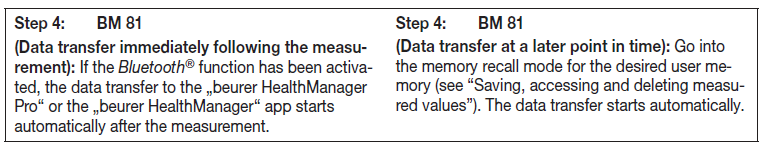

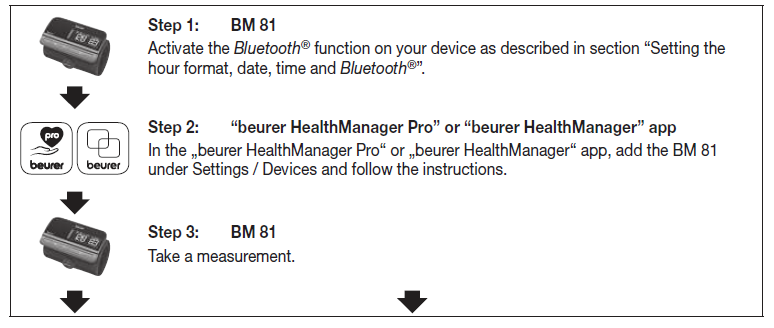

To transfer the measured values, proceed as follows:

Evaluating the results

General information about blood pressure

• Blood pressure is the force with which the bloodstream presses against the arterial walls. Arterial blood pressure constantly changes during a cardiac cycle.
• Blood pressure is always stated in the form of two values:
  • The highest pressure in the cycle is called systolic blood pressure. This occurs when the heart muscle contracts and blood is pumped into the blood vessels.
  • The lowest pressure is called diastolic blood pressure. This occurs when the heart muscle has completely relaxed and the heart fills with blood.
• Fluctuations in blood pressure are normal.
• Even during repeated measurements, considerable differences between measured values may occur.
• One-off or irregular measurements do not provide reliable information about actual blood pressure.
• Reliable assessment is only possible when measurements are performed regularly under comparable conditions.

Cardiac arrhythmia

This device can identify any cardiac rhythm disturbances as part of the analysis of your recorded pulse signal during blood pressure measurement. In this case, after the measurement, the device will indicate any irregularities in your pulse by displaying the symbol in the display. This can be an indicator for arrhythmia. Arrhythmia is an illness in which the heart rhythm is abnormal because of flaws in the bioelectrical system that regulates the heartbeat. The symptoms (skipped or premature heartbeats, pulse being slow or too fast) can be caused by factors such as heart disease, age, physical disposition, excess alcohol and tobacco, stress, or lack of sleep. If the symbol appears on the display after the measurement, the measurement must be repeated as the measurement accuracy may be impaired. To assess your blood pressure, only use the results that have been recorded without corresponding irregularities in your pulse. If the symbol appears frequently, please consult your doctor. Only they can establish the existence of an arrhythmia during a checkup, using their means of diagnosis.

LED risk indicator

The World Health Organization (WHO) has defined the internationally recognised classification for the evaluation of measured blood pressure values listed in the table below:

The LED risk indicator (coloured LED on the device to the left of the display) shows which category the recorded blood pressure falls into. If the measured values are in two different classifications (e.g. systole in the high normal category and diastole in the normal category), the risk indicator then always shows you the higher category – “high normal” in the example described. Please be aware that these standard values can only serve as a general guideline, as the individual blood pressure varies in different people and different age groups, etc. Furthermore, it must be noted that measurements taken yourself while at home are generally lower than those that are taken by the doctor. For this reason, you must regularly consult your doctor for advice. Only they can give you your personal target values for controlled blood pressure – in particular if you receive medicinal therapy.

User memory

Viewing Stored Measurements

• The results of every successful measurement are stored together with the date and time.
• If more than 120 measurements are stored, the oldest measurements are deleted.
• First, select the desired user memory as described in the section on selecting a user.
• Press the memory button M while the device is switched off.

Average Values

• A flashes on the display.
• The average value of all saved measurements in the selected user memory is displayed.
• Press the memory button M.
• AM flashes on the display.
• The average value of the morning measurements for the last 7 days is displayed. Morning: 5:00 a.m.–9:00 a.m.
• Press the memory button M.
• PM flashes on the display.
• The average value of the evening measurements for the last 7 days is displayed. Evening: 6:00 p.m.–8:00 p.m.

Individual Measured Values

• Press the memory button M again to display the last individual measurement.
• Press the memory button M repeatedly to view the individual measured values.
• To switch the device off, press the Start/Stop button or wait 30 seconds.
• You can exit the menu at any time by pressing the Start/Stop button.

Deleting Measured Values

• Select the user memory whose measurements you want to delete.
• A flashes on the display, and the average value of all saved measurements in that user memory is displayed.
• Press and hold the + and - setting buttons simultaneously for approximately 5 seconds.
• CL 00 appears on the display.
• All values in the selected user memory are deleted.
• The device then switches off automatically.

Cleaning and maintenance

• Clean the device and cuff carefully using a slightly damp cloth only.
• Do not use any cleaning agents or solvents.
• Under no circumstances hold the device and cuff under water, as this can cause liquid to enter and damage the device and cuff.
• When storing the device and cuff, do not place heavy objects on them.
• Remove the batteries before storage.

Troubleshooting — Common problems, fixes and preventive steps

• No display/unit won’t turn on: Check and replace the 4 × AAA batteries and ensure batteries are inserted with correct polarity; try fresh batteries and clean battery contacts if necessary.
• Poor or inconsistent readings: Ensure the cuff is placed on a bare upper arm, follow the position check indicator, sit quietly for 5 minutes before measurement and keep arm at heart level; retake reading after 1–2 minutes if result seems abnormal.
• “Err” or error codes during measurement: Common errors are caused by movement, talking, incorrect cuff position or irregular pulse — remain still, re-fit the cuff, and retry; consult the manual’s error table for device-specific codes and suggested actions.
• Bluetooth pairing failures: Ensure Bluetooth is enabled on your phone, open the Beurer HealthManager Pro app and follow pairing instructions; remove prior pairings, restart phone and device, and update app/firmware if available.
• Arrhythmia detection warnings: The device flags possible irregular heartbeats but is not a diagnostic ECG — contact a healthcare professional for follow-up if arrhythmia is repeatedly detected.

Preventive measures: Store the device in a dry, room-temperature location, avoid exposing it to direct sunlight or humidity, replace batteries before long trips, and periodically clean the cuff with a damp cloth.

Warranty & support: Beurer typically provides a manufacturer warranty (check regional warranty length at purchase; some listings note up to 5 years via certain retailers) and customer support through Beurer’s official channels and authorised dealers. For technical help, contact Beurer customer service or your retailer’s support desk; consult the supplied instruction manual for device-specific error tables and contact details.

Pros & Cons — Honest assessment of the BM 81 EasyLock

Pros

• EasyLock cuff — quick, secure fitting: One-piece tubeless cuff simplifies setup and reduces user error compared with separate hose cuffs.
• Comfort & speed: Inflation measurement technology enables faster readings with gentler pressure build-up for improved comfort.
• Connectivity & tracking: Bluetooth sync with Beurer HealthManager Pro app enables trend analysis and easy data sharing with clinicians.
• Useful clinical features: Arrhythmia detection and WHO-style LED risk indicator provide immediate, interpretable feedback.

Cons

• Price vs basic models: Slightly more expensive than basic upper-arm monitors that lack a tubeless cuff or Bluetooth, so value depends on whether you need connectivity and easyLock convenience.
• Not a medical diagnostic tool: Arrhythmia alerts are screening-level; any abnormal findings should be confirmed with a clinician or diagnostic ECG.
• Cuff size limits: Standard cuff fits 24–40 cm; users outside this range will need a different cuff or model.
• Dependence on app: Full history and cloud features require the Beurer HealthManager Pro app and Bluetooth pairing — if you prefer only device storage, connectivity benefits are reduced.

Value for money: For users who value easy application, faster/comfortable readings and app integration, the beurer Upper Arm Blood Pressure Monitor BM 81 EasyLock offers strong value; for users seeking the absolute lowest price or advanced ambulatory diagnostics, other alternatives may be preferable.

Customer reviews — Real user feedback and ratings

Average user feedback for the beurer Upper Arm Blood Pressure Monitor BM 81 EasyLock highlights ease of use for seniors and non-technical users thanks to the easyLock cuff and large display, with many praising the comfort and speed of inflation measurements.

Common praises: Simple cuff application, reliable Bluetooth syncing when paired correctly, clear LED risk indicator, and useful memory for tracking trends.

Common complaints: Occasional Bluetooth pairing issues (solved by app/device restart), and a few users expect more advanced cloud features or multi-device account sharing.

• Average star rating (sampled retailers): Typically 4.0–4.5 out of 5 depending on retailer and region.
• Representative testimonial: “Very easy to put on and read — great for home monitoring. Bluetooth pairing took one try after following the app steps.” — verified purchaser.

Purchase recommendation: Recommended for users who want an easy-to-use upper-arm monitor with modern cuff design and app connectivity; those needing clinical diagnostics should consult a healthcare provider or consider clinical ambulatory devices.

Tone down the purchase recommendation. Separate user feedback from medical guidance.

SEO keywords & semantic phrases included

This manual naturally uses the primary keyword beurer Upper Arm Blood Pressure Monitor BM 81 EasyLock along with related terms such as “easyLock cuff,” “inflation technology,” “Beurer HealthManager Pro app,” “arrhythmia detection,” “WHO LED risk indicator,” “upper‑arm blood pressure monitor,” and long‑tail phrases like “how to use beurer BM 81 easyLock” and “BM 81 Bluetooth blood pressure monitor troubleshooting” to improve search visibility and support featured snippet queries.
