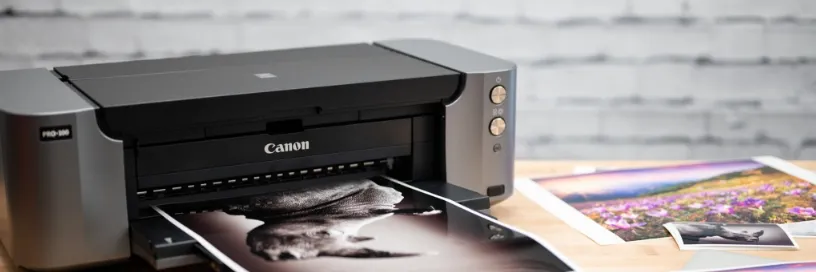

Canon PIXMA Introduction

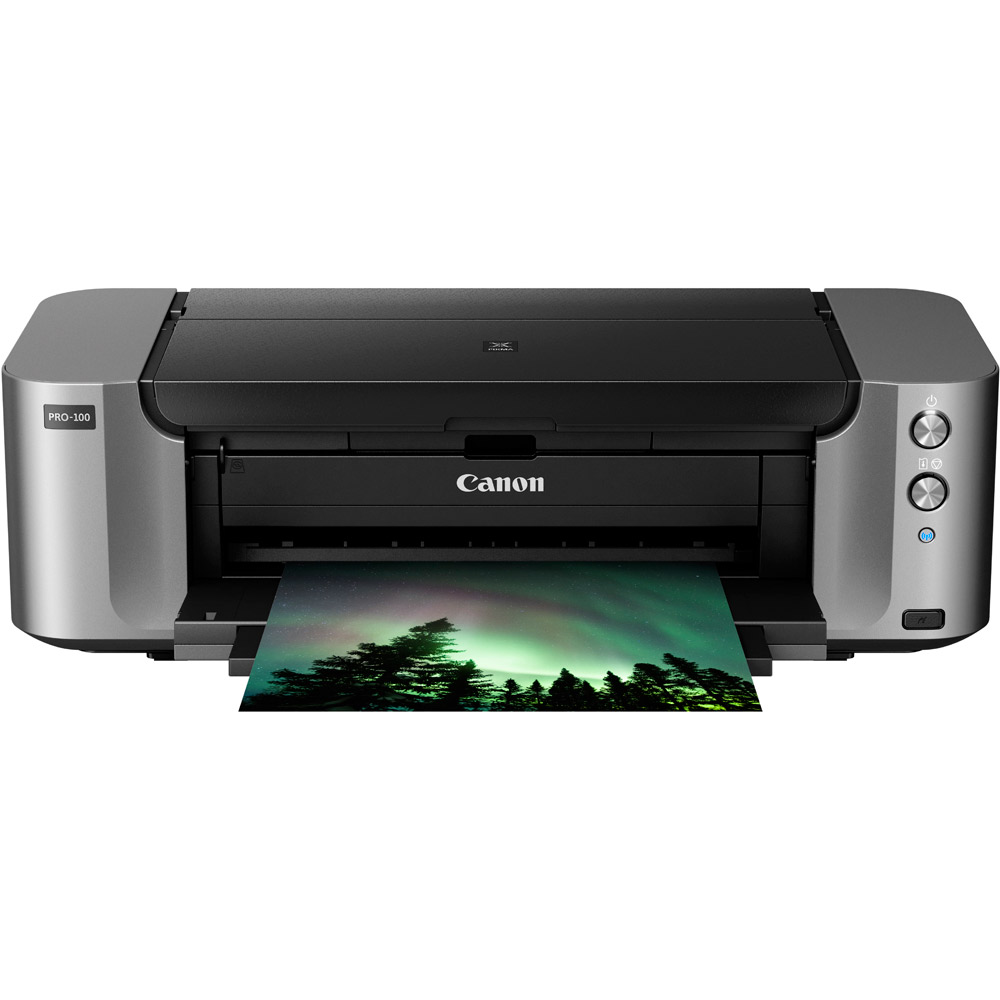

The Canon PIXMA PRO-100 Printer is a high-quality printer designed for photography enthusiasts and professionals. This printer offers a wide color gamut, deep blacks, and exceptional photo printing performance. With a sleek and compact design, the PRO-100 is an excellent choice for those who want to produce stunning photos from the comfort of their homes or small studios. The printer is estimated to be priced around $400 to $500 and was launched in 2013.

Detailed Specifications

The Canon PIXMA PRO-100 Printer features a dye-based ink system with 8 individual ink tanks, including Gray and Light Gray. It has a maximum resolution of 4800 x 1200 dpi, and a print speed of up to 2.8 minutes for a borderless 4x6 inch photo. The PRO-100 also features a 2.5-inch LCD screen, USB and Wi-Fi connectivity, and can handle media sizes up to 13 x 19 inches.

Description of Canon PIXMA PRO-100 Printer

It is an excellent choice for photographers who want to produce high-quality prints. This printer offers a wide color gamut and deep blacks, making it ideal for printing photos with stunning detail and vibrant colors. With its compact design and Wi-Fi connectivity, the PRO-100 is also an excellent choice for small studios or home use. The printer's LCD screen and intuitive interface make it easy to use, and its individual ink tanks allow for cost-effective printing.

Setup Guide

To set up the Canon PIXMA PRO-100 Printer, follow these steps:

1. Unpack the printer and remove any packaging materials.
2. Install the ink tanks and print head, following the instructions provided in the user manual.
3. Connect the printer to a power source and turn it on.
4. Install the Canon printing software on your computer, following the instructions provided in the user manual.
5. Connect the printer to your computer using USB or Wi-Fi, following the instructions provided in the user manual.

Network Connection of Canon PIXMA PRO-100 Printer

1. Wireless Connection: Preparation for Connection Connection Using WPS
2. Wired Connection: Preparation for Connection Cable Connection Printer Setup

Preparation for Connection

Before Starting Wireless Connection Setup

Make sure that the printer is turned on. If the power is on, the POWER lamp (A) will be lit.

Notes on Wireless Connection

• Make sure that the computer is connected to the access point (A) (or wireless network router) you want to connect your printer to.



• The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to the manual of your network device or contact its manufacturer.
• Check if your device supports IEEE802.11n, 802.11g or 802.11b.
• If your device is set to the "IEEE802.11 n only" mode, WEP or TKIP cannot be used as a security protocol. Change the security protocol for your device to something other than WEP and TKIP or change the setting to something other than  “IEEE802.11 n only.”
• For office use, consult your network administrator.
• Take added care when connecting to a network that is not protected with security measures, as there is a risk of disclosing data such as your personal information to a third party.
• This printer cannot be used over wireless and wired connections at the same time.
• An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without an access point, is not supported. Be sure to prepare an access point.

Connection Using WPS

1. Press and hold the Wi-Fi button (A) on the printer when you are ready to press the button on the access point.



2. Make sure that the (blue) Wi-Fi lamp fl ashes quickly and the POWER lamp is lit as shown in the illustration above, then press and hold the button on the access point within 2 minutes.

3. Make sure that the (blue) Wi-Fi lamp and POWER lamp are lit.



The network connection setup is now complete.

Wired Connection

Preparation for Connection

Before Starting Wired Connection Setup

Make sure that the printer is turned on. If the power is on, the POWER lamp (A) will be lit.

Notes on Wired Connection

1. Make sure that the computer and router (A) (or access point) are connected.



2. The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to the manual of your network device or contact its manufacturer.
3. For office use, consult your network administrator.
4. Take added care when connecting to a network that is not protected with security measures, as there is a risk of disclosing data such as your personal information to a third party.
5. This printer cannot be used over wireless and wired connections at the same time.
6. When using a router, connect the printer and computer to the LAN side (same network segment).

Cable Connection

You will need an Ethernet cable (sold separately).

1. Remove the Cap (A) from the upper port located on the right side at the back of the printer.



2. Connect the printer and a network device (router, etc.) with an Ethernet cable (A). Please make sure to use the correct port on the back of the printer. Do not connect it to the USB port.



Printer Setup for Canon PIXMA PRO-100 Printer

Hold down the RESUME/CANCEL button (A) on the printer until the POWER lamp flashes 11 times, then release the RESUME/CANCEL button after the eleventh flash. The wired connection setup is complete.

The network connection setup is now complete.

Troubleshooting PRO-100 Printer

If you experience any issues with the Canon PIXMA PRO-100 Printer, try the following troubleshooting steps:

1. Make sure the printer is turned on and properly connected to your computer.
2. Check that the ink levels are sufficient and that the print head is properly aligned.
3. Clean the print head and nozzles, following the instructions provided in the user manual.
4. Restart the printer and try printing again.
5. Contact Canon support if the issue persists.

WPS about Canon PIXMA PRO-100 Printer

1. When the (blue) Wi-Fi lamp flashes slowly and the (orange) Alarm lamp is lit



   • Press the button on only one access point. Check the security settings of the access point.
   • After checking the above points, wait for a while and configure wireless connection setting again.
   • For details on how to check the security settings of the access point, refer to the manual supplied with the access point or contact its manufacturer.

2. When the (blue) Wi-Fi lamp flashes quickly and the (orange) Alarm lamp is lit



   • Is the network device (router, etc.) turned on? If the network device is already turned on, turn it off, then turn it back  on.
   • Are the computer and network device configured?
   • Are the access point and printer installed in an open space where wireless communications are possible?
   • Is the access point operating in IEEE802.11n (2.4 GHz), IEEE802.11g or IEEE802.11b?
   • Wait for a while, then bring the access point and printer close to each other, and configure wireless connection settings again within a specified time.
   • For details on how to check the settings of the access point, refer to the manual supplied with the access point or contact its manufacturer.
3. To configure wireless connection settings again

   • To configure wireless connection settings again, press the RESUME/CANCEL button (A).



Pros & Cons

Pros

• Wide color gamut and deep blacks
• Compact and sleek design
• Wi-Fi connectivity
• Cost-effective individual ink tanks
• Intuitive LCD screen and interface

Cons

• Slow print speed for borderless photos
• May require frequent ink replacements
• No auto-duplex printing feature
• No Ethernet connectivity

Customer Reviews about Canon PIXMA

Customers have praised the Canon PIXMA PRO-100 Printer for its stunning photo printing quality and wide color gamut. However, some have criticized its slow print speed for borderless photos and the need for frequent ink replacements. Overall, the PRO-100 has received positive reviews for its compact design, Wi-Fi connectivity, and cost-effective individual ink tanks.
