Setup: Dyson Outsize Vacuum Cleaner User Manual

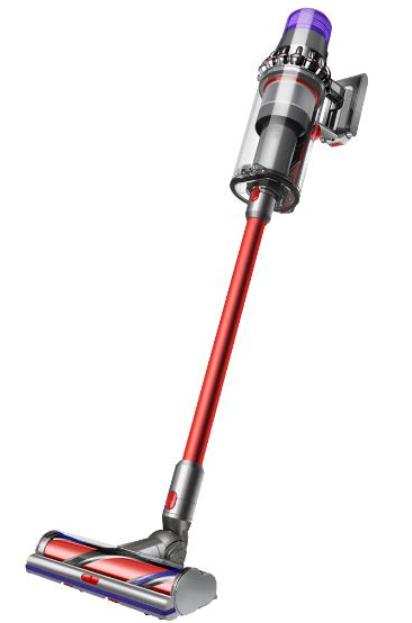

Dyson Outsize Vacuum Cleaner

Introduction

The Dyson Outsize Vacuum Cleaner redefines cordless cleaning with its robust power and oversized design, tailored for large homes and deep cleaning needs. Engineered to deliver exceptional coverage, it features a 25% wider cleaner head and an impressive 150% bigger dust bin compared to standard models, allowing users to clean more surface area with fewer interruptions. Its powerful motor, combined with intelligent sensors, automatically adjusts suction across floor types, providing optimized cleaning performance on carpets and hard floors alike.

This vacuum is ideal for families, pet owners, and anyone dealing with spacious environments or heavy debris accumulation. Whether tackling everyday dust, pet hair, or stubborn dirt, the Dyson Outsize offers a convenient, cord-free experience with up to 120 minutes of fade-free runtime thanks to its dual detachable batteries. The hygienic “point-and-shoot” bin emptying system lets users dispose of debris without contact, enhancing cleanliness and ease of use.

Available through Dyson's official retailers and online stores, the Dyson Outsize Vacuum Cleaner typically ranges between $600 and $750, reflecting its premium build and performance advantages over smaller cordless models. It is a perfect solution for those seeking powerful, long-lasting cleaning with advanced technology and ergonomic design.

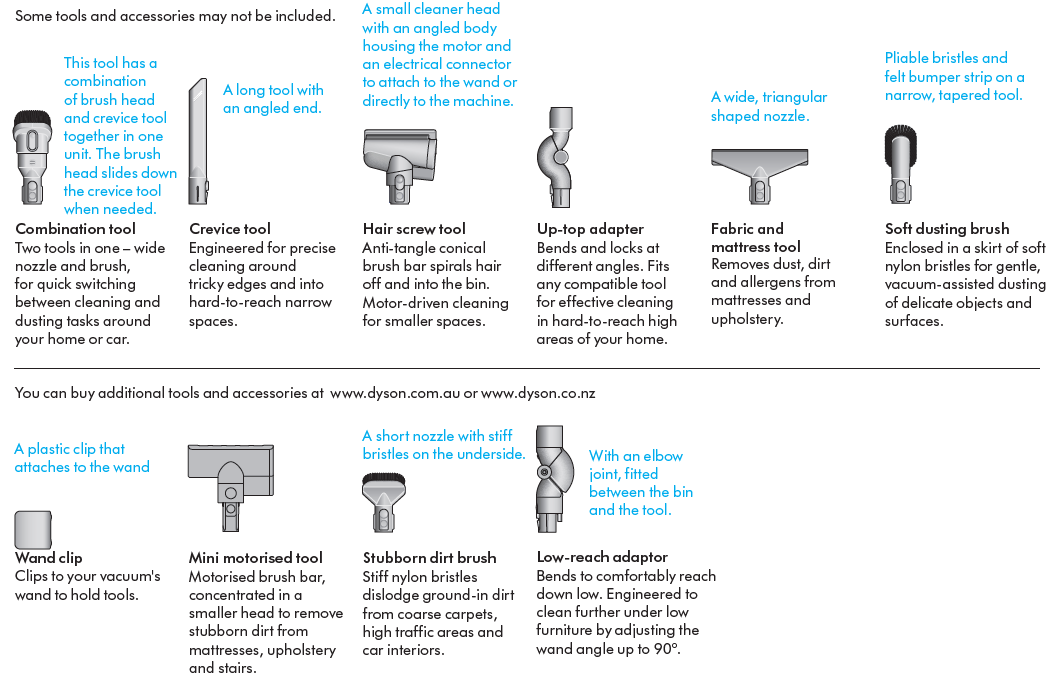

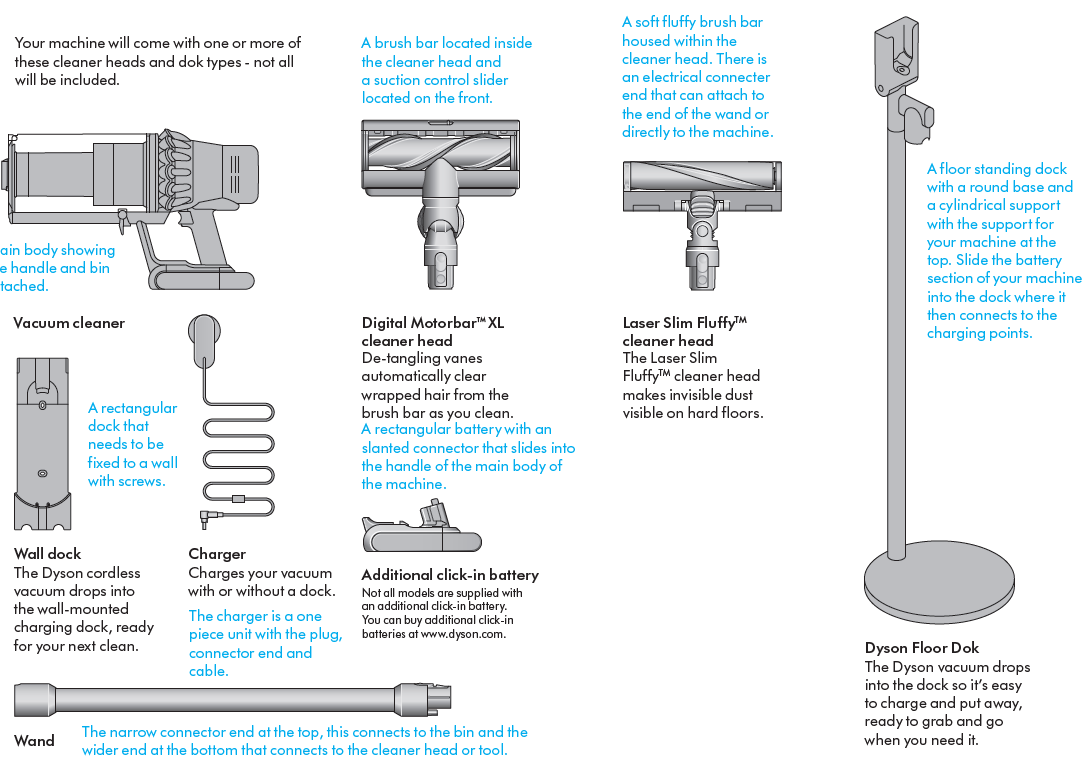

In the box

Technical Specifications and Features of the Dyson Outsize Vacuum Cleaner

• Motor: Dyson Gen5 Hyperdymium™ digital motor spinning up to 135,000 rpm
• Suction Power: Up to 250 Air Watts (AW) in boost mode
• Run Time: Up to 120–140 minutes with two interchangeable batteries
• Cleaner Head: Digital Motorbar™ XL with 25% wider cleaning path (~12.5 in wide)
• Dust Bin Capacity: 0.5 gallons (approximately 1.89 liters), 150% larger than Dyson V11
• Filtration: Whole-machine HEPA filtration capturing 99.97% of particles as small as 0.3 microns
• Weight: Approximately 8.6 lbs (3.9 kg)
• Modes: Auto, Eco (up to 60 min runtime), and Boost for intensive cleaning
• Additional Features: LCD screen with real-time run time and mode display, anti-tangle hair screw tool, illuminated cleaner head for hard floors
• Dimensions: Height ~50 inches; length ~11.4 inches; width ~12.6 inches

Compared to the Dyson V11 Torque Drive, the Outsize offers a significantly larger bin and wider cleaning head for faster coverage, though it is heavier by around 4 lbs. Unlike the Dyson V15, which has slightly higher suction power, the Outsize excels in extended runtime and dust capacity, making it uniquely suited for large home environments and prolonged cleaning sessions.

Caring for your floors

• Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage.
• Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s recommended cleaning instructions.
• The brush bar on your machine can damage certain flooring. Some rug materials may fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming without the motorised floor tool and consulting with your flooring manufacturer.

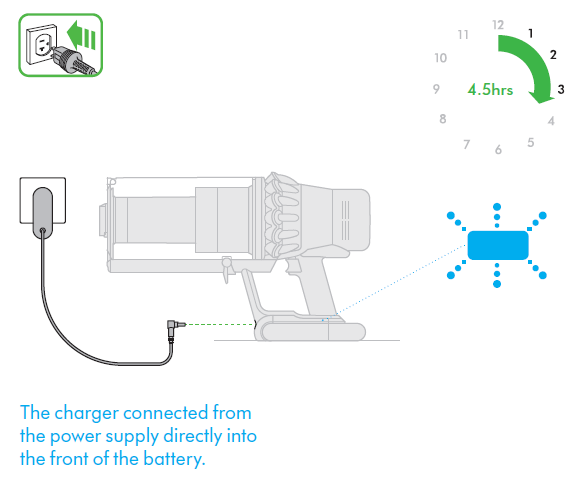

Charging your machine

• Connect to the charger either directly or in the dock.
• The blue LEDs on either side of the battery will flash during charging. When the battery is fully charged, both LEDs will light for 5 seconds.
• Your battery is fully charged when the display shows 100%.
• Your machine won’t operate or charge if the ambient temperature is below 5°C (41°F). This is designed to protect both the motor and battery.

Changing your click-in battery

If you have additional click-in batteries, we recommend that you alternate the batteries to maintain even performance.
Additional click-in batteries available to purchase separately.

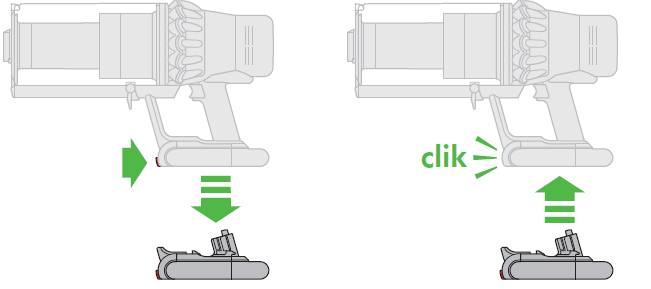

Removing your battery
Push the Battery release button on the handle and slide the battery off your machine.

Charge the battery.

Refitting your battery
Align your battery with the handle and slide it in. Push firmly until it clicks into place.

Arrows showing the location of the Battery release button and the battery coming off the handle when the button is pressed. The battery is then shown being replaced on the base of the handle, clicking into place.

Troubleshooting Common Issues with the Dyson Outsize Vacuum Cleaner

• Vacuum Won’t Turn On: Ensure batteries are fully charged and correctly installed; clean battery contacts if needed.
• Loss of Suction: Check and empty the dust bin; clean filters according to the manual; inspect cleaner head and wand for blockages.
• Brush Bar Not Spinning: Remove debris or hair tangled around the brush bar; reset vacuum by turning it off and on.
• Error Codes: LCD screen displays specific error messages—refer to the user manual for code definitions and corrective actions.
• Overheating or Auto Shut-Off: Clean filters and clear blockages; allow vacuum to cool down before reuse.

Preventive maintenance includes regular bin emptying, filter washing every 1–3 months, and checking for debris wrapped around the brush bar. The Dyson Outsize comes with a standard 2-year warranty covering parts and labor. For further support, users can contact Dyson customer service via their official website, phone support, or authorized service centers.

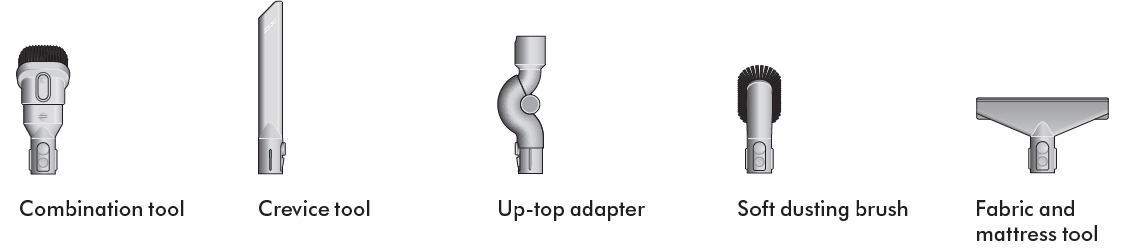

Cleaning your tools

• Don’t put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
• Wipe with a damp, lint-free cloth, without touching the connector end. Make sure your tools are completely dry before using.
• Some tools may not be included in the box.

Looking after your machine

To always get the best performance from your machine, it’s important to  clean it regularly and check for blockages.

Look after your machine

• If your machine is dusty, wipe with a damp lint-free cloth.
• Check for blockages in the cleaner head, tools and main body of your machine.
• Wash your filter regularly and leave to dry completely.
• Don’t use detergents or polishes to clean your machine.

Look after your battery

• To get the best performance and life from your battery, use Eco mode.
• Your machine won’t operate or charge if the ambient temperature is below  5°C (41°F). This is designed to protect both the motor and battery.

Your serial numbers

• You can find your serial numbers on your machine, battery and charger.
• Use your serial number to register.
• For more information and support videos for your machine go online: www.dyson.com.au or www.dyson.co.nz

Pros & Cons of the Dyson Outsize Vacuum Cleaner

• Pros:
  • Exceptional large dust bin reduces emptying frequency, ideal for big homes
  • Wide cleaner head covers 25% more floor with each pass, speeding up cleaning
  • Long runtime (up to 120 minutes) with dual batteries for uninterrupted cleaning
  • Advanced filtration capturing allergens and fine dust, benefiting allergy sufferers
  • Multiple cleaning modes with intelligent auto-adjustment for different surfaces
  • Hygienic, easy-to-use point-and-shoot bin emptying system
  • Comes with versatile attachments including anti-tangle hair screw tool
• Cons:
  • Heavier than smaller cordless vacuums (approx. 8.6 lbs), potentially tiring for handheld use
  • Higher price point compared to some cordless models may not suit all budgets
  • Lacks some newer features found in Dyson Gen5 models, such as particle sensors
  • Shorter wand length may affect reach for some users

Overall, the Dyson Outsize offers excellent value for those needing high-capacity, powerful cordless cleaning with professional-grade performance that justifies its premium pricing.

Customer Reviews and Feedback on Dyson Outsize Vacuum Cleaner

Users consistently praise the Dyson Outsize Vacuum Cleaner for its strong suction power, large dust bin, and extended battery life, often highlighting the convenience of cleaning large areas without frequent interruptions. Many appreciate the illuminated cleaner head and anti-tangle hair tool, especially pet owners who find it effective at removing fur.

Common complaints include the heavier weight which can cause fatigue during prolonged handheld use and the relatively high price. Some users note the absence of an on/off button, requiring continuous trigger hold during operation, which may not suit everyone. Star ratings often range between 4 and 4.5 out of 5.

Most customers recommend the Dyson Outsize for those with large homes or multiple floor types who want a robust cordless vacuum with professional features and longevity.
