Introduction to the Heat Storm HS-1500-OTR-TRI Infrared Heater

The Heat Storm HS-1500-OTR-TRI is a premium outdoor infrared heating solution designed for homeowners and professionals who need reliable, directional warmth in outdoor and semi-outdoor spaces. This weatherproof infrared heater delivers 1500 watts of instant radiant heat, making it an ideal choice for patios, balconies, workshops, garages, and commercial applications. Unlike traditional forced-air heaters that warm the surrounding air, the Heat Storm HS-1500-OTR-TRI infrared heater uses advanced carbon fiber heating technology to warm people and objects directly within its heat beam, providing efficient and comfortable warmth exactly where you need it.

The standout feature of the Heat Storm HS-1500-OTR-TRI is its versatile mounting system that includes a sturdy tripod base, wall-mount capability, and ceiling-mount options. This flexibility makes it perfect for temporary heating setups or permanent installations. With an IPX4 weatherproof rating, the heater withstands rain, dust, and harsh outdoor conditions, ensuring year-round performance. The unit operates completely silently, producing zero decibels of noise while delivering up to 5200 BTU of heat output.

The Heat Storm HS-1500-OTR-TRI is particularly valued by contractors, garage enthusiasts, outdoor entertainers, and homeowners seeking supplemental heating solutions. The heater covers up to 150 square feet as primary heat or up to 300 square feet as secondary heating, making it suitable for small to medium-sized spaces. Priced competitively in the $99-$150 range, the Heat Storm HS-1500-OTR-TRI represents excellent value for consumers seeking professional-grade heating without excessive energy consumption. The product is widely available through major retailers including Home Depot, Tractor Supply, and hardware suppliers nationwide.

Technical Specifications and Performance Metrics

Power and Energy Output

• Power Rating: 1500 watts
• Heat Output: 5200 BTU per hour
• Voltage: 120V standard household outlet
• Amperage: 12.5 amps
• Sound Level: 0 decibels (completely silent operation)

Physical Specifications and Design

• Main Unit Dimensions: 27 inches (length) × 8 inches (width) × 6 inches (height)
• Unit Weight: 5.35 pounds
• Tripod Height: Extends up to approximately 7 feet
• Total Assembled Weight with Tripod: Approximately 10-12 pounds
• Power Cord Length: 8 feet standard cord
• Material Construction: Anodized extruded aluminum alloy frame with aluminum reflector
• Color: Black and silver finish

Coverage and Heating Capacity

• Primary Heating Coverage: Up to 150 square feet
• Secondary Heating Coverage: Up to 300 square feet
• Supplemental Heating Range: Up to 1000 square feet with additional units

Safety and Environmental Features

• IPX4 Weatherproof Rating: Protects against rain and dust
• Tip-Over Auto Shut-Off: Automatically deactivates if unit tips over
• Carbon Fiber Heating Element: Long-lasting, efficient heat generation
• No Gas or Flammable Fuels Required: Operates on standard electricity
• cULus Electrical Certification: Meets safety standards
• 1-Year Manufacturer Warranty

Mounting and Installation Options

• Tripod Base Mount: Portable, height-adjustable setup
• Wall Mount: Permanent installation on exterior or interior walls
• Ceiling Mount: Overhead installation for maximum space efficiency
• Mounting Bracket: Tilts 30 degrees forward and backward for directional heating
• Molded End Caps: Enable easy angle adjustment and positioning

TRIPOD MOUNT

1. Quick-release bracket (x1)
2. Protection grid
3. M4x12 screw (x5)
4. M6x45 screw (x1)
5. M6 nut (x1)
6. M4x20 screw (x2)
7. Remote control
8. Cable tie (x2)
9. ST3.5x10 self-tapping (x1)

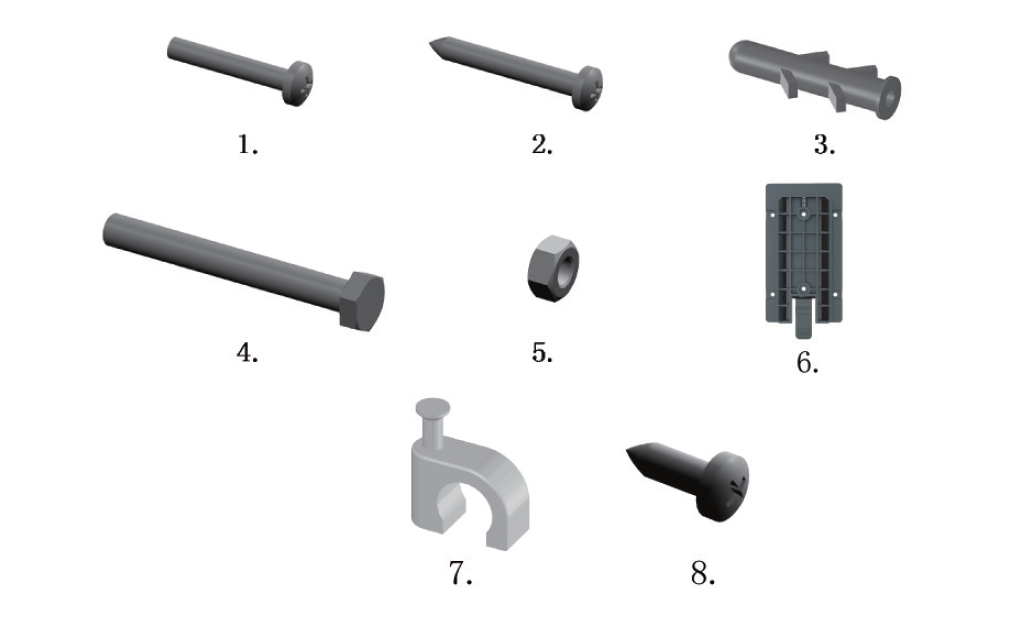

CEILING MOUNT

1. M4x20 screw (x2)
2. ST4.0x35 self-tapping (x3)
3. Ribbed plastic anchor (x3)
4. M6x50 hex-head screw (x2)
5. M6 nut (x2)
6. Quick-release bracket (x1)
7. Cable clip-shared by wall mount
8. ST3.5x10 self-tapping (x1)

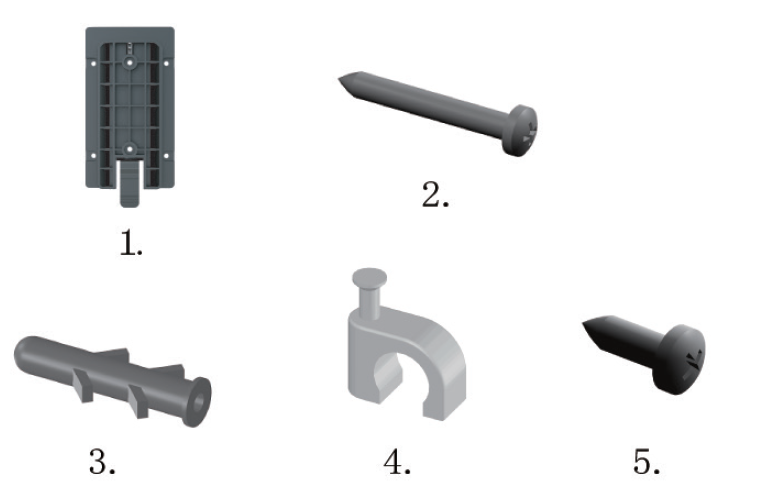

WALL MOUNT

1. Quick-release bracket (x1)
2. ST4.0x35 self-tapping (x4)
3. Ribbed plastic anchor (x4)
4. Cable clip-shared by ceiling mount
5. ST3.5x10 self-tapping (x1)

Installation and Setup Guide

Setting up the Heat Storm HS-1500-OTR-TRI is straightforward and requires no special tools or professional assistance. For tripod installation, begin by assembling the tripod base according to included instructions, ensuring all legs are fully extended and locked into place. Attach the mounting plate to the top of the tripod using the provided threaded connectors, ensuring a secure fit. Next, carefully position the main heating unit onto the mounting plate and secure it using the adjustment hardware. Verify that all connections are tight before plugging in the 8-foot power cord into any standard 120V outlet.

For wall or ceiling mounting, locate appropriate installation points that can support the unit's weight and provide adequate clearance. Mount the bracket securely using appropriate fasteners for your wall type, then attach the heater unit to the bracket. Use the 30-degree tilt adjustment to direct heat toward your desired area. Always ensure the power cord has adequate length and is protected from potential damage or water exposure.

HEATER LOCATION (Wall & Ceiling Mount)

When choosing a location for your new heater, ensure that the general instructions are followed.

• Your heater must be installed on a provided mount or tripod.
• The heater should not face the ceiling or flammable substances.
• Ensure that there is no possibility of flammable material coming into contact with the heater or lying near the heater.
• This heater is weather resistant and can be used indoors or outdoors. If using outdoors, use a waterproof outlet.

Cold Climate Installation Note

Placing the unit under a window or on a poorly insulated wall may result in the heater reading a colder ambient temperature than the actual room temperature.

DO NOT USE in the Following Areas:

• Locations with gasoline, paint, or flammable liquids
• Wet or moist locations
• Closets
• Do not use directly near a bathtub, a shower, or a swimming pool.

POWER CONNECTION GUIDELINES

Heat Storm Heaters are classified as appliances. Each heater and appliance should have its own dedicated circuit. This heater is designed for standard 120-volt, 20-amp outlets and should only be connected to a properly grounded outlet. Plug the heater directly into a wall outlet with the cord fully unwound; do not use extension cords, surge protectors, or relocatable power taps. Do not use this heater with a timer device that automatically turns it on while unattended (e.g., Alexa or Google programmed plug).

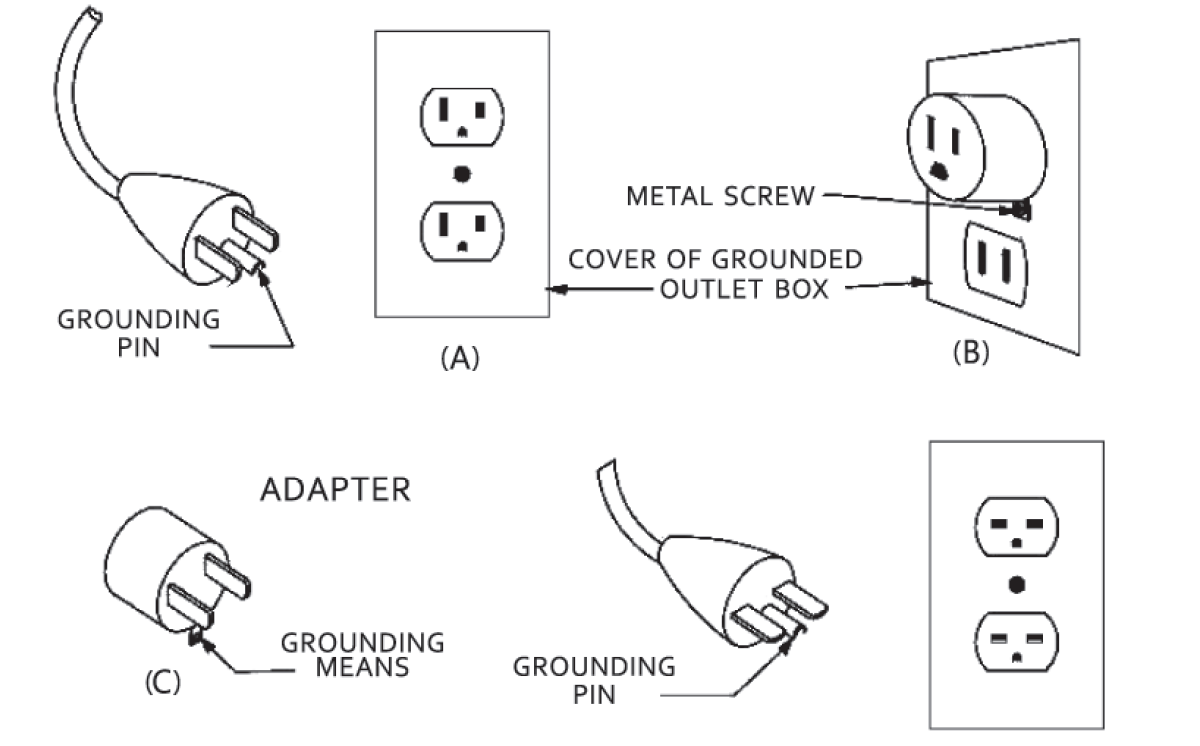

GROUNDING INSTRUCTIONS

This heater operates on 120 volts. The cord features a plug, shown at A in Figure 68.1. An adapter is available for connecting three-blade grounding-type plugs to two-slot receptacles. If using the adapter, ensure the green grounding lug extending from it is connected to a permanent ground, such as a properly grounded outlet box. Do not use the adapter if a three-slot grounded receptacle is available.

TOOLS NEEDED FOR INSTALLATION

• 3/16” drill bit
• Philips screwdriver

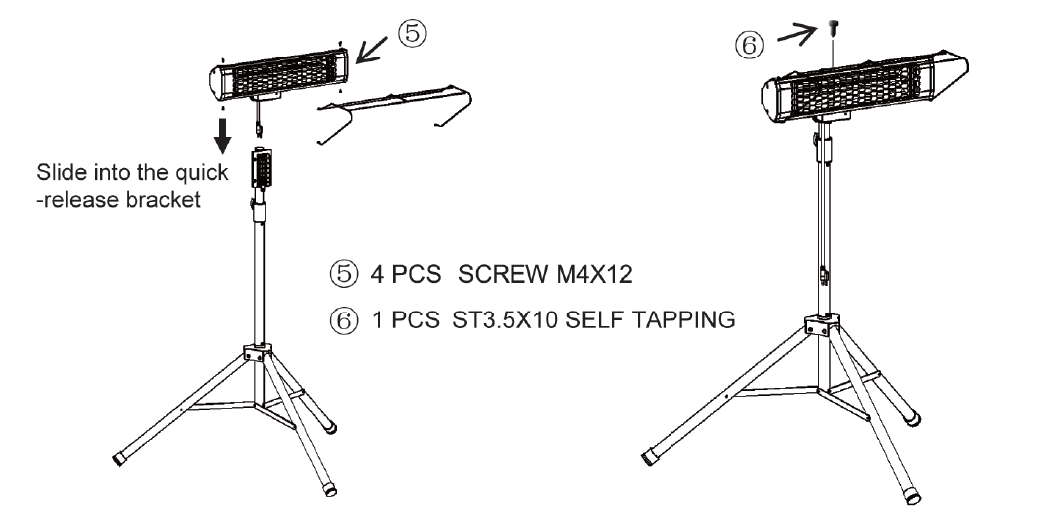

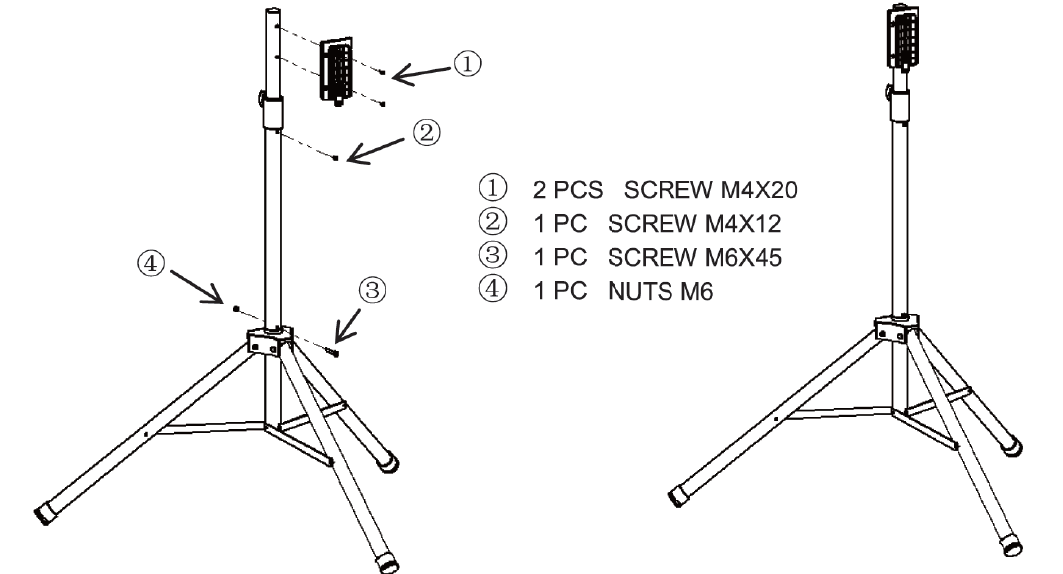

TRIPOD

Step 1: Fasten the mount plate to the tripod.

Step 2: Mount the heater to the tripod.

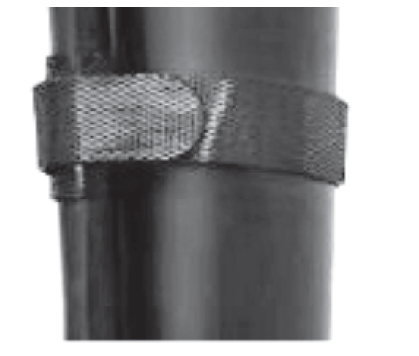

Step 3: Fix the power cord around the tripod with the provided cable tie.

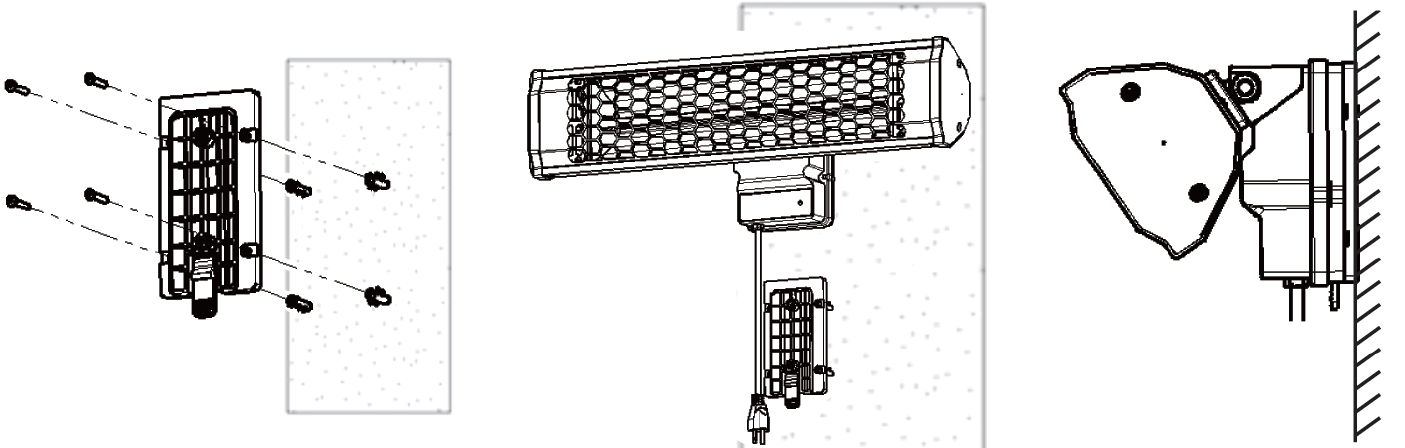

WALL AND CEILING MOUNT

ONLY USE SUPPLIED BRACKETS.

• Ensure the power cable can reach a power outlet. Do not twist or bend the power cable.

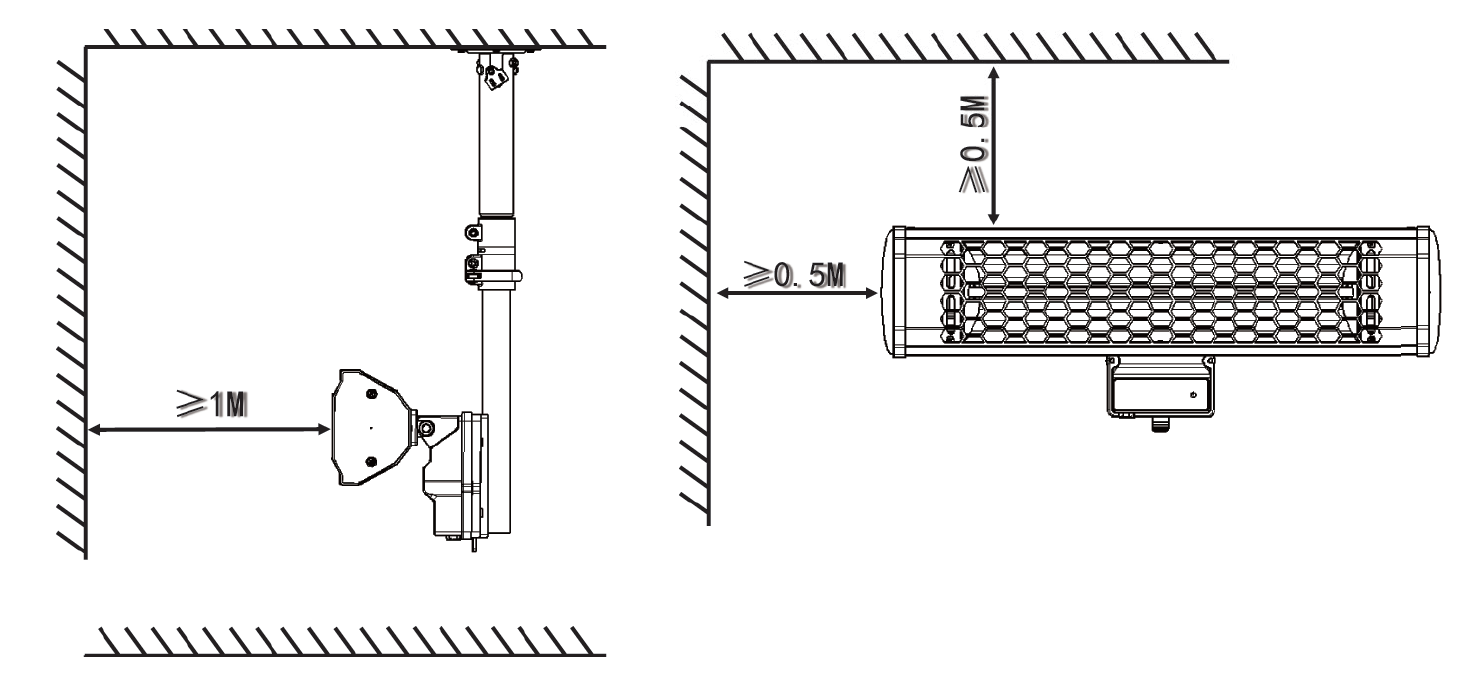

• Do not install closer than 19.7 inches (500 mm) to a vertical, horizontal (etc.) surface.

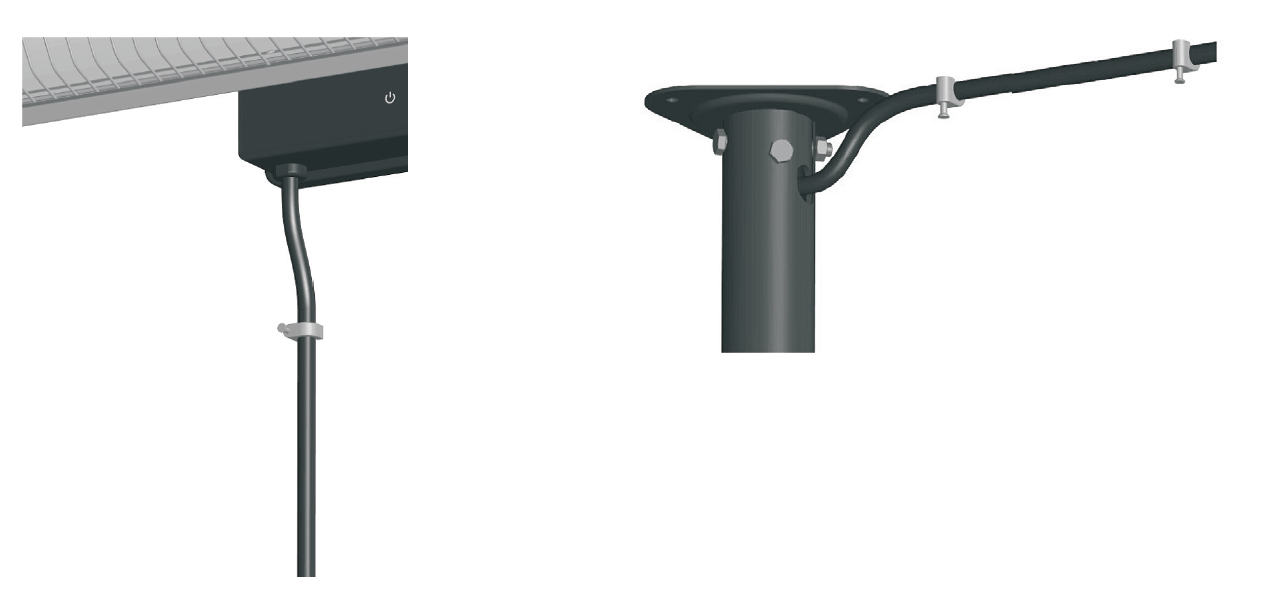

Prevent the power cable from touching the heater or entering the heated area. Secure the cord to the wall or ceiling when using the mounts to avoid fire or damage.

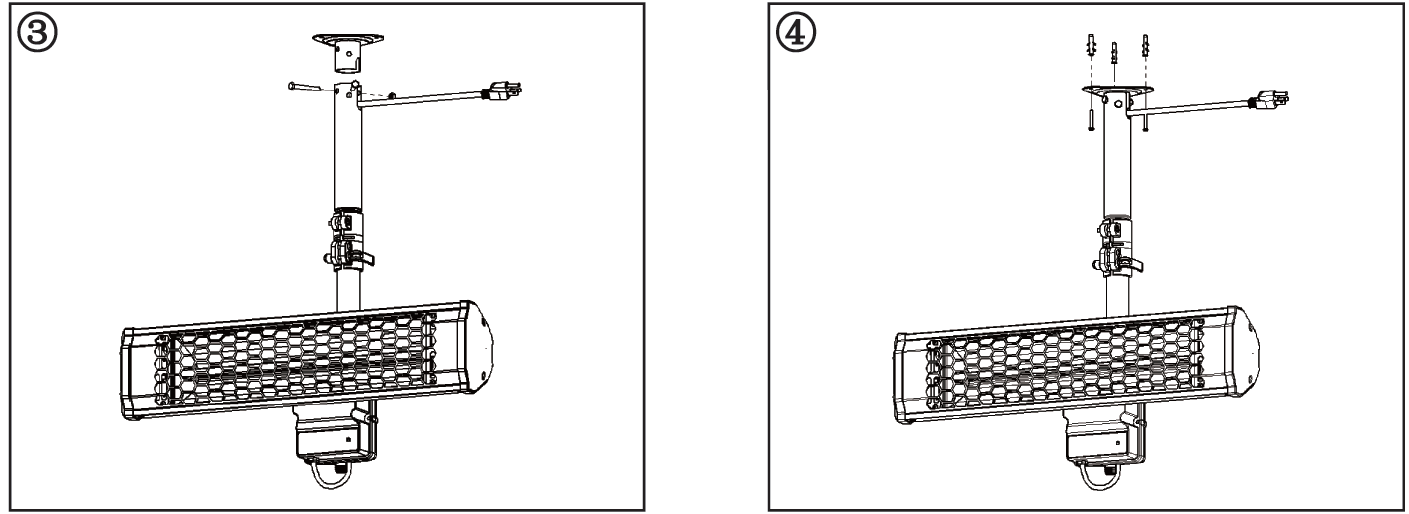

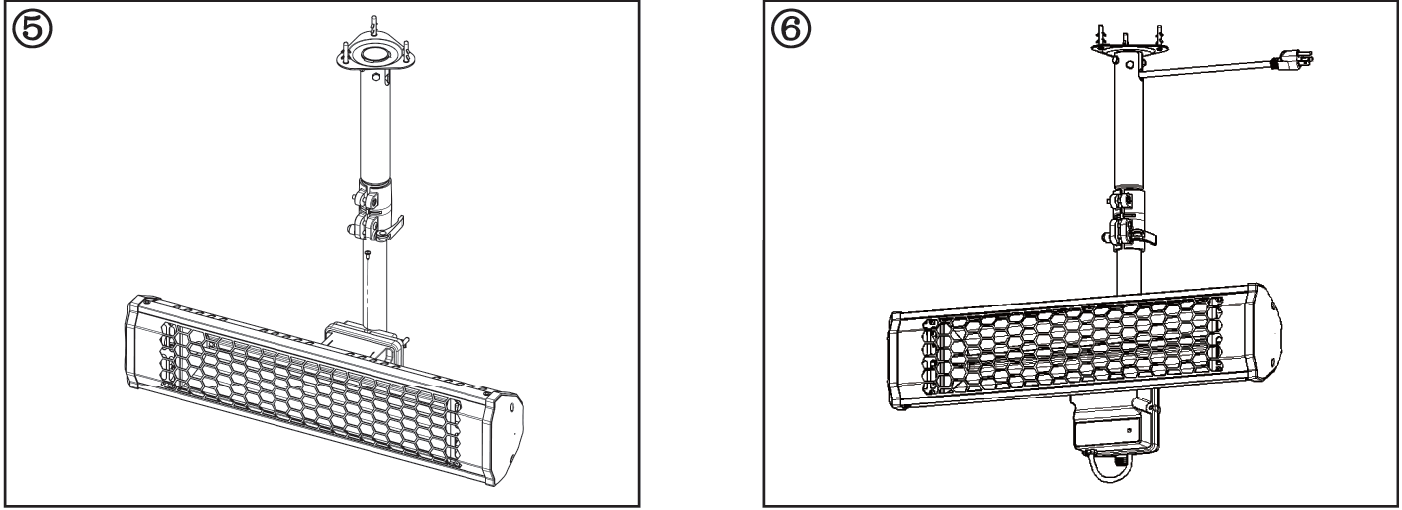

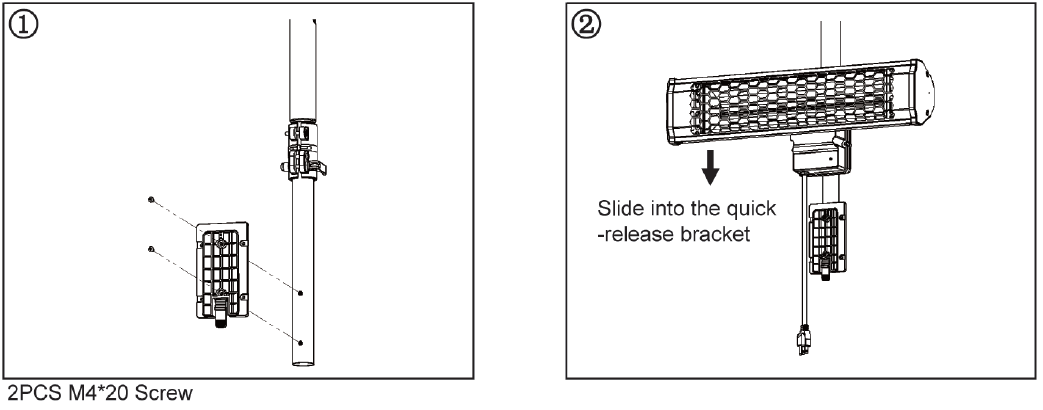

Ceiling Bracket Assembly Instruction

Wall mount:

1. ST4.O X35 Self Tapping (x4)
2. Ribbed Plastic Anchor (x4)

Operations & Controls

Power ON/OFF

Press the power icon on either the remote or the heater to alternate between on and off.

Timer

Turn the heater on and then tap on the timer button on the remote to enable edit mode. The display will flash. Continue pressing the timer button to change the "off" time. The timer will display in hour increments from 1 to 9 hours. Wait 5 seconds for the timer setting to activate. Press the on/off to cancel the delay off timer.

Maintenance

This heater contains no moving parts and needs very little maintenance. When the heater builds up heavy dirt, use a soft cloth to wipe it off. All other servicing should be performed by qualified service personnel.

Storage

You may store your heater indoors, where it is inaccessible to children. Alternatively, disassemble the heater and store it in its original packaging box.

Tripod Disassembly Instructions:

1. Unplug from the outlet and allow it to cool down.
2. Carefully disassemble the extending guard and tripod legs by removing the screws as shown in the installation figures.
3. Carefully fold the power supply cord and secure it with a cable tie.
4. Place the heater and all assemblies, including screws and nuts, in the packaging box, and then store it in a dry location, away from direct sunlight and out of reach of children.
5. When you next use it, assemble it according to the installation instructions before use.

Common Troubleshooting and Solutions

Unit Does Not Power On

If the Heat Storm HS-1500-OTR-TRI fails to activate, first verify that the outlet is functioning by testing it with another electrical device. Check that the power cord is fully inserted into both the unit and the wall outlet. Ensure the circuit breaker has not tripped due to overload. If the heater is connected to an extension cord, try plugging directly into a wall outlet instead, as some extension cords may not provide adequate power delivery. If the unit still does not power on, the heating element may require professional service.

Heater Produces Weak or No Heat

Weak heat output typically indicates a dirty or obstructed heating element. Disconnect the unit from power and allow it to cool completely. Use a soft brush or compressed air to gently clean the carbon fiber heating element and surrounding reflector surfaces. Ensure nothing is blocking the heat output path. Verify that the unit has been running for at least 2-3 minutes, as infrared heaters require brief warm-up time. If heat remains insufficient after cleaning, the carbon fiber element may be degraded and require replacement.

Auto Shut-Off Activates Unexpectedly

The tip-over safety feature may activate if the unit is not properly secured or if the mounting bracket is insufficiently tightened. Check all mounting connections and tighten as needed. Ensure the tripod legs are fully extended and locked. If using wall or ceiling mounts, verify that all fasteners are secure. Avoid placing the unit on unstable surfaces or in areas with excessive vibration.

Cord or Connector Issues

If you experience intermittent power loss or heating fluctuations, inspect the 8-foot power cord for visible damage, cuts, or exposed wiring. Check that all connections between the cord and unit are tight and free of corrosion. Never attempt to repair a damaged power cord; instead, contact Heat Storm customer support for a replacement. For weatherproof outdoor use, consider using a weatherproof outlet cover to protect connections from moisture.

Warranty and Customer Support

The Heat Storm HS-1500-OTR-TRI includes a comprehensive 1-year manufacturer warranty covering defects in materials and workmanship. To initiate a warranty claim, contact Heat Storm customer service with your product serial number and proof of purchase. Most retailers including Home Depot and Tractor Supply also offer return policies within 90 days of purchase. For technical support, consult the included instruction manual or visit the Heat Storm website for additional resources.

Advantages and Disadvantages

Key Advantages of the Heat Storm HS-1500-OTR-TRI

• Instant Radiant Heat: The infrared heating technology warms people and objects directly rather than heating air, providing immediate comfort within seconds of activation.
• Versatile Mounting Options: The tripod base, wall-mount, and ceiling-mount capabilities make the Heat Storm HS-1500-OTR-TRI adaptable to virtually any space and installation scenario.
• Weatherproof Construction: With IPX4 rating, this heater withstands rain, snow, and dust, making it reliable for year-round outdoor use.
• Silent Operation: Zero decibel noise production means you can enjoy heating without background hum or fan noise.
• Energy Efficient: Direct infrared heating consumes less energy than traditional space heaters while delivering equivalent warmth.
• Affordable Price Point: At $99-$150, the Heat Storm HS-1500-OTR-TRI offers professional-grade heating at budget-friendly pricing.
• Safety Features: Auto tip-over shut-off and robust construction provide peace of mind for families and commercial users.
• Durable Carbon Fiber Element: The heating element lasts longer and maintains consistent performance compared to traditional quartz bulbs.

Potential Limitations and Considerations

• Limited Coverage Area: At 150 square feet primary coverage, the heater suits small to medium spaces rather than large outdoor areas.
• Directional Heating Only: The focused beam means areas outside the direct path receive minimal warmth, requiring strategic positioning.
• Requires Direct Power Source: The 8-foot cord necessitates proximity to a 120V outlet, limiting placement flexibility in some locations.
• Tripod Stability: On uneven surfaces or windy conditions, the tripod may require additional securing or stabilization.
• Outdoor Aesthetics: Some users may find the industrial appearance less suitable for upscale patio designs.
• Heat Regulation: The unit operates at full power with no adjustable heat settings, limiting customization for different comfort levels.

Customer Reviews and User Feedback

Users consistently praise the Heat Storm HS-1500-OTR-TRI for its reliable performance and versatile installation options. Customers report satisfaction with the rapid heat delivery, noting that the infrared technology effectively warms individuals within the beam path within moments of activation. Workshop and garage users particularly appreciate the silent operation, which allows continued work without noise distraction. The weatherproof construction receives positive feedback from outdoor enthusiasts who use the heater on patios and decks throughout various weather conditions.

Common customer recommendations highlight the importance of proper positioning for optimal heat distribution. Users suggest angling the unit toward seating areas or work zones rather than attempting to heat entire spaces. Several reviewers note that the tripod design works best on level surfaces and may require additional stabilization in windy conditions. Customers also recommend having multiple units for larger spaces, as supplemental heating with two heaters provides more comprehensive coverage than a single unit.

Occasional complaints mention the lack of adjustable heat settings and the limited reach of the 8-foot power cord in some applications. However, the overwhelming majority of purchasers rate the Heat Storm HS-1500-OTR-TRI as an excellent value proposition, with many reporting continued reliable operation after extended periods of use. The 1-year warranty and availability at major retailers provide additional confidence for potential buyers.

Comparison with Similar Infrared Heating Products

Best Use Cases and Recommendations

The Heat Storm HS-1500-OTR-TRI excels in specific applications where its strengths provide maximum value. For workshop and garage heating, the heater's focused warmth and silent operation make it ideal for maintaining comfort during work without noise interference. Outdoor patio entertainment benefits from the rapid heat delivery and weatherproof construction, allowing comfortable gatherings during cool months. Contractors and construction workers appreciate the portable tripod setup for temporary on-site heating. Balcony and deck applications benefit from the wall or ceiling mounting options that preserve limited space.

The heater is particularly well-suited for supplemental heating scenarios where you want to warm specific zones rather than entire buildings. Use cases include heating reading nooks, workshop stations, patio seating areas, or outdoor event spaces. The weatherproof design makes it excellent for covered outdoor structures like pergolas, gazebos, and carport areas. For optimal results, position the heater to direct warmth toward occupied zones and consider multiple units for larger spaces requiring comprehensive coverage.

Maintenance and Care Instructions

Proper maintenance extends the lifespan of your Heat Storm HS-1500-OTR-TRI and ensures consistent performance. Periodically inspect the carbon fiber heating element and aluminum reflector, cleaning them gently with a soft brush or compressed air to remove dust and debris accumulation. Allow the unit to cool completely before cleaning. Check all mounting connections quarterly to ensure they remain tight and secure, especially if the heater experiences vibration or movement. Inspect the power cord regularly for signs of damage, wear, or exposed wiring, and never attempt to repair a damaged cord—request a replacement from customer support instead.

Before winter storage, clean the entire unit thoroughly and ensure it is completely dry. Store the heater in a cool, dry location protected from extreme temperatures and humidity. For outdoor installations, consider using a weatherproof cover during extended periods of non-use. Test the unit periodically during storage to verify it remains in working condition. If you notice any changes in heating performance, unusual noises (which would be abnormal for a silent unit), or safety concerns, discontinue use and contact Heat Storm customer service immediately.

Conclusion and Purchase Recommendations

The Heat Storm HS-1500-OTR-TRI represents an excellent investment for homeowners and professionals seeking reliable, efficient infrared heating. The combination of versatile mounting options, weatherproof construction, silent operation, and affordable pricing makes this heater a standout choice in the infrared heating market. Whether you're heating a workshop, warming a patio, or providing supplemental heating to specific zones, the Heat Storm HS-1500-OTR-TRI delivers consistent performance and user satisfaction.

Purchase the Heat Storm HS-1500-OTR-TRI through major retailers including Home Depot, Tractor Supply, and online hardware suppliers for competitive pricing and reliable shipping. The 90-day return policy at most retailers provides confidence in your purchase decision, and the 1-year manufacturer warranty protects your investment against defects. For the best value, compare current pricing across multiple retailers and take advantage of seasonal promotions during fall and winter months when demand for heating products peaks. With proper installation, maintenance, and appropriate usage scenarios, the Heat Storm HS-1500-OTR-TRI will provide years of dependable heating performance.

```
