Heat Storm Tradesman 1500-Watt Outdoor Infrared Heater HS-1500-TRC: Complete Product Manual and Guide

Introduction to the Heat Storm Tradesman Outdoor Heater

The Heat Storm Tradesman 1500-Watt outdoor infrared heater HS-1500-TRC represents a versatile heating solution designed for both indoor and outdoor applications. This electric infrared heater delivers consistent, gentle radiant warmth through advanced quartz heating technology, making it an ideal choice for homeowners and professionals seeking reliable temperature control without gas or flammable fuels.

The Heat Storm Tradesman outdoor heater excels in spaces where traditional heating methods fall short. Whether you're warming a covered patio during cool evenings, extending your outdoor entertaining season, or heating a garage or workshop, this 1500-watt infrared heater provides efficient, targeted warmth. The heater's weatherproof design with IP35 certification ensures durability in various climate conditions, while its flexible mounting options—including roll cage, tripod stand, and wall/ceiling mount configurations—adapt to virtually any installation scenario.

Key benefits of the Heat Storm Tradesman HS-1500-TRC include silent operation at zero decibels, instant heat delivery without warm-up time, and energy-efficient performance that heats up to 200-300 square feet effectively. The unit is cULus electrically certified and operates on standard 120-volt household outlets, eliminating complicated installation requirements. Priced competitively in the $99-$150 range depending on configuration and retailer, this outdoor infrared heater offers exceptional value for those seeking supplemental or primary heating solutions for patios, balconies, workshops, garages, and covered outdoor spaces.

Detailed Technical Specifications

Understanding the technical capabilities of the Heat Storm Tradesman outdoor heater helps you determine if this unit meets your heating needs:

• Power Output: 1500 watts with 5200 BTU heat output
• Heating Capacity: Up to 150 square feet as primary heat source; up to 300 square feet as secondary heating
• Voltage & Amperage: 120-volt standard outlet operation requiring 12.5 amps
• Cord Length: 6-8 feet depending on configuration variant
• Sound Level: Completely silent at 0 decibels—no fan noise or operating sound
• Heating Element: Carbon fiber quartz heating element for efficient, long-lasting performance
• Weather Protection: IP35-certified design protects against rain and dust
• Unit Dimensions: Approximately 23-24 inches length, 3-8 inches width, 6 inches height depending on mounting style
• Weight: 10-13 pounds, making it easily portable for different locations
• Material Construction: Anodized extruded aluminum alloy frame with aluminum reflector for efficient heat concentration
• Mounting Options: Compatible with roll cage mounts, tripod stands, wall mounts, and ceiling installations with 30-degree tilt adjustment
• Safety Features: Tip-over kill switch and overheat protection mechanisms
• Certifications: cULus electrical certification for safety and compliance

The Heat Storm Tradesman infrared heater's specifications demonstrate its positioning as a mid-range solution balancing power output with portability. The 5200 BTU rating provides meaningful warmth in moderate-sized spaces, while the silent operation makes it suitable for environments where noise sensitivity matters. The carbon fiber heating element ensures durability and consistent heat delivery without degradation over extended use periods.

Installation and Setup Guide

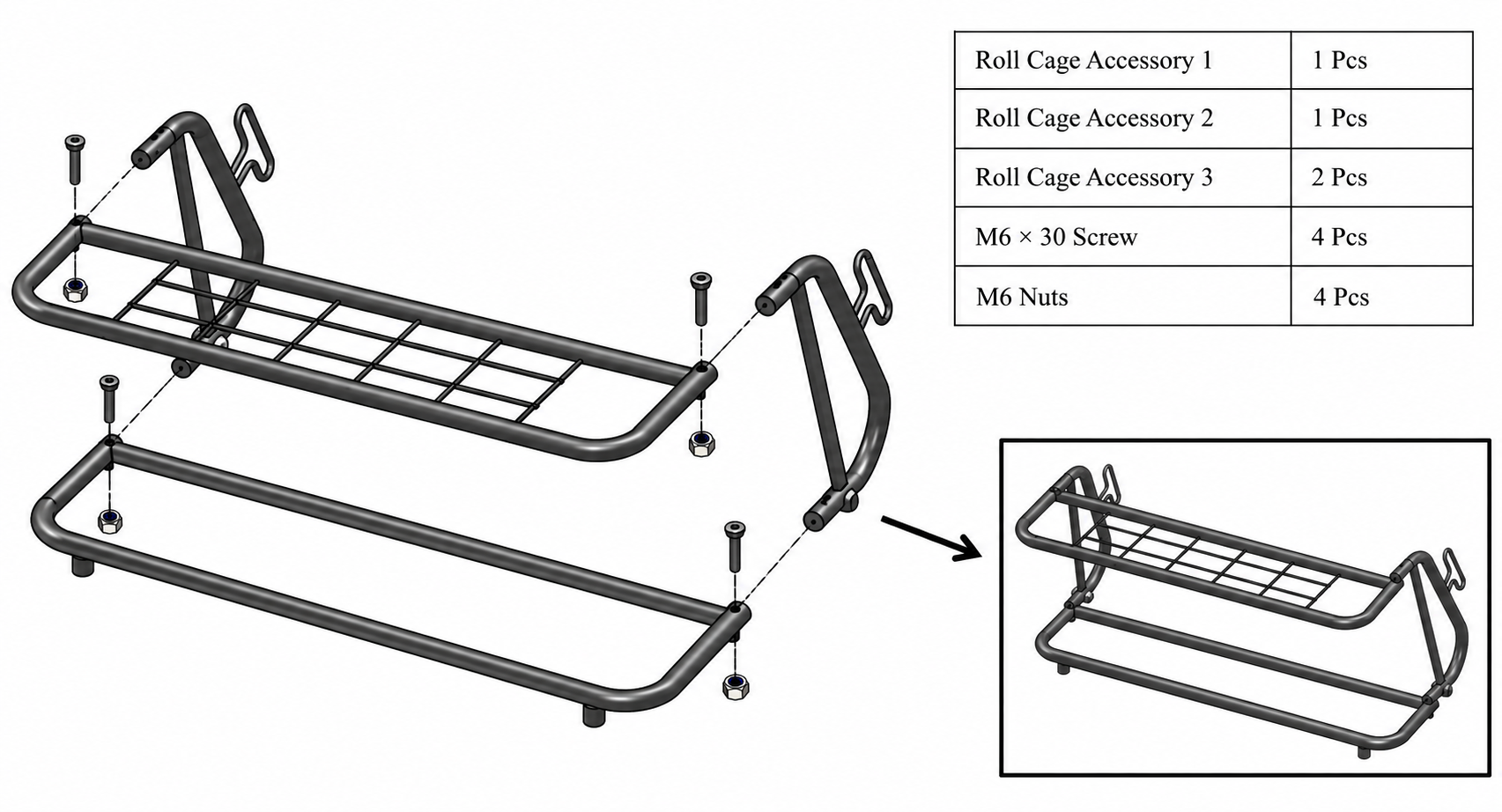

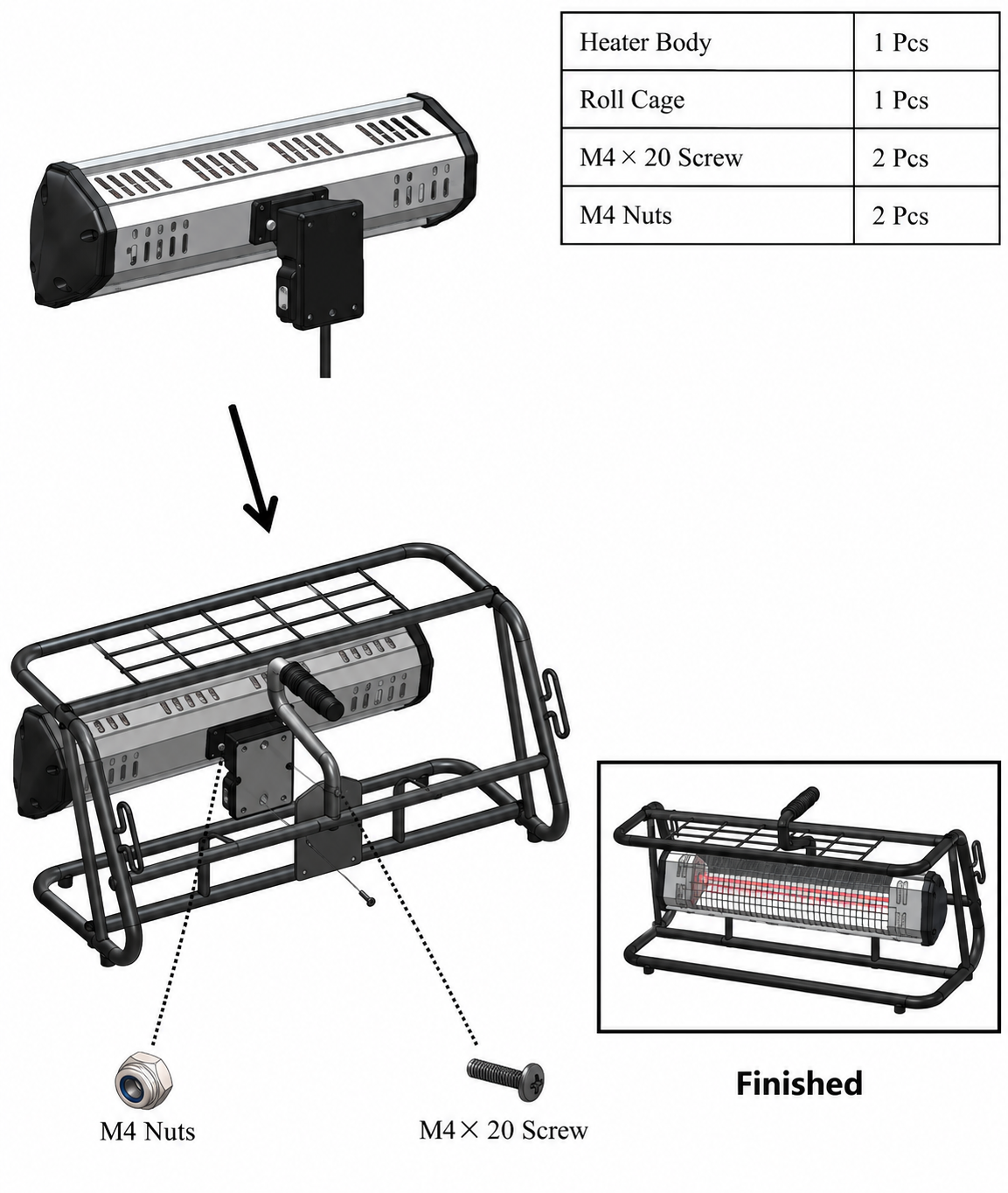

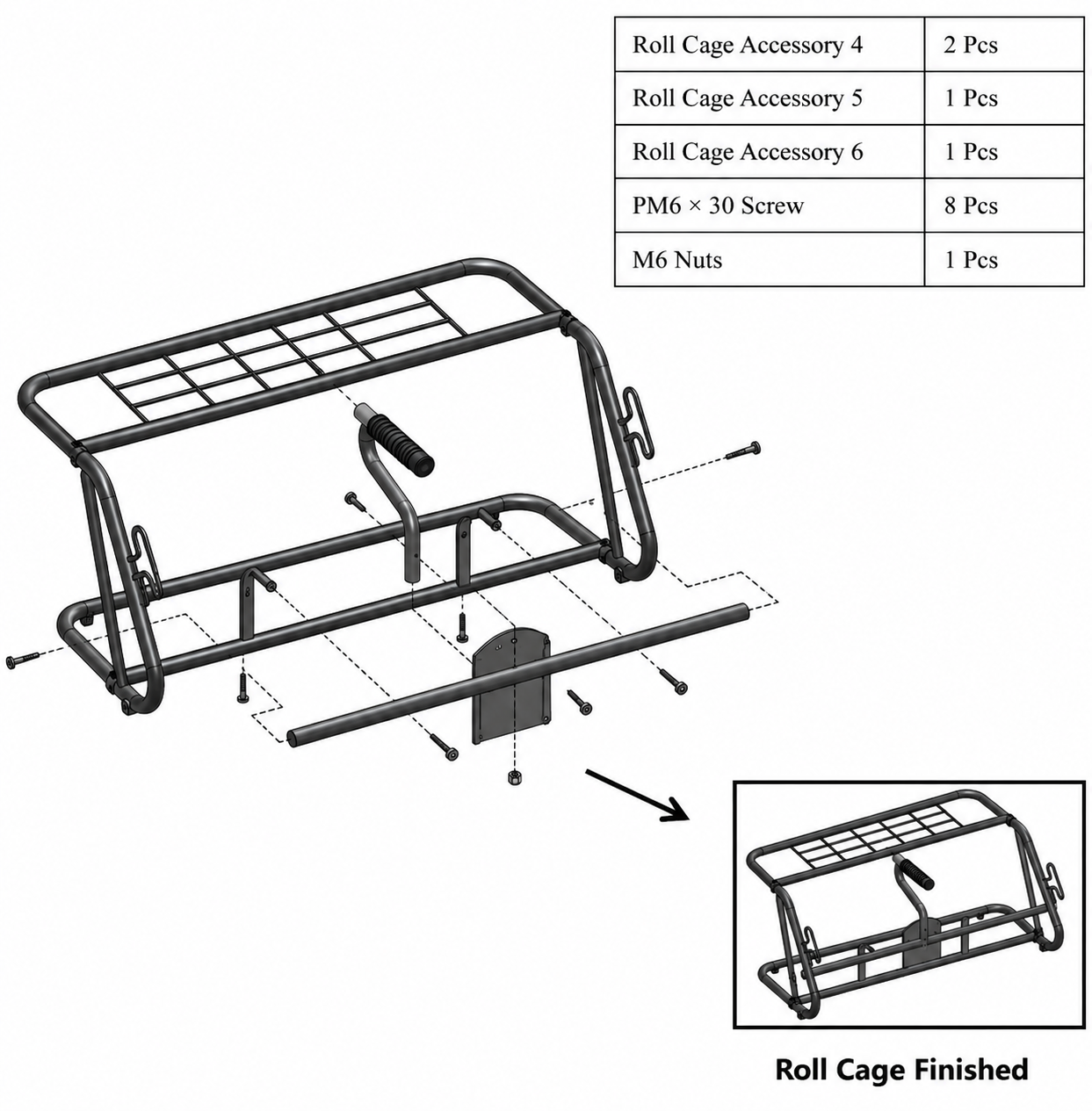

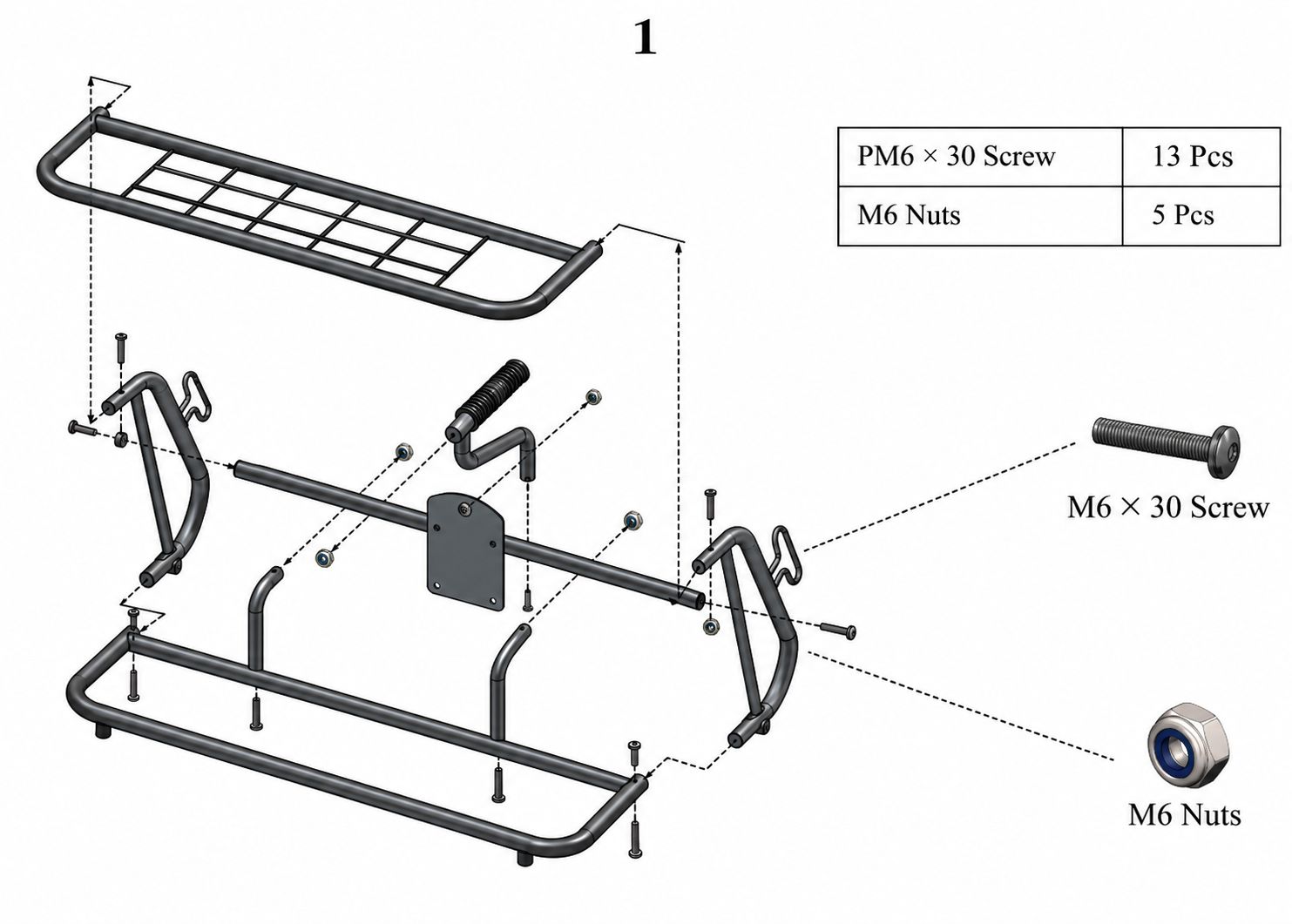

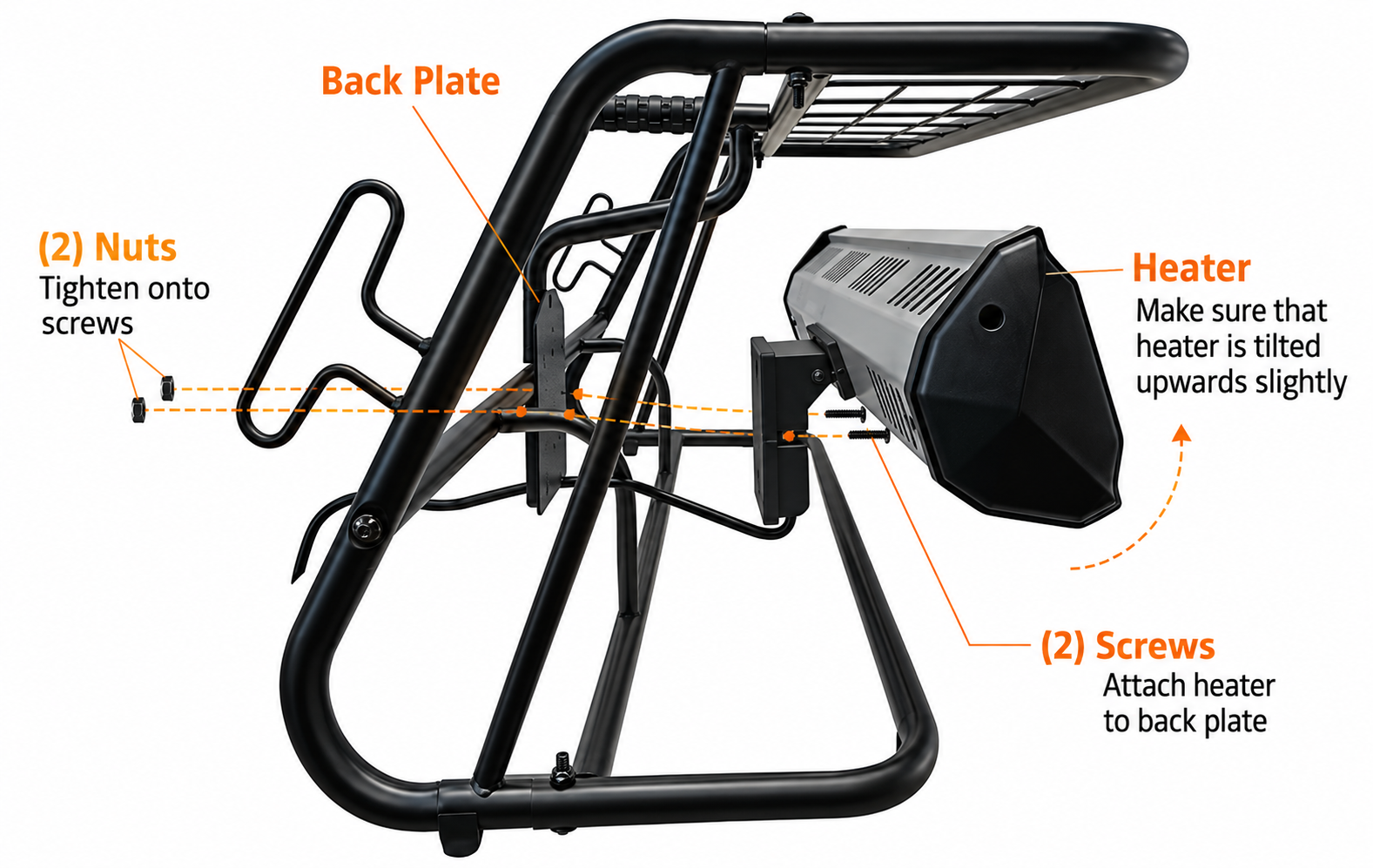

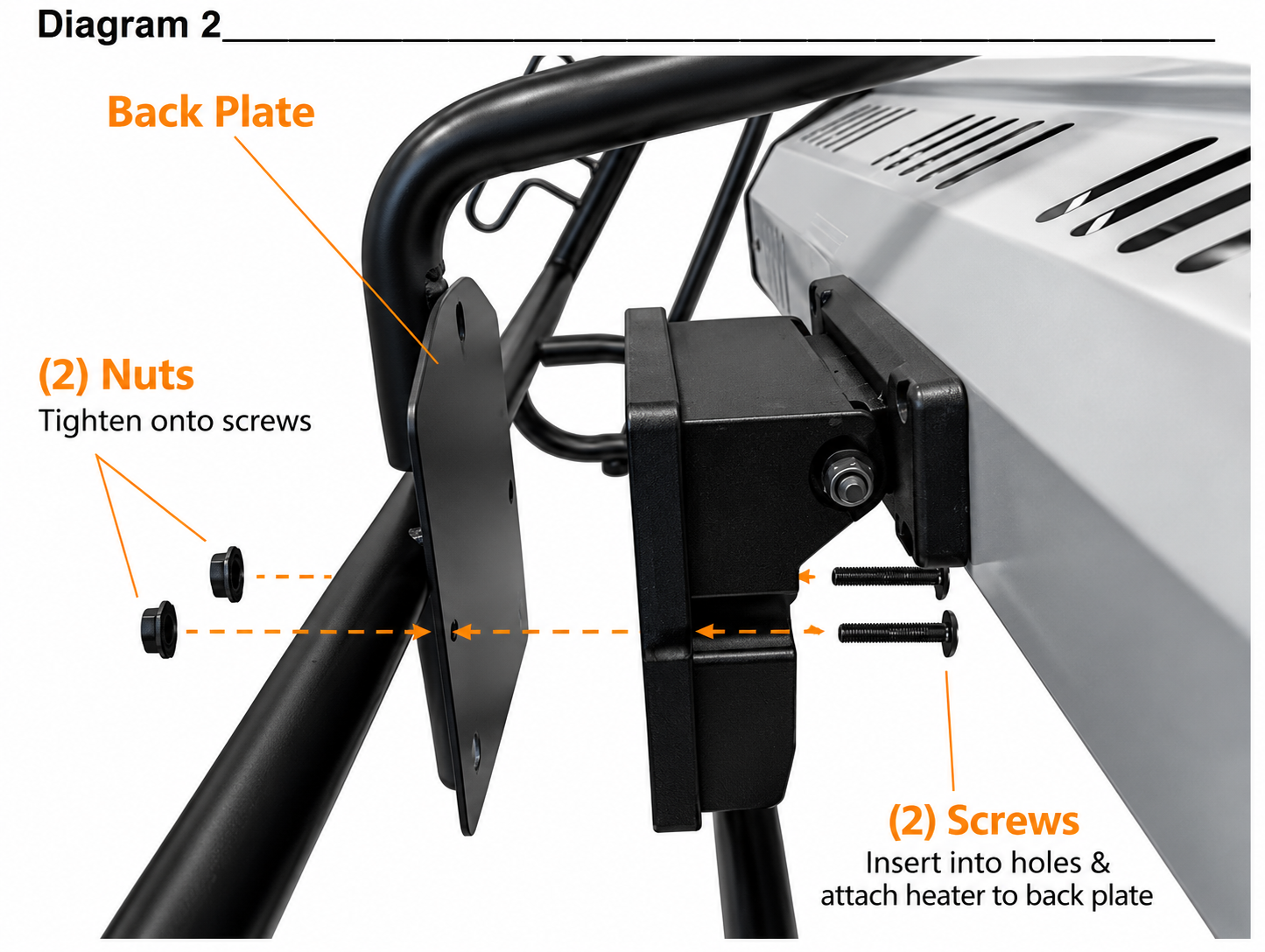

The Heat Storm Tradesman outdoor heater is designed for straightforward installation with minimal tools or technical expertise required. For tripod and roll cage configurations, simply assemble the stand according to included instructions, position the heater unit securely, and plug the power cord into any standard 120-volt outlet within cord reach. Wall and ceiling mounting requires basic hardware installation—use appropriate anchors for your mounting surface material, secure the mounting bracket, and ensure the heater tilts properly for optimal heat direction.

Always verify that your electrical outlet can safely handle the 12.5-amp draw. If using extension cords, select heavy-duty outdoor-rated cords appropriate for the power requirements. Position the heater to direct warmth toward your intended heating zone, utilizing the adjustable mounting bracket's 30-degree tilt capability. Ensure adequate clearance around the unit—maintain at least 3 feet of space from flammable materials, curtains, or roof overhangs. For outdoor installations, position the heater to minimize wind exposure, as wind can reduce heating efficiency.

Common Issues and Troubleshooting Solutions

While the Heat Storm Tradesman outdoor heater is generally reliable, you may encounter occasional issues:

• Heater Won't Turn On: Verify the outlet is functioning by testing with another device. Check that the power cord is fully inserted into the outlet. Ensure the tip-over switch is engaged—the unit has a safety mechanism that prevents operation if tilted beyond safe angles. Test the outlet with a different device to confirm power availability.
• Inadequate Heat Output: Confirm you're using a direct outlet connection rather than an extension cord, which can reduce voltage. Position the heater with unobstructed line-of-sight to your target area—infrared heat requires direct visibility. Remove any dust or debris from the reflector surface, as buildup reduces heat efficiency. Check that mounting angles direct heat toward occupied spaces rather than skyward.
• Intermittent Operation: Verify the power cord has no visible damage or exposed wiring. Test a different outlet to rule out electrical circuit issues. If the unit cycles on and off, the overheat protection may be engaging—allow cooling time and ensure adequate ventilation around the heater unit.
• Weathering or Corrosion: Although IP35-certified for weather resistance, store the heater indoors during extended off-seasons. Periodically clean the aluminum frame and reflector with mild soap and water to maintain appearance and efficiency. Avoid high-pressure water sprays that could force moisture into electrical components.

The Heat Storm Tradesman outdoor heater includes a tip-over safety switch that automatically cuts power if the unit tilts beyond acceptable angles—this is a protective feature, not a malfunction. Most heating concerns relate to positioning, outlet selection, or environmental factors rather than unit defects. Heat Storm provides customer support for warranty claims and technical assistance, typically offering 90-day return windows through major retailers like Home Depot and Lowe's.

Advantages and Disadvantages

Significant Advantages

• Silent Operation: Zero-decibel performance means no fan noise, making it ideal for quiet environments like bedrooms, libraries, or peaceful outdoor spaces
• Instant Heat: Infrared heating provides immediate warmth without warm-up periods, delivering comfort instantly when activated
• Flexible Installation: Multiple mounting options—tripod, roll cage, wall, and ceiling—accommodate diverse space configurations and preferences
• Weather Resistant: IP35 certification allows reliable operation in rain, dust, and variable outdoor conditions without damage or safety concerns
• Energy Efficient: Focused radiant heating warms people and objects directly rather than heating entire rooms, reducing energy waste
• No Gas or Fuel Required: Eliminates safety hazards, ventilation requirements, and ongoing fuel purchases associated with propane or natural gas heaters
• Portable Design: At 10-13 pounds, the heater easily moves between locations, making it suitable for renters and those without permanent installation
• Affordable: Priced under $150, the Heat Storm Tradesman outdoor heater offers exceptional value compared to permanent heating solutions

Notable Disadvantages

• Limited Heating Range: The 5200 BTU output effectively heats 150-300 square feet, making it unsuitable for large open spaces without multiple units
• Wind Sensitivity: Outdoor wind conditions significantly reduce heating effectiveness, limiting performance in exposed locations
• Line-of-Sight Requirement: Infrared heat requires direct visibility between heater and target area—walls, obstacles, or indirect positioning reduces efficiency
• Single Heat Setting: No variable temperature control; the heater operates at full 1500-watt output only, without power reduction options
• Outdoor Outlet Dependency: Requires proximity to functional 120-volt outlets; extension cord use can reduce voltage and heating performance
• Not Suitable for Large Spaces: While marketed for supplemental heating in larger areas, primary heating in spaces exceeding 150 square feet requires multiple units
• Maintenance Requirements: Periodic cleaning of reflectors and aluminum surfaces maintains optimal performance and appearance

The Heat Storm Tradesman outdoor heater represents an excellent value proposition for those seeking supplemental patio heating, workshop temperature control, or emergency backup warmth. Its silent, efficient operation and flexible installation options make it particularly attractive for renters and those unwilling to commit to permanent heating infrastructure. However, potential buyers with large spaces, frequently windy conditions, or requirements for variable temperature control should evaluate whether this unit's heating capacity adequately serves their needs.

Customer Feedback and User Reviews

Users consistently praise the Heat Storm Tradesman outdoor heater for its straightforward functionality and reliable performance. Customers highlight the silent operation as a standout feature, appreciating the absence of fan noise during evening outdoor entertaining. Multiple reviewers emphasize the heater's quick assembly process and ease of repositioning between locations, making it accessible for non-technical users.

Common positive feedback includes appreciation for the "good heat" output in moderate outdoor conditions, with several customers reporting they own multiple units for different spaces. The remote control option on certain configurations receives praise for convenient on/off operation without approaching the heater physically. Users value the weatherproof design's durability in unpredictable outdoor conditions.

Less frequent but noteworthy concerns include expectations about heating range—some customers initially expected coverage beyond the actual 150-300 square feet capability. Wind sensitivity is occasionally mentioned as a limitation in particularly breezy locations. A few users note that the heater's single heat setting lacks the flexibility of adjustable temperature controls available on some competing models.

Overall customer satisfaction remains high, with users typically recommending the Heat Storm Tradesman outdoor heater for patio supplemental heating, garage workshops, and covered outdoor spaces. Purchase recommendations align well with realistic expectations about heating capacity and environmental conditions. The heater's 90-day return policy through major retailers like Home Depot and Lowe's provides customer confidence in satisfaction guarantees.

Comparison with Alternative Heating Solutions

When evaluating the Heat Storm Tradesman HS-1500-TRC against alternative heating options, several factors merit consideration. Traditional propane patio heaters offer higher BTU output but require fuel purchases, ventilation considerations, and present safety hazards. Ceramic space heaters provide adjustable heat settings but generate audible fan noise unsuitable for quiet environments. Natural gas heaters deliver consistent warmth but demand professional installation and permanent infrastructure. The Heat Storm Tradesman's silent, portable, electric infrared approach occupies a unique middle ground—offering environmental safety, minimal installation requirements, and quiet operation at the trade-off of more modest heating capacity and wind sensitivity compared to larger fuel-based alternatives.

Final Recommendations and Conclusion

The Heat Storm Tradesman 1500-watt outdoor infrared heater HS-1500-TRC represents a smart investment for homeowners and professionals seeking flexible, silent, efficient supplemental heating. Its combination of instant warmth, weatherproof construction, multiple mounting options, and affordable pricing makes it an excellent choice for patios, balconies, workshops, and garages. The unit's silent operation distinguishes it from fan-based alternatives, while its portable design accommodates changing heating needs without permanent installation.

Potential buyers should realistically assess their heating requirements—the unit excels as supplemental heat in 150-300 square foot spaces but cannot serve as primary heating for larger areas. Those in consistently windy locations should account for reduced efficiency in their purchasing decisions. For anyone seeking reliable, quiet, weather-resistant infrared heating at an accessible price point, the Heat Storm Tradesman outdoor heater delivers exceptional value and dependable performance that justifies its popular market position.
