Setup: Heatstorm Infrared Heater HS-1000-WX-WI User Manual

Heat Storm HS-1000-WX WiFi Infrared Wall Heater: Complete Product Manual

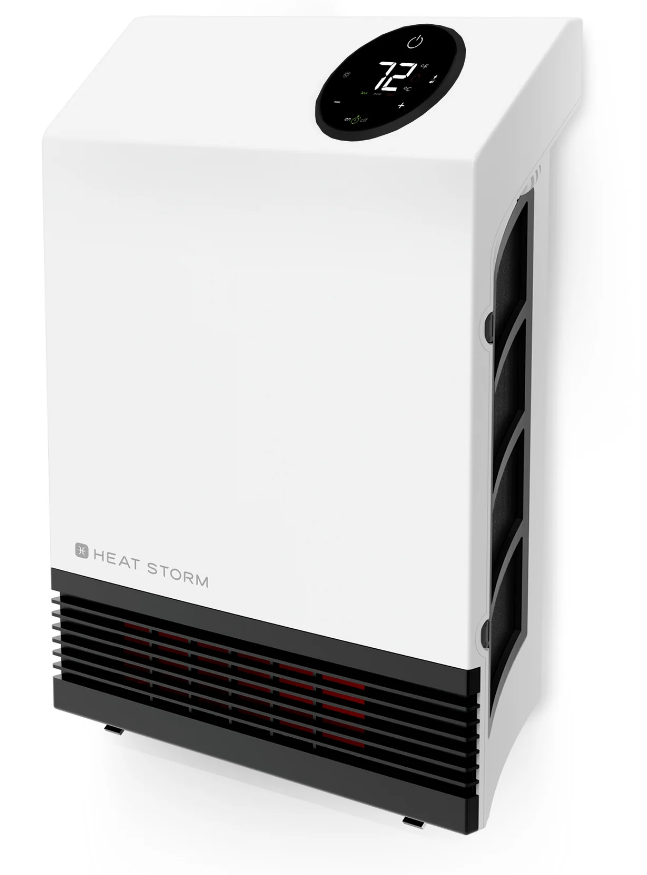

Product Overview

The Heat Storm HS-1000-WX WiFi infrared wall heater represents a modern solution for efficient home heating. This wall-mounted infrared space heater delivers 1,000 watts of heating power with advanced WiFi connectivity, allowing you to control temperature settings remotely via smartphone. The heatstorm Infrared Heater HS-1000-WX-WI combines energy-efficient infrared technology with smart home integration, making it an ideal choice for homeowners seeking supplemental heating solutions.

Designed for residential spaces, the heatstorm Infrared Heater HS-1000-WX-WI excels as both a primary heat source for smaller rooms and a supplemental heating option for larger areas. With heating coverage up to 500 square feet in secondary heating mode and 100 square feet in primary mode, this infrared wall heater adapts to various room sizes and insulation levels. The device features a patented heat exchanger with HMS technology that maximizes infrared quartz bulb efficiency without heat loss.

Target users include homeowners wanting to reduce energy bills, renters needing portable heating solutions, office workers seeking zone heating, and families prioritizing safety with its cool-touch grill design. The heatstorm Infrared Heater HS-1000-WX-WI typically retails between $300-$400 and is readily available through major retailers including Home Depot, Lowe's, and Northern Tool. This WiFi-enabled infrared space heater represents a practical investment for modern climate control needs.

Key Features and Benefits

WiFi Connectivity and Smart Control: The heatstorm Infrared Heater HS-1000-WX-WI includes WiFi capabilities allowing remote temperature management through your smartphone. Schedule heating cycles, adjust settings, and monitor energy usage from anywhere in your home.

Space-Saving Wall Mount Design: Unlike traditional floor-standing heaters, this infrared wall heater occupies less than 2 square feet of wall space. With dimensions of 13" depth x 4" width x 17" height and weighing only 6.1 pounds, installation requires minimal space while maintaining maximum heating efficiency.

Dual Power Modes: Switch between 1,000-watt high mode for rapid heating and 500-watt low mode for energy conservation. The auto mode intelligently adjusts wattage to maintain your desired temperature without manual intervention.

Advanced Safety Features: The safe-touch grill remains cool during operation, reducing burn risks for children and pets. Built-in overheat protection automatically shuts off power if the unit tips over or becomes obstructed, while anti-trip technology prevents accidental activation.

Digital Thermostat Control: The LED display shows ambient temperature and desired settings, enabling efficient temperature regulation. Adjustable brightness and dark mode features minimize light disturbance, particularly beneficial for bedroom placement.

Technical Specifications

Understanding the technical details of the heatstorm Infrared Heater HS-1000-WX-WI helps determine compatibility with your home electrical system and heating requirements:

• Power Output: 1,000 watts maximum, 500 watts minimum with dual power settings
• Heat Output: 3,400 BTU per hour
• Voltage Requirements: 120 volts, standard household outlet compatible
• Electrical Load: 8.3 amps current rating
• Heating Coverage: 100 square feet primary heating, 500 square feet secondary/supplemental
• Temperature Range: 40-99 degrees Fahrenheit adjustable
• Mounting Type: Wall mount, no floor space required
• Cord Length: 36 inches (3 feet)
• Material Construction: Durable plastic housing with cool-touch exterior
• Weight: 6.1 pounds for easy installation and repositioning
• Warranty: 1-year limited manufacturer warranty

Advantages and Disadvantages

Pros of the Heat Storm HS-1000-WX WiFi Infrared Heater

• WiFi Remote Control: Smartphone app integration enables scheduling and remote temperature adjustment, perfect for preheating spaces before arrival or reducing energy consumption while away
• Space-Efficient Design: Wall-mounted installation saves valuable floor space compared to traditional cabinet or tower heaters, ideal for compact apartments and offices
• Energy Efficiency: Infrared heating technology warms objects rather than air, reducing energy waste and lowering utility bills compared to forced-air alternatives
• Safety Features: Cool-touch grill, tip-over protection, and overheat auto-shutoff make this heatstorm Infrared Heater HS-1000-WX-WI suitable for homes with children and pets
• Dual Power Modes: Flexibility to switch between high and low settings or use auto mode for customized comfort and energy management
• Standard Outlet Compatible: No hardwiring required; plugs into regular 110V household outlets for quick installation
• Included Remote Control: Battery-powered remote provides convenient control without smartphone access
• Quick Heat-Up: Infrared quartz bulbs reach effective heating temperatures rapidly, providing immediate comfort

Cons of the Heat Storm HS-1000-WX WiFi Infrared Heater

• Limited Primary Heating Coverage: At 100 square feet for primary heating, the heatstorm Infrared Heater HS-1000-WX-WI works best as supplemental heat for larger spaces
• WiFi Dependency: Smart features require stable internet connection; WiFi outages prevent remote control functionality
• No Timer Function: Unlike some competitors, this model lacks independent timer settings for automatic scheduling without smartphone app
• Fixed Wall Installation: Unlike portable heaters, wall mounting limits flexibility if you need to relocate the unit frequently
• Short Cord Length: The 3-foot cord may require proximity to outlet placement, limiting installation flexibility in some rooms
• No Oscillation Feature: Fixed wall position means heat distribution doesn't rotate, potentially creating uneven warming in larger rooms
• Price Point: WiFi-enabled models typically cost $100-$150 more than basic infrared heaters without smart features
• Plastic Construction: Housing material, while safe and lightweight, may feel less durable than metal alternatives

Customer Reviews and User Feedback

Overall User Satisfaction: The heatstorm Infrared Heater HS-1000-WX-WI consistently receives positive feedback from customers, with many praising the WiFi functionality and energy efficiency. Users report average ratings between 4-4.5 stars across major retailer platforms.

Commonly Praised Features: Customers particularly appreciate the WiFi app's convenience, with one reviewer noting: "The WiFi feature is great. With the app, I can schedule when the heater should be on and turn off automatically, so that the office is warm when I arrive." Users also highlight the quiet operation, efficient heating for their specific rooms, and the cool-touch safety design for homes with young children.

Frequent Concerns: Some users mention that heating coverage estimates are optimistic for poorly insulated rooms, requiring longer warm-up times than advertised. A few reviewers note confusion about smartphone app setup during initial installation, though most resolve issues quickly through customer support.

Purchase Recommendations: The heatstorm Infrared Heater HS-1000-WX-WI proves ideal for supplemental heating in well-insulated bedrooms, home offices, and living rooms. Buyers should verify adequate wall space and nearby outlets before purchase. For renters, the wall-mount design's minimal damage footprint makes it an attractive alternative to portable heaters.

Installation and Setup Guide

Pre-Installation Checklist: Before installing the heatstorm Infrared Heater HS-1000-WX-WI, verify you have a wall space at least 13 inches deep and 4 inches wide. Ensure a standard 110V outlet exists within 3 feet of the intended mounting location. Check that the wall can support the 6.1-pound unit safely.

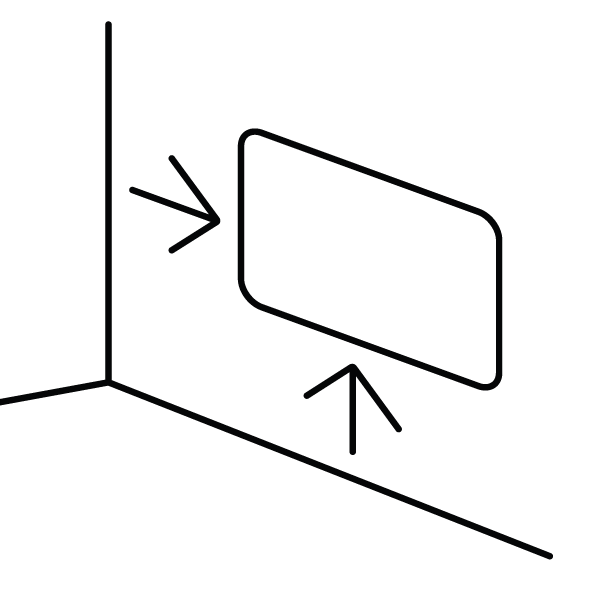

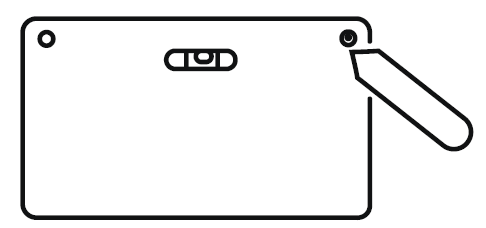

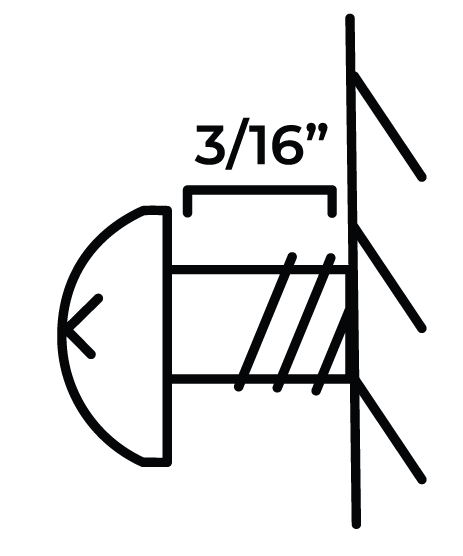

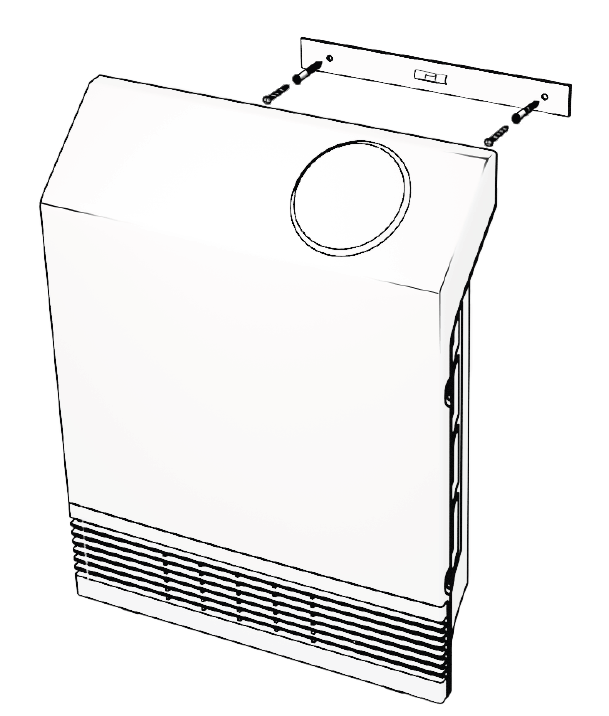

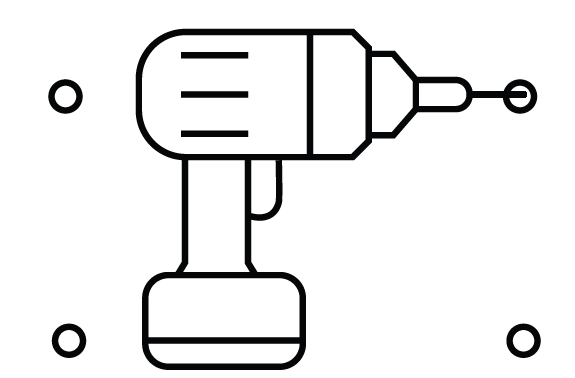

Wall Mounting Installation: Mark mounting points on your wall according to the included template. Use appropriate wall anchors for your wall type (drywall, plaster, or tile). Secure the mounting bracket firmly before sliding the heater unit into place. Ensure the heater sits level and stable before plugging into the nearby outlet.

WiFi Setup Process: Download the Heat Storm mobile app from your device's app store. Plug the unit into the outlet and wait for the LED display to fully illuminate. Follow the in-app instructions to connect the heatstorm Infrared Heater HS-1000-WX-WI to your home WiFi network. Once connected, create your account and adjust preferred temperature settings.

Initial Operation: Set your desired temperature using either the wall-mounted LED display, included remote control, or smartphone app. Select your preferred power mode (low 500W, high 1000W, or auto). Allow the unit to run for 5-10 minutes before expecting maximum heating efficiency.

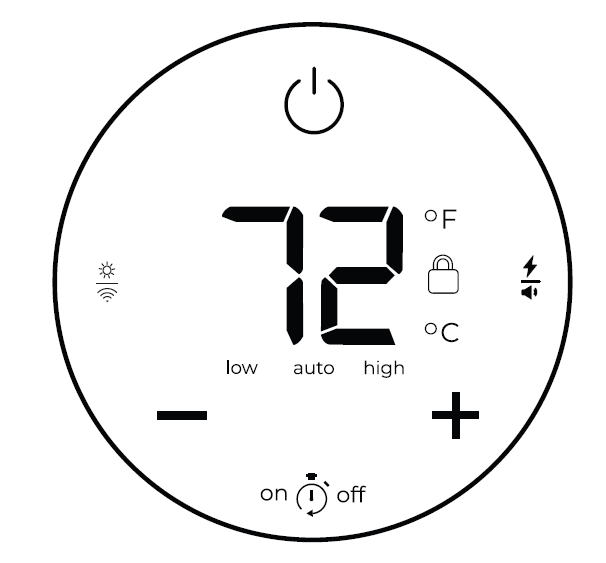

Operating Instructions and Controls

Power Management: Press the power button on the digital display or remote to activate the heatstorm Infrared Heater HS-1000-WX-WI. The LED screen illuminates showing current room temperature. Press again to deactivate the unit. After 5 minutes of inactivity, the display automatically enters dark mode to reduce light disturbance.

Temperature Adjustment: Use the plus and minus buttons to set your desired room temperature between 40-99 degrees Fahrenheit. The LED display simultaneously shows current ambient temperature and your target temperature setting, allowing precise control.

Heat Setting Selection: Cycle through three operational modes using the mode button:

• Low Mode (500W): Energy-saving option for mild days or supplemental heating in insulated spaces
• High Mode (1000W): Maximum heating output for rapid temperature increases or larger areas
• Auto Mode: Intelligent operation where the heatstorm Infrared Heater HS-1000-WX-WI automatically adjusts between 500W and 1000W to maintain your set temperature efficiently

Display Brightness Control: Adjust LED display brightness to your preference using the brightness button. This feature proves particularly useful in bedrooms where bright displays may disturb sleep.

Remote Control Operation: The included battery-powered remote provides identical control functions as the wall-mounted display, allowing temperature and mode adjustments from anywhere in the room.

Maintenance and Care Instructions

Regular Cleaning: Dust the exterior grill and housing monthly using a soft, dry cloth. Avoid water contact with electrical components. For stubborn dust, use a soft-bristled brush to gently clean grill openings.

Filter Maintenance: The heatstorm Infrared Heater HS-1000-WX-WI features a permanently sealed heating element requiring no filter replacement. However, ensure grill openings remain unobstructed for optimal airflow and heat distribution.

Seasonal Storage: Before storing the unit during warmer months, unplug from the outlet and allow complete cooling. Store in a dry location away from moisture and extreme temperatures. Keep the remote control in a safe place with fresh batteries installed.

Safety Inspections: Periodically check the power cord for damage or wear. Verify the wall mounting remains secure and level. Test the tip-over switch by gently tilting the unit to confirm automatic power shutoff functions properly.

Troubleshooting Common Issues

Unit Won't Power On: Verify the outlet has power by plugging in another device. Check that the power button on the LED display is fully pressed. If the unit still doesn't activate, try resetting by unplugging for 30 seconds before reconnecting.

WiFi Connection Problems: Ensure your home WiFi network is functioning and the heatstorm Infrared Heater HS-1000-WX-WI is within range of your router. Restart both the unit and your WiFi router. Delete the app and reinstall to refresh the connection.

Heater Not Reaching Set Temperature: Verify the room insulation and check for drafts around windows and doors. In auto mode, the heatstorm Infrared Heater HS-1000-WX-WI may take 20-30 minutes to reach target temperature. Switch to high mode for faster heating if needed.

Unit Shuts Off Unexpectedly: Check that the grill remains unobstructed and air can freely circulate. The overheat protection may activate if the heater becomes too hot; ensure it's not placed in direct sunlight or near other heat sources. Allow the unit to cool for 15 minutes before restarting.

Remote Control Not Responding: Replace batteries in the remote control. Ensure no obstacles block the signal path between remote and heater. If problems persist, use the wall-mounted LED display for control.

Energy Efficiency and Cost Savings

The heatstorm Infrared Heater HS-1000-WX-WI employs infrared heating technology that provides superior energy efficiency compared to traditional forced-air heating systems. Infrared warmth directly heats objects and people rather than warming surrounding air, reducing energy waste and lowering utility bills significantly.

Using the 500-watt low mode for supplemental heating can reduce overall home heating costs by 10-20% during mild weather. The auto mode intelligently manages power consumption by adjusting between low and high settings to maintain temperature without continuous maximum output. WiFi scheduling capabilities allow you to heat only occupied spaces during specific hours, maximizing energy conservation and cost savings.

For a typical 500-square-foot supplemental heating application, the heatstorm Infrared Heater HS-1000-WX-WI can reduce heating expenses by approximately $15-$30 monthly compared to central heating systems, depending on local energy rates and usage patterns.

Safety Features and Certifications

The heatstorm Infrared Heater HS-1000-WX-WI prioritizes user safety through multiple integrated protection systems. The cool-touch grill exterior remains safe for contact even during operation, protecting children and pets from burn injuries. Automatic tip-over detection immediately cuts power if the wall-mounted unit becomes dislodged or falls.

Built-in overheat protection monitors internal temperature continuously. If internal sensors detect excessive heat buildup—such as from grill obstruction—the unit automatically shuts down power to prevent fire hazards. The patented heat exchanger with HMS technology ensures maximum heating efficiency while maintaining safe operating temperatures.

The heatstorm Infrared Heater HS-1000-WX-WI carries ETL safety listing certification, confirming compliance with electrical safety standards. The unit meets UPC standard 854271005666 and undergoes rigorous testing to ensure reliable, safe operation in residential environments.

Warranty and Customer Support

Heat Storm provides a comprehensive 1-year limited manufacturer warranty covering defects in materials and workmanship. This warranty protects against heating element failure, control system malfunctions, and structural defects in the heatstorm Infrared Heater HS-1000-WX-WI.

Warranty coverage does not include damage from improper installation, user negligence, or normal wear and tear. For warranty claims, contact Heat Storm customer service with your product serial number and proof of purchase. Most retailers including Home Depot and Lowe's offer 90-day return policies, providing additional protection beyond manufacturer warranty.

Conclusion and Final Recommendations

The Heat Storm HS-1000-WX WiFi infrared wall heater delivers an excellent combination of advanced smart home integration, energy efficiency, and practical heating performance. For homeowners seeking supplemental heating solutions with remote control capability, this heatstorm Infrared Heater HS-1000-WX-WI represents outstanding value in the mid-range price category.

The WiFi-enabled functionality distinguishes this model from basic infrared heaters, allowing smartphone scheduling and temperature management. Wall-mounted installation saves valuable floor space while maintaining powerful heating output. Safety features including cool-touch design and automatic overheat protection make the heatstorm Infrared Heater HS-1000-WX-WI suitable for households with children and pets.

Purchase this infrared wall heater if you need zone heating for specific rooms, want to reduce overall home heating expenses, or prefer smart home compatibility in your climate control systems. The heatstorm Infrared Heater HS-1000-WX-WI proves particularly valuable for renters, home office workers, and families prioritizing energy conservation and safety features.
