Heat Storm Tradesman Infrared Heater HS-1500-TT: Complete Product Manual and Guide

Introduction to the Heat Storm Tradesman Infrared Heater

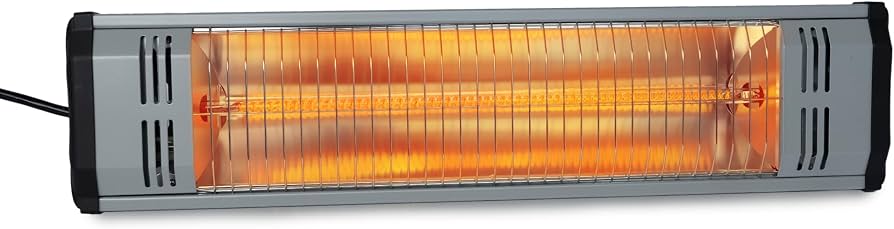

The Heat Storm Tradesman Infrared Heater HS-1500-TT is a premium outdoor heating solution designed for homeowners and professionals seeking reliable, weatherproof warmth. This 1500-watt infrared heater delivers instant, silent heat without the noise, fumes, or complexity of traditional heating systems. Whether you're warming a patio, garage, workshop, or balcony, the Tradesman model provides efficient radiant heat that warms people and objects directly rather than just heating the air.

The Tradesman Infrared Heater stands out with its carbon fiber heating element, IPX4 weatherproof rating, and included adjustable tripod stand. Perfect for both residential and commercial applications, this portable heater combines durability with ease of use. Simply plug it into any standard 110V outlet and enjoy immediate warmth. The heater is ideal for anyone looking to extend their outdoor living season or maintain comfortable temperatures in partially enclosed spaces without installing permanent heating infrastructure.

With an estimated retail price ranging from $139.99 to $179.99, the Heat Storm Tradesman Infrared Heater HS-1500-TT offers excellent value for a weatherproof, portable heating solution. The unit is widely available through major retailers, hardware stores, and online marketplaces. It comes backed by a 1-year manufacturer warranty and includes a convenient 8-foot power cord for flexible placement options.

Key Benefits and Unique Selling Points

The Tradesman Infrared Heater offers several distinctive advantages that set it apart from conventional space heaters. Its silent operation produces zero decibels of noise, making it perfect for peaceful outdoor environments. The instant infrared heat technology means you get warmth immediately upon activation—no waiting for heating elements to warm up. The weatherproof IPX4 rating allows operation during light rain and moisture exposure, expanding your heating options even when weather conditions are less than ideal.

Portability is another major strength. At just 10.4 lbs for the heater unit and 16 lbs combined with the tripod, the Tradesman is lightweight enough for anyone to move and position. The fully adjustable tripod extends up to 6.5 feet, allowing you to direct heat exactly where needed. The 30-degree tilting mounting bracket provides additional flexibility for angling the heater toward specific areas.

Technical Specifications and Performance Metrics

Core Technical Specifications

• Model Number: HS-1500-TT
• Power Rating: 1500 watts
• Voltage: 110-120V AC standard household outlet
• Current Draw: 12.5 amperes
• Frequency: 60 Hz
• BTU Output: 5200 BTU per hour
• Heating Element: Carbon fiber infrared element with extended lifespan
• Sound Level: 0 decibels (completely silent operation)
• Power Cord Length: 8 feet standard (extension cord compatible)

Physical Dimensions and Weight

• Heater Unit Dimensions: 24 inches (L) x 8 inches (W) x 6 inches (H)
• Heater Unit Weight: 10.4 lbs
• Tripod Stand Height Range: Adjustable from ground level to 6.5 feet maximum
• Combined Weight (Heater + Tripod): 16 lbs total
• Material Construction: Anodized extruded aluminum alloy frame with aluminum reflector

Coverage Area and Heating Capacity

The Heat Storm Tradesman Infrared Heater HS-1500-TT provides impressive coverage for various applications. As a primary heat source, it effectively heats up to 150 square feet of space. When used as supplementary heating in larger areas, the heater can provide warmth across up to 300 square feet. The actual coverage depends on factors including outdoor temperature, wind conditions, desired heat intensity, and the presence of obstacles that might block the infrared beam.

Safety and Environmental Certifications

• Weatherproof Rating: IPX4 certified (protects against light rain and water spray)
• Electrical Certification: cULus certified for safety and performance standards
• Safety Features: Tip-over automatic shut-off protection
• Mounting Options: Tripod, wall mount, or ceiling mount bracket included
• Tilt Range: 30 degrees forward and backward adjustment

Performance Characteristics

The Tradesman Infrared Heater delivers radiant heat energy that works differently from traditional forced-air systems. Instead of heating the surrounding air, infrared technology directly warms people and solid objects within the heat beam. This approach is more efficient for outdoor use where air movement can dissipate warmth quickly. The carbon fiber heating element provides reliable, long-lasting performance with minimal maintenance requirements and no harmful fumes or emissions.

Installation and Setup Guide

Quick Start Instructions

The Heat Storm Tradesman Infrared Heater HS-1500-TT features a straightforward setup process requiring no special tools or technical expertise. Begin by unpacking all components: the heater unit, adjustable tripod stand, mounting bracket, and the 8-foot power cord. Examine all parts for any damage during shipping before proceeding with assembly.

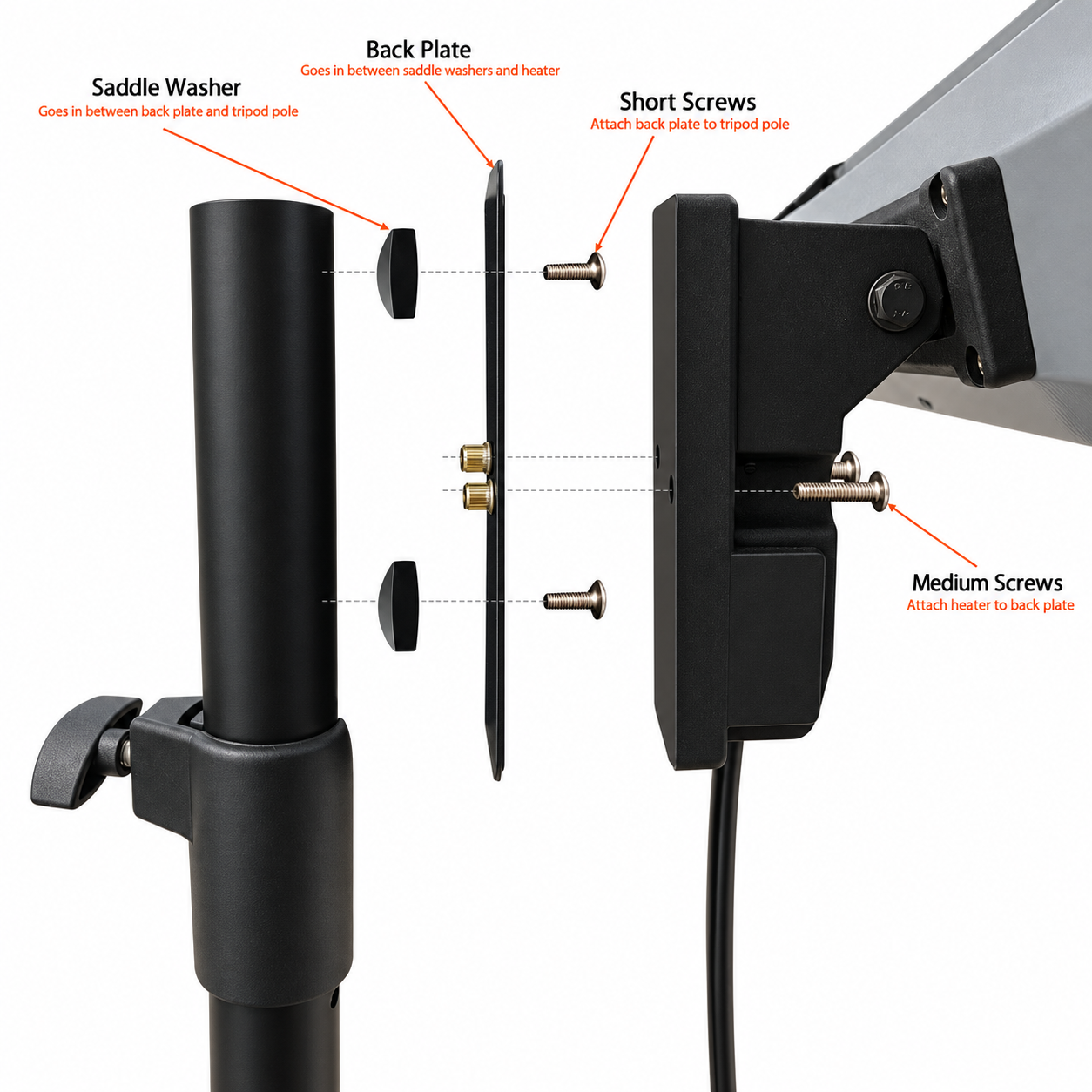

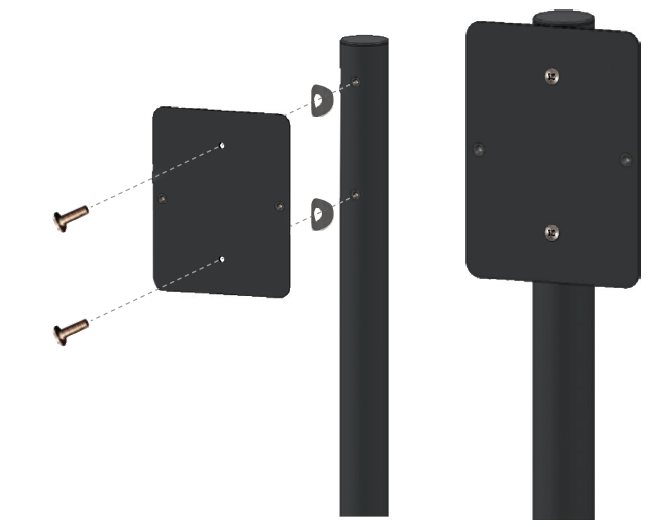

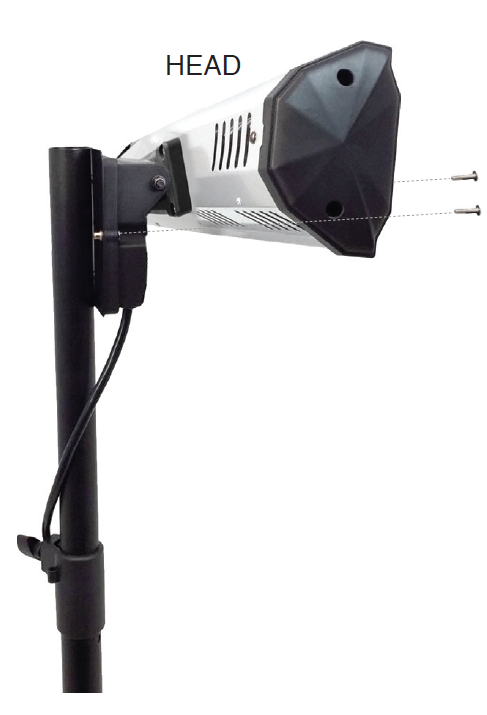

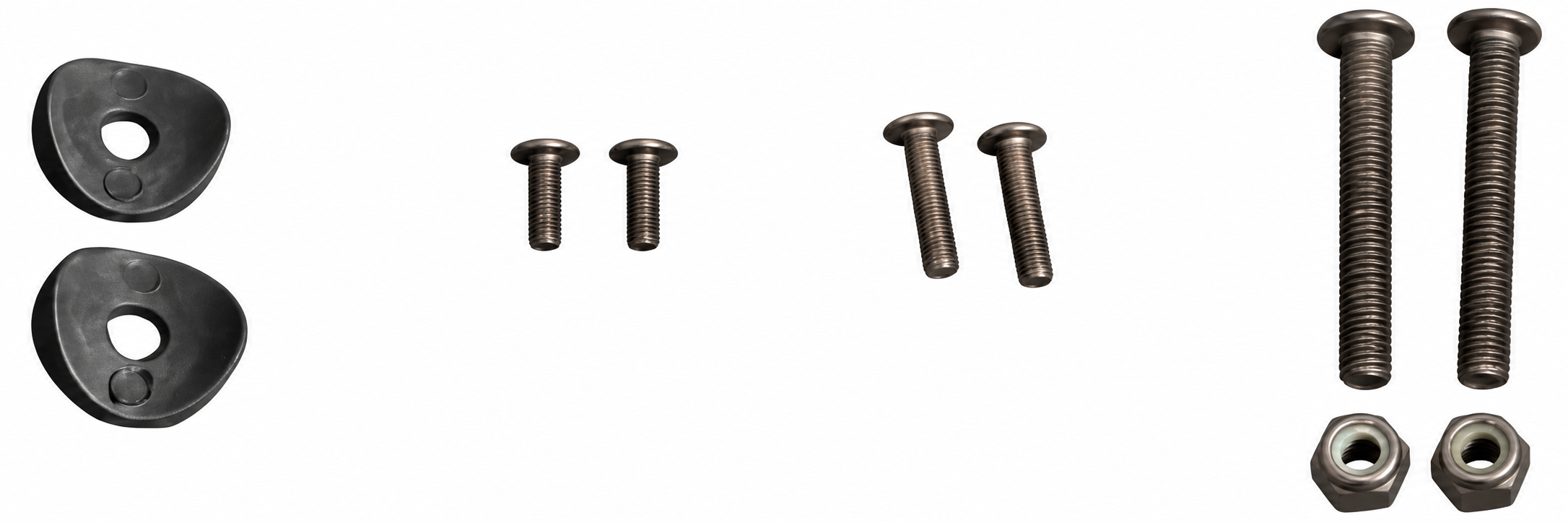

Attach the mounting bracket to the heater unit using the provided hardware. The bracket allows the heater to tilt up to 30 degrees in either direction, enabling you to angle the heat output toward your desired heating area. Insert the heater unit into the tripod stand using the mounting bracket connection points. Adjust the tripod legs to your preferred height, ranging from ground level to the maximum 6.5-foot extension. Ensure all connection points are secure and the heater sits level on the tripod base.

Position the assembled heater in your desired location, ensuring the tripod base is on level ground for stability. The tripod includes rubber feet to prevent slipping on smooth surfaces. Plug the 8-foot power cord into a standard 120V household outlet. For locations beyond the cord's reach, you may use an extension cord rated for 1500 watts minimum with No. 16 AWG minimum wire size. Ensure your electrical circuit includes a 20-ampere circuit breaker for proper protection.

Mounting Options

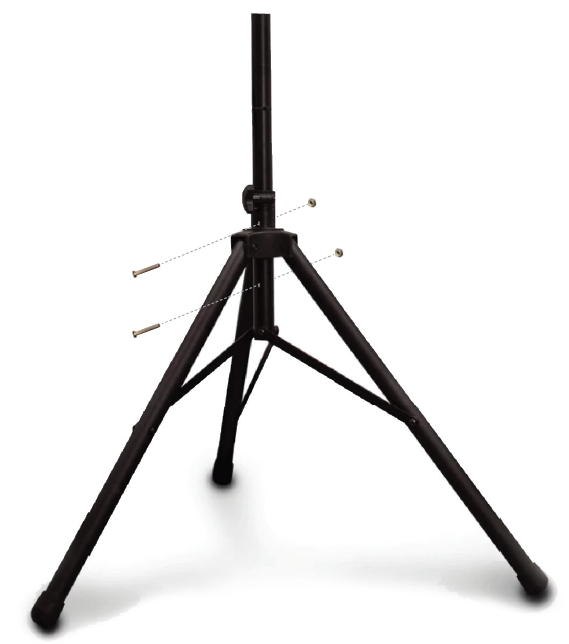

The Tradesman Infrared Heater accommodates three distinct mounting configurations. The included tripod stand offers maximum portability and flexibility, allowing quick repositioning as needed. For permanent installations, wall mounting provides a fixed heating solution for patios, covered porches, or commercial spaces. Ceiling mounting is ideal for enclosed structures like workshops or garages where overhead installation maximizes floor space.

Electrical Connection Safety

• Use only standard 110-120V household outlets (not GFCI protected outlets)
• Do not use the heater on circuits with other high-draw appliances
• If extension cords are necessary, use No. 16 AWG minimum gauge rated for 1500 watts
• Ensure the outlet is served by a dedicated 20-ampere circuit breaker
• Keep the power cord away from water sources and foot traffic
• Inspect the cord for damage before each use

Operation and Control Functions

Control Panel Overview

The Heat Storm Tradesman Infrared Heater HS-1500-TT features intuitive controls accessible either through remote operation or manual buttons on the unit itself. The main control panel includes a power button, heating level adjustment buttons, timer settings, and a manual push button for direct operation without remote control.

Button Functions and Controls

• Power Button: Turns the heater on and off. Press once to activate heating, press again to shut down
• Up Button: Increases timer duration and adjusts heating levels upward
• Down Button: Decreases timer duration and adjusts heating levels downward
• Level Button: Cycles through three heating intensity levels (L1, L2, L3). Press the Level button then use Up/Down buttons to select desired temperature setting
• Timer Button: Sets automatic shut-off timing from 0 to 9 hours. Adjust the desired runtime using Up and Down buttons
• Manual Push Button: Located on the right side of the heater unit for direct operation without remote control

Operating Tips for Optimal Performance

For best results with the Tradesman Infrared Heater, position the unit to direct the heat beam toward your primary seating or work area. Remember that infrared heat works most effectively when there are no obstructions blocking the heat rays. Wind conditions significantly affect performance—position the heater to account for prevailing wind direction. Using the heater at full power (L3 setting) provides maximum heat output but increases electricity consumption. For extended use, consider using lower settings (L1 or L2) for comfortable warmth while reducing energy costs.

The timer function is particularly useful for preventing accidental extended operation. Set the heater to shut off automatically after your estimated usage period. This feature is especially valuable for outdoor installations where you might forget to manually turn off the unit. The three heating levels allow customization based on ambient temperature and desired comfort level—higher outdoor temperatures may require only L1 or L2 settings, while cold conditions benefit from full L3 output.

Troubleshooting Common Issues

Heater Won't Turn On

Problem: The heater fails to activate when the power button is pressed.

Solutions: First, verify that the power cord is properly connected to a working 120V outlet. Test the outlet by plugging in another device to confirm power availability. Check that the power cord is not damaged or kinked. If using an extension cord, ensure it meets the 1500-watt minimum rating. Press the power button firmly and hold for 2-3 seconds. If the heater still won't activate, unplug it for 30 seconds, then reconnect and try again. If the problem persists, the internal power switch may require professional service.

Weak or Insufficient Heat Output

Problem: The heater produces minimal warmth despite being turned on.

Solutions: Verify that the heater is set to the highest level (L3) for maximum output. Check that nothing is blocking the infrared heat beam from reaching your target area. Remove any debris or dust from the heater's reflector surface, as buildup reduces heat efficiency. Position the heater to point directly at your seating area rather than at an angle. Consider ambient temperature—extremely cold conditions may require longer warm-up periods. If positioned outdoors, account for wind conditions that can disperse heat; position the heater to minimize wind interference. If heat output remains consistently low, the carbon fiber element may require professional inspection.

Heater Shuts Off Unexpectedly

Problem: The heater turns off during operation without user input.

Solutions: Check if the timer has been set to automatically shut off. Review the timer display and adjust if necessary. Verify that the heater hasn't tipped over, as the safety tip-over shut-off feature automatically deactivates the unit if the tripod or mounting becomes unstable. Ensure the electrical circuit hasn't tripped the breaker due to overload—check your home's circuit breaker panel. If the heater is connected to an extension cord, verify it's properly rated for 1500 watts. Unplug the heater and inspect the power cord for damage. Allow the heater to cool for several minutes before restarting, as thermal protection features may temporarily disable the unit if it overheats.

Power Cord Issues

Problem: The 8-foot power cord is too short for your installation location.

Solutions: Use an appropriately rated extension cord meeting the 1500-watt minimum specification with No. 16 AWG minimum wire gauge. Avoid using multiple extension cords daisy-chained together. Keep extension cords away from water, foot traffic, and sharp edges. Inspect extension cords regularly for damage before use. Position the heater closer to the nearest outlet if possible to minimize cord length. For permanent installations, consider professional wall or ceiling mounting that allows closer proximity to electrical sources.

Weatherproofing and Water Exposure

Problem: The heater is exposed to rain or moisture.

Solutions: The IPX4 weatherproof rating protects against light rain and water spray but not heavy downpours or submersion. During heavy rain, cover the heater with a weatherproof protective cover or move it under shelter. Ensure the power cord connection remains dry and away from standing water. After exposure to moisture, allow the heater to dry completely before operation. The electrical outlet should also be protected from direct water exposure—use a covered outlet or weatherproof outlet box.

Warranty and Support Options

The Heat Storm Tradesman Infrared Heater HS-1500-TT is backed by a 1-year manufacturer warranty covering defects in materials and workmanship. The warranty does not cover damage from misuse, improper installation, or normal wear and tear. For warranty claims or technical support, contact Heat Storm customer service through their official website. Retain your proof of purchase and product documentation for warranty verification. Most retailers also offer return and exchange policies within specific timeframes—check with your seller for their return procedures and timelines.

Advantages and Disadvantages

Major Advantages

• Silent Operation: Zero-decibel heating provides peaceful warmth without annoying noise pollution, making it ideal for residential areas and noise-sensitive environments
• Instant Heat: Infrared technology delivers immediate warmth upon activation with no waiting period for elements to warm up
• Weatherproof Design: IPX4 rating allows safe operation during light rain and moisture exposure, extending usable heating season
• Portable and Lightweight: At 10.4 lbs for the heater unit, anyone can easily move, reposition, and store the Tradesman Infrared Heater
• No Emissions: Carbon fiber element produces no harmful fumes, making it safe for enclosed or semi-enclosed spaces
• Adjustable Coverage: Tripod extends to 6.5 feet with 30-degree tilt adjustment, allowing precise heat direction control
• Affordable Price Point: Excellent value at $139.99-$179.99 compared to permanent heating installations
• Versatile Mounting: Works with tripod, wall, or ceiling mounting for flexible installation options
• Energy Efficient: Radiant heating directly warms objects and people rather than wasting energy heating air
• Easy Setup: No special tools or technical expertise required for quick assembly and operation

Notable Disadvantages

• Limited Cord Length: The standard 8-foot power cord restricts placement options near electrical outlets, requiring extension cords for distant locations
• Wind Sensitivity: Outdoor performance suffers in windy conditions as air movement disperses infrared heat away from target areas
• Line-of-Sight Heating: Infrared heat requires direct beam contact; obstacles blocking the heater reduce effectiveness
• IPX4 Limitations: While weatherproof, the rating protects against light rain but not heavy downpours, requiring protective covering in severe weather
• Electricity Consumption: The 1500-watt draw increases utility bills with extended use, particularly at L3 maximum setting
• Limited Coverage Area: The 150-square-foot primary heating range may be insufficient for large patios or open areas
• Tripod Stability: Lightweight design means the unit can be tipped by strong winds or contact; requires careful positioning
• No Built-in Thermostat: Manual level adjustment rather than automatic temperature control based on ambient conditions
• Outdoor-Specific Design: While IPX4 rated, it's not ideal for permanent indoor installation in damp environments

Value for Money Assessment

The Heat Storm Tradesman Infrared Heater HS-1500-TT offers exceptional value for consumers seeking portable, weatherproof outdoor heating. Compared to permanent patio heating installations costing $500-$2000+, this unit provides similar functionality at a fraction of the price. The included tripod stand eliminates additional purchase costs, and the simple plug-and-play operation requires no installation labor expenses. For seasonal heating needs or renters unable to install permanent systems, the Tradesman represents outstanding financial value. The 1-year warranty and durable carbon fiber construction suggest long-term reliability, further improving the overall cost-benefit ratio.

Customer Reviews and User Feedback

Overall User Satisfaction

Customers consistently praise the Heat Storm Tradesman Infrared Heater HS-1500-TT for its silent operation, instant heat delivery, and portability. Users appreciate the weatherproof design that allows operation during light rain and the included tripod that eliminates separate mounting costs. Many reviewers highlight the heater's effectiveness for patios, decks, workshops, and garages, noting significant comfort improvements during cooler months.

Commonly Praised Features

• Silent, whisper-quiet operation perfect for peaceful outdoor environments
• Instant infrared heat with no warm-up period
• Sturdy construction and durable aluminum frame
• Easy setup requiring no special tools or expertise
• Effective weatherproofing for light rain exposure
• Reasonable price point compared to permanent heating solutions
• Adjustable tripod and tilting bracket for flexible positioning

Frequently Mentioned Concerns

Several users note that the 8-foot power cord limits placement flexibility and requires extension cords for distant locations. Wind conditions significantly impact outdoor performance—users in consistently windy areas report reduced effectiveness. Some customers mention that the heater's lightweight construction, while offering portability benefits, requires careful positioning to prevent tipping. A few users suggest that the IPX4 weatherproof rating, while adequate for light rain, provides limited protection during heavy downpours.

Recommended Use Cases

Customers successfully use the Tradesman Infrared Heater for patios with overhead coverage, semi-enclosed garages, workshop heating, covered deck warming, and balcony heating. Users in mild climates with occasional cold snaps report excellent results. The heater works particularly well for supplemental heating in spaces where full-time operation isn't necessary. Professionals appreciate its portability for job site heating needs, while homeowners value its seasonal outdoor entertainment applications.

Warranty Claims and Customer Service

Most users report straightforward warranty processes and responsive customer service when issues arise. The 1-year manufacturer warranty covers manufacturing defects and failures unrelated to misuse. Keep original packaging and proof of purchase for warranty claims. Retailers typically offer return windows of 30-90 days depending on the seller, providing additional consumer protection beyond the manufacturer's warranty.

Comparison with Similar Products

Feature	Heat Storm Tradesman HS-1500-TT	Typical Wall-Mounted Heater	Portable Electric Heater
Power Rating	1500W / 5200 BTU	1500-3000W	750-1500W
Installation Cost	$0 (included tripod)	$200-$500 professional	$0
Portability	Highly portable (10.4 lbs)	Permanent fixture	Portable but limited coverage
Weatherproof Rating	IPX4	Varies (often none)	Minimal
Operating Cost	Moderate (1500W)	High (3000W)	Low (750W)
Coverage Area	150-300 sq ft	500-1000+ sq ft	75-150 sq ft
Noise Level	0 decibels (silent)	Varies (often 70+ dB)	60-80 decibels
Heat Type	Infrared radiant	Convection/forced air	Convection

Final Recommendations

Ideal for These Situations

The Heat Storm Tradesman Infrared Heater HS-1500-TT is the perfect choice for renters unable to install permanent heating, homeowners seeking flexible seasonal heating, and anyone needing portable warmth without installation costs. It excels for covered patios, decks, workshops, and garages. Those valuing silent operation and instant heat will particularly appreciate this model. Budget-conscious consumers seeking reliable outdoor heating without expensive professional installation benefit greatly from this heater.

Consider Alternatives If

If you need permanent, high-capacity heating for large open areas exceeding 300 square feet, wall-mounted or ceiling-mounted permanent systems may be more appropriate. Locations with consistently strong winds may require more powerful fixed installations. Those needing full weatherproofing for heavy rain exposure should explore fully enclosed heating systems. If you prioritize thermostat-controlled automatic temperature adjustment over manual control, other models with digital thermostats might better suit your needs.

Conclusion

The Heat Storm Tradesman Infrared Heater HS-1500-TT represents an excellent balance of affordability, portability, and performance for outdoor heating needs. Its silent infrared technology, weatherproof design, and easy setup make it an outstanding choice for seasonal patio heating, workshop warmth, and supplemental outdoor comfort. With a reasonable price point, durable construction, and versatile mounting options, this heater delivers genuine value. Whether you're extending your outdoor entertaining season or maintaining comfortable workshop temperatures, the Tradesman Infrared Heater provides reliable, efficient warmth that won't disappoint.
