Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG Product Manual: Complete Guide and Review

Introduction to Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG

The Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG is a versatile, weatherproof solution for instant radiant heat in patios, garages, workshops, balconies, and indoor spaces. This 1500-watt tripod combo model delivers 5200 BTU of silent, directional infrared heat using a durable carbon fiber bulb, warming people and objects directly without heating the air inefficiently. Its standout features include an IPX4 weatherproof rating for protection against rain and dust, a portable adjustable tripod stand reaching up to 7 feet, remote control for easy operation, and a tip-over safety switch that automatically shuts off the unit if tilted.

Ideal for homeowners, contractors, and outdoor enthusiasts seeking reliable indoor-outdoor infrared heaters, the HS-1500-TRIG excels in cold weather setups like backyard gatherings or chilly garages. Key benefits encompass zero noise (0 dB), wind-resistant heat waves, and plug-and-play simplicity with an 8-foot cord for standard 110V outlets. No gas or fuels required—it's energy-efficient and safe. Estimated price ranges from $150-$250, available at retailers like Home Depot and Heatstorm.com. Whether as primary heat for up to 150 sq ft or secondary for 300 sq ft, this Heatstorm HS-1500-TRIG heater offers portability and performance for year-round comfort in diverse settings.

Technical Specifications and Key Features of Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG

The Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG boasts robust specs for reliable performance. Here's a detailed breakdown:

• Power: 1500 Watts, 12.5 Amps, 5200 BTU output
• Dimensions: 24” L x 8” W x 6” H (unit); Tripod adjustable up to 7 ft
• Weight: 10.4 lbs; Cord Length: 8 ft (some variants 7 ft)
• Voltage: 110-120V standard outlet
• Heating Area: Primary up to 150 sq ft; Secondary up to 300 sq ft
• Weatherproof Rating: IPX4/IP35 (rain and dust protected); Wind-resistant
• Sound Level: 0 dB (completely silent)
• Safety Features: Tip-over auto shut-off, requires vertical mounting for operation
• Materials: Anodized aluminum alloy frame, aluminum reflector for even heat distribution
• Mounting Options: Tripod, wall, or ceiling (with accessories); 30° tilt adjustment
• Extras: Remote control, carbon fiber infrared bulb for long life

Compared to similar outdoor infrared heaters like Dr. Infrared or Amazon Basics models, the HS-1500-TRIG stands out with its included tripod, superior weatherproofing, and silent operation, offering better portability and value for small-to-medium spaces.

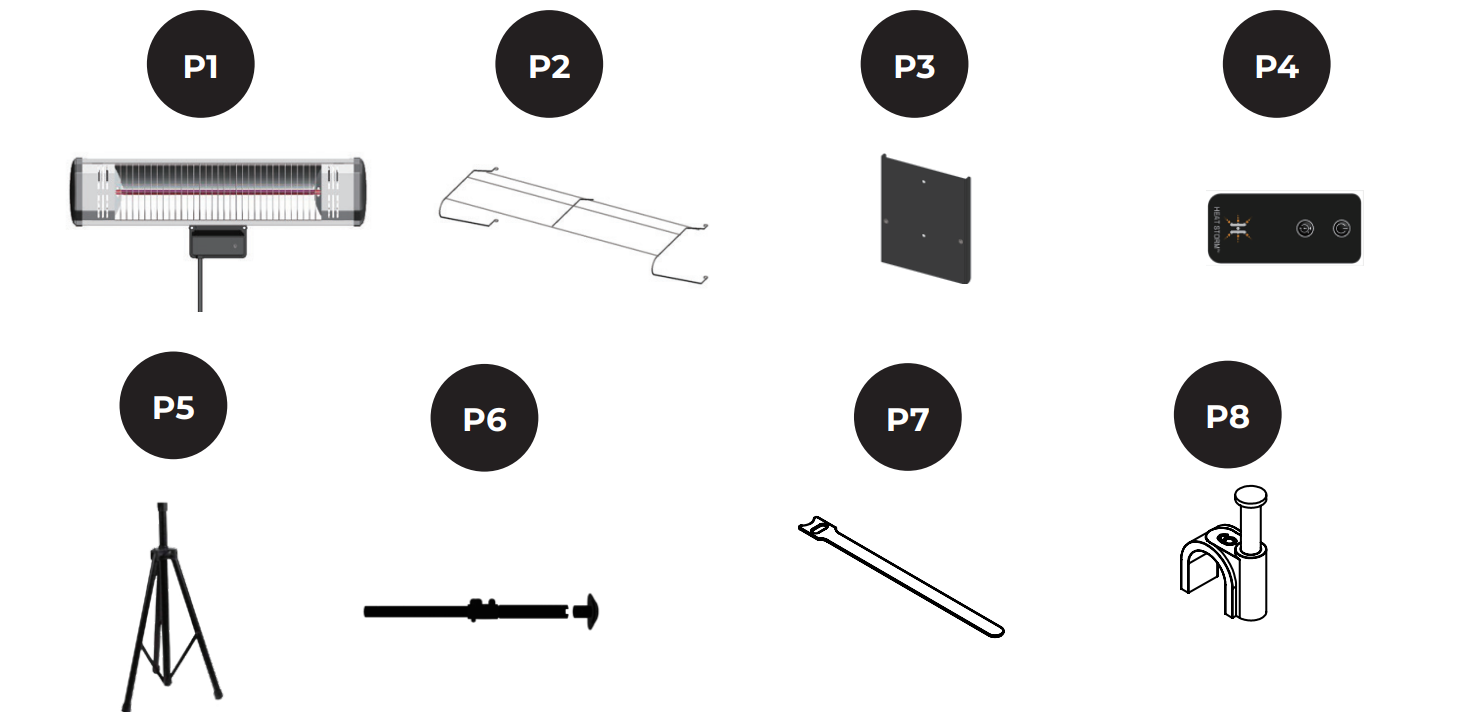

Included parts

• Heater
• Protection Grid
• Mount Plate
• Remote Control
• Tripod
• Ceiling Mount & Pole
• Cable Tie
• Cable Clip

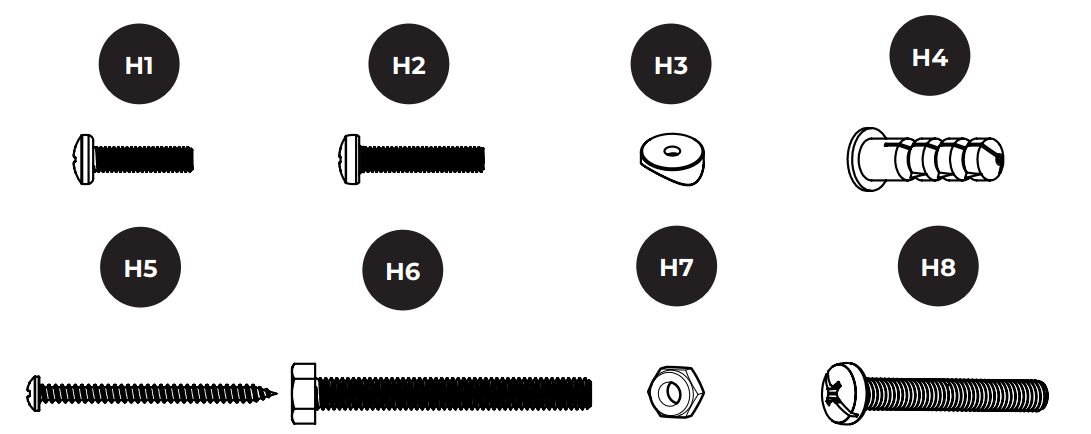

Included hardware

• M4 × 12 Screw
• M4 × 20 Screw
• Saddle Washer
• Drywall Anchor
• Self-Tapping Screw
• M6 × 50 Screw
• M6 Nut
• M6 × 45 Screw

Installation Instructions

• Ensure that the heater is properly installed before use.
• The heater should always be installed horizontally and should only use the mounting brackets provided.

Tools Needed for Installation

• 3/16” drill bit
• Phillips screwdriver

Heater Location (Wall & Ceiling Mount)

When choosing a location for your new heater, ensure that the general instructions are followed.

• Your heater must be installed on a provided mount or tripod.
• The heater should not face the ceiling or flammable substances.
• Ensure that there is no possibility of flammable material coming into contact with the heater or lying near the heater.
• This heater is weather-resistant and can be used indoors or outdoors. If using outdoors, use a waterproof outlet.

Cold Climate Installation

Placing the unit under a window or on a poorly insulated wall may result in the heater reading a colder ambient temperature than the actual room temperature.

Do Not Use in the Following Areas:

• Locations with gasoline, paint, or flammable liquids.
• Wet or moist locations.
• Closets.
• Directly near a bathtub, shower, or swimming pool.

Power Connection Guidelines

Heat Storm heaters are classified as appliances. Each heater and appliance should have its own dedicated circuit.

This heater is designed for standard 120-volt, 20-amp outlets and should only be connected to a properly grounded outlet. Plug the heater directly into a wall outlet with the cord fully unwound; do not use extension cords, surge protectors, or relocatable power taps. Do not use this heater with a timer device that automatically turns it on while unattended (e.g., an Alexa- or Google-programmed plug).

Grounding Instructions

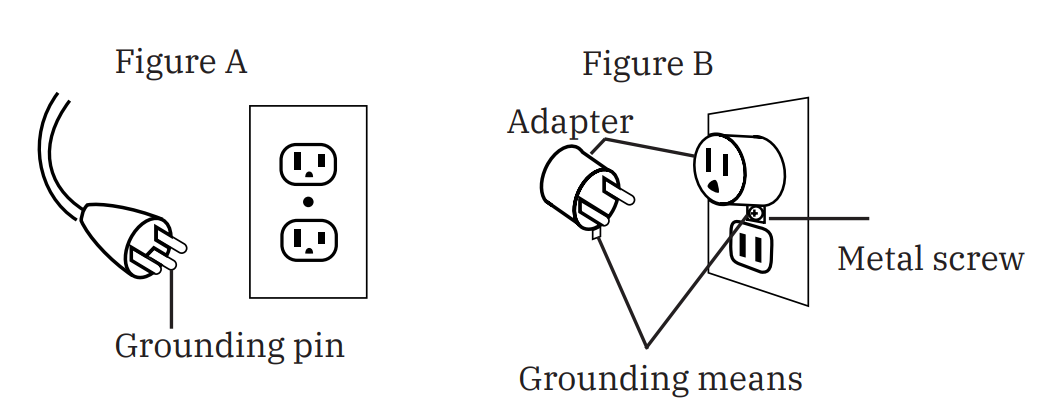

This heater operates on 120 volts. The cord features a three-blade grounded plug, shown in Figure A. If using an adapter to connect a three-blade grounding-type plug into a two-slot receptacle (Figure B), ensure the grounding lug extending from it is connected to a permanent ground. Do not use the adapter if a three-slot grounded receptacle is available.

TRIPOD MOUNT ASSEMBLY

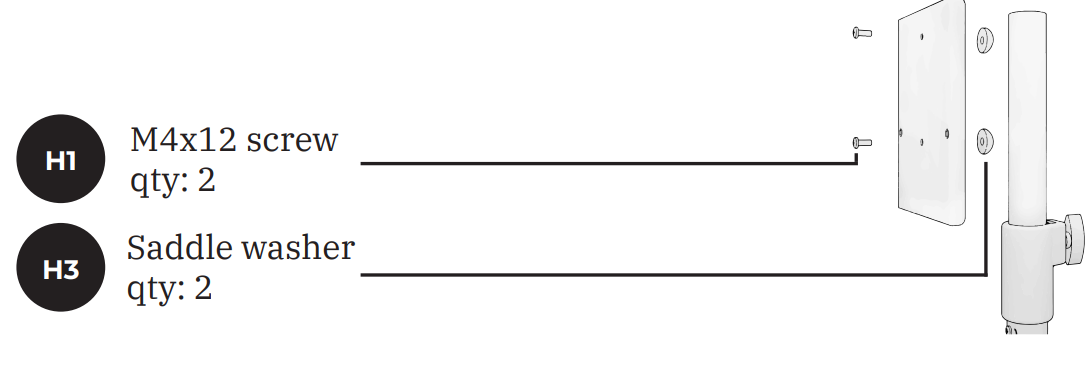

• Attach the mount plate to the tripod.

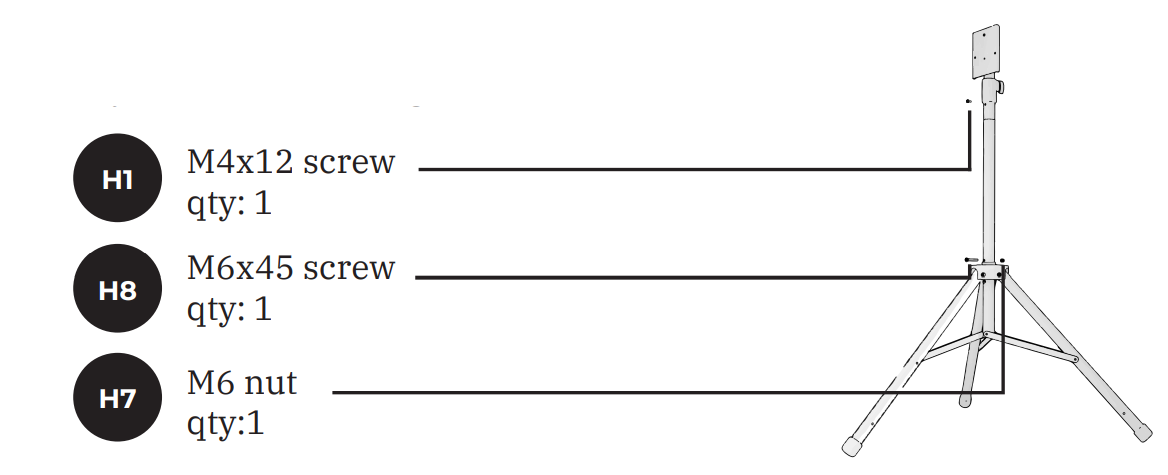

• Add screws to lock the tripod. You may have to adjust the poles to align the holes.

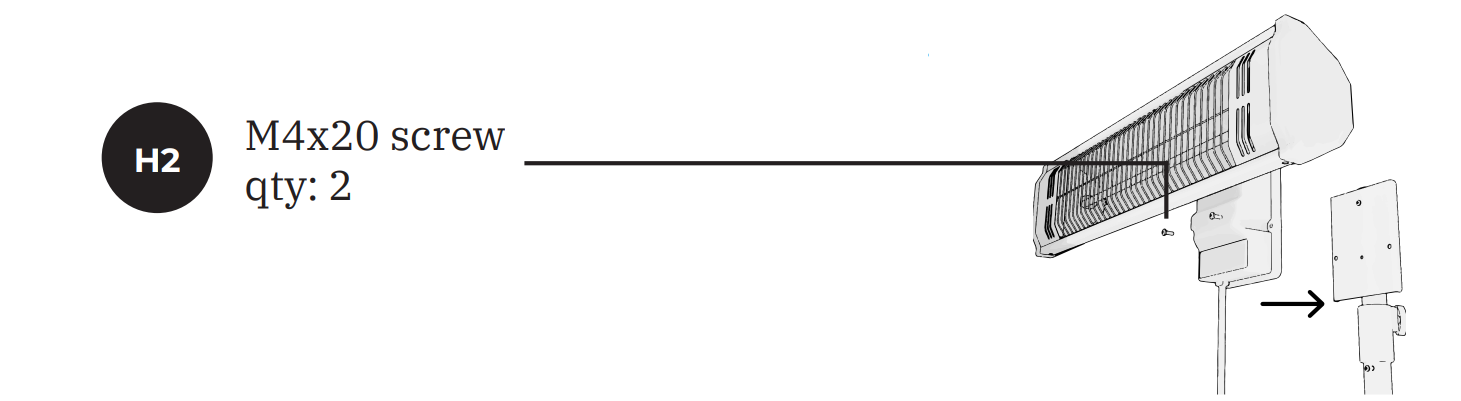

• Attach the heater to the mounting bracket

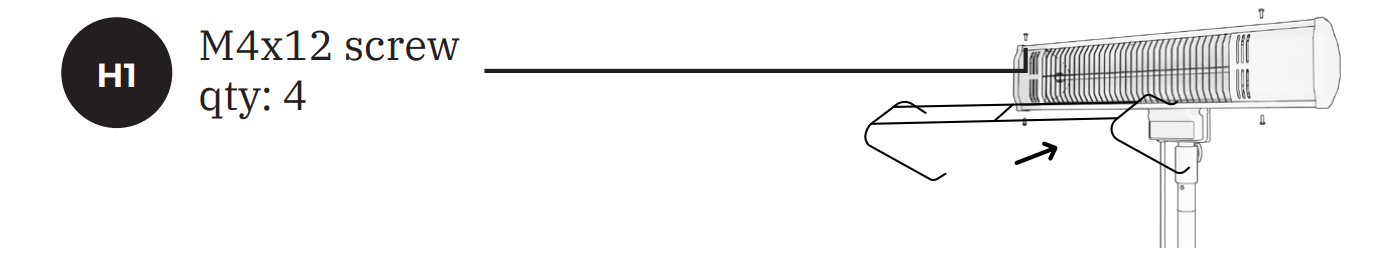

• Attach the protection grid.

• Fix the power cord around the tripod with the provided cable tie

Wall and Ceiling Mount

ONLY USE SUPPLIED BRACKETS.

• Ensure the power cable can reach a power outlet. Do not twist or bend the power cable.

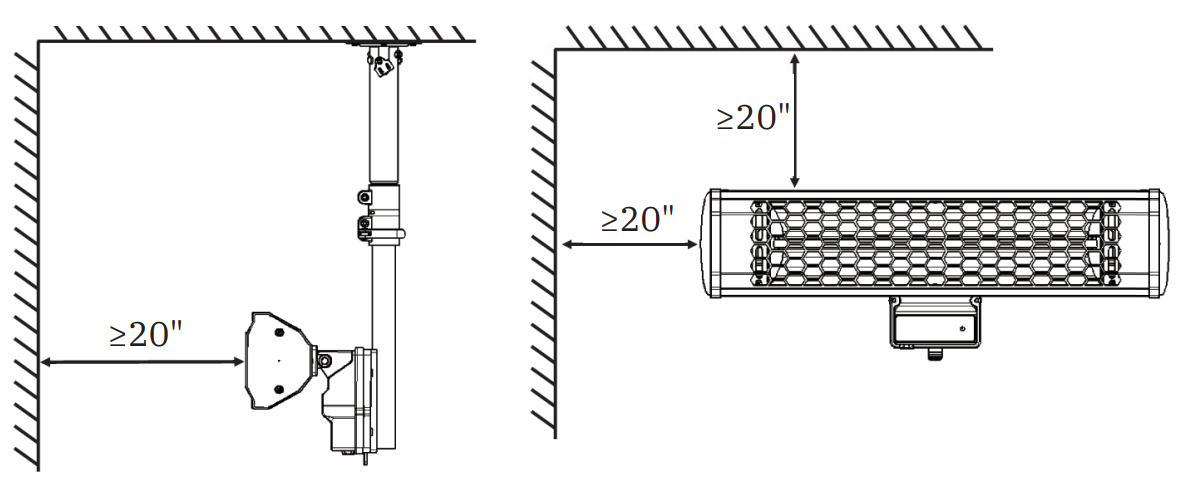

• Do not install closer than 20 inches to a vertical or horizontal surface.

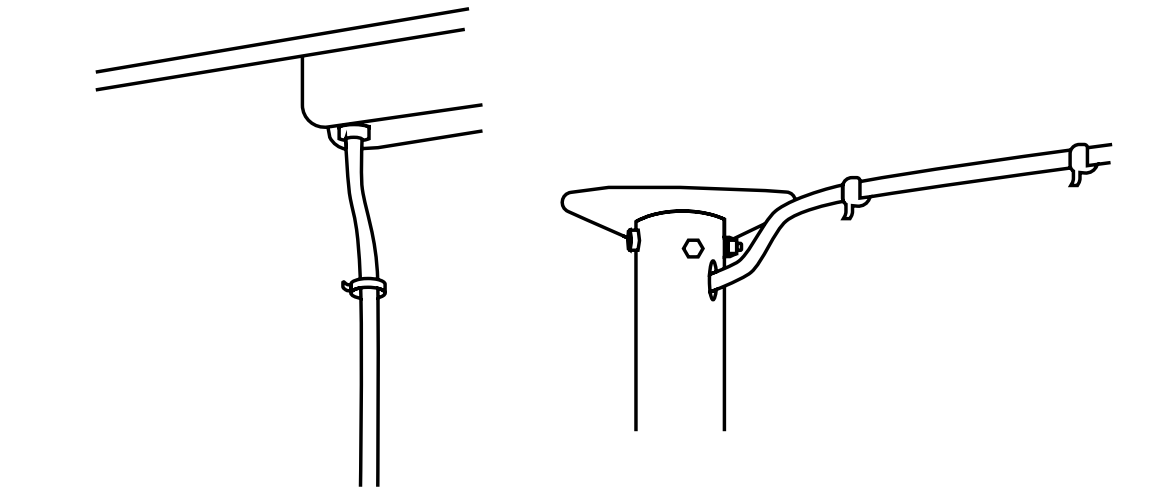

Prevent the power cable from touching the heater or entering the heated area. Secure the cord to the wall or ceiling when using the mounts to avoid fire or damage.

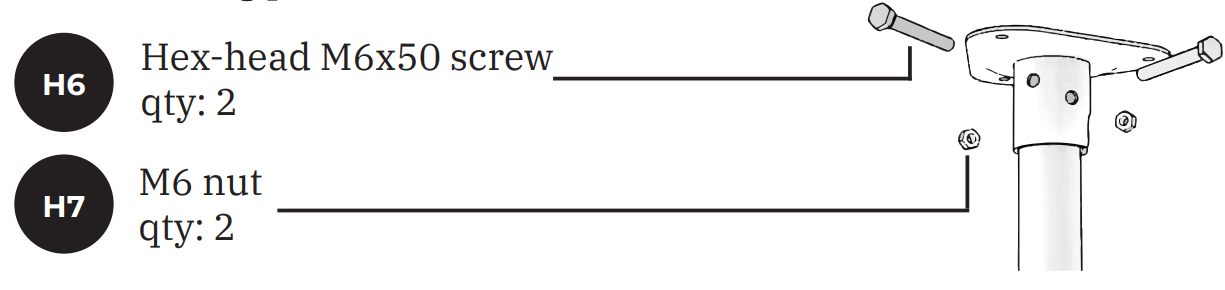

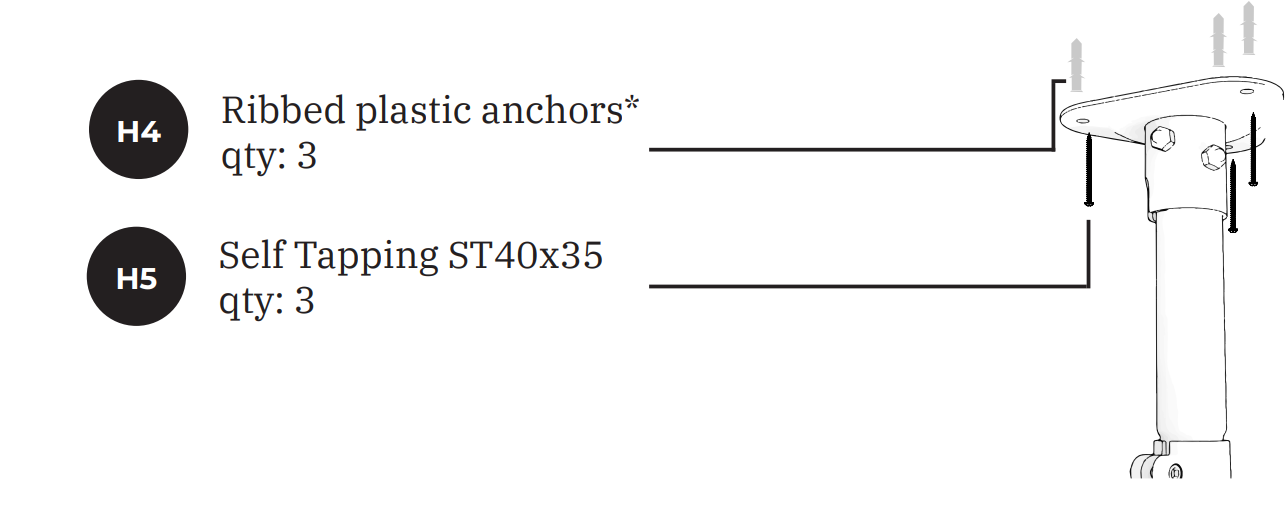

CEILING MOUNT

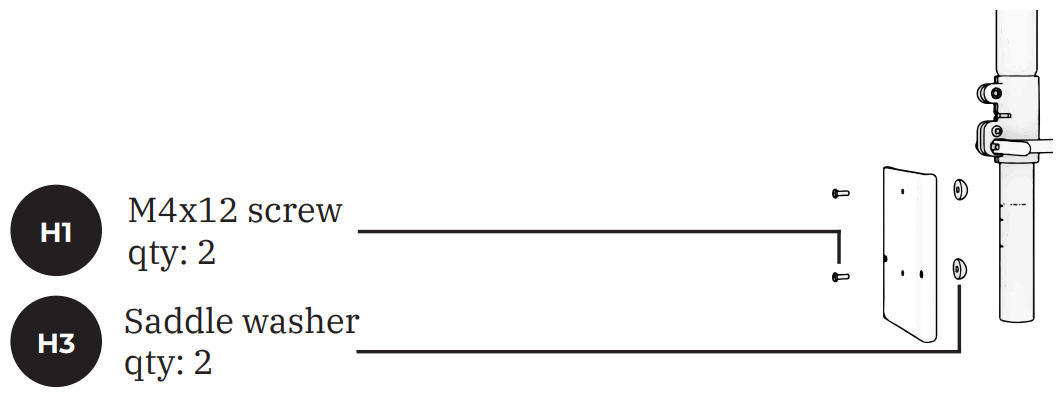

• Attach the mount plate to the ceiling pole.

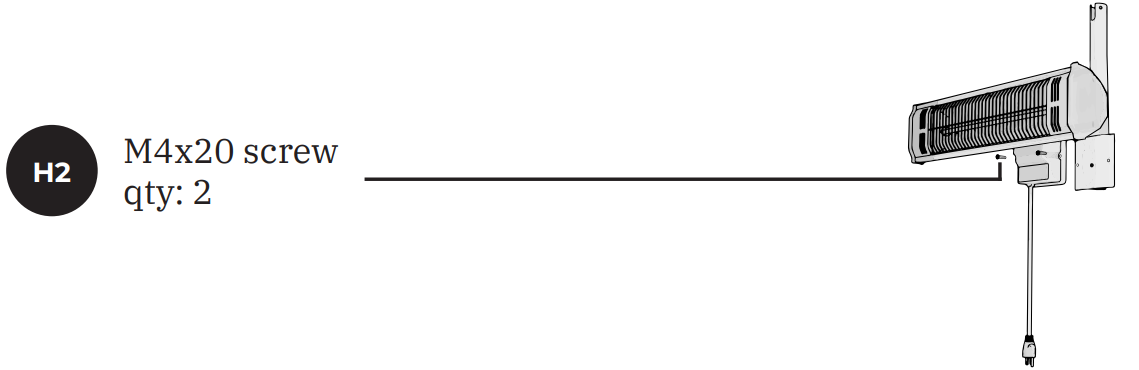

• Attach the heater to the mount plate.

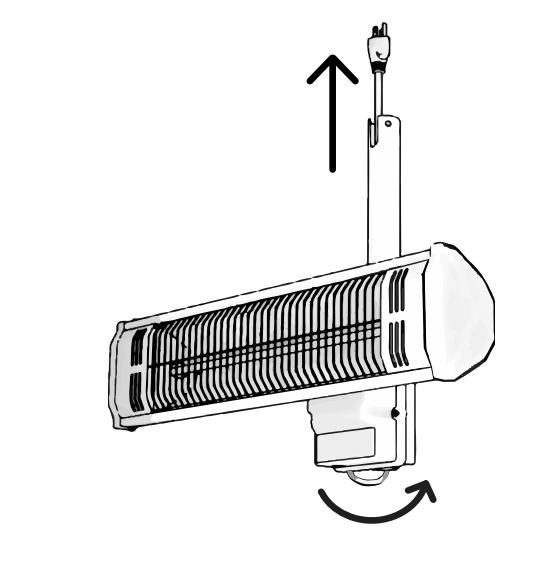

• Route the cable through the pole.

• Connect the ceiling mount with the extending pole.

• Mount the heater to the ceiling.

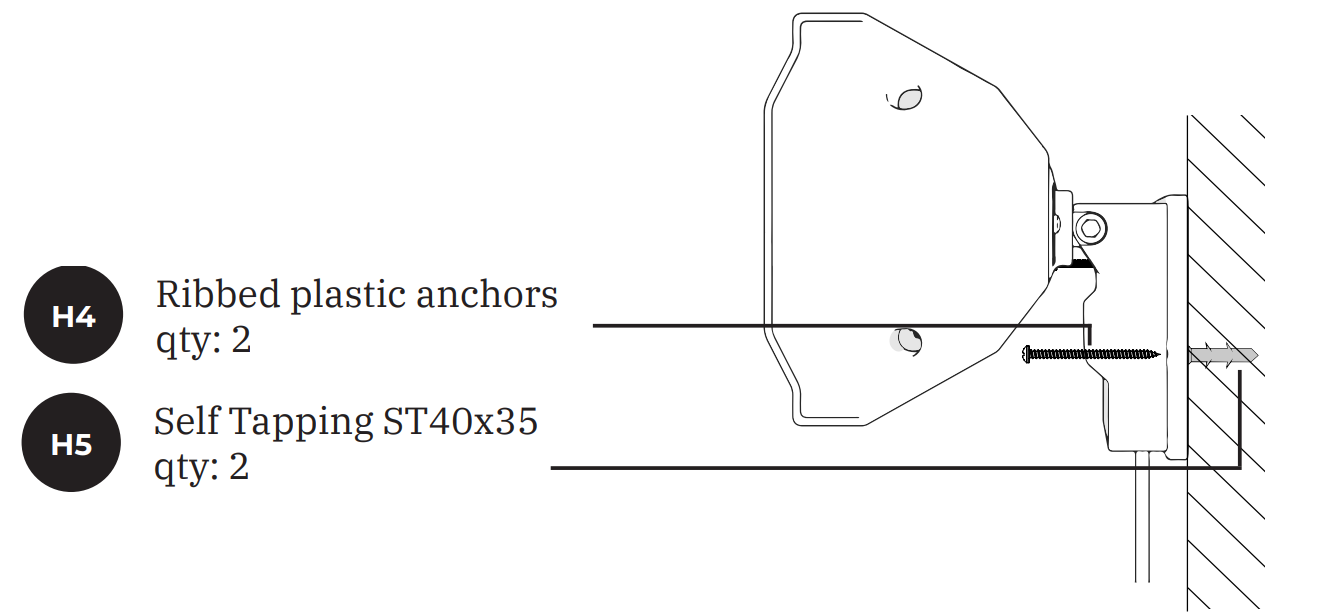

Wall Mount

Drill your pilot holes and insert the ribbed plastic anchors before using the screws to mount the heater.

Operations & Controls

Power ON/OFF

Press the power icon on either the remote or the heater to alternate between on and off.

Timer

Turn the heater on and then tap the timer button on the remote to enable edit mode. The display will flash. Continue pressing the timer button to change the "off" time. The timer will display in hourly increments from 1 to 9 hours. Wait 5 seconds for the timer setting to activate. Press the ON/OFF button to cancel the delayed-off timer.

Storage

You may store your heater indoors, where it is inaccessible to children.

Alternatively, disassemble the heater and store it in its original packaging box.

Tripod Disassembly Instructions:

1. Unplug the heater from the outlet and allow it to cool down.
2. Carefully disassemble the extending guard and tripod legs by removing the screws as shown in the installation figures.
3. Carefully fold the power supply cord and secure it with a cable tie.
4. Place the heater and all assemblies, including screws and nuts, in the packaging box. Store it in a dry location, away from direct sunlight and out of reach of children.
5. Assemble the heater according to the installation instructions before use.

Troubleshooting Guide for Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG

Encounter issues with your Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG? Common problems and fixes include:

• Won't Turn On: Ensure black safety box is mounted vertically on tripod/wall; tip-over switch activates only in proper position. Check power outlet and cord for damage.
• No Heat Output: Verify on/off switch and remote batteries. Allow 5-10 seconds for instant infrared warmup. Clean reflector if dusty.
• Tips Over Easily: Adjust tripod legs on level ground; tighten mounting knobs without overtightening plastic parts. Use safety switch as preventive measure.
• Overheating: Unplug and let cool; ensure 3-5 ft clearance from flammables. Avoid enclosed spaces.
• Remote Not Working: Replace batteries; point directly at unit within 20 ft range.

Prevent issues by storing dry, inspecting cord monthly, and following IPX4 limits (light rain only). Warranty: Typically 1-year; download manual from Heatstorm.com for specifics. Contact support at Heatstorm.com or 1-800 numbers listed there. For repairs, reference model HS-1500-TRIG.

Pros and Cons of Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG

Pros

• Instant, silent infrared heat warms objects efficiently—perfect for garages or patios
• IPX4 weatherproof and portable tripod make it ideal for indoor-outdoor use
• Tip-over safety and remote enhance usability and security
• Great value at $150-$250; outperforms basic 1500W heaters in wind resistance
• Easy 5-minute setup; covers 150-300 sq ft effectively

Cons

• Not for large spaces beyond 300 sq ft; directional heat limits broad coverage
• Cord position on tripod reduces placement flexibility near outlets
• Ceiling mount requires accessories; no operation if tipped
• Plastic adjustment parts may loosen over time with heavy use

Overall, excellent value versus pricier brands like Fire Sense, balancing cost and features for targeted heating needs.

Customer Reviews and Feedback on Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG

Users rate the Heatstorm Indoor-Outdoor Infrared Heater HS-1500-TRIG highly, averaging 4.5/5 stars across platforms. Praises include "good heat on cold days" and easy assembly, with one owner buying three for workshops. "Silent and instant—perfect for garage workbenches," notes a reviewer. Common complaints: Limited range due to cord height and not for very large areas.

• 5-Star: "Puts out solid heat; remote is a game-changer for patios."
• 4-Star: "Great for 150 sq ft balcony, but position carefully."
• 3-Star: "Tip switch too sensitive outdoors."

90% recommend for portable infrared patio heaters; addresses cold spots effectively. Frequently mentioned: Sturdy build, quick shipping.
