Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater: Complete Product Manual

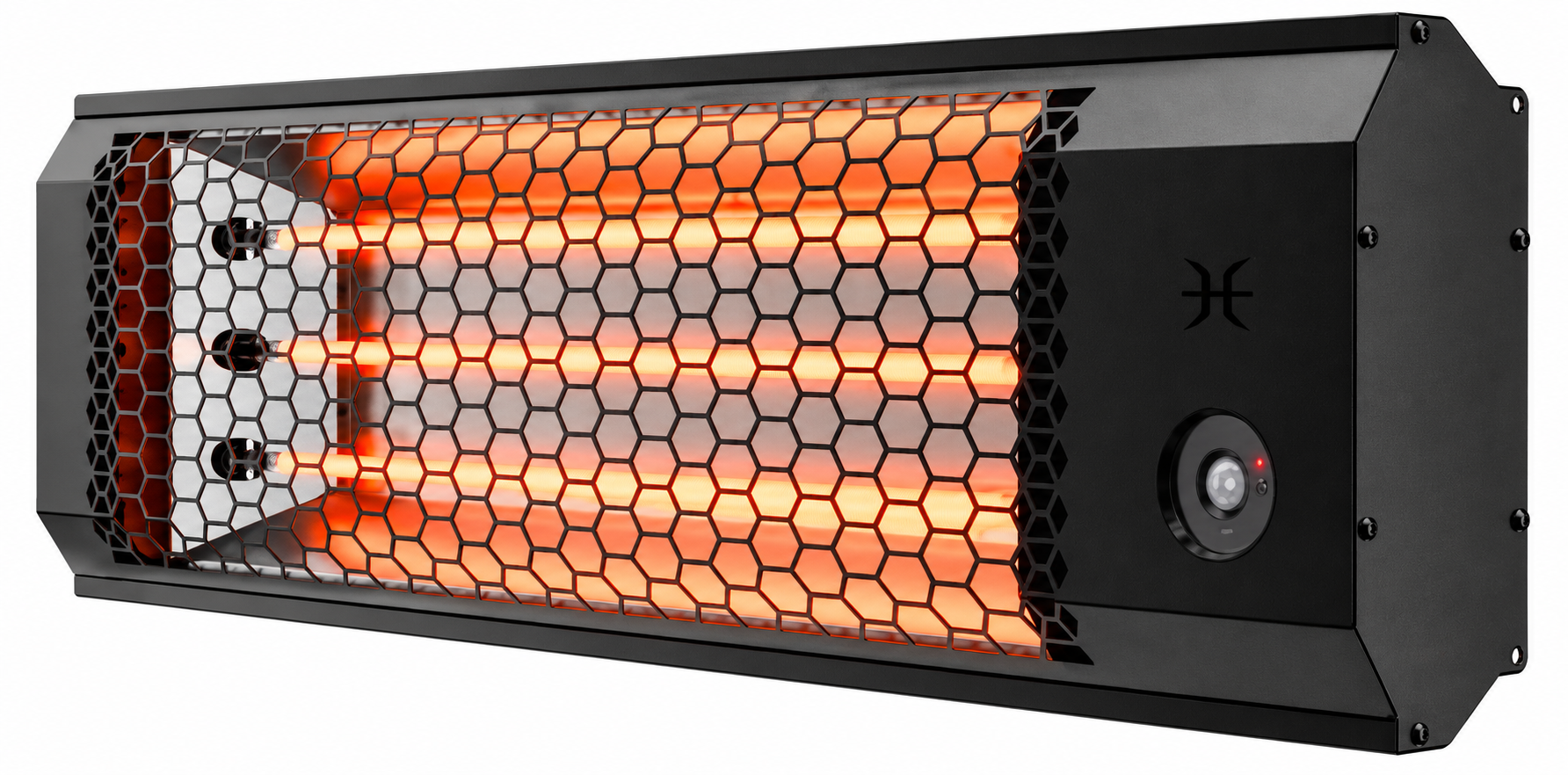

Discover the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater

The Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater is a powerful, Wi-Fi-enabled outdoor and garage heating solution designed for instant, silent warmth in harsh conditions. This 6000-watt infrared quartz heater delivers up to 20,000 BTUs of radiant heat, warming people and objects directly without losing efficiency to wind, making it ideal for patios, decks, garages, workshops, and workspaces. Unlike traditional heaters, its weatherproof construction and carbon fiber bulbs ensure durability and longevity in outdoor environments.

Key benefits include three heat levels (2000/4000/6000 watts) for customizable comfort, motion sensor activation for energy savings, and app-based remote control via Wi-Fi for scheduling from anywhere. Perfect for homeowners, contractors, and businesses needing reliable supplemental or primary heating up to 200 sq ft as primary or 1000 sq ft as secondary. Its completely silent 0 dB operation and hardwired 240V installation provide hassle-free performance.

Targeted at users seeking heavy-duty infrared heaters for patios and garages, this model stands out with smart features like remote access and motion detection. Estimated price range is $500-$600, available at major retailers like Home Depot and online specialty stores. Whether extending outdoor seasons or heating large spaces efficiently, the Heatstorm HS-6000-OTR** offers unmatched value in Wi-Fi infrared patio heaters.

Technical Specifications and Key Features of Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater

The Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater boasts robust specs for superior performance in demanding settings. Here's a detailed breakdown:

Model: HS-6000-OTR (UPC: 850007724733)
Wattage/Heat Levels: 2000/4000/6000 watts with 10,000/20,000 BTU output
Voltage/Amps: 240V / 25A (single-phase, hardwired installation recommended by electrician)
Dimensions: 57” L x 8” W x 11” H (some sources note 57" L x 8.5" H x 4.5" D)
Weight: 14.5 lbs
Sound Level: 0 dB (completely silent)
Heating Coverage: Up to 200 sq ft primary, 1000 sq ft secondary
Special Features: Wi-Fi app control for schedules and remote on/off, motion sensor, weatherproof design, carbon fiber bulbs for durability, included remote control and mounting hardware
Performance Metrics: Instant radiant infrared heat unaffected by wind; maximum capacity 20,472 BTU/h

Compared to similar infrared garage heaters like basic 5000W models, the HS-6000-OTR excels with smart Wi-Fi integration and higher BTU output, offering better coverage and control without fans or noise.

Installation & Instructions

WALL INSTALLATION

THE HEATER MUST BE PROPERLY INSTALLED BEFORE IT IS USED.

CAUTION: YOUR HEATER MUST BE INSTALLED ON A WALL. DO NOT PROP THE HEATER UP AGAINST OBJECTS OR USE THE HEATER WITH THE GRILL PLACED VERTICALLY.

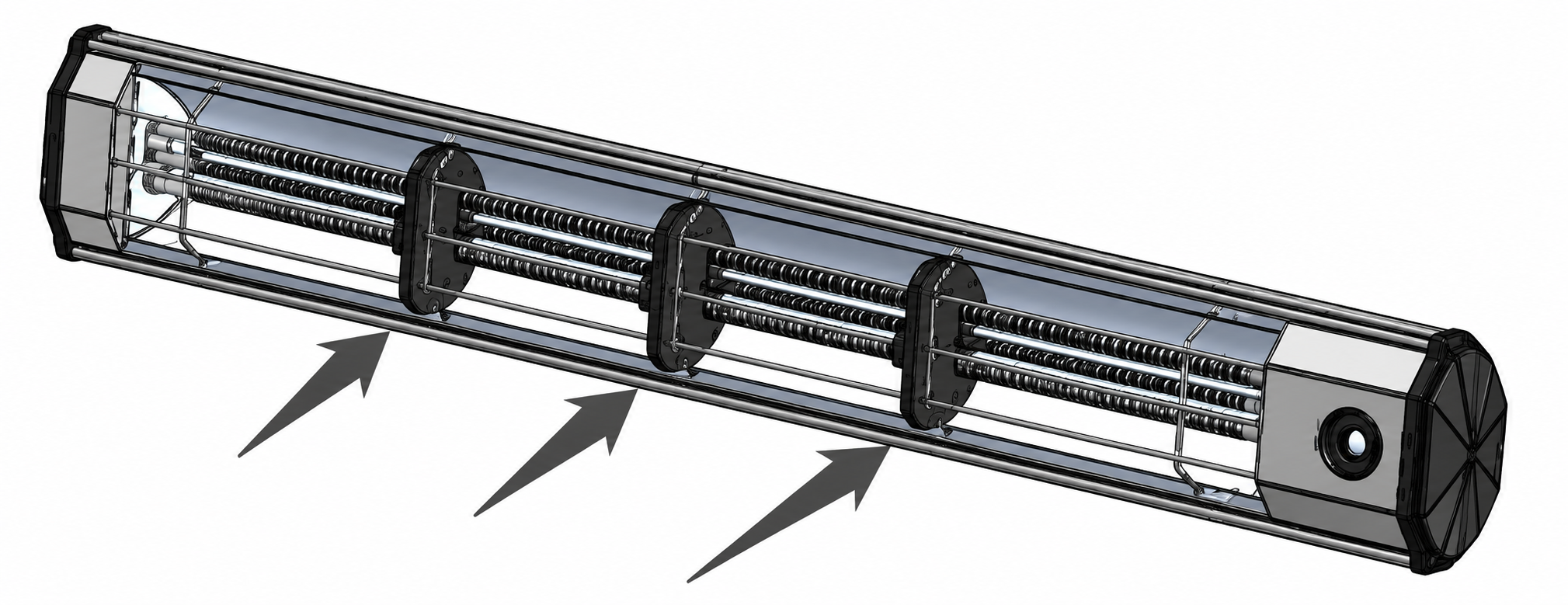

Remove the foam shipping cushions. Failure to remove them may cause a safety hazard.

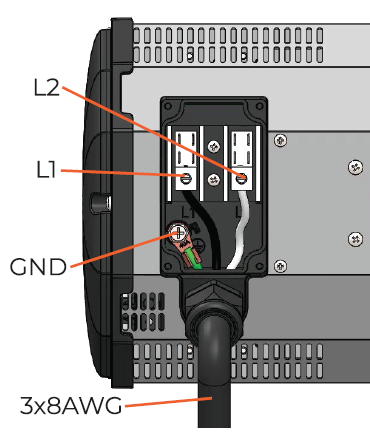

Wiring diagram

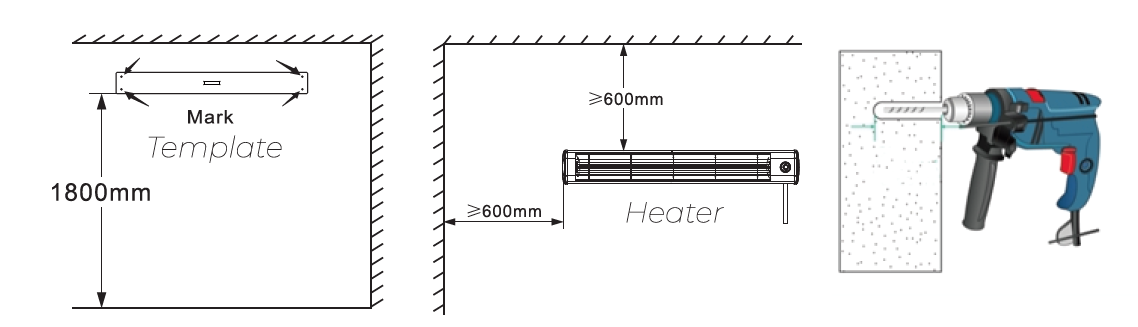

Use the template to mark the mounting holes and drill suitable holes into wood studs or masonry.

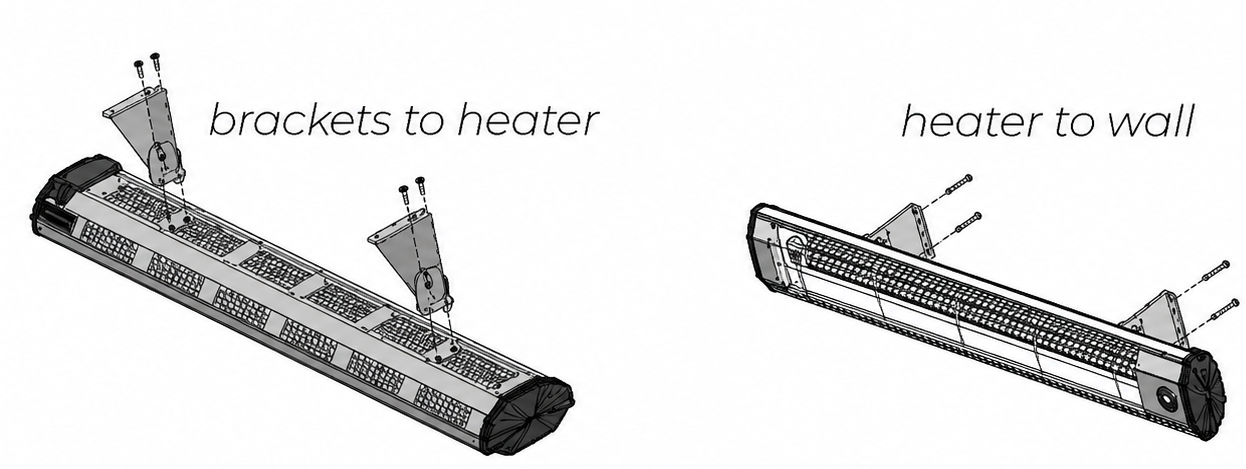

Connect the brackets to the heater, then attach the heater to the wall. Use screws and anchors (if necessary) to securely mount the heater.

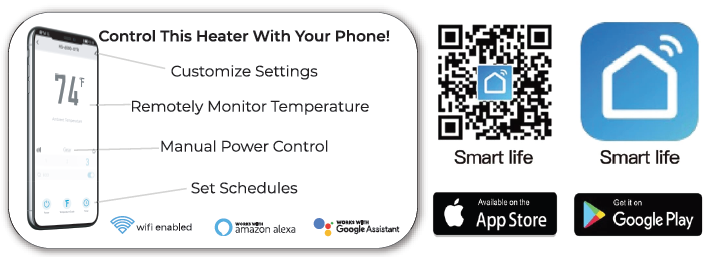

Download the Smart Life App and connect the app to the heater.


CONNECTING TO WIFI

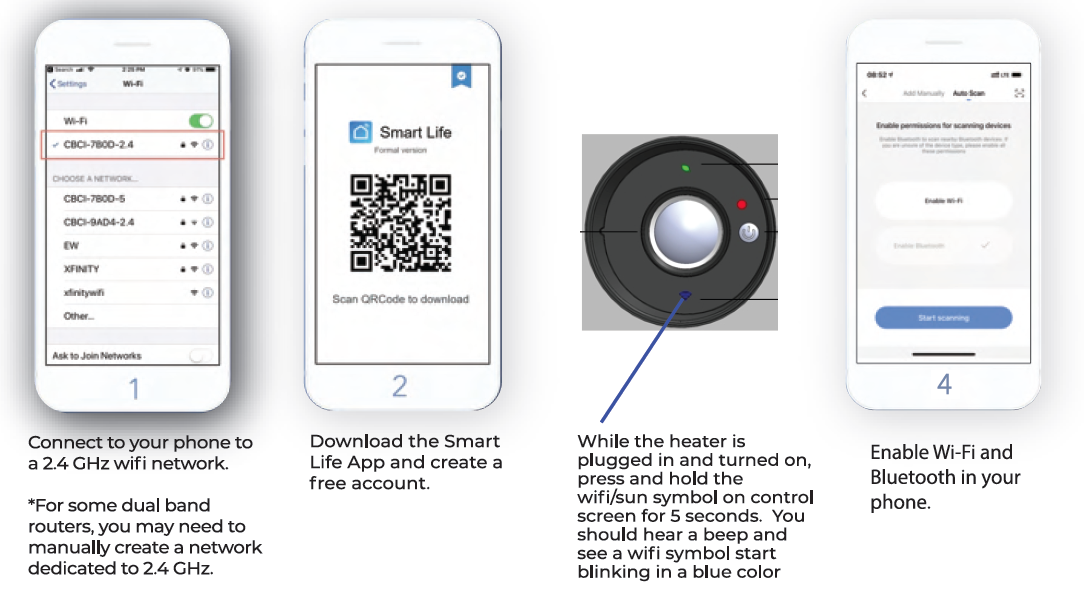

Prepare your phone and download the app by following the steps below.


Bluetooth Connection

After completing the above steps, the heater will automatically search for the Wi-Fi network, and a connection window will appear. Follow the on-screen instructions to connect the heater to Wi-Fi.

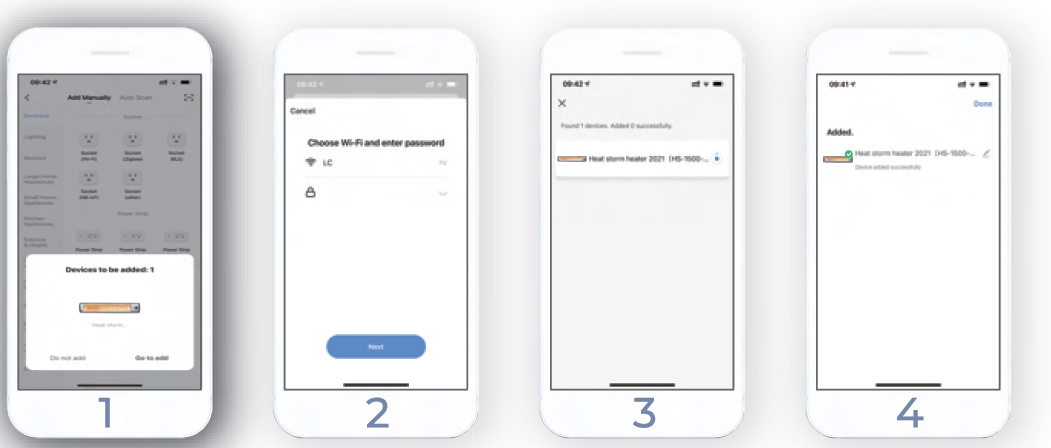

If the APP finds a new heater to connect to, it automatically pops up a window; tap “Go to add”
Enter in your wifi network name and password. Each of these fields are case sensitive so be sure to double-check each one. Then tap “Next”
Your phone will start connecting your heater to your wifi network. Hang tight; it may take a few minute.
Your screen should look like this. If it shows any error notifications, check out our Wi-Fi troubleshooting guide online.

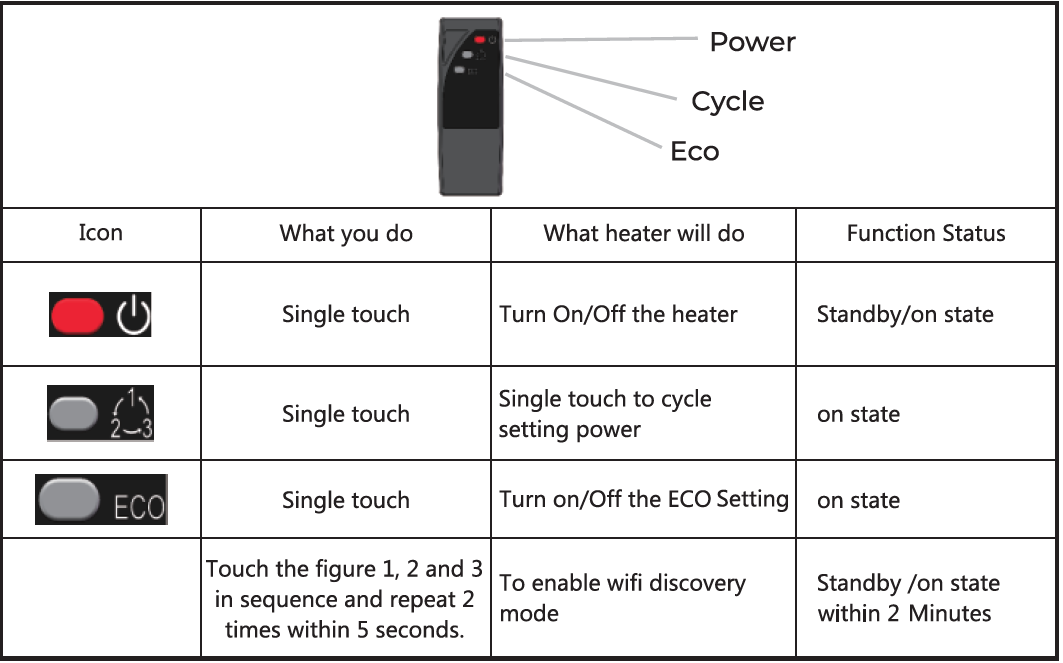

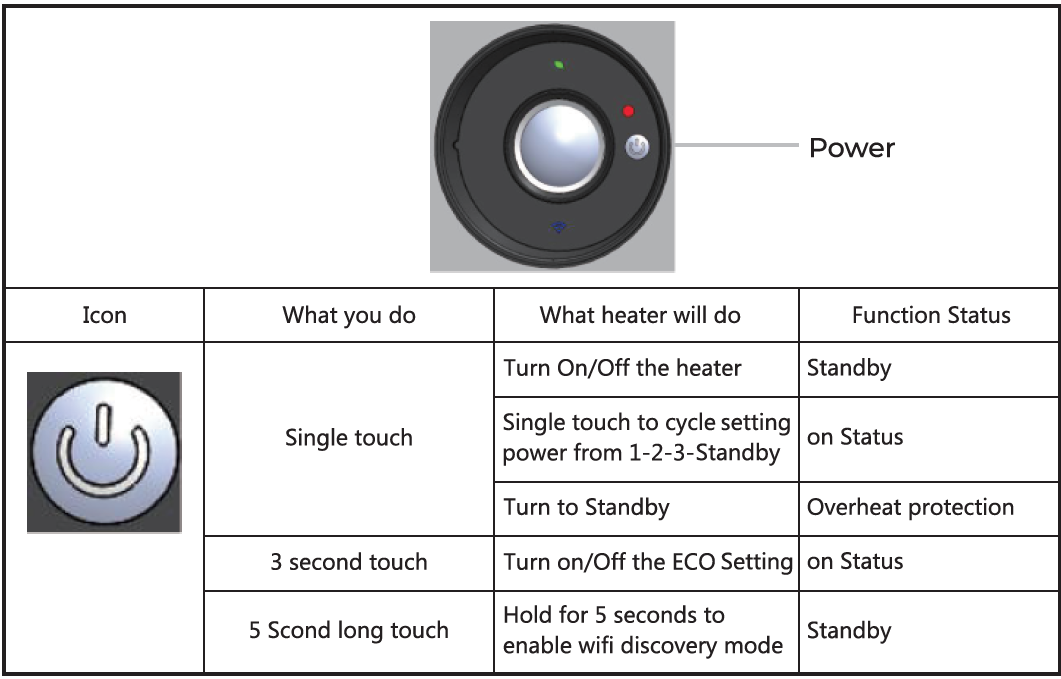

Operations & Controls



Pros and Cons: Balanced Review of Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater

Pros

Exceptional instant infrared heating with three levels for versatile use; users report rapid warmth on patios even in wind.
Wi-Fi and motion sensor save energy—activate only when needed, reducing bills versus always-on alternatives.
Weatherproof and silent operation ideal for outdoor spaces; outperforms convection heaters in open areas.
Excellent value at $500-$600; durable carbon bulbs last longer than standard quartz elements.
Remote app control praised for convenience, like pre-heating garages from your phone.

Cons

Requires professional 240V hardwiring, adding $100-200 installation costs—not plug-and-play.
Large size (57" long) may need ample mounting space; not suited for small patios.
High 25A draw demands compatible electrical panels; some users note circuit upgrades needed.
No built-in timer beyond app; relies on Wi-Fi stability for remote features.

Overall, it delivers strong value for heavy-duty outdoor infrared heaters, surpassing budget options in smart features but best for committed installs.

Customer Reviews and Feedback on Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater

Customers rate the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater highly, averaging 4.5-4.8 stars across retailers like Home Depot. Praises focus on instant heat and silence: "Heats my 300 sq ft garage perfectly in minutes—no noise!" (5 stars). Wi-Fi control earns raves: "App scheduling is a game-changer for patio parties" (4.8 stars).

Common complaints include installation: "Electrician needed, but worth it" (4 stars). Motion sensor sensitivity varies, with some tweaking required. Frequently mentioned issues like bulb replacement are rare due to durable carbon fiber. 90% recommend for Wi-Fi enabled garage heaters, citing reliability in cold winters. Ideal buy for those prioritizing performance over ease of setup.

PDF

Faqs

How do I install the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater for the first time?

The Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater requires professional hardwire installation by a licensed electrician due to its 240V operation and 25 AMP draw. Mount it on walls or ceilings using the included hardware, ensuring it's positioned 7-8 feet above the floor for optimal infrared heat distribution. Download the installation guide from the product page for precise wiring diagrams and safety checks. Avoid DIY to prevent electrical hazards and voiding warranty[1][2].

How do I set up Wi-Fi control on my Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater?

Download the Heat Storm app on your smartphone, create an account, and follow the pairing instructions. Power on the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater, enable its Wi-Fi mode using the remote, and connect to your 2.4GHz network. Set custom heating schedules, adjust three heat levels (2000/4000/6000 watts), and enable motion sensor activation remotely. Ensure strong Wi-Fi signal for reliable control from anywhere[1][2].

What should I do if the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater won't turn on?

First, verify the circuit breaker hasn't tripped due to the 25 AMP load. Check hardwire connections and ensure 240V power supply is stable. Reset the unit by unplugging for 10 minutes, then test with the remote or app. If the motion sensor is active, wave motion to activate. Inspect carbon fiber bulbs for damage. If issues persist, contact support with model HS-6000-OTR details for warranty service[1][2].

How does the motion sensor work on the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater?

The built-in motion sensor on the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater detects movement within 20-30 feet, automatically activating the heater at selected wattage (2000/4000/6000) for energy-efficient operation. Customize sensitivity and auto-off timer via the Wi-Fi app. Ideal for garages or patios, it provides silent, instant infrared heat only when needed, saving electricity while maintaining warmth in up to 200 sq ft as primary heat[1][2].

Is the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater compatible with outdoor patios and garages?

Yes, its weatherproof design makes the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater perfect for exposed decks, patios, garages, and workshops. The durable carbon fiber bulbs resist rain, snow, and wind, delivering 20,000 BTU unaffected by elements. Mount securely with included hardware, ensuring proper ventilation. Not for fully enclosed indoor rooms without airflow; heats up to 1000 sq ft as secondary heat source[1][2].

How can I optimize performance of the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater?

Position the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater at 45-degree angle toward occupied areas for best radiant heat on people and objects. Use Wi-Fi app to schedule peak usage, motion sensor for auto-activation, and lowest wattage (2000W) for maintenance heating. Keep 3-5 feet clearance from combustibles. In large spaces up to 1000 sq ft, combine with insulation for efficiency. Silent operation ensures no fan noise disruption[1][2].

How do I maintain the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater for long-term use?

Clean the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater monthly with a soft, dry cloth to remove dust from carbon fiber bulbs and housing—never use water. Inspect mounting hardware yearly for tightness. Check Wi-Fi connectivity and reset app schedules seasonally. Replace bulbs only if dimming occurs, using genuine Heat Storm parts. Store remote control batteries properly. Weatherproof design minimizes maintenance for outdoor reliability[1][2].

What electrical requirements does the Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater need?

The Heatstorm HS-6000-OTR Heavy-Duty Infrared Heater operates on 240V, drawing up to 25 AMPS at full 6000W output. Requires dedicated circuit with proper gauge wiring (typically 10 AWG). Professional electrician must install GFCI-protected hardwire setup. Not compatible with standard 120V outlets or extension cords. Verify panel capacity before installation to avoid overloads and ensure safe, efficient infrared heating[1][2].
