Heat Storm HS-1000-WA Wave Infrared Wall Heater: Complete Product Manual & Review

The Heat Storm HS-1000-WA Wave infrared wall heater represents a modern solution for efficient home heating. This wall-mounted infrared space heater delivers targeted warmth using advanced radiant heating technology, making it an excellent choice for homeowners seeking energy-efficient heating alternatives. The heatstorm Infrared Wall Heater WA HS-1000-WA combines aesthetic design with functional performance, offering users a versatile heating solution that works as both primary and supplemental heat.

Product Overview & Key Benefits

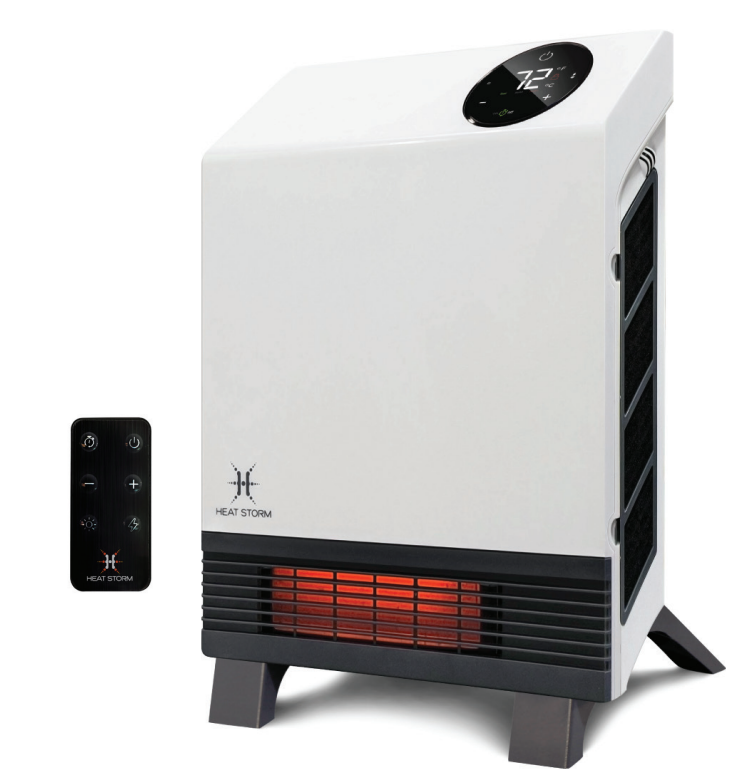

The Heat Storm HS-1000-WA Wave floor-to-wall infrared space heater stands out in the market due to its innovative approach to room heating. Unlike traditional convection heaters that warm the air, this heatstorm infrared wall heater uses radiant technology to directly heat objects and people in the room, providing instant comfort without wasting energy on heating surrounding air. This targeted heating approach translates to significant energy savings and reduced utility bills for homeowners.

This infrared wall heater is designed for versatile placement, offering both wall-mounted and floor installation options with included feet. The compact dimensions (13"D x 3.63"W x 16.5"H) make it suitable for various room types including bedrooms, living rooms, kitchens, home offices, and nurseries. With a lightweight design at just 6.1 pounds and no assembly required, the Heat Storm HS-1000-WA Wave heater offers convenient setup and portability.

Ideal Users & Applications

The heatstorm Infrared Wall Heater WA HS-1000-WA appeals to homeowners, renters, office workers, and families seeking supplemental heating solutions. It's particularly beneficial for individuals looking to reduce heating costs, those with allergies who prefer radiant over forced-air heating, and anyone needing zone heating for specific spaces. The heater works well in bedrooms for personal comfort, home offices for focused work environments, and living spaces requiring additional warmth during colder months.

Price-wise, the Heat Storm HS-1000-WA Wave typically ranges from $150 to $250, making it an affordable option compared to premium smart heating systems. The heater is widely available through major retailers including Home Depot, Amazon, and specialty heating equipment suppliers.

Technical Specifications

Power & Performance Metrics

• Heat Output: 1000 Watts maximum power
• BTU Rating: 3400 BTUs per hour
• Heating Method: Infrared radiant heating technology
• Fan Type: Integrated fan-forced heating system
• Electrical Requirements: Corded electric, standard wall outlet compatible
• Amperage: 4.1 - 8.3 AMPS (variable with settings)

Coverage & Heating Capacity

• Primary Heating Coverage: 50-100 square feet
• Secondary/Supplemental Heating: Up to 500-750 square feet
• Effective Range: Optimal performance in medium-sized rooms
• Heat Distribution: Even, consistent warmth without cold spots

Physical Specifications

• Dimensions: 13 inches deep x 3.63 inches wide x 16.5 inches high
• Weight: 6.1 pounds (lightweight for portability)
• Color: White finish with included feet
• Material Construction: Durable plastic and metal components
• Mounting Options: Wall-mounted, floor placement, or screwed installation

Control & Convenience Features

• Digital Display: Easy-to-read temperature and settings readout
• Remote Control: Wireless operation included in package
• Noise Level: 40-44 decibels (quiet operation)
• Assembly Required: No (ready to use out of box)
• Batteries Required: No (corded electric only)
• Safety Features: Electrical grounding required per local codes

Maintenance & Care

• Cleaning: Hand wash recommended for exterior surfaces
• Filter Maintenance: Regular cleaning ensures optimal performance
• Lifespan: Typical infrared heaters offer 10-15 years of reliable operation
• Warranty: Check manufacturer specifications for coverage details

Package Contents & What's Included

When you purchase the Heat Storm HS-1000-WA Wave infrared wall heater, the package includes everything needed for immediate use. The box contains one Heat Storm Wave indoor infrared wall heater with included legs for floor placement, a comprehensive user manual with installation instructions, and a wireless remote control for convenient operation from anywhere in the room. No additional purchases are required to begin using this heatstorm infrared wall heater.

Advantages & Disadvantages

Key Advantages

• Energy Efficient Operation: The heatstorm Infrared Wall Heater WA HS-1000-WA focuses heating energy directly on people and objects rather than wasting power heating air, resulting in lower electricity consumption and reduced heating costs compared to traditional space heaters.
• Instant Warmth Delivery: Infrared radiant heating provides immediate comfort without the warm-up period required by conventional heaters, making it ideal for quick temperature adjustments.
• Flexible Installation: This infrared wall heater offers multiple mounting options including wall installation, floor placement with included feet, or screw-based attachment, adapting to various room layouts and preferences.
• Quiet Operation: At 40-44 decibels, the Heat Storm HS-1000-WA Wave operates quietly, making it suitable for bedrooms, offices, and other noise-sensitive environments without disrupting activities or sleep.
• Easy Setup & Portability: Weighing only 6.1 pounds with no assembly required, users can quickly install and move the heater between rooms as needed for zone heating flexibility.
• Versatile Room Compatibility: The compact design works well in bedrooms, living rooms, kitchens, home offices, nurseries, and bathrooms, making it adaptable to various household spaces.
• Remote Control Convenience: The included wireless remote allows users to adjust temperature and settings from anywhere in the room without approaching the heater.
• No Air Circulation Issues: Unlike forced-air heaters that can disturb dust and allergens, infrared heating provides comfort without air movement, benefiting those with allergies or respiratory sensitivities.

Notable Disadvantages

• Limited Primary Coverage: The 50-100 square feet primary heating capacity means this heatstorm infrared wall heater works best as supplemental heat rather than sole heating for larger spaces.
• Corded Dependency: The electric cord requirement limits placement flexibility compared to portable battery-operated heaters, and users must position furniture away from cord pathways.
• Line-of-Sight Heating: Infrared radiant heating requires direct line of sight to effectively warm people and objects, meaning blocked areas receive less benefit than in direct view of the heater.
• No Smart Home Integration: Unlike premium models with Wi-Fi capabilities, the standard HS-1000-WA Wave lacks smart home compatibility and cannot be controlled via smartphone apps or voice assistants.
• Heating Variability: Effectiveness depends on room insulation, exterior temperature, and ceiling height, with performance varying more than traditional central heating systems.
• Wall Mounting Complexity: Permanent wall installation requires drilling and electrical grounding according to local codes, which may necessitate professional installation for some users.
• Heat Output Limitations: The 1000-watt maximum output means this infrared wall heater cannot replace primary heating systems in very cold climates or poorly insulated homes.

Comparing the Heat Storm HS-1000-WA with Similar Products

The heatstorm Infrared Wall Heater WA HS-1000-WA competes well against other infrared space heaters in its price range. Compared to basic convection heaters, the Heat Storm HS-1000-WA Wave offers superior energy efficiency and more comfortable radiant heating. While premium models with Wi-Fi connectivity and larger wattage outputs (1500W+) provide additional features, they come at significantly higher price points. For users seeking reliable, efficient supplemental heating without smart home features, the HS-1000-WA represents excellent value and performance balance.

Customer Reviews & User Feedback

Common Praise Points

Users consistently highlight the Heat Storm HS-1000-WA Wave's energy efficiency and cost savings. Many customers report noticing reduced heating bills after using the heatstorm infrared wall heater as supplemental heat in specific rooms. The quiet operation receives frequent praise, with users appreciating the ability to run the heater during sleep or work without disruptive noise. Installation simplicity and portability are commonly mentioned advantages, with customers noting the straightforward setup process and ability to move the heater between rooms.

Frequently Mentioned Concerns

Some users note that the heatstorm Infrared Wall Heater WA HS-1000-WA performs best in well-insulated rooms and may struggle in very large spaces or poorly sealed areas. A few customers mention that positioning the heater correctly for optimal line-of-sight heating requires some experimentation. Some users desire smart home features available on higher-priced models, though most acknowledge the cost-benefit trade-off.

Overall Satisfaction Rating

The Heat Storm HS-1000-WA Wave generally receives positive customer reviews, with most users rating it 4-5 stars for reliable performance, energy savings, and value. Customers particularly recommend the infrared wall heater for bedroom heating, home office comfort, and supplemental warmth in specific zones. Purchase recommendations are strongest from users in moderate climates seeking to reduce heating costs in targeted areas rather than replace entire heating systems.

Installation & Setup Guide

Pre-Installation Considerations

Before installing your Heat Storm HS-1000-WA Wave infrared wall heater, verify that your electrical outlet is properly grounded according to local codes. Ensure the mounting location allows adequate clearance around the heater for proper air circulation and safe operation. Check that walls can support the heater's weight if wall-mounting, and confirm that the location provides good line-of-sight heating for your intended comfort zone.

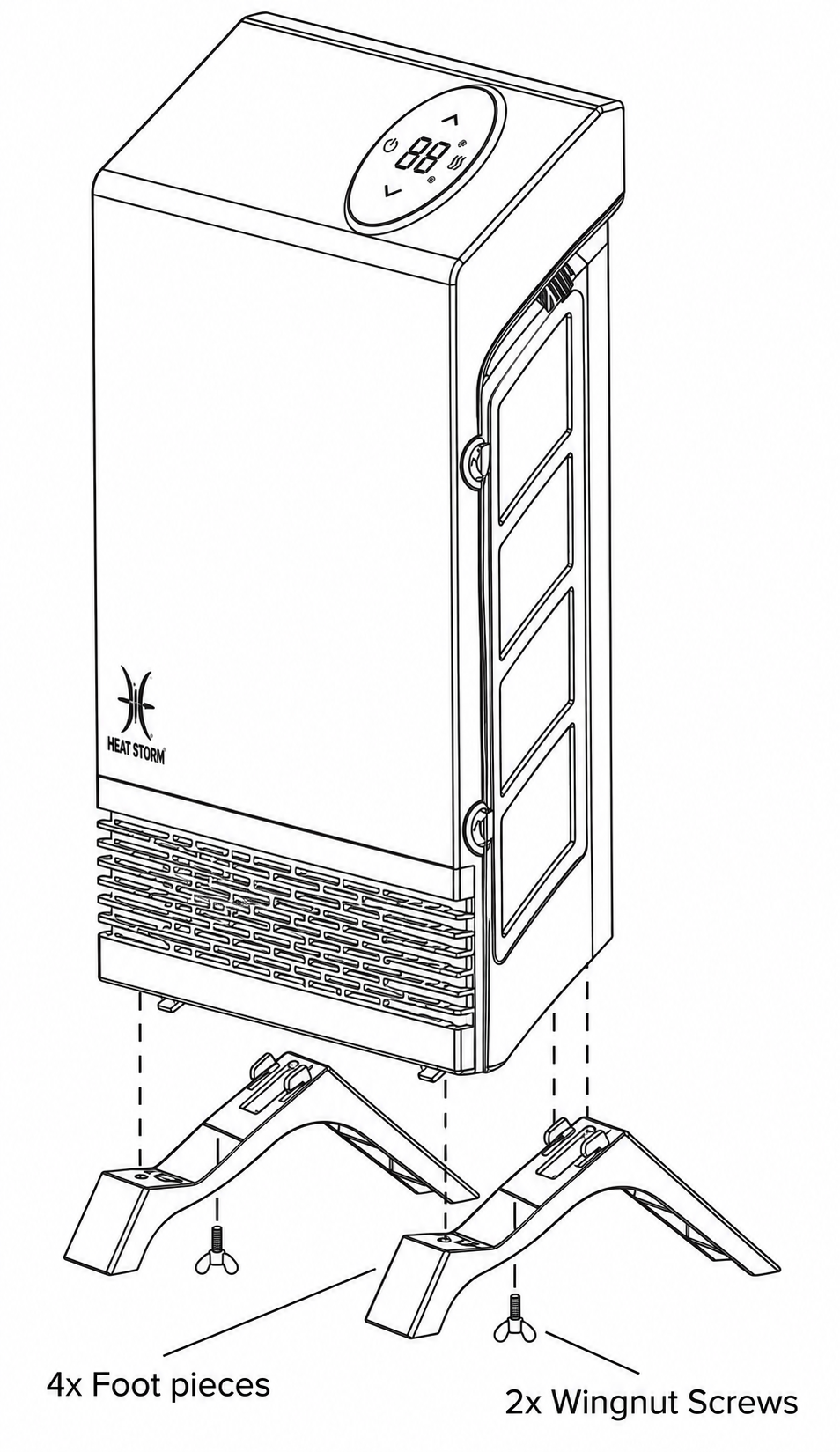

Floor Placement Setup

For floor placement using the included feet, simply attach the legs to the heater base according to the user manual instructions. Position the heater on a stable, level surface away from water sources, high-traffic areas, and flammable materials. Plug the heater into a standard electrical outlet and use the remote control to adjust settings. This method offers maximum flexibility for repositioning between rooms.

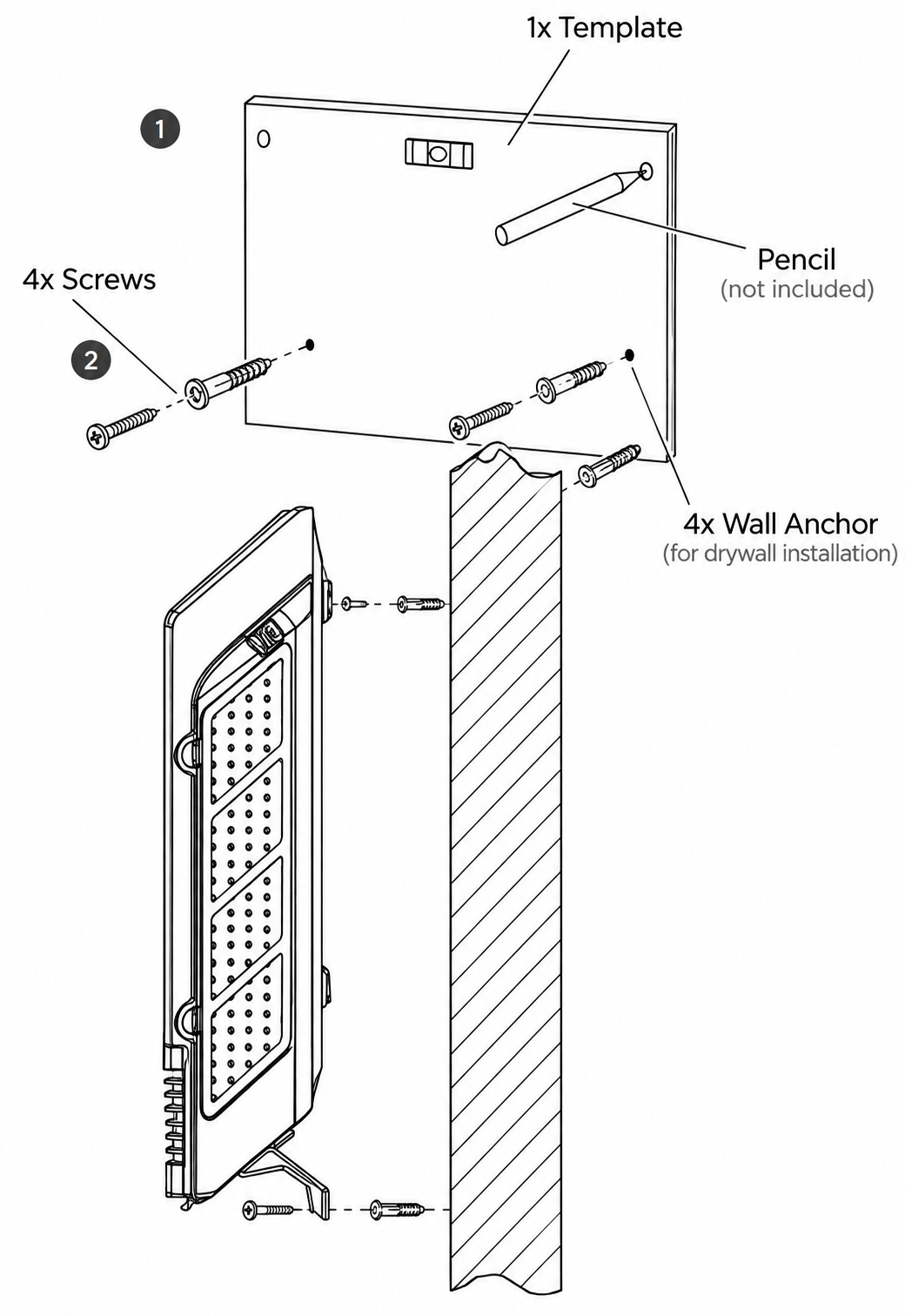

Wall Installation Process

Wall mounting requires drilling holes and securing the heatstorm infrared wall heater with appropriate fasteners. Locate studs or use heavy-duty anchors suitable for your wall type. Ensure electrical grounding is properly installed per local codes. After securing the heater, connect the power cord to a nearby outlet and test operation using the remote control. Consider professional installation if you're unfamiliar with wall mounting or electrical requirements.

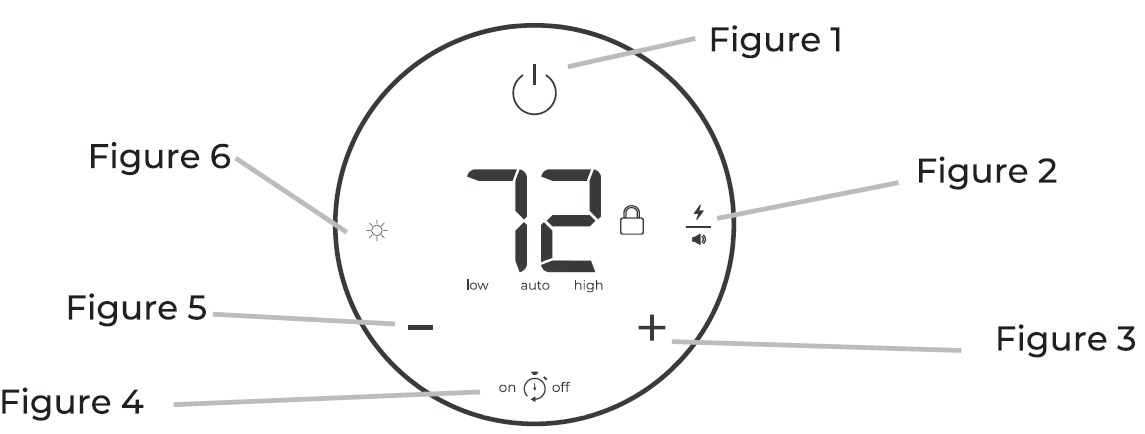

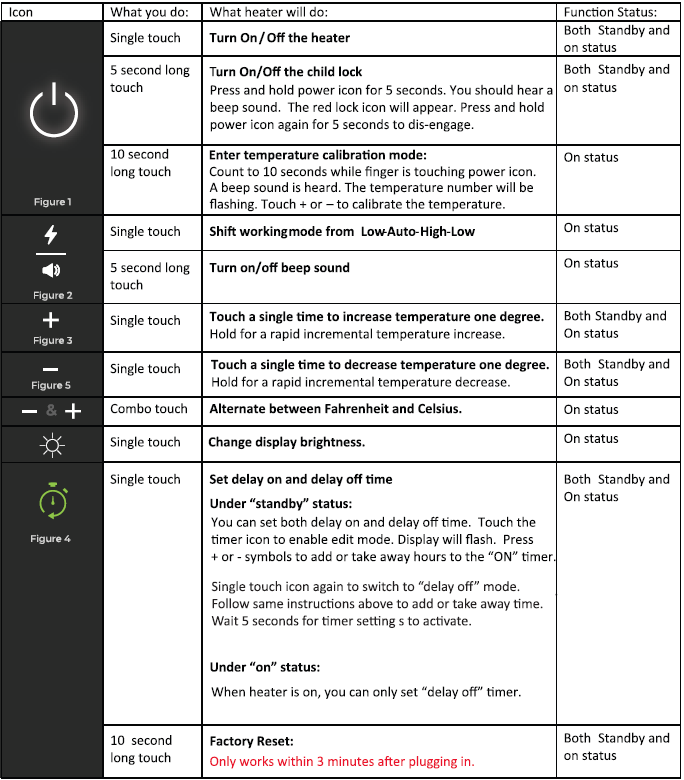

Operating Your Heat Storm HS-1000-WA Wave Heater

Basic Operation Steps

• Power on the unit using the remote control or wall switch
• Use the digital display to monitor temperature settings
• Adjust wattage between 500-1000W using remote controls for precise heat output
• Set desired temperature using the thermostat dial or remote buttons
• Allow 5-10 minutes for infrared heating to reach optimal comfort levels
• Monitor room temperature and adjust as needed for personal comfort

Optimization Tips

Position the heatstorm infrared wall heater where it has clear line-of-sight to seating or work areas for maximum comfort. Use the lower 500W setting for small spaces or supplemental heating to minimize energy consumption. In larger rooms, the full 1000W setting provides more comprehensive coverage. Close doors to heated zones to improve efficiency and prevent wasting heat in unused spaces. Regular cleaning of the heater exterior ensures optimal performance and extends product lifespan.

Maintenance & Troubleshooting

Regular Maintenance Tasks

• Clean exterior surfaces monthly with a soft, damp cloth
• Check and clean air intake vents to prevent dust buildup
• Inspect power cord for damage or wear regularly
• Verify wall mounting fasteners remain secure quarterly
• Test remote control battery functionality periodically

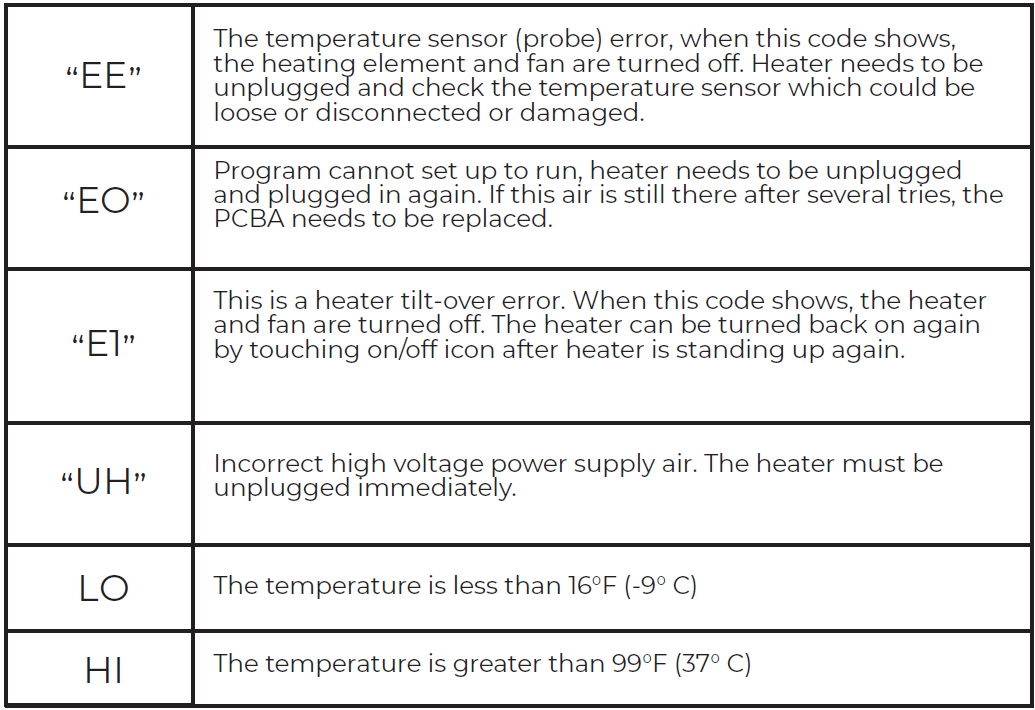

Common Issues & Solutions

If the Heat Storm HS-1000-WA Wave doesn't produce heat, verify the outlet is functioning and the power cord is fully connected. Check that the thermostat setting is above room temperature. If the remote control doesn't respond, replace batteries and confirm the heater is powered on. For reduced heating output, clean air vents and intake areas to ensure proper airflow. If the heater repeatedly shuts off, it may be overheating due to blockages—check for obstructions and allow cooling time before restarting.

Safety Considerations & Best Practices

The heatstorm Infrared Wall Heater WA HS-1000-WA requires proper electrical grounding according to local codes to ensure safety. Never use the heater in bathrooms or wet environments unless specifically rated for such use. Keep the heater at least 3 feet away from flammable materials including curtains, bedding, and furniture. Do not block air vents or intake areas, as this can cause overheating and reduced performance. Never attempt repairs yourself—contact manufacturer support for any technical issues. Periodically inspect the power cord for damage and discontinue use if any fraying or exposed wires are visible.

Conclusion: Is the Heat Storm HS-1000-WA Right for You?

The Heat Storm HS-1000-WA Wave infrared wall heater delivers reliable, energy-efficient supplemental heating for homeowners seeking cost-effective temperature management. This heatstorm infrared wall heater excels for bedroom comfort, home office heating, and zone-specific warmth without the energy waste of central heating large unused spaces. The combination of quiet operation, easy installation, flexible mounting options, and proven energy savings makes the HS-1000-WA an excellent choice for those prioritizing efficiency and value over premium smart features. If you need primary heating for very large spaces or smart home integration, consider higher-wattage Wi-Fi-enabled models. However, for most homeowners seeking practical, affordable supplemental heating, the Heat Storm HS-1000-WA Wave represents an outstanding investment in comfort and savings.
