How to Pair: Jbl Boombox 4 Speaker User Manual

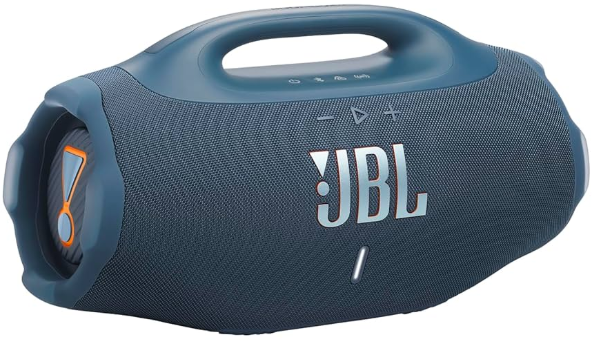

JBL Boombox 4 Speaker

Introduction

The JBL Boombox 4 Speaker is a powerful, portable Bluetooth speaker designed to deliver massive sound with iconic JBL bass performance. Combining cutting-edge audio technology with a lighter, more portable design, it offers an elevated listening experience for music lovers seeking deep, punchy bass and crystal-clear highs. Boombox 4 features JBL’s AI Sound Boost, which intelligently optimizes audio output in real time for maximum volume with minimal distortion, making it perfect for parties, outdoor adventures, or home use.

This speaker suits audiophiles, outdoor enthusiasts, and social event hosts who demand robust, room-filling sound and long battery life. Its IP68 waterproof and dustproof rating ensures durability in various environments, from beach days to backyard barbecues. With up to 34 hours of playtime (including JBL’s Playtime Boost extension), users can enjoy uninterrupted music for extended periods.

The JBL Boombox 4 is available globally in multiple colors,, such as black, blue, and camo, with a price range typically around $500 to $5,50 depending on the retailer. Its blend of portability, premium sound quality, and rugged design makes it a standout choice in the high-end portable speaker market.

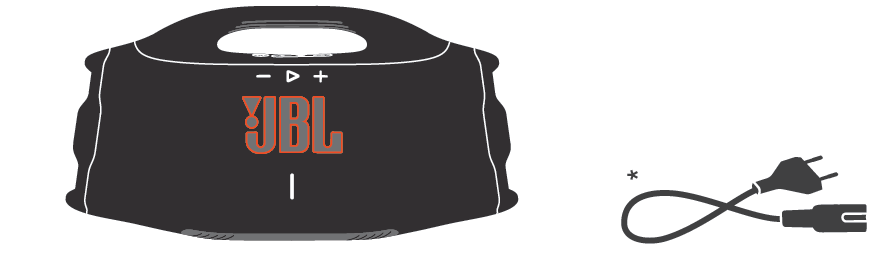

WHAT’S IN THE BOX

SPECIFICATION

• Transducers: 2 x 5 inch / 2 x 123 mm Woofer, 2 x 0.75 inch / 2 x Φ20 mm Tweeter, 2 pcs circle +1 pc racetrack Passive radiator
• Output power: 2 x 65 W RMS Woofer, 2 x 40 W RMS Tweeter(AC mode) 2 x 60 W RMS Woofer, 2 x 40 W RMS Tweeter (Battery mode)
• Power input: 100 - 240 Vac; 50/60 Hz
• Frequency response: 37 Hz - 20 kHz
• Signal-to-noise ratio: > 80 dB
• Battery type: Rechargeable Li-ion Battery Pack 99.02 Wh (equivalent to 21.6 V / 4584 mAh)
• Battery charge time: 3 hours
• Music play time: Up to 28 hours of playtime plus 6 hours with playtime boost (dependent on volume level and audio content)
• Connection ports: AC-in, USB-C
• Cable type: AC Power Cable
• Cable length: 2000 mm / 78.7”
• USB charge out: 5 V / 3 A, 9 V /3 A, 15 V / 2 A, 20 V / 1.5 A max;5-11 V / 2.7 A (PPS1), 5-16 V / 1.85 A (PPS2)
• Bluetooth® version: 5.4
• Bluetooth® profile: A2DP 1.4, AVRCP 1.6
• Bluetooth® transmitter frequency range: 2.4 GHz - 2.4835 GHz
• Bluetooth® transmitter power: ≤ 14 dBm (EIRP)
• Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• Product dimensions (W x H x D): 506.4 mm x 262.9 mm x 212.9 mm /19.9" x 10.4" x 8.4"
• Net weight: 5.89 kg / 13 lbs
• Packaging dimensions (W x H x D): 565 mm x 345 mm x 256 mm / 22.2" x 13.6" x 10.1"
• Gross weight: 8.16 kg / 17.99 lbs
• Maximum operation temperature: 35 °C

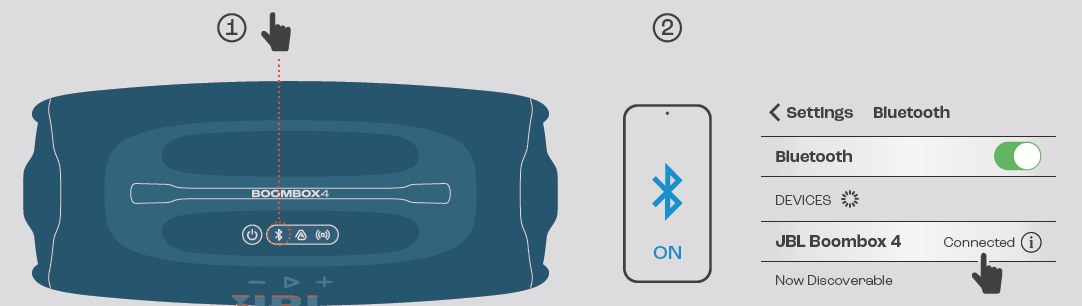

BLUETOOTH PAIRING

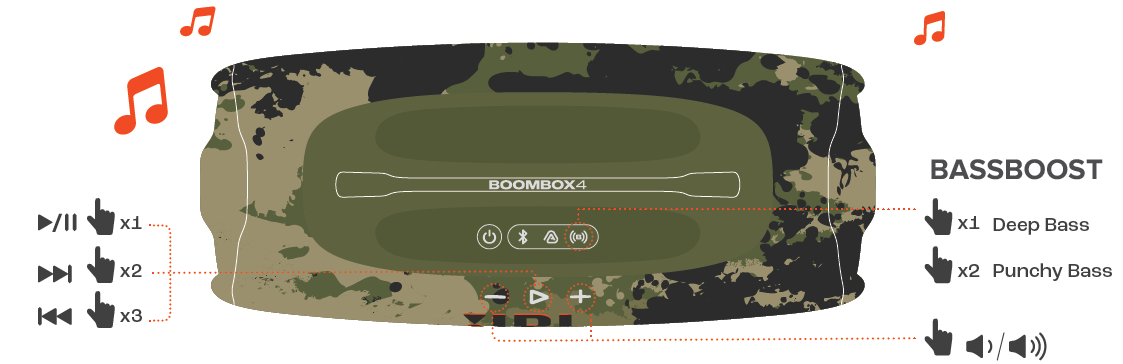

PLAY

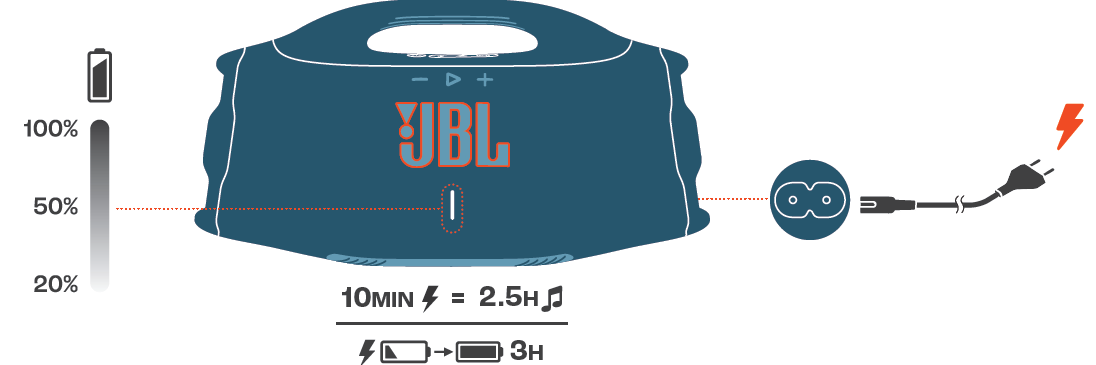

CHARGING

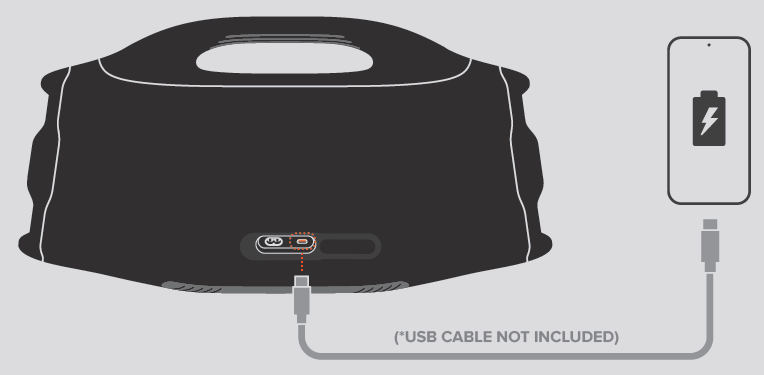

POWERBANK

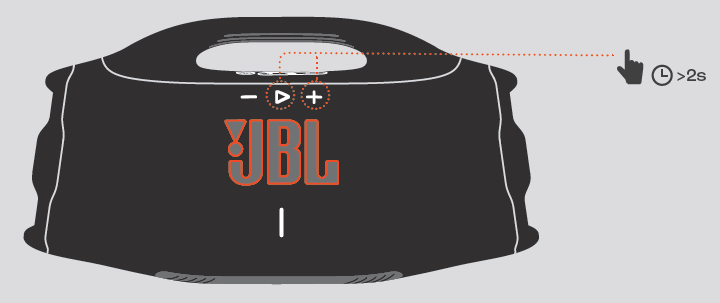

FACTORY RESET

Setup Guide for the JBL Boombox 4 Speaker

Follow these steps to set up your JBL Boombox 4 Speaker quickly and enjoy its features:

• Power On: Press and hold the power button until the speaker turns on, indicated by an audible tone and LED lights.
• Bluetooth Pairing: Enable Bluetooth on your smartphone or device, then press the Bluetooth button on the Boombox 4. Select “JBL Boombox 4” from the available devices list to pair.
• Configure Bass Boost: Choose between “Deep Bass” or “Punchy Bass” modes by pressing the Bass Boost button. The LED indicator will glow white for Deep Bass and orange for Punchy Bass.
• Multi-Speaker Connection: Use the Auracast™ feature to connect multiple JBL Auracast-enabled speakers for synchronized sound. Ensure all devices have Auracast enabled and follow the on-screen prompts.
• Charging: Charge the speaker via the USB Type-C port using the provided charger. A full charge offers up to 28 hours of playtime, extendable to 34 hours with Playtime Boost.

Troubleshooting Tips: If the speaker does not appear in Bluetooth devices, reset the speaker by holding the power and Bluetooth buttons simultaneously for 5 seconds. Ensure no other device is currently connected. Avoid exposing the speaker to extreme temperatures.

Safety Precautions: Do not open the speaker casing. Keep it away from fire and liquids beyond its waterproof limits. Use only JBL-approved chargers and accessories.

Troubleshooting Common Issues with the JBL Boombox 4

Here are solutions to the frequent problems users encounter with the JBL Boombox 4 Speaker:

• No Power: Ensure the speaker is charged. Connect to the charger and check the charging indicator light. If no response, try a different power outlet or cable.
• Bluetooth Connection Issues: Restart both your device and the Boombox 4. Clear previously paired devices from your Bluetooth list to avoid conflicts.
• Distorted Sound: AI Sound Boost reduces distortion, but if distortion persists, try adjusting the Bass Boost mode,, lowering the volume slightly.
• Error Codes: The speaker may flash red if overheating occurs—turn it off and let it cool before resuming use.
• Preventive Measures: Regularly update the speaker’s firmware via the JBL app and avoid dropping or exposing it to extreme weather conditions beyond its IP68 rating.

The JBL Boombox 4 comes with a standard limited warranty covering manufacturing defects. For further assistance, contact JBL customer support via their official website or authorized service centers.

Pros & Cons of the JBL Boombox 4 Speaker

Pros

• Exceptional Sound Quality: JBL Pro Sound with AI Sound Boost delivers powerful, distortion-free audio even at maximum volume.
• Long Battery Life: Up to 34 hours of playtime with Playtime Boost, ideal for long events.
• Durability: IP68 waterproof and dustproof rating suits outdoor and rugged use.
• Multi-Speaker Auracast Support: Connect with other Auracast-enabled JBL speakers for an immersive stereo experience.
• Lightweight Portability: Approximately 5.9 kg, 12% lighter than previous models for easier transport.

Cons

• Price: At around $500-$550, it is a premium investment that may not fit all budgets.
• Compatibility Limitations: Cannot pair with JBL speakers using PartyBoost, such as the Flip 6, due to different connectivity technology.
• Size: While lighter than predecessors, it remains relatively large compared to compact portable speakers.

Compared to alternatives like the JBL Charge series or portable party speakers, the Boombox 4 excels in power and bass but trades off some compactness and budget-friendliness for premium features and sound quality.

Customer Reviews & Feedback on the JBL Boombox 4 Speaker

Users praise the JBL Boombox 4 Speaker for its booming bass, clear sound, and impressive battery life, with many highlighting the AI Sound Boost as a major improvement. The multi-speaker Auracast connectivity enhances social listening experiences, especially at larger gatherings. The speaker’s waterproof reliability is appreciated by outdoor enthusiasts.

Common complaints include its premium price and incompatibility with older JBL speakers using PartyBoost technology. Some users also note that while lighter than previous models, the size can still be cumbersome for travel.

Overall, the Boombox 4 receives strong star ratings averaging around 4.5 out of 5, with recommendations for those seeking a high-performance, durable, and versatile Bluetooth speaker for both indoor and outdoor use.
