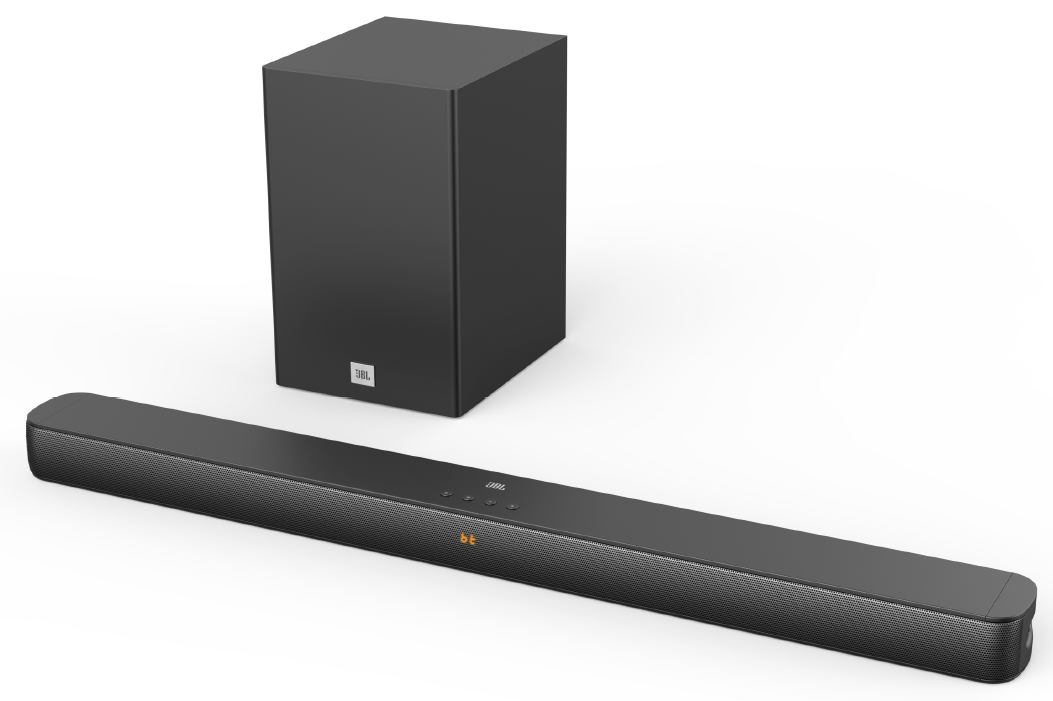

JBL Cinema SB180 Speaker

Introduction

The JBL Cinema SB180 Speaker is a powerful 2.1 channel soundbar system designed to deliver an immersive cinematic audio experience at home. With a total output power of 220W RMS, this soundbar pairs two racetrack full-range drivers with a 6.5-inch wireless subwoofer that provides deep, rumbling bass for movies, music, and gaming. Its Dolby Digital sound technology enhances surround sound effects, making it ideal for home theaters and living rooms.

Key benefits include three customizable sound modes—Cinema, Music, and News—that optimize audio performance based on content type. The system supports seamless connectivity with HDMI ARC, optical input, and Bluetooth 5.3 wireless streaming, enabling easy playback from smartphones, tablets, and TVs. Compact and sleek, the soundbar measures approximately 920 x 63 x 99 mm, while the wireless subwoofer adds convenience by eliminating cable clutter.

Targeted at movie enthusiasts, music lovers, and casual gamers seeking affordable yet high-quality audio enhancement, the JBL Cinema SB180 stands out for its balance of sound clarity and bass depth. It is priced approximately between ₹14,999 and ₹21,999 (Indian Rupees), making it a competitive choice for budget-conscious users seeking a feature-rich soundbar with wireless bass capabilities. Widely available online and in electronics retail stores, this soundbar caters well to those upgrading from TV speakers for a richer entertainment setup.

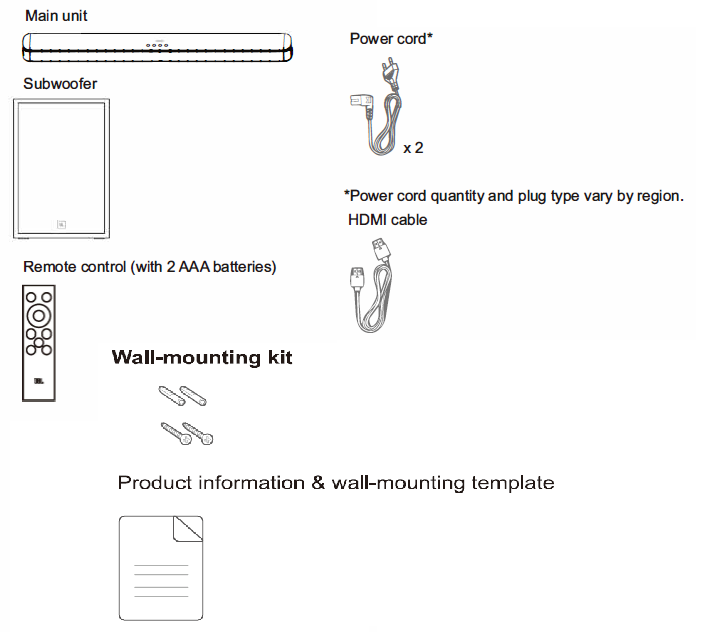

WHAT'S IN THE BOX

PRODUCT OVERVIEW

Controls and indicators

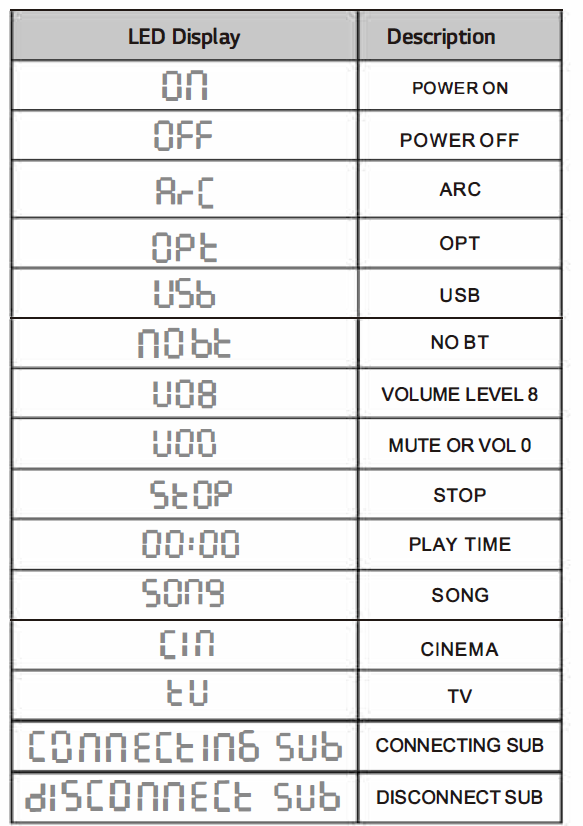

Status indicators

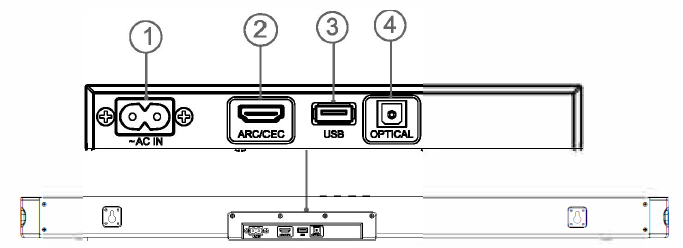

Connectors

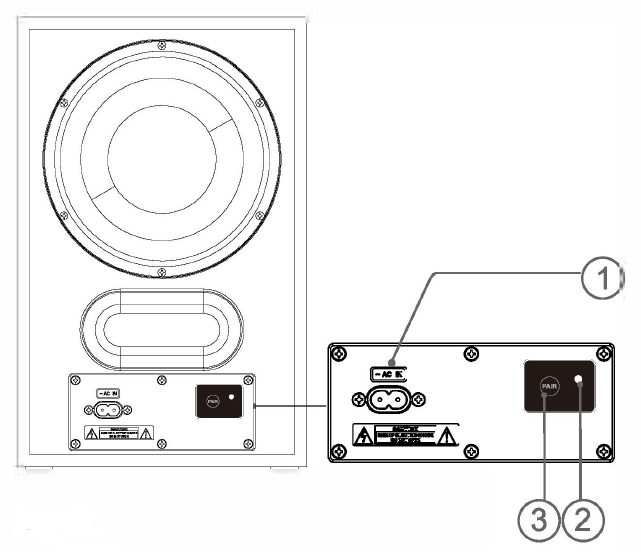

Subwoofer

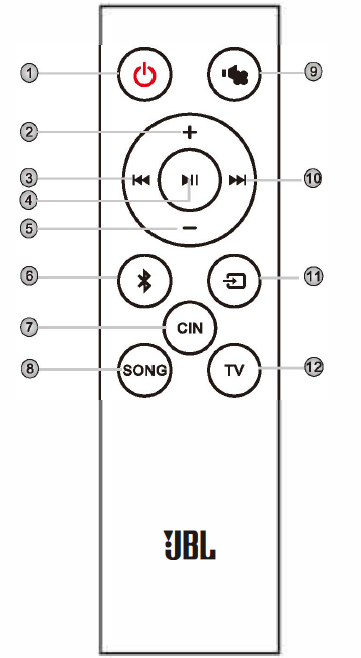

Remote Control

STANDBY
VOLUME+
PREVIOUS
PLAY/PAUSE
VOLUME-
BLUETOOTH
CIN
SONG
MUTE
NEXT
SOURCE
TV

PRODUCT SPECIFICATIONS

General specification:

Power supply: 100 - 240 V-, 50/60 Hz
Total speaker power output (@THD 1% - 10%): 110 W RMS
Soundbar power output (@THD 1%): 2 x 25 W RMS S
Subwoofer power output (@THD 10%): 60 W RMS
Soundbar transducer: 2x (45 x 100) mm racetrack driver
Subwoofer transducer: 6,5", wireless sub
Standby consumption: 0.5 W Operating temperature: 0°C -45°c

HDMI specification:

HDMI output (With Audio return channel): 1
HDMI version: 1.4

Audio specification:

Frequency response: 40 Hz - 20 kHz
Max SPL: 82 dB
Audio inputs: 1 Optical, Bluetooth, USB (USB MP3 playback and for Service.)

USB specification:

USB port: Type A
USB rating: 5 V DC / 0.5 A Supporting file format: mp3
MP3 Codec: MPEG-1 Layer 1/2/3 MPEG-2/2.5 Layer 1/2/3

Wireless specification:

Bluetooth version: 5.3
Bluetooth profile: A2DP V1.3.2, AVRCP VV1.5
Bluetooth frequency range: 2402 -2480 MHZ
Bluetooth Max. transmitting power: < 10 dBm (EIRP)
Bluetooth modulation: GFSK, n/4 DQPSK
2.4G wireless frequency range: 2406 - 2474 MHz
2.4G Max. Transmitting power: < 10 dBm
2.4G wireless modulation: GFSK

Dimensions:

Dimension (W x H x D): 920 x 63 x 99 mm / 36.2" x 2,48" x 3.89" (soundbar); 210 x 328 x 248 mm / 8,27" x 12.91" x 9.76" (subwoofer)
Weight: 2.1 kg (soundbar);3.5 kg (subwoofer)
Packaging dimensions (W x H x D): 988 x 282 x 405 mm / 39.9" x 11.1" x 15.94"
Packaging weight (Gross weight): 7.5 kg

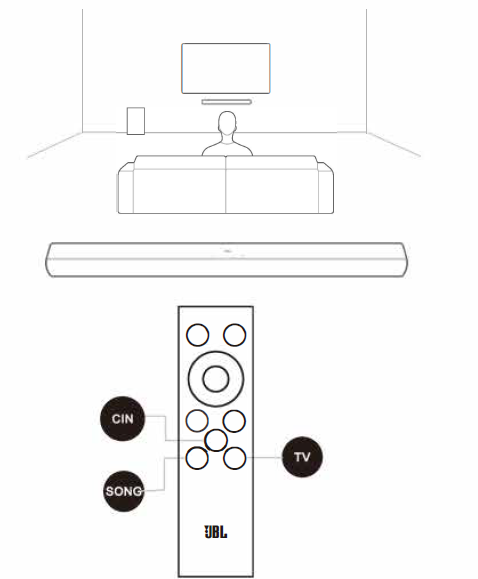

SOUND SETTINGS

Pre-defined EQ settings
With the remote control, select the pre-defined EQ (equalizer)settings for your audio playback.

Press to enter the SONG equalizer mode
Press to enter the CIequalizer.
Press to enter the TVequalizer mode..

IMPORTANT SAFETY INSTRUCTIONS

Verify Line Voltage Before Use
The JBL CINEMASB180 (soundbar and subwoofer) has been designed for use with 100-240 volt, 50/60 Hz AC. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. If you have any questions about the voltage requirements for your specific model or about the line voltage in your area, contact your retailer or customer service representative before plugging the unit into a wall outlet.

Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied with your unit. We do not recommend that extension cords be used with this product. As with all electrical devices, do not run power cords under rugs or carpets, or place heavy objects on them. Damaged power cords should be replaced immediately by an authorized service center with a cord that meets factory specifications.

Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always pull the plug; never pull the cord. If you do not intend to use this speaker for any considerable length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet
There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your warranty. If water accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service center.

RESTORE FACTORY SETTINGS

By restoring the default settings defined at the factory, you remove all your personalized settings from the soundbar.

In USB mode, press and hold the button on the unit or remote control for more than 5 seconds.

TROUBLESHOOTING

Never try to repair the product yourself. If you have problems using this product, check the following before you request services.
System
The unit will not turn on.

Check if the power cord is plugged into the power and the sound bar.
The soundbar has no response to button pressing.
Restore the sound bar to factory settings (See the "8 RESTORE FACTORY SETTINGS" chapter).

Sound
No sound from the soundbar

Make sure that the soundbar is not muted.
Select the correct audio input source on the remote control.
Connect the soundbar to your TV or other devices properly.
Restore the sound bar to its factory settings by pressing and holding the button on the unit or remote control for more than 5 seconds in USB mode.

Distorted sound or echo

If you play audio from your TV through the soundbar, make sure that your TV is muted or the built-in TV speaker is disabled.

Bluetooth
A device cannot be connected to the soundbar.

Check if you have enabled Bluetooth on the device.
If the sound bar has been paired with another Bluetooth device, reset Bluetooth (see "To connect to another Bluetooth device" under "5.2 Bluetooth connection").
If your Bluetooth device has ever been paired with the sound bar, reset Bluetooth on the soundbar, unpair the sound bar from the Bluetooth device, and then, pair the Bluetooth device with the soundbar again (see "To connect to another Bluetooth device" under "5.2 Bluetooth connection"). Poor audio quality from a connected Bluetooth device
The Bluetooth reception is poor. Move the source device closer to the sound bar, or remove any obstacle between the source device and the sound bar..
The connected Bluetooth device connects and disconnects constantly.
The Bluetooth reception is poor. Move the source device closer to the sound bar, or remove any obstacle between the source device and the sound bar.
For some Bluetooth devices, the Bluetooth connection can be deactivated automatically to save power. This does not indicate any malfunction of the sound bar.

Remote control

The remote control does not work.

Check if the batteries are drained. If so, replace them with new ones.
Reduce the distance and angle between the remote control and the main unit.

Failed to complete the TV remote control learning.

Check if you are using an infra-red TV remote control. The IR learning is not supported by a Bluetooth TV remote control.

Pros & Cons of the JBL Cinema SB180 Speaker

Pros:
- Powerful Audio Output: 220W RMS delivers robust sound with clear dialogue and impactful bass, thanks to the 6.5" wireless subwoofer.
- Multiple Sound Modes: Cine, Music, and News modes tailor the sound profile for different content types, improving user experience.
- Wireless Connectivity: Bluetooth 5.3 ensures smooth wireless streaming from multiple devices without lag or interference.
- Easy Setup: HDMI ARC and optical inputs simplify connections, allowing one-cable linkage and integration with most TVs.
- Compact Design: Slim soundbar fits well in modern living rooms without overwhelming space.
Cons:
- Lack of Dolby Atmos: While the SB180 supports Dolby Digital, the absence of Atmos limits the immersive surround experience found in higher-end models.
- Limited Channel Configuration: True 2.1 channels may not satisfy audiophiles looking for multi-directional sound setups.
- Subwoofer Size: The 6.5" subwoofer is adequate but smaller compared to some competitors' 8" or 12" subs, which may deliver deeper bass.
- Remote Control Features: Basic remote functions might lack advanced customization settings available on premium soundbars.
- Value Comparison: Alternatives like Sony HT-S350 or LG SN4 sometimes offer similar power with additional features at a comparable price point.

Customer Reviews of JBL Cinema SB180 Wireless Soundbar

Users consistently praise the JBL Cinema SB180 Speaker for its strong bass performance and easy Bluetooth connectivity. Many highlight its excellent sound clarity for dialogues and music, especially when using the Cinema and Music modes. The wireless subwoofer receives positive remarks for adding substantial low-end depth without complex wiring.

Common complaints include the absence of Dolby Atmos support and the desire for more advanced sound customization. Some users note that while the soundbar enhances TV audio significantly, the surround sound effect is virtual and less immersive than multi-speaker setups.

Overall, the product averages around 4 out of 5 stars on major retail sites, with recommendations for buyers who want an affordable, straightforward upgrade over standard TV speakers. Customers appreciate its value for money and straightforward installation, making it suitable for users new to soundbars or those on a budget.
