Lenovo IdeaPad Slim 5 14IRL8 User Guide | Connectivity

cover-image

Content

Introduction

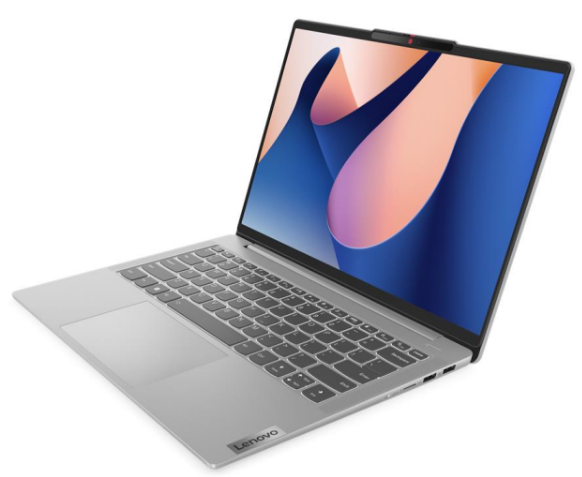

The Lenovo IdeaPad Slim 5 14IRL8 is a sleek and powerful laptop that offers excellent performance and portability. With its slim design and powerful hardware, it is perfect for both work and play.

Key Features

  • 14-inch Full HD display
  • Intel Core i5 processor
  • 8GB RAM
  • 256GB SSD storage
  • Integrated Intel UHD Graphics
  • Backlit keyboard
  • Windows 10 operating system
  • Long battery life
  • Multiple connectivity options

PERFORMANCE

  • Processor: Intel® Core™ i7-13620H, 10C (6P + 4E) / 16T, P-core 2.4 / 4.9GHz, E-core 1.8 / 3.6GHz, 24MB
  • Graphics: Integrated Intel UHD Graphics
  • Chipset: Intel SoC Platform
  • Memory: 16GB Soldered LPDDR5-5200
  • Memory Slots: Memory soldered to systemboard, no slots, dual-channel (16GB models)
  • Max Memory: 16GB soldered memory, not upgradable
  • Storage: 1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
  • Storage Support[1]: One drive, up to 1TB M.2 2242 SSD or 1TB M.2 2280 SSD
  • Storage Slot: One M.2 2280 PCIe 4.0 x4 slot
  • Card Reader: microSD Card Reader
  • Optical: None
  • Audio Chip: High Definition (HD) Audio
  • Speakers: Stereo speakers, 2W x2, optimized with Dolby® Audio™
  • Camera: FHD 1080p + IR with Privacy Shutter, ToF Sensor
  • Microphone: 2x, Array
  • Battery[2]: Integrated 56.6Wh
  • Power Adapter: 65W USB-C® (3-pin)

DESIGN

  • Display: 14" WUXGA (1920x1200) OLED 400nits Glossy, 100% DCI-P3, TÜV Low Blue Light, DisplayHDR™ True Black 500
  • Touchscreen: None
  • Keyboard: Backlit, German
  • Case Color: Cloud Grey
  • Surface Treatment: Aluminium Stamping (Anodized with Sandblasting)
  • Case Material: Aluminium (Top), Aluminium (Bottom)
  • Dimensions (WxDxH)[3]: 312 x 221 x 16.9 mm (12.28 x 8.7 x 0.67 inches)
  • Weight[4]: Starting at 1.46 kg (3.22 lbs)

SOFTWARE

  • Operating System: Windows® 11 Home, German
  • Bundled Software: Office Trial


CONNECTIVITY

  • Ethernet: No Onboard Ethernet
  • WLAN + Bluetooth®[5][6]: Wi-Fi® 6E, 11ax 2x2 + BT5.1
  • Standard Ports
    • 1x HDMI® 1.4b
    • 1x Headphone / microphone combo jack (3.5mm)
    • 1x USB 3.2 Gen 1
    • 1x USB 3.2 Gen 1 (Always On)
    • x microSD card reader
    • 2x USB-C 3.2 Gen 1 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
  • Monitor Cable: None

SECURITY & PRIVACY

  • Security Chip: Firmware TPM 2.0 Enabled
  • Fingerprint Reader: None
  • Other Security
    • Camera privacy shutter
    • IR camera for Windows Hello

SERVICE

  • Base Warranty: 2-year, Courier or Carry-in
  • Included Upgrade: <= 3 Months Premium Care

ACCESSORIES

  • Bundled Accessories: None

CERTIFICATIONS

  • Green Certifications[7]
    • ENERGY STAR® 8.0
    • EPEAT™ Gold Registered
    • ErP Lot 26
    • ErP Lot 6
    • RoHS compliant
  • Other Certifications
    • TÜV Rheinland® Low Blue Light (Hardware Solution)
    • TÜV Rheinland Flicker Free
  • Mil-Spec Test
    • MIL-STD-810H military test passed (20 test items)

MODEL

  • Top Seller: Yes
  • EAN / UPC / JAN: 197532460843
  • Announce Date: 2023-07-18
  • End of Support: 2029-02-16

Recommended Accessories

Lenovo 65W USB-C DC Travel Adapter 40AK0065WW
Power up and stay productive on the road with this DC Travel adapter. Lenovo 65W USB-C DC Travel Adapter is the universal DC adapter, providing 65W power via USB-C for outdoor use.


ThinkPad Hybrid USB-C with USB-A Dock  (American Standard Plug Type B) 40AF0135US
The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manage. For a full list of accessories and services, please visit: https://smartfind.Lenovo.com


Premium Care - Advanced Support from Real People. Real Fast.

lenovo_ideapad_slim_5_14irl8_real_person.png REAL PERSON
Choose how you want to reach us - through the phone, chat or email - our expert technicians will take care of you.
lenovo_ideapad_slim_5_14irl8_hassle_free.pngHASSLE FREE
‘Getting started’ and ‘how-to’ assistance for hardware and software. Easy solutions that are simple to reach - that’s how Premium Care delivers you the ideal support experience.
lenovo_ideapad_slim_5_14irl8_real_fast.pngREAL FAST
Highly trained technicians will provide you real-time solutions, whatever the issue, on your first contact. If needed, our team will schedule an onsite visit for the next business day.
lenovo_ideapad_slim_5_14irl8_pc_health_check.pngPC HEALTH CHECK
Free annual PC Health Check that allows our experts to spot issues before you do so they can resolve them quickly and help you avoid PC problems.

Accidental Damage Protection - Protection of your PC from the unexpected.

Experience shows that a significant portion of devices may be damaged (and not covered under warranty) in the first three years. Lenovo’s Accidental Damage Protection service covers accidents beyond the system warranty such as drops, spills, bumps and even electrical surges. Make sure your new device has maximum protection, avoid unplanned costs and get peace of mind.

Product Description

The Lenovo IdeaPad Slim 5 14IRL8 features a 14-inch Full HD display, providing crisp and vibrant visuals. It is powered by an Intel Core i5 processor, which ensures smooth and efficient performance for multitasking and demanding applications. With 8GB of RAM and 256GB of SSD storage, you can enjoy fast boot times and ample storage space for your files and programs. This laptop also comes with integrated Intel UHD Graphics, allowing you to enjoy smooth graphics and visuals for your games and multimedia content. The backlit keyboard provides convenience and ease of use, especially in low-light environments. It runs on the Windows 10 operating system, offering a familiar and user-friendly interface. With its long battery life, you can work or play for extended periods without worrying about running out of power. The Lenovo IdeaPad Slim 5 14IRL8 also offers multiple connectivity options, including USB ports, HDMI, and Wi-Fi, allowing you to connect and transfer data easily.

PDF

Faqs

Is the Lenovo IdeaPad Slim 5 14IRL8 suitable for gaming?

While it can handle some casual gaming, it is not designed for heavy gaming due to its integrated graphics.

Does the IdeaPad Slim 5 14IRL8 laptop have a touchscreen display?

No, the Lenovo IdeaPad Slim 5 14IRL8 does not have a touchscreen display.

Can the RAM be upgraded?

Yes, the RAM can be upgraded, but it is recommended to consult the manufacturer or a professional for the upgrade process.

Does Lenovo IdeaPad Slim 5 14IRL8 come with a built-in webcam?

Yes, the Lenovo IdeaPad Slim 5 14IRL8 comes with a built-in webcam for video conferencing and online communication.

Is the keyboard backlit?

Yes, the keyboard of the Lenovo IdeaPad Slim 5 14IRL8 is backlit, making it convenient to use in low-light environments.

What is the battery life of the IdeaPad Slim 5 14IRL8 laptop?

The Lenovo IdeaPad Slim 5 14IRL8 offers a long battery life of up to 10 hours, depending on usage.

Does Lenovo IdeaPad Slim 5 14IRL8 have an optical drive?

No, the laptop does not have an optical drive. External drives can be used for CD/DVD operations if needed.

Can Lenovo IdeaPad Slim 5 14IRL8 connect to external monitors?

Yes, the laptop has an HDMI port that allows you to connect it to external monitors or projectors.

Does Lenovo IdeaPad Slim 5 14IRL8 support fast charging?

Yes, the Lenovo IdeaPad Slim 5 14IRL8 supports fast charging, allowing you to quickly recharge the battery.

What is the weight of the IdeaPad Slim 5 14IRL8 laptop?

The laptop weighs approximately 1.6 kg, making it lightweight and portable.
