Lenovo Legion T5 26AMR5 User Guide | Specifications

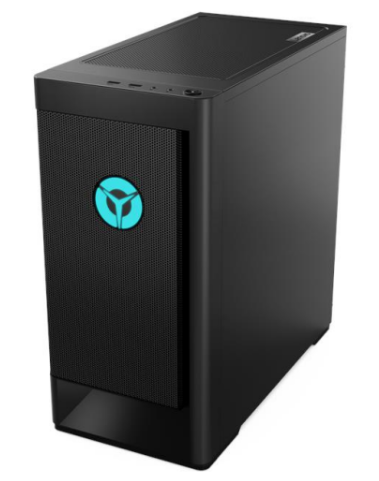

Lenovo Legion T5 26AMR5

Introduction

The Lenovo Legion T5 26AMR5 is a powerful gaming desktop designed to deliver exceptional performance and immersive gaming experiences. With its cutting-edge features and high-end specifications, it is the perfect choice for gamers who demand the best.

Specifications

Processor (CPU):

• Up to AMD Ryzen™ 9 5950X (16 cores / 32 threads) in some configurations.
• Earlier/alternate CPUs include Ryzen 5 3600, Ryzen 5 5600G, Ryzen 7 5800, etc.
• Supports DDR4-3200 memory for all CPUs listed.

Graphics (GPU):

• Multiple GPU options depending on build:
  • NVIDIA® GeForce GTX 1650 SUPER (4 GB)
  • NVIDIA® GeForce GTX 1660 SUPER (6 GB)
  • NVIDIA® GeForce RTX 3060 (12 GB) in later builds.
  • AMD Radeon RX 5500 (4 GB) also appears in some variants.

Memory (RAM):

• Up to 128 GB DDR4-3200 supported (4 UDIMM slots) in some configurations.
• Typical builds ship with 16 GB (2×8 GB) DDR4-3200.

Storage:

• Multiple slots support: M.2 NVMe SSDs, 2.5″ or 3.5″ HDDs. Example: 1 TB SSD M.2 2280 in some builds.
• Example storage spec: up to five drives (2×3.5″ HDD + 1×2.5″ HDD + 2×M.2 SSD) in some SKUs.

Motherboard & Chipset:

• Uses AMD B550 chipset in many configurations.

Form Factor & Dimensions:

• Tower desktop, approx 26-litre chassis.
• Dimensions: approx 205 × 396 × 411 mm (8.1″ × 15.6″ × 16.2″) in one spec sheet.
• Weight: around 14 kg (≈30.86 lb) in some configurations.

Ports & Connectivity:

• Front/Top I/O: 2× USB 3.2 Gen1, 1× USB-C 3.2 Gen2, headphone/mic jacks etc.
• Rear I/O: additional USB ports (USB 2.0, USB 3.2), Ethernet RJ-45, and 3 audio line-out jacks.
• Networking: Wi-Fi 6 (11ax) 2×2 + Bluetooth 5.1; Gigabit Ethernet onboard.

Power Supply (PSU):

• Various options: e.g., 400 W, 550 W (88% efficient) in some variants.

Operating System:

• Ships with Windows 11 Home or Pro; older Windows 10 options available.

Features & Considerations

• Very good for gaming/content creation thanks to high-end CPU/GPU combos.
• Upgradable (RAM, storage) thanks to multiple slots and a large chassis.
• Adequate cooling design with gives you more headroom.
• Important to check which exact variant you’re buying — specs can vary quite a bit (CPU, GPU, PSU, storage, etc.).
• If you plan heavy GPU work (e.g., 4K/ultrawide gaming), pick the higher GPU variant (like RTX 3060).
• Ensure PSU rating matches the GPU; higher GPUs require a stronger PSU.

Things to Verify Before Buying

• Confirm exact CPU and GPU installed (e.g., Ryzen 5 vs Ryzen 9; GTX 1650 vs RTX 3060).
• Confirm the actual RAM amount and whether upgrade slots remain free.
• Confirm storage type and size (NVMe vs SATA SSD, HDD included or not).
• Check PSU wattage— if a future GPU upgrade is planned, you may need a stronger PSU.
• Check cooling/airflow conditions — ensure case ventilation is unblocked.
• Check warranty & support for your region.

Instructions

1. Unbox the Lenovo Legion T5 26AMR5 and remove all packaging materials.
2. Connect the power cable to the desktop and plug it into a power outlet.
3. Connect your display to the HDMI or DisplayPort port on the desktop.
4. Connect your keyboard and mouse to the USB ports on the desktop.
5. Press the power button to turn on the desktop.
6. Follow the on-screen instructions to set up Windows 10.
7. Install any necessary drivers and software for optimal performance.
8. Enjoy your gaming experience with the Lenovo Legion T5 26AMR5.

PERFORMANCE

• Processor: AMD Ryzen™ 7 5800 (8C / 16T, 3.4 / 4.6GHz, 4MB L2 / 32MB L3)
• Graphics: NVIDIA® GeForce® RTX™ 3070 8GB GDDR6
• Chipset: AMD B550
• Memory: 2x 8GB UDIMM DDR4-3200
• Memory Slots: Four DDR4 UDIMM slots, dual-channel capable
• Max Memory: Up to 128GB DDR4-3200
• Storage: 1TB SSD M.2 2280 PCIe 3.0 NVMe
• Storage Support: Up to 2 drives, 1x 3.5" HDD + 1x M.2 SSD
  • 3.5" HDD up to 2TB
  • M.2 SSD up to 1TB
• Card Reader: None
• Optical: None
• Audio Chip: High Definition (HD) Audio, Realtek® ALC892 codec
• Power Supply: 550W 88%

DESIGN

• Keyboard: USB Calliope Keyboard, Black, German
• Mouse: USB Calliope Mouse, Black
• Optional Bay: None
• Expansion Slots
  • Three M.2 slots (one for WLAN, two for SSD)
  • One PCIe 4.0 x16
  • One PCIe 3.0 x4
• Case Color: Black
• System Lighting: OY Light Blue
• Chassis Cover: Normal side cover
• Cooler: 65W Airlow
• System Fan: 1x Front + 1x Rear
• Carry Handle: Carry Handle
• Form Factor: Tower (26L)
• Dimensions (WxDxH): 205x 396 x 411 mm (8.1 x 15.6 x 16.2 inches)
• Weight: 14kg (30.86 lbs)

CONNECTIVITY

• Ethernet: Integrated 100/1000M
• WLAN + Bluetooth™: 11ax, 2x2 + BT5.1
• Top Ports
  • 1x headphone/microphone combo jack (3.5mm)
  • 2x USB 3.2 Gen 1
  • 1x microphone (3.5mm)
• Rear Ports
  • 1x USB-C 3.2 Gen 2
  • 3x line out(3.5mm)
  • 1x power connector
  • 1x Ethernet (RJ-45)
  • 2x USB 2.0
  • 2x USB 3.2 Gen 1

SERVICE

• Base Warranty: 2-year, Depot
• Included Upgrade: None

CERTIFICATIONS

Green Certifications

• ErP Lot 3
• RoHS compliant

SOFTWARE

• Operating System: Windows® 10 Home 64, German
• Bundled Software: None

MODEL

• TopSeller: Yes
• EAN / UPC / JAN: 195713319225
• Announce Date: 2021-01-26
• End of Support: 2026-09-05
