Lowrance Eagle 4x Fish Finder User Manual

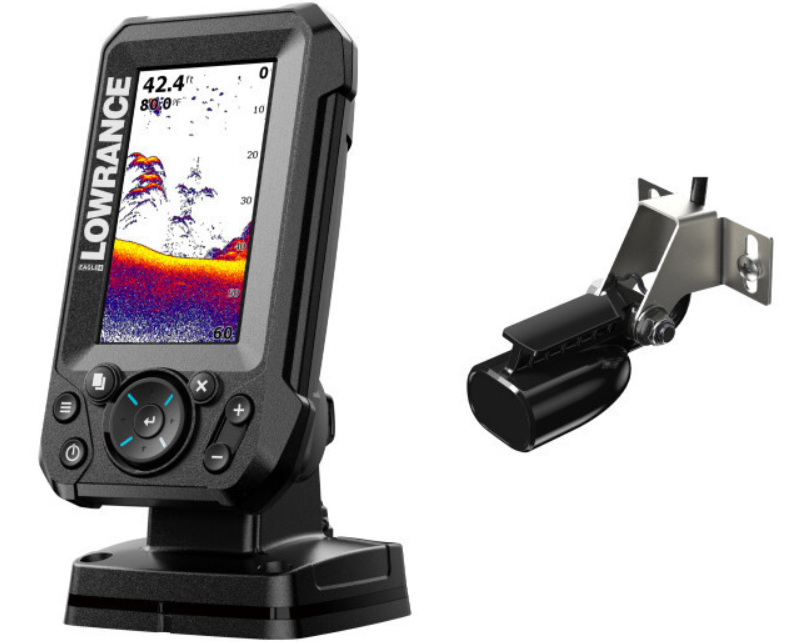

Lowrance Eagle 4x Fish Finder

Discover everything you need to know about the Lowrance Eagle 4x Fish Finder, a compact and reliable solution for anglers seeking simplicity and performance. Designed for kayaks, small boats, and casual fishing trips, this fish finder delivers clear sonar imaging and easy-to-use features that make finding fish faster and more enjoyable.

The Lowrance Eagle 4x Fish Finder stands out with its wide-angle sonar coverage, autotuning technology, and IPS display for superior visibility even in bright sunlight. Whether you're a beginner or an experienced angler, this unit is built for quick setup and hassle-free operation. It’s ideal for freshwater and saltwater fishing, offering a maximum depth of 500 feet in saltwater and a user-friendly interface that helps you spot fish and underwater structures with confidence.

With an estimated price range of $150–$200, the Lowrance Eagle 4x Fish Finder is widely available at major marine retailers and online stores. Its compact size and portability make it a top choice for kayak anglers and small craft users who want a dependable fish finder without breaking the bank.

Lowrance Eagle 4x Fish Finder Specifications

• Display Size: 4.3 inches, portrait orientation
• Display Type: IPS screen, viewable from all angles, even with polarized sunglasses
• Maximum Depth: 500 ft (saltwater), 1,600 ft (freshwater)
• Sonar Frequencies: 200 kHz (single beam)
• CHIRP Sonar: No
• Down Imaging: No
• Side Imaging: No
• GPS: No
• Chartplotter: No
• Transducer Included: Bullet Skimmer transducer
• Water Temperature Sensor: Yes
• Power Draw: 8 amps
• Connector System: Twist-lock for easy installation
• Warranty: 2 years

Compared to similar models like the Garmin Striker 4 and Humminbird PiranhaMAX 4, the Lowrance Eagle 4x Fish Finder offers a comparable screen resolution (480x272) and reliable sonar performance, but lacks GPS and advanced imaging features.

Lowrance Eagle 4x Fish Finder Setup Guide

Setting up your Lowrance Eagle 4x Fish Finder is quick and straightforward:

1. Mount the unit using the included bracket in a location with clear visibility.
2. Attach the Bullet Skimmer transducer to the transom using the provided bracket.
3. Connect the power cable to a 12V source, ensuring the fuse is installed.
4. Use the twist-lock connector to secure the transducer cable.
5. Power on the unit and allow the autotuning sonar to calibrate automatically.
6. Adjust sensitivity and range settings via the menu for optimal performance.

For best results, ensure the transducer is fully submerged and free from air bubbles. Avoid running the unit near strong electrical interference. If the display is unclear, adjust the sensitivity or enable noise rejection in the settings.

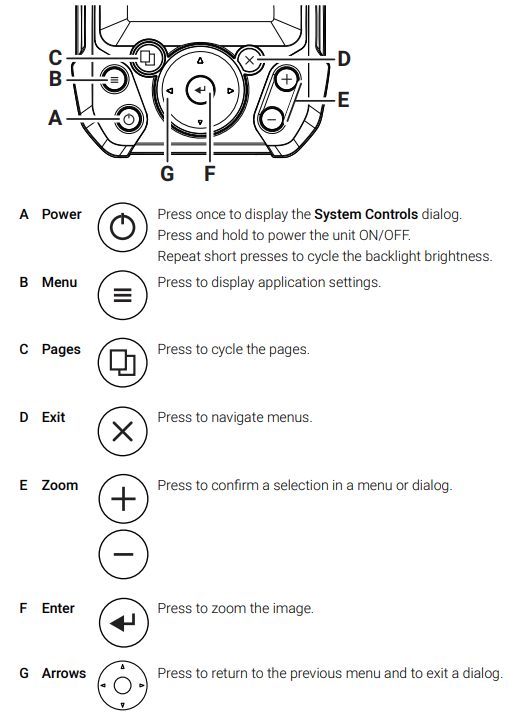

Physical control keys

Safety Warning: Always disconnect power before servicing or moving the unit. Do not operate in extreme temperatures or submerge the display.

Display illumination

Brightness

• You can cycle the preset display brightness levels by repeated presses on the power key.
• The display backlight can also be adjusted from the Brightness setting in the System Controls dialog.

Night mode

• Night Mode can be activated from the System Controls dialog.
• The Night Mode option optimizes the color palette for low-light conditions.

Using menus

• Activate menu items and toggle options ON/OFF with the enter key.
• Adjust a slider value with the arrow keys.

SONAR

The sonar function provides a view of the water and sea floor beneath your vessel, allowing you to detect fish and examine the structure of the bottom.

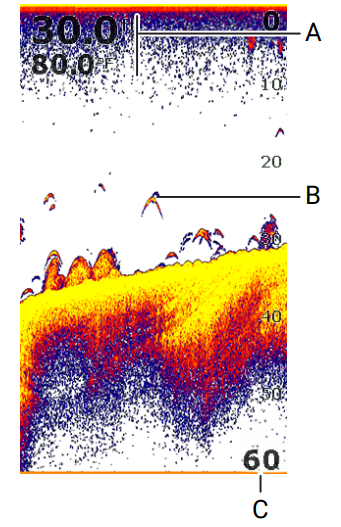

Sonar image

• Sensor data
  • Depth
  • Temperature
• Fish arches
• Range scale

Zoom the image

• You can zoom the image by pressing the + and - keys.
• When zooming in, the sea floor is kept near the bottom of the screen, irrespective of whether the unit is in auto-range or manual range.
• If the range is set considerably less than the actual depth, the unit is not able to find the bottom when zooming.

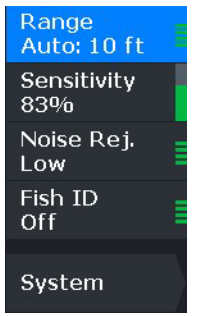

Customizing the image settings

By default, your unit is set to Auto mode, and the sonar app settings are automated. Press the menu key to access the sonar settings.

Range
Select Range to configure the displayed water depth.

Sensitivity

• Increasing Sensitivity shows more detail on the screen. Decreasing Sensitivity displays less detail. Too much detail can clutter the screen,, making it difficult to identify echoes.
• Conversely, desired echoes may not be displayed if Sensitivity is set too low.

Note: Auto sensitivity is the preferred mode for most conditions.

Auto sensitivity
Auto sensitivity automatically adjusts the sonar return to optimal levels. The setting can be adjusted to your preference while still maintaining auto-sensitivity functionality.

Adjust sensitivity

1. Select the Sensitivity menu option.
2. Press Enter to deactivate Auto sensitivity.
3. Use the arrows to adjust sensitivity to the desired level.
4. Press the exit key. Settings are automatically saved.

Noise rejection

Signal interference from bilge pumps, engine vibration, and air bubbles can clutter the image. The Noise Rejection option filters the signal interference and reduces on-screen clutter.

Fish ID

You can select how you want fish targets to appear on the screen.

Note: Not all fish symbols are actual fish.

FLASHER

The flasher app gives a live sonar view, ideal for ice fishing and vertical jigging, where only real-time sonar data is needed, not the sonar history.

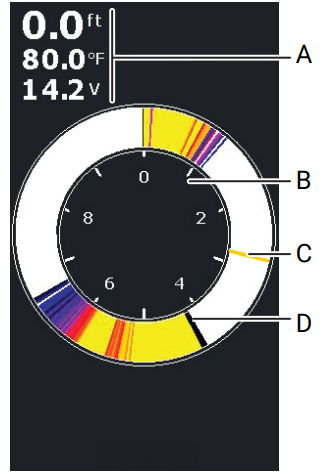

Flasher image

• Sensor data
  • Depth
  • Temperature
  • Supply voltage
• Range scale
• Water column activity D Bottom

Customizing the image settings

By default, your unit is set to Auto mode, and the sonar app settings are automated. Press the menu key to access the sonar settings.

Range
Select Range to configure the displayed water depth.

Sensitivity

• Increasing Sensitivity shows more detail on the screen. Decreasing Sensitivity displays less detail. Too much detail can clutter the screen,, making it difficult to identify echoes.
• Conversely, desired echoes may not be displayed if Sensitivity is set too low.

Note: Auto sensitivity is the preferred mode for most conditions.

Auto sensitivity

Auto sensitivity automatically adjusts the sonar return to the optimal levels. The setting can be adjusted to your preference while still maintaining the auto-sensitivity functionality.

Adjust sensitivity

1. Select the Sensitivity menu option.
2. Press Enter to deactivate Auto sensitivity.
3. Use the arrows to adjust sensitivity to the desired level.
4. Press the exit key. Settings are automatically saved.

Noise rejection
Signal interference from bilge pumps, engine vibration,, and air bubbles can clutter the image. The Noise rejection option filters the signal interference and reduces on-screen clutter.

MAINTENANCE

Preventive maintenance
The unit does not contain any field serviceable components. Therefore, the operator is required to perform only a very limited amount of preventative maintenance.
It is recommended that you always fit the protective sun cover when the unit is not in use. The protective sun cover is an accessory sold separately. Refer to the installation guide provided with your unit.

WARNING: The sun cover is not intended to be used when the vessel is in motion or in tow. It may become detached at high speeds. Always remove the sun cover before traveling.

Checking the connectors
Periodically, push the connector plugs into the connector. If the connector plugs are equipped with a lock or a position key, ensure it is in the correct position.
Cleaning the display unit

Screen

• microfiber or a soft cotton cloth should be used to clean the screen. Use plenty of water to dissolve and take away salt remains. Crystallized salt, sand, dirt, etc., can scratch the protective coating if using a damp cloth. Use a lilightresh water spray,, then wipe the unit dry with a micro-fiber or a soft cotton cloth. Do not apply pressure with the cloth.

Housing

• Use warm water with a dash of liquid dish soap or detergent.
• Avoid using abrasive cleaning products or products containing solvents (acetone, mineral turpentine, etc.), acid, ammonia, or alcohol,ol as they can damage the display and plastic housing.

WARNING: Do not use a jet or high-pressure wash. www.lowrance.com

Lowrance Eagle 4x Fish Finder Troubleshooting

• No Sonar Image: Check transducer connection and ensure it’s submerged. Verify the power supply and fuse.
• Blurry or Noisy Display: Adjust sensitivity and enable noise rejection. Clean the transducer face.
• Unit won’t Power On: Check the fuse and wiring. Ensure the battery is charged.
• Error Codes: Refer to the manual for specific codes. Most issues are resolved by resetting the unit or checking connections.

Preventive measures include regular cleaning of the transducer and checking cable connections. The Lowrance Eagle 4x Fish Finder comes with a 2-year warranty. For support, contact Lowrance customer service or visit their official website.

Lowrance Eagle 4x Fish Finder Pros & Cons

Pros

• Easy to use with an autotuning sonar
• IPS screen for excellent visibility
• Compact and portable design
• Wide-angle sonar coverage
• Reliable twist-lock connector
• 2-year warranty

Cons

• No GPS or chartplotter
• No DownScan or SideScan imaging
• Limited to single-frequency sonar
• Lower resolution than some competitors

The Lowrance Eagle 4x Fish Finder offers excellent value for casual anglers and kayak users, though it may not meet the needs of advanced users seeking GPS or imaging features.

Lowrance Eagle 4x Fish Finder Customer Reviews

Users consistently rate the Lowrance Eagle 4x Fish Finder 4–4.5 stars, praising its ease of use, clear display, and reliable performance. Many appreciate the autotuning sonar and wide-angle coverage, making it ideal for small boats and kayaks. Common complaints include the lack of GPS and imaging features, but most agree it’s a solid choice for the price. Customers recommend it for beginners and casual anglers looking for a dependable, budget-friendly fish finder.
