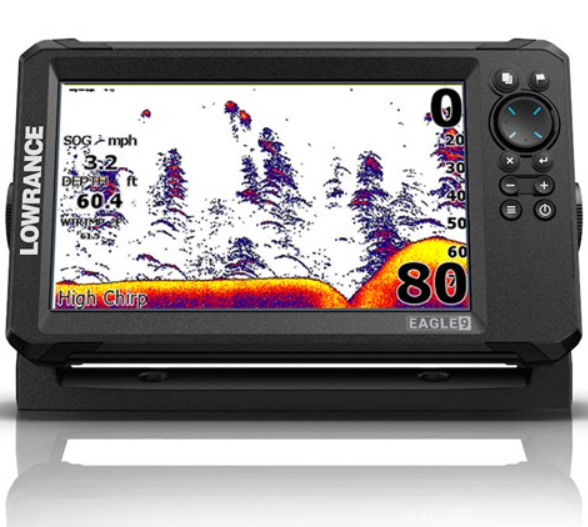

Lowrance Eagle 7 & 9 Series Fishfinder

Introduction

The Lowrance Eagle 7 & 9 Series Fishfinder represents a versatile and powerful solution for anglers and boating enthusiasts seeking advanced sonar technology combined with GPS chartplotting capabilities. Designed for both novice and experienced users, these units offer exceptional underwater imaging and navigation tools that enhance fishing efficiency and safety on the water. Key features include crisp IPS color displays, built-in US Inland Lake mapping, and advanced sonar transducers like the SplitShot and TripleShot, delivering detailed views beneath and alongside your vessel.

Ideal for freshwater and coastal fishing, the Eagle 7 & 9 Series suits kayaks, small boats, and larger watercraft, adapting to diverse fishing environments. With easy-to-use interfaces and quick setup through Autotuning technology, these fishfinders provide accurate fish detection, depth readings, and real-time mapping, making them indispensable for serious anglers. The price typically ranges from approximately $400 for the Eagle 7 to $700 for the fully equipped Eagle 9 models, available through major marine electronics retailers and online stores.

Whether you're charting uncharted waters or seeking precise fish locations with DownScan and SideScan sonar, the Lowrance Eagle 7 & 9 Series Fishfinder combines affordability with professional-grade features to elevate every fishing trip.

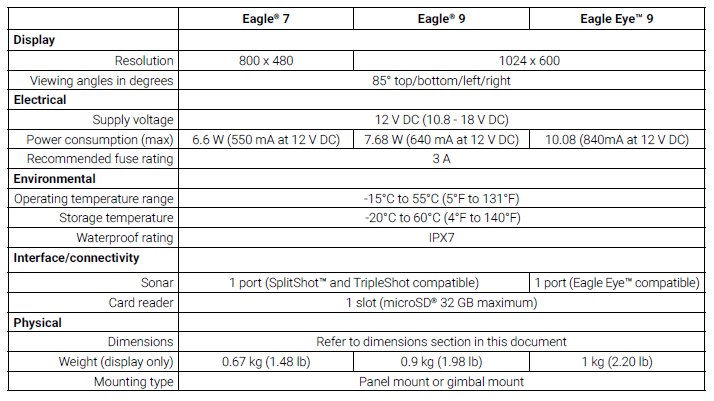

Technical Specifications

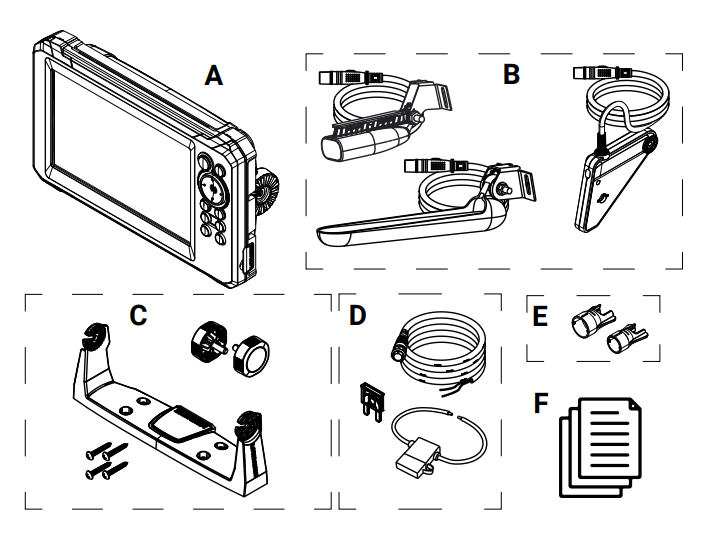

In the box

1. Eagle® 7, Eagle® 9, or Eagle Eye™ 9 display unit
2. SplitShot™, TripleShot, or Eagle Eye™ skimmer transducer C Gimbal kit
3. Power cable kit
4. Cable lock collars
5. Documentation pack

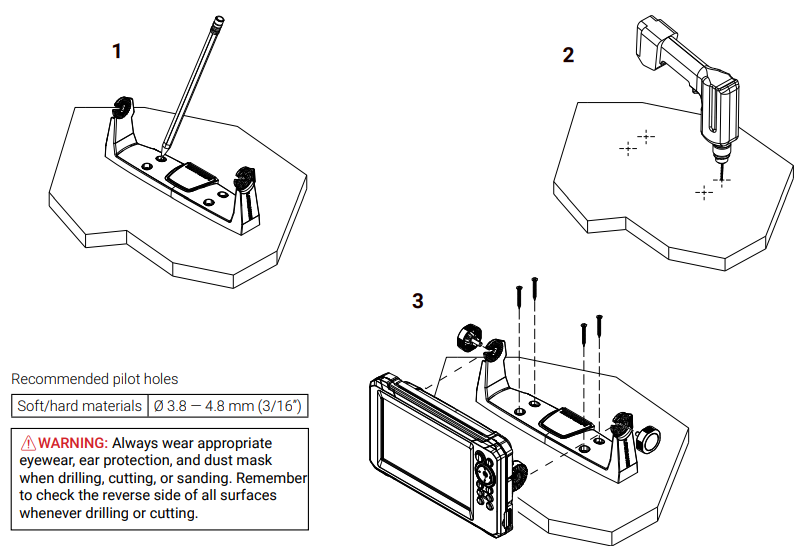

Gimbal mounting

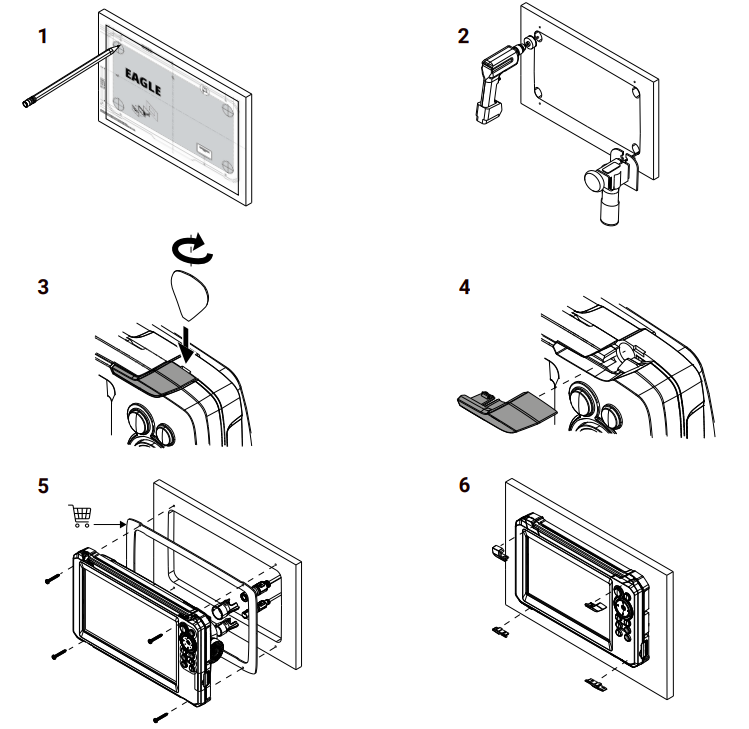

Panel mounting

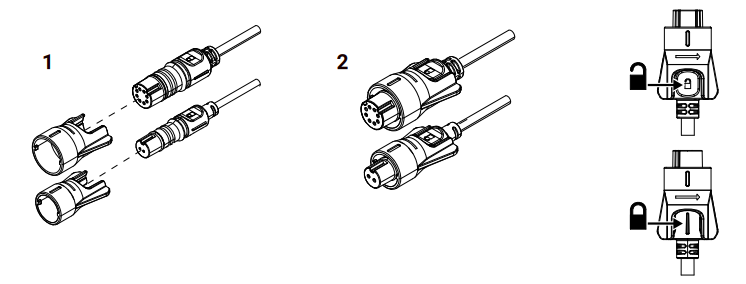

Cable lock collar

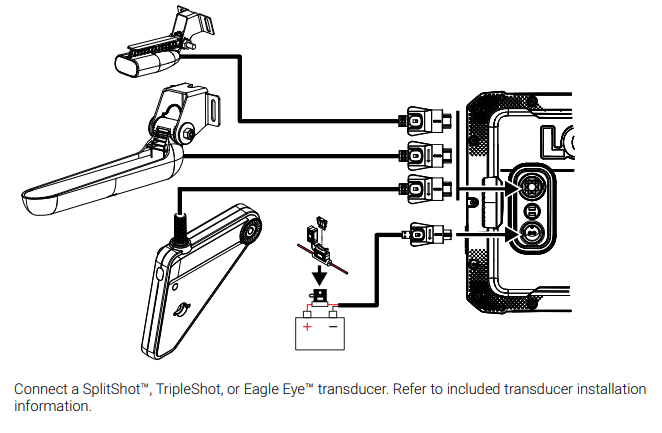

Wiring

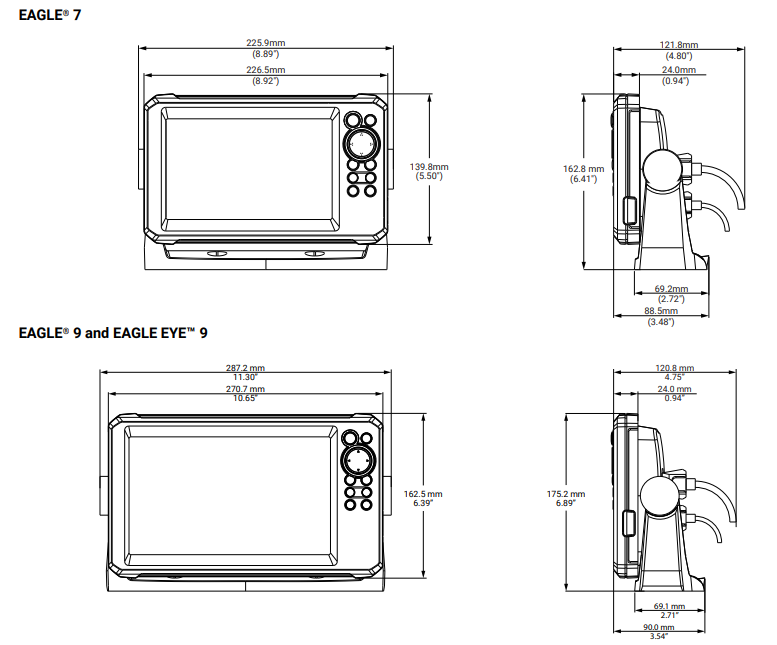

Dimensions

Troubleshooting Common Issues with Lowrance Eagle 7 & 9 Series Fishfinder

• No Power: Check battery connections, fuse status, and confirm power cable integrity.
• No Sonar Reading: Verify transducer cable connection, ensure the transducer is submerged properly, and check for cable damage.
• GPS Signal Weak or Lost: Ensure the unit is mounted with a clear view of the sky; avoid obstructions such as metallic surfaces.
• Error Codes: Software errors can often be resolved by updating the unit’s firmware via microSD card and following reset instructions in the manual.
• Preventive Measures: Regularly clean the transducer, keep software updated, and inspect cables for wear and corrosion.

Warranty coverage typically includes a one-year limited warranty on the unit and transducer. For further support, contact Lowrance customer service via their official website or authorized dealers.

Pros & Cons of Lowrance Eagle 7 & 9 Series Fishfinder

• Pros:
  • High-resolution IPS displays provide clear underwater visuals in various lighting conditions.
  • Advanced sonar with CHIRP, DownScan, and SideScan imaging enhances fish detection accuracy.
  • Built-in GPS chartplotting with detailed US Inland Lake maps and custom mapping capability.
  • Autotuning feature simplifies setup for users of all skill levels.
  • Durable IPX7 waterproof rating suitable for harsh marine environments.
  • Competitive pricing for features offered, providing excellent value for money.
• Cons:
  • Limited to a single sonar port; users wanting multiple sonar devices must upgrade.
  • MicroSD card slot maxes out at 32GB, limiting extensive map storage compared to higher-end models.
  • SideScan imaging only available on specific Eagle 7 models and standard on Eagle 9, which may confuse buyers.
  • No wireless networking or integration with some advanced marine electronics ecosystems.

Customer Reviews and Feedback on Lowrance Eagle 7 & 9 Series Fishfinder

Users consistently praise the Lowrance Eagle 7 & 9 Series Fishfinder for its sharp display clarity and reliable sonar performance, especially noting the enhanced imaging capabilities of the TripleShot transducer on Eagle 9. Anglers appreciate the ease of setup through Autotuning and the detailed US Inland Lake mapping, which aids navigation and fish finding.

Common complaints include occasional GPS signal loss in heavily forested or obstructed areas and the limited sonar port restricting multiple sensor setups. Overall, average star ratings hover around 4.5 out of 5, with many recommending the Eagle series as a cost-effective upgrade from entry-level sonar units.

Most reviews highlight the excellent value for money and suitability for small to mid-sized boats, while some more advanced users seek additional connectivity or multi-sonar support found in higher-end Lowrance models.
