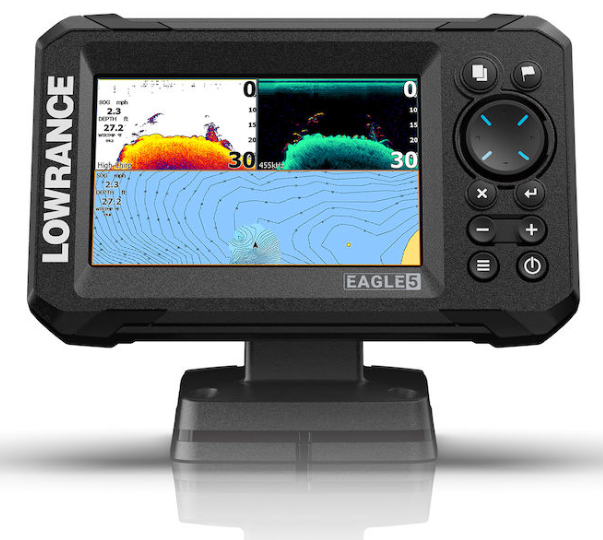

Lowrance Eagle 5 Fishfinder and Chartplotter

Introduction

The Lowrance Eagle 5 Fishfinder and Chartplotter is a versatile, entry-level marine electronics solution designed for anglers seeking reliable performance and advanced features in a compact package. Ideal for kayaks, small boats, and freshwater fishing, this combo unit delivers crisp sonar imaging, built-in GPS chartplotting, and intuitive navigation tools. With its SplitShot HD transducer, FishReveal technology, and preloaded C-MAP US inland charts covering over 17,000 lakes, the Lowrance Eagle 5 Fishfinder and Chartplotter stands out for both beginners and seasoned fishermen.

Key benefits include an IPS display for excellent visibility in all lighting conditions, autotuning sonar for hassle-free setup, and real-time mapping with Genesis Live. The unit is easy to install and offers a twist-lock connector for quick mounting. Priced competitively in the $200–$300 range, the Lowrance Eagle 5 Fishfinder and Chartplotter is widely available at major marine retailers and online stores, making it an accessible upgrade for any fishing vessel.

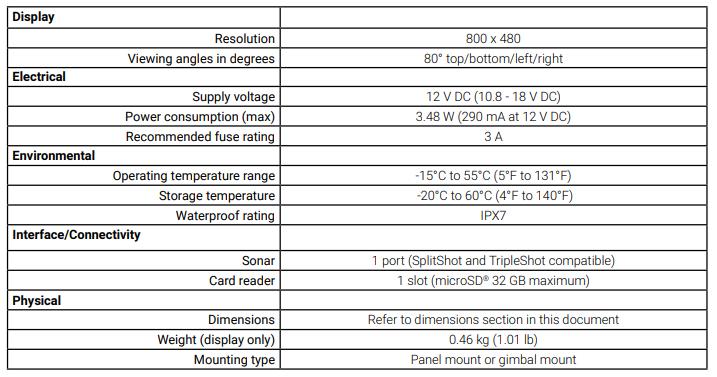

Specifications: Lowrance Eagle 5 Fishfinder and Chartplotter

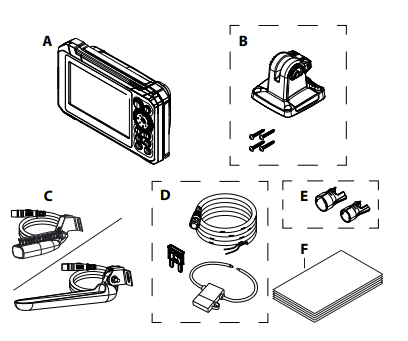

In the box

EAGLE 5 display unit

1. Gimbal kit
2. SplitShot or TripleShot skimmer transducer D Power cable kit
3. Cable lock collars
4. Documentation pack

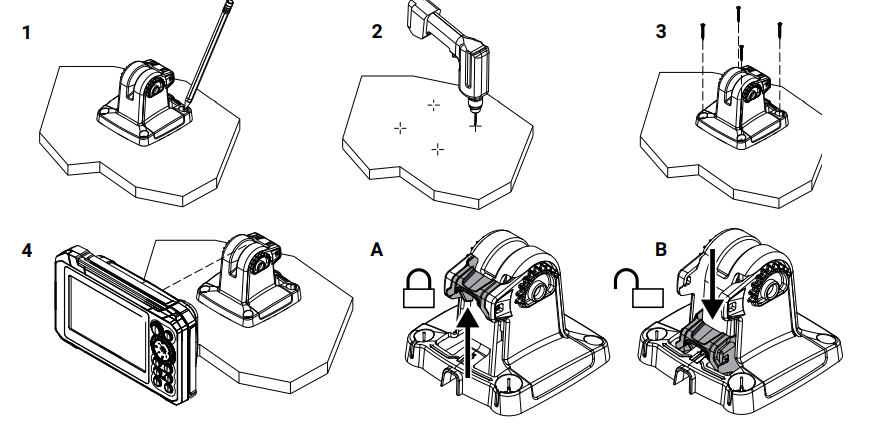

Gimbal mounting

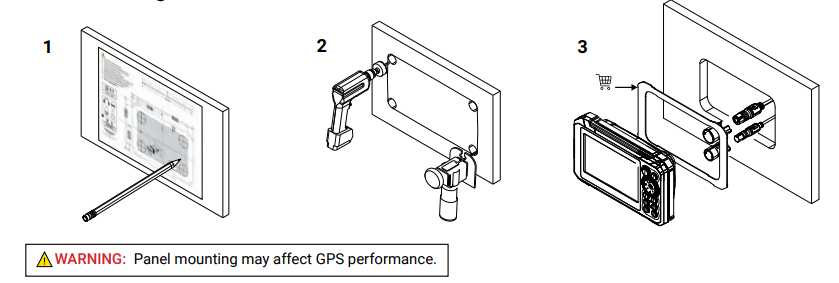

Panel mounting

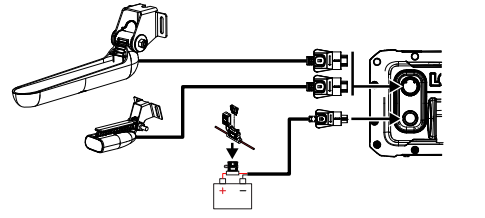

Wiring

Note:

• Connect either a SplitShot or TripleShot transducer.
• Refer to the included transducer installation information.

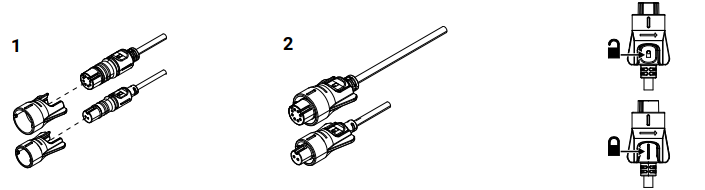

Cable lock collar

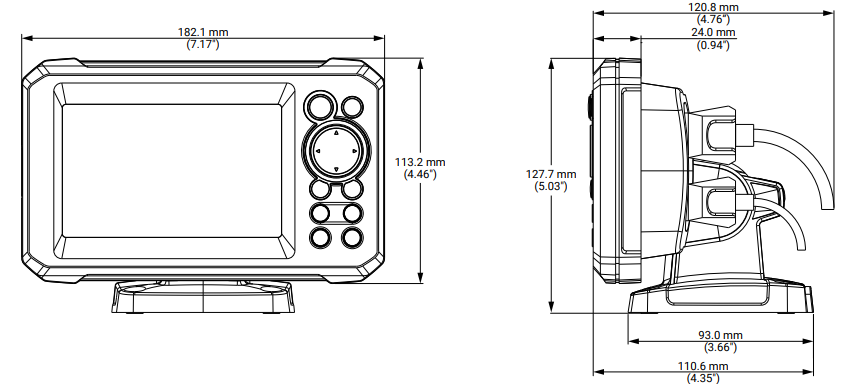

Dimensions

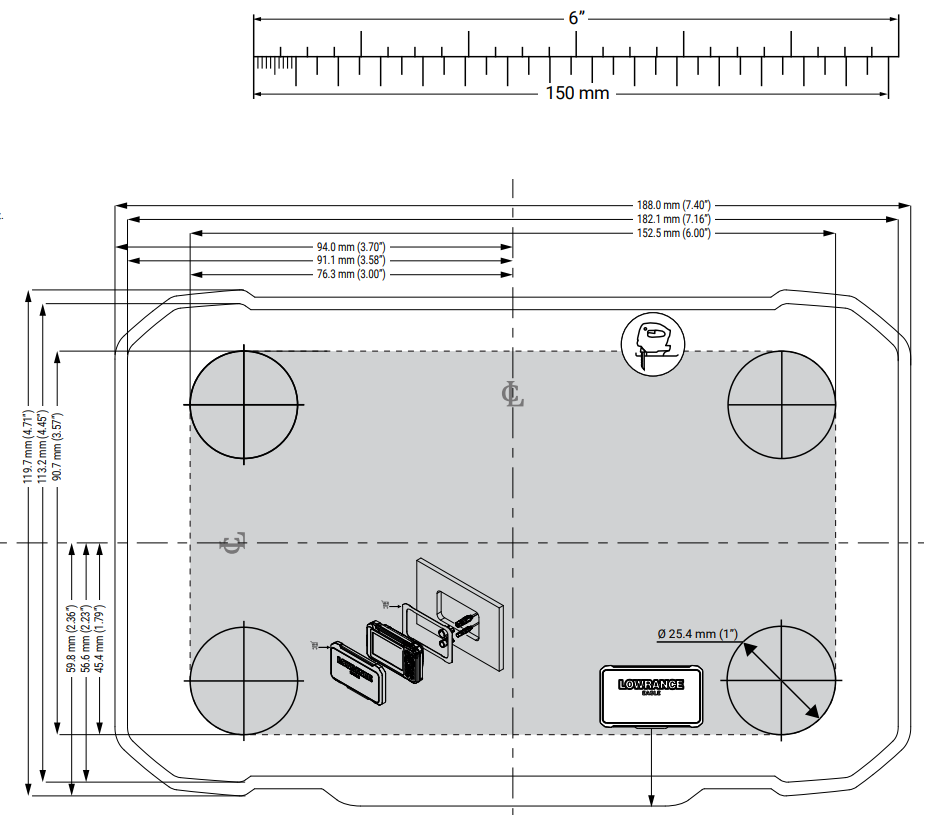

Do not resize this mounting template if printing.

Troubleshooting: Lowrance Eagle 5 Fishfinder and Chartplotter

Common issues include blank screens, poor sonar returns, and GPS signal loss. For a blank screen, verify power connections and check the fuse. If sonar performance is weak, clean the transducer and recalibrate. GPS problems may require a clear view of the sky and a firmware update.

Refer to the user manual for error codes and specific fixes. Preventive measures include regular cleaning, firmware updates, and proper storage. The Lowrance Eagle 5 Fishfinder and Chartplotter comes with a one-year limited warranty. For support, contact Lowrance customer service or visit their official website.

Pros & Cons: Lowrance Eagle 5 Fishfinder and Chartplotter

Pros

• Excellent sonar clarity with FishReveal and DownScan
• Easy installation and user-friendly interface
• Preloaded C-MAP charts and real-time mapping
• Compact size ideal for small boats and kayaks
• Competitive price for feature set

Cons

• Limited screen size for detailed chart viewing
• No SideScan on base model (available on larger Eagle units)
• Basic GPS navigation compared to high-end chartplotters

The Lowrance Eagle 5 Fishfinder and Chartplotter offers outstanding value for money, especially for anglers who prioritize sonar performance and ease of use over advanced navigation features.

Customer Reviews: Lowrance Eagle 5 Fishfinder and Chartplotter

Users consistently praise the Lowrance Eagle 5 Fishfinder and Chartplotter for its clear display, reliable sonar, and ease of setup. Many highlight the FishReveal technology for helping locate fish in challenging conditions. The unit receives an average rating of 4.5 stars, with buyers noting its durability and value. Common complaints include the small screen size and limited chart detail compared to larger models. Most recommend the Lowrance Eagle 5 Fishfinder and Chartplotter for beginners and casual anglers seeking a dependable, feature-rich fish finder at an affordable price.
