Setup: Marshall Minor IV True Wireless Earbuds User Manual

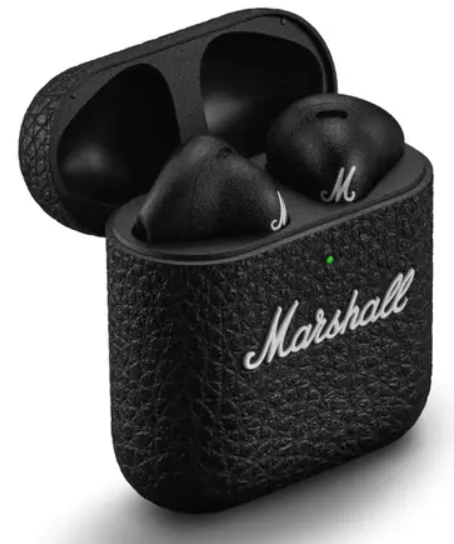

Marshall Minor IV True Wireless Earbuds

Introduction

The Marshall Minor IV True Wireless Earbuds are designed to deliver the iconic Marshall sound in a sleek, modern package. These earbuds promise a dynamic listening experience with clear highs, smooth mids, and enhanced bass, thanks to their 12mm dynamic drivers. Targeted at music enthusiasts and those seeking a convenient wireless solution, the Minor IV offers long-lasting battery life, comfort, and customizable sound through an app. With a price range typically between $100 and $150, these earbuds are available at major retailers like Best Buy and Verizon. The Minor IV is ideal for daily use, workouts, and travel, making it a great choice for anyone looking for reliable true wireless earbuds.

Specifications

Here are the key specifications of the Marshall Minor IV True Wireless Earbuds:

• Frequency Response: 20 Hz - 20 kHz
• Driver Size: 12 mm Dynamic Drivers
• Impedance: 32 Ohms
• Weight: Approximately 4.01 g (earbuds), 40.24 g (charging case)
• Bluetooth Version: Bluetooth 5.3
• Codecs: SBC, LE Audio (LE Audio for future compatibility)
• Playtime: Up to 7 hours per charge, 30+ hours with charging case
• Charging: Quick charge, wireless charging supported
• Water Resistance: IPX4 for earbuds, IPX3 for charging case
• Control: Touch-sensitive controls for music and calls

Compared to similar products, the Minor IV stands out with its long battery life and customizable sound options.

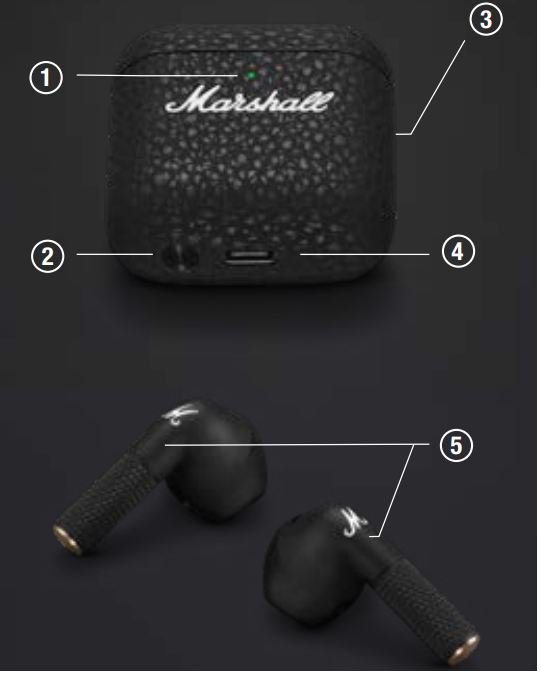

DEVICE LAYOUT

1. CHARGING CASE INDICATOR
   The LED shows the case battery charge, from red through yellow to green (0–100%). It pulses blue while in Bluetooth® pairing mode.
2. CHARGING CASE BUTTON
   Quickly press to see the charging case battery level. With the earbuds in the case and the lid open, push and hold for 2 seconds to initiate pairing.
3. WIRELESS CHARGING
   Charge the case by placing it on a wireless charging pad.
4. USB-C POWER INPUT
   Charge the case by plugging it into a USB power source.
5. TOUCH CONTROLS
   Touch the left or right earbud to control your music, phone calls, and more.


INSTRUCTIONS

GETTING STARTED

1. Open the charging case.
2. Press and hold the button on the bottom of the case until the LED turns to a slow blue pulse.
3. Select MINOR IV from your sound device’s Bluetooth list.
4. Download the Marshall Bluetooth app and follow the in-app instructions to complete the setup.

TOUCH CONTROLS
Touch the left or right earbud to control your music, phone calls, and more. The long touch behaviour can be customised in the app.

• Play/pause – single t.ap
• Skip forward – double tap
• Skip backward – triple tap
• Increase the volume of the right earbud
• Decrease volume – long touch the left earbud
• Receive/end a call – double tap
• Reject a call – long touch any earbud

CHARGING THE EARBUDS
Put your earbuds back in the case and close the lid to turn them off and begin charging.

CHARGING THE CASE
Use a wireless charger or plug the case into a USB power source to charge it. The case is fully charged when the front-facing LED is steady green.
To charge the case using a wireless charger, follow the instructions below.

1. Place the charging case with its back flat against the wireless charging pad.
2. Make sure that the front LED lights up to indicate that the case is charging.
3. Once the LED light has turned steady green, the case is fully charged.

CLEANING YOUR MINOR IV
Earbuds come in close contact with your skin frequently and sometimes for long periods of time. This will, over time,e cause e build-up of dirt and grease that can affect performance and may cause skin irritation. Clean your earbuds regularly to keep them fresh and make them last longer.

Unplug any cables before cleaning the case. Make sure everything is completely dry before using the earbuds, putting the earbuds back in the case, or plugging in a USB charger.

Use a disinfectant wipe or a lint-free cloth, slightly damp with 70% isopropyl alcohol or 75% ethyl alcohol, to gently clean the exterior surfaces of the earbuds and the case. Avoid getting moisture in any openings or in the speaker mesh. Carefully clean those areas with a dry and soft brush, or a cotton swab.

• Do not use any sharp objects.
• Do not use compressed air.
• Do not use products containing bleach or hydrogen peroxide.
• Do not submerge the earbuds in any cleaning agents.

BATTERY CARE GUIDE
Your earbuds come equipped with high-performance lithium-ion batteries, and battery life span is affected by charging and usage. Follow the guidelines below to keep your batteries in great condition for as long as possible.

• Avoid using fast chargers if possible. Fast charging causes stress on the battery and will degrade it.
• Avoid letting the battery drain completely or charging it when it’s already full. Try to keep the charge between 30% and 80%.
• If the earbuds are stored for a long time, it’s recommended to charge the earbuds to about half-charge and then do a factory reset. Store the earbuds and case in a cool, dark, and dry place.
• Avoid using or charging the earbuds in hot and unventilated places, 45°C/113°F and above.
• Avoid charging the battery at low temperatures, below 10°C/50°F and using the earbuds below 0°C/32°F.
• Avoid strong mechanical shocks such as dropping the earbuds or case on hard surfaces, as it might harm the batteries.

Download the Marshall Bluetooth app and select the battery preservation level that best suits you and your earbuds.

PAIRING A NEW DEVICE
Minor IV can be connected with two devices at a time and remembers up to 8 previously paired devices. When in range, they will try to reconnect with the last connected device.

1. Place the earbuds in the case and keep the lid open.
2. Press and hold the button on the bottom of the case until the LED turns to a slow blue pulse.
3. Select MINOR IV from your sound device’s Bluetooth list.

Note: Minor IV can be connected with two devices at a time.

RESETTING THE EARBUDS
If your earbuds become erratic or unresponsive, follow the instructions below.

1. Place the earbuds in the case and close the lid to restart the earbuds. If the problem persists, perform a factory reset.

Note: This will delete all user settings,s and the earbuds will need to be paired again.

1. Remove MINOR IV, and Minor IV [LE] if present, from your sound device’s Bluetooth list.
2. Place the earbuds in the case and keep the lid open.
3. Press and hold the button on the bottom of the case for 10 seconds and release when the LED turns purple.
4. The earbuds have returned to their factory settings and are ready to be paired, see section Getting started.

MARSHALL BLUETOOTH APP

Download the Marshall Bluetooth app to get the most out of your earbuds and keep them up to date with the latest software.

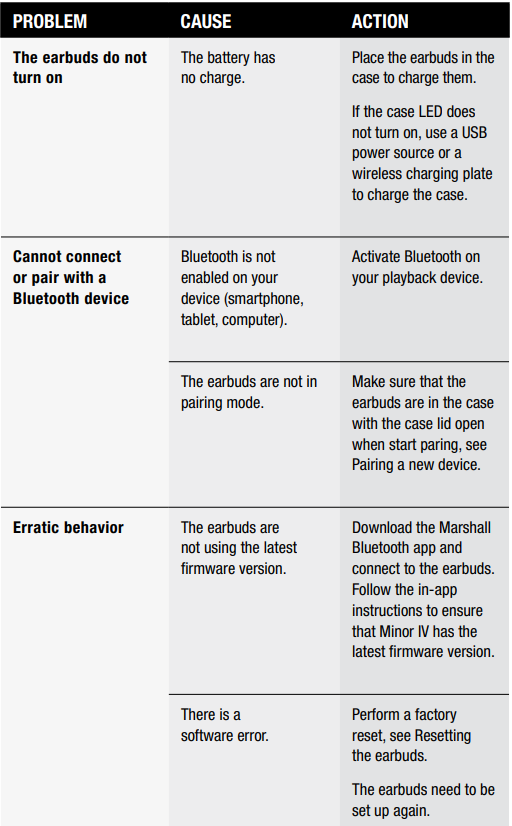

TROUBLESHOOTING

Pros & Cons

Pros:

• Iconic Marshall Sound: Delivers clear highs and enhanced bass.
• Long Battery Life: Offers up to 30+ hours of playtime with the charging case.
• Comfortable Design: Sculpted stems for a natural fit.
• Customizable Sound: App control for EQ settings.

Cons:

• No Active Noise Cancellation: Limited noise isolation.
• Higher Price Point: Compared to some basic true wireless earbuds.

Overall, the Marshall Minor IV earbuds offer excellent value for those prioritizing sound quality and design.

Customer Reviews

Users generally praise the Minor IV for its sound quality and comfort, though some note the lack of noise cancellation as a drawback. With a mixed rating, about 33% of reviewers highly recommend these earbuds. Common praises include the long battery life and classic Marshall design. However, some users find them pricey compared to competitors.

Star Rating: 3.9/5 stars based on 64 reviews.

Testimonial: "These earbuds deliver fantastic sound quality and are very comfortable. However, the price could be lower for the features offered."

Purchase is recommended for those valuing sound quality and style.
