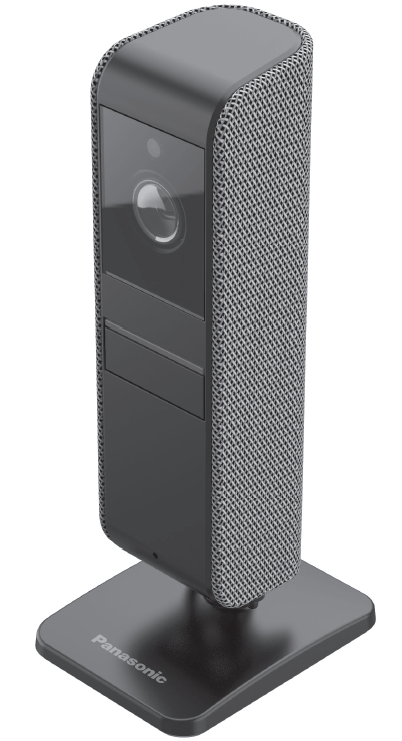

Panasonic Home Monitoring Camera KX-HNC815C

Introduction

The Panasonic Home Monitoring Camera KX-HNC815C is a discreet and versatile indoor camera designed to seamlessly integrate with your home decor. It offers 1080p full HD video quality, night vision, and a 140° wide-angle view, ensuring you can monitor your home and valuables from anywhere using your smartphone or tablet. This camera is ideal for homeowners, parents, and anyone seeking to enhance their home security and peace of mind.

Targeted at individuals who value both style and functionality, the KX-HNC815C is perfect for monitoring nurseries, living rooms, or entryways. It is priced in the mid-range category, typically available for around $100-$150, depending on the retailer and location. The camera is widely available through major electronics retailers and online marketplaces.

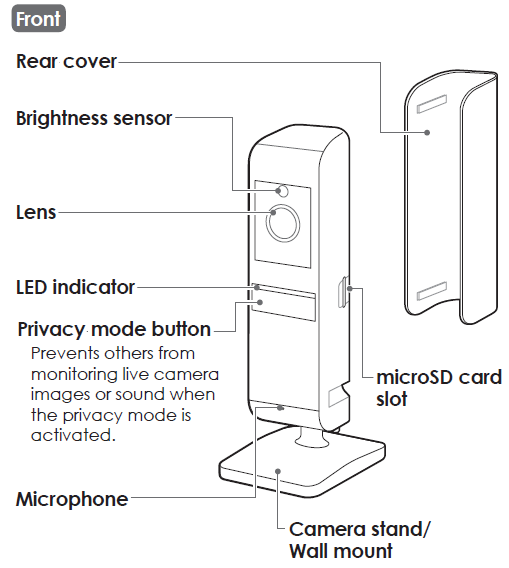

Part names and functions

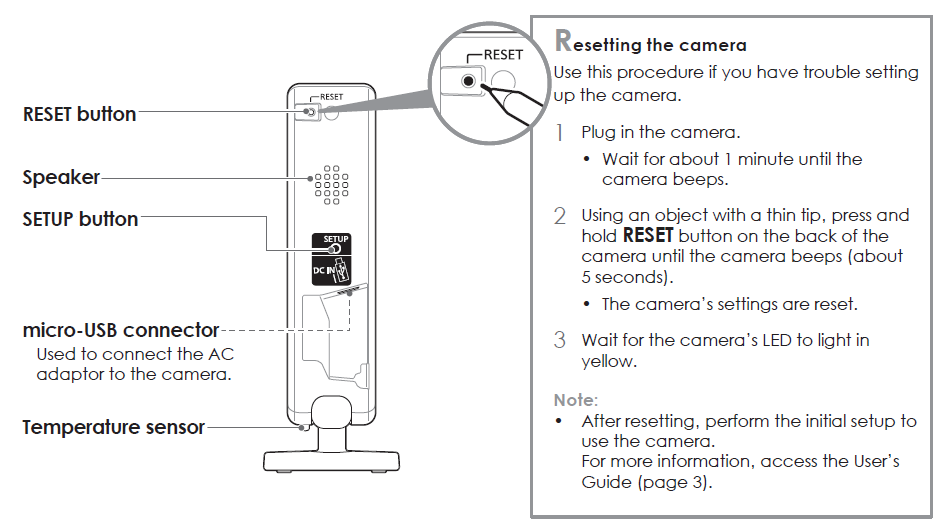

Back

Specifications

• Standards: IEEE 802.11a/b/g/n
• Frequency range: 2.412 GHz – 2.462 GHz (channels 1 – 11) / 5.180 GHz – 5.320 GHz (channels 36–64) / 5.500 GHz – 5.600 GHz (channels 100–116) / 5.650 GHz – 5.700 GHz (channels 132–140) / 5.745 GHz –  5.825 GHz (channels 149–165)
• RF transmission power: 100 mW (peak transmission power)
• Encryption: WPA2-PSK (TKIP/AES)‚ WPA-PSK (TKIP/AES)‚ WEP (128/64 bit)
• Power source: 120 V AC‚ 60 Hz
• Power consumption: Standby: 3.6 W / Maximum:  6.3 W
• Operating conditions: 0 °C – 40 °C (32 °F – 104 °F) / 20 % – 80 % relative air humidity (dry)
• Resolution: 1920 x 1080 pixelspixels (Full HD)‚ 1280 x 720 pixel (HD)‚ 640 x 480 pixel (VGA)
• Image sensor: 2.0 megapixel CMOS
• Minimum illuminance required1: 0 lx
• Focal length: Fixed (0.2 m (8 inches) – infinity)
• Camera field of view: Diagonal 140°
• microSD card:
  • Type: microSDHC card (4 GB - 32 GB)‚   microSDXC card (64 GB - 256 GB)
  • Speed: Class10‚ or UHS Speed Class 1 or higher
• Motion detection method: Visual sensor 14
• Adjustable mounting angles: Vertical: facing forward - facing down‚ approx. +90° to -40°
• Dimensions (height × width × depth): Approx. 140 mm × 50 mm × 64 mm (5 33/64 inches × 1 31/32 inches ×  2 33/64 inches)
• Mass (weight): Approx. 180 g (0.39 lb)
  The infrared LEDs that surround the camera lens will illuminate in low-light conditions.

Supplied accessory

AC adaptor

Part number:  PNLV251-GZA01-YJ

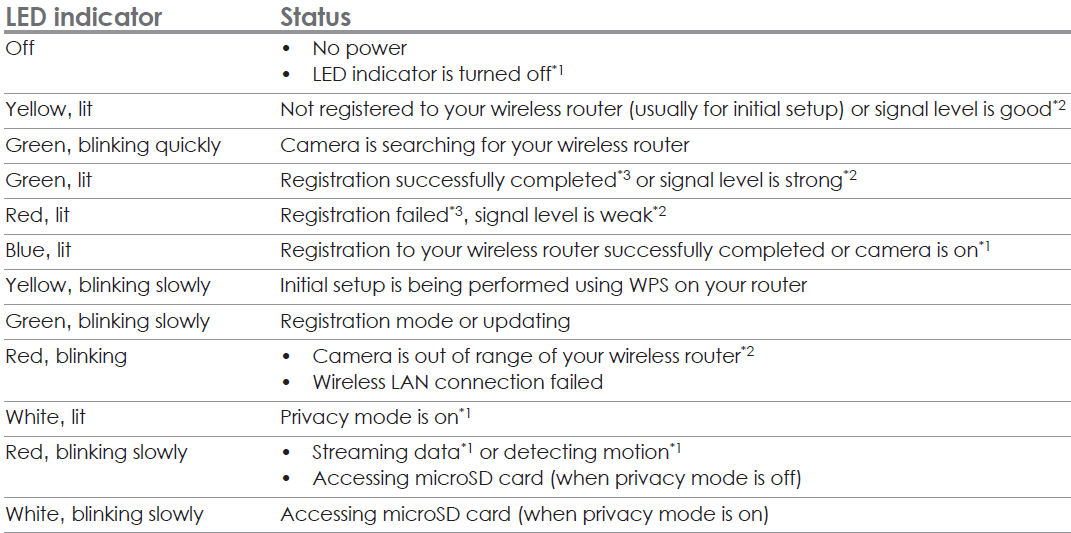

LED indicator

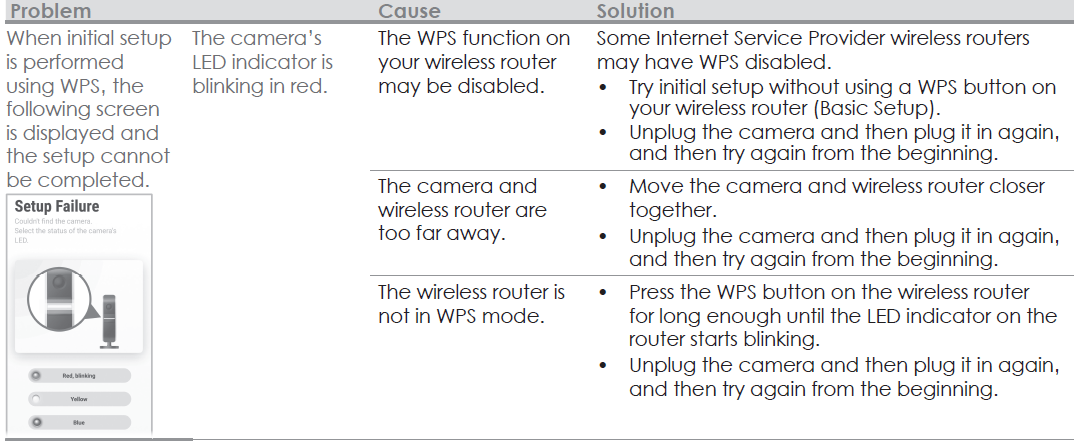

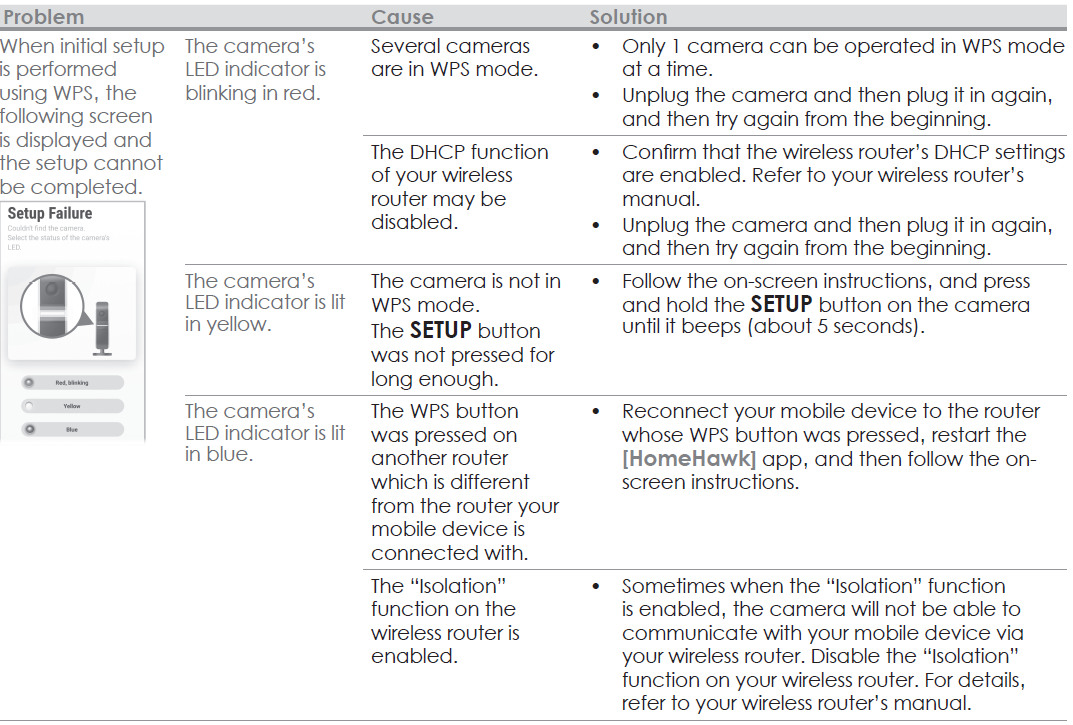

Troubleshooting (Initial setup by WPS)

What is WPS?
WPS is a function of wireless routers that is used to easily connect wireless devices to a wireless router
A WPS button on a wireless router indicates that it has the WPS function. (Depending on the type of wireless router‚ the WPS function may be disabled on the wireless router even if there is a WPS button.)
If you have trouble during the initial setup‚ check the following causes/solutions first and then turn off the camera and restart it.

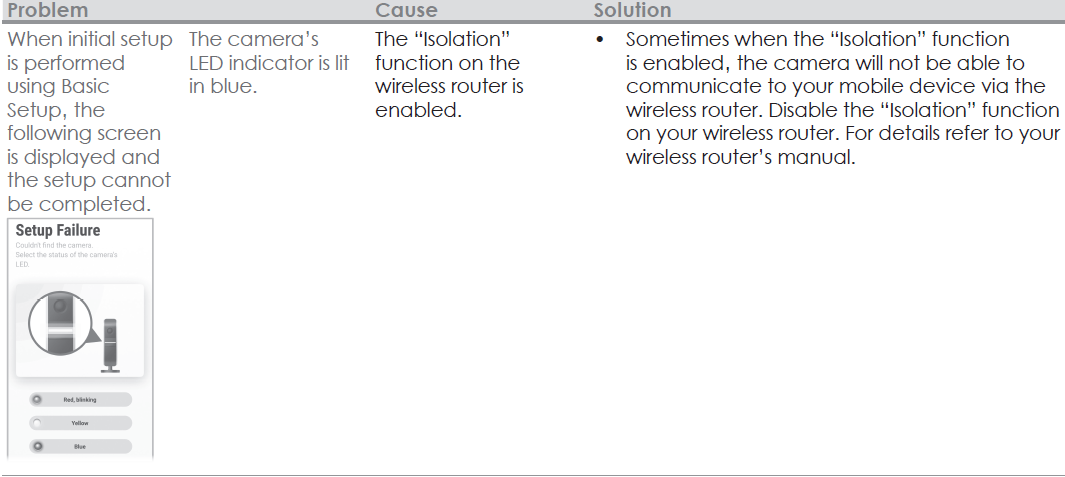

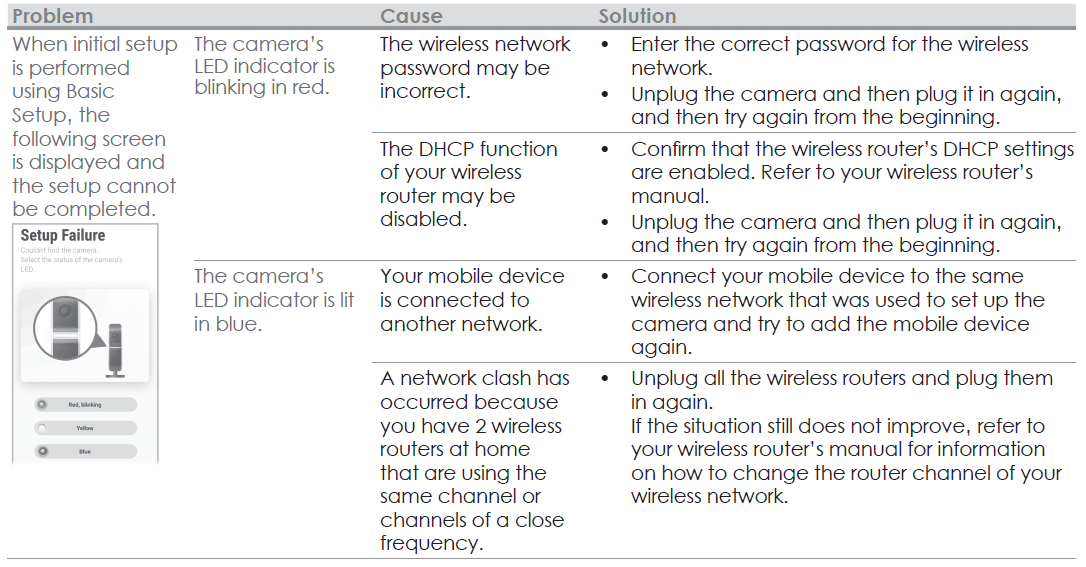

Troubleshooting (Initial setup by Basic Setup)

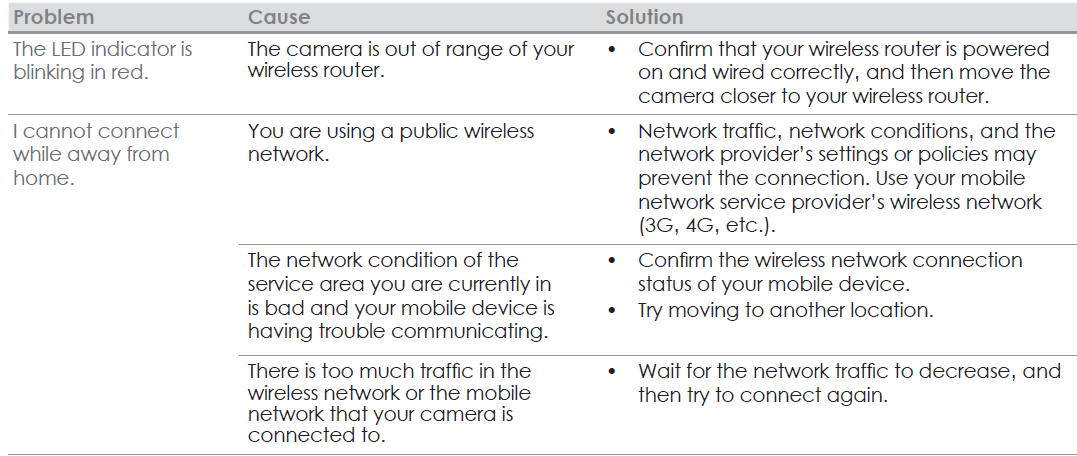

Troubleshooting (Connection)

Warranty

Panasonic Canada Inc.
5770 Ambler Drive‚ Mississauga‚ Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

EXCHANGE PROGRAM

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to‚ at its option either (a) repair your product with new or refurbished parts‚ (b) replace it with a new or a refurbished equivalent value product‚ or (c) refund your purchase price. The decision to repair‚ replace,, or refund will be made by Panasonic Canada Inc.

• Home Network System Products – One (1) year
• microSD card (Included model only) – One (1) year

This warranty is given only to the original purchaser‚ or the person for whom it was purchased as a gift‚ of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada‚ which product was not sold “as is”‚ and which product was delivered to you in new condition in the original packaging.  TOTO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER‚ A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE‚ SHOWING AMOUNT PAID AND PLACE OF PURCHASE, IS REQUIRED

LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship‚ and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment‚ or failures which are caused by products not supplied by Panasonic Canada Inc.‚ or failures which result from accidents‚ misuse‚ abuse‚ neglect‚ mishandling‚ misapplication‚ alteration‚ faulty installation‚ set-up adjustments‚ misadjustment of consumer controls‚ improper maintenance‚ improper batteries‚ power line surge‚ lightning damage‚ modification‚ introduction of sand‚ humidity or liquids‚ commercial use such as hotel‚ office‚ restaurant‚ or other business or rental use of the product‚ or service by anyone other than a Authorized Servicer‚ or damage that is attributable to acts of  God.

Pros and Cons of the Panasonic Home Monitoring Camera KX-HNC815C

Pros

• High-Quality Video: Offers clear 1080p full HD video with excellent night vision capabilities.
• Wide-Angle View: Provides a 140° diagonal view, allowing you to see more of your space.
• Discreet Design: Blends seamlessly into home decor, making it less noticeable.
• Remote Monitoring: Allows you to view footage from anywhere via smartphone or tablet.

Cons

• Manual Adjustment Needed: Requires manual adjustments for optimal motion detection sensitivity.
• Temperature Sensor Limitations: May not accurately detect temperature changes in certain conditions.
• No Waterproofing: Not suitable for outdoor use or exposure to moisture.

Customer Reviews and Feedback

Users generally praise the Panasonic Home Monitoring Camera KX-HNC815C for its sleek design and high-quality video. Common praises include its ability to integrate well with home decor and its reliable remote viewing capabilities. However, some users have noted issues with motion detection sensitivity and the lack of waterproofing. On average, this product receives a 4-star rating, with many users recommending it for its value and ease of use.

Common complaints include the need for frequent adjustments to optimize motion detection and some limitations with the temperature sensor. Despite these, the camera remains a popular choice for those seeking a discreet and functional home monitoring solution.
