Introduction

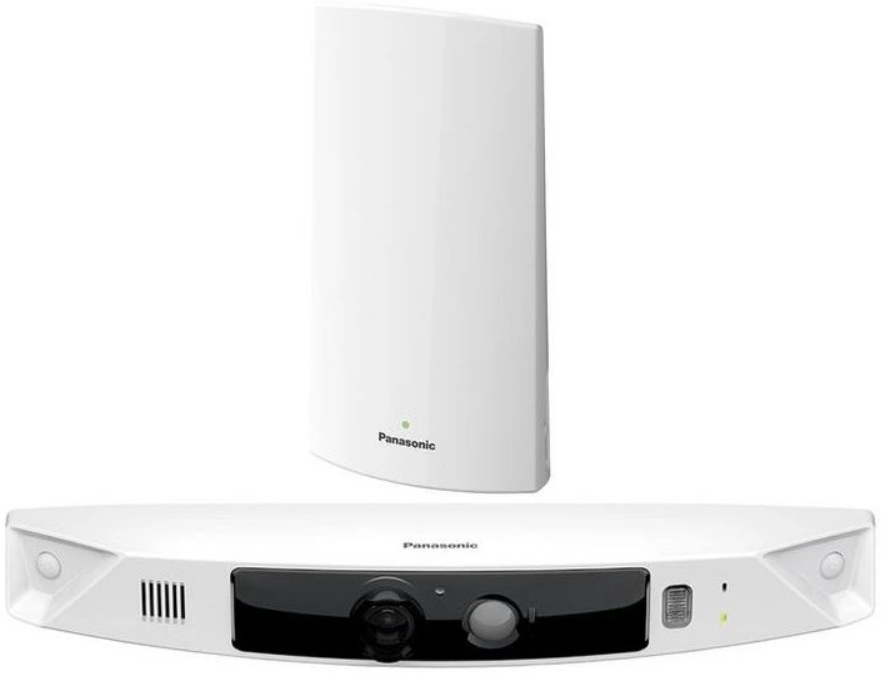

The Panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C is a wireless HD security camera designed for advanced home monitoring at your front door. Combining high-definition video with a wide 172° angle of view and full-color night vision, it offers comprehensive coverage of porches and entryways with crystal-clear images both day and night. Its wireless design features a long-life rechargeable battery, eliminating the need for complicated wiring and enabling flexible installation anywhere outdoors. The camera also includes smart features such as motion and person detection, customizable voice alerts that warn potential intruders, and package monitoring to safeguard deliveries.

This camera is ideal for homeowners who want to enhance security easily and monitor visitors, packages, or family arrivals remotely through live video streaming. The device integrates seamlessly with multiple HomeHawk cameras, allowing coverage expansion up to 16 units to protect the entire perimeter of a property. Practical for urban and suburban residences alike, it supports peace of mind by combining convenience, advanced technology, and robust weather resistance.

Offered at an estimated price range between $250 and $350, the KX-HN7051C is widely available through Panasonic’s official channels and trusted retailers. Its no-monthly-fee setup, rechargeable battery, and voice alerts make it a competitive choice in the outdoor security camera market.

Accessory information

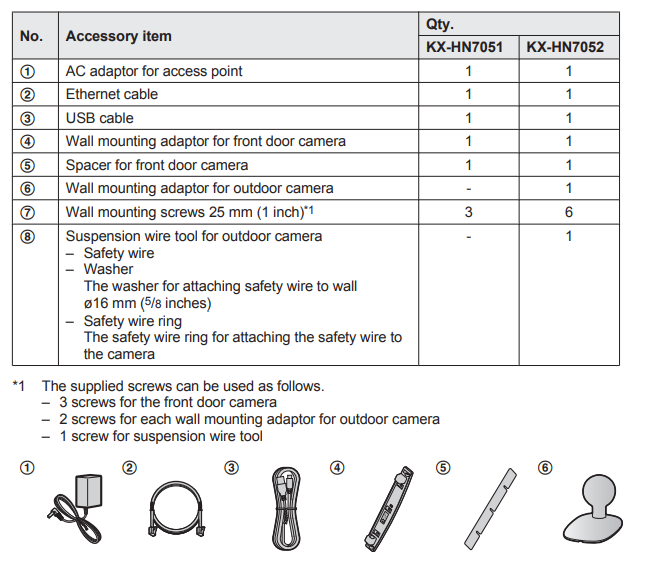

Supplied accessories

Installation Location

Detection range

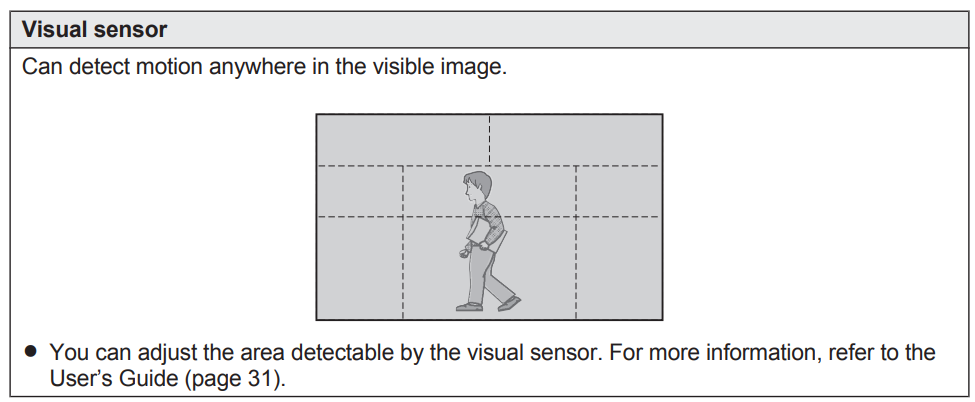

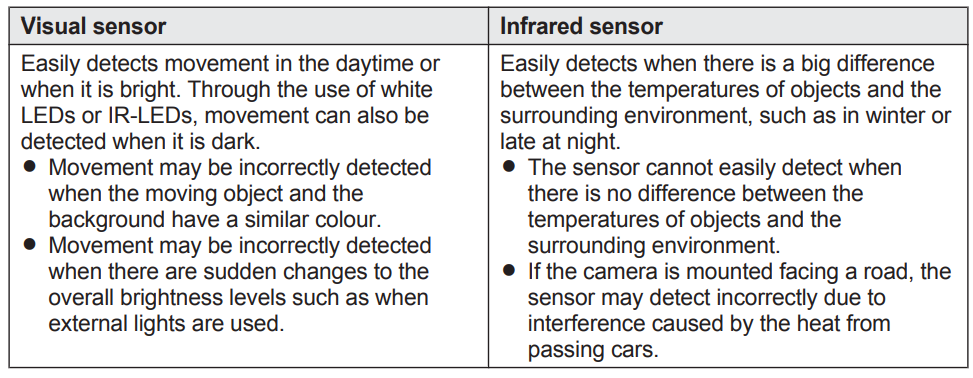

Main characteristics

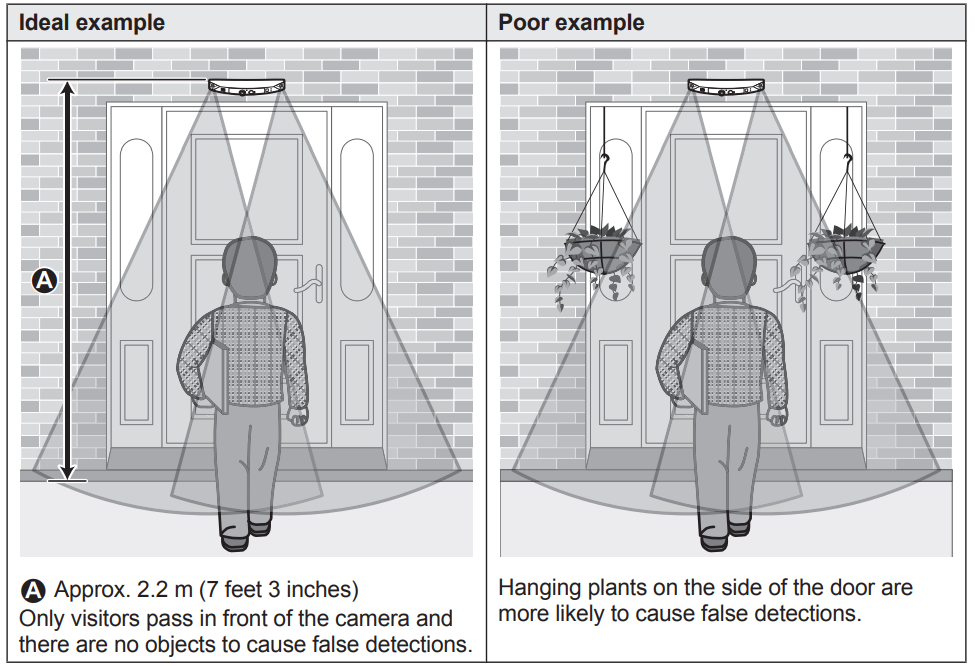

Installation location examples

Important:
Install the front door camera with a height of up to 2.2 m (7 feet 3 inches) from the ground. R When possible, install the front door camera more than 2.5 m (8 feet 2 inches) away from streets.

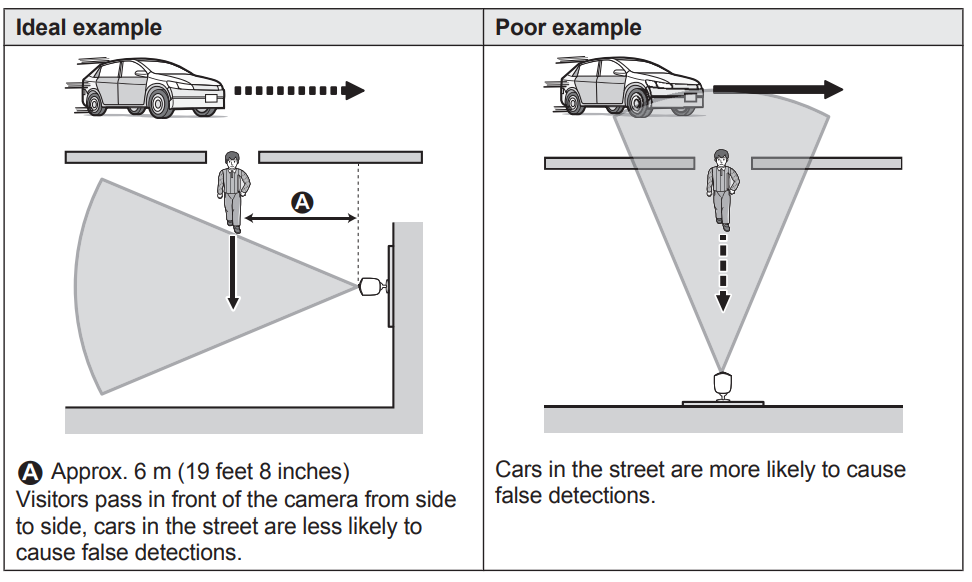

I want to detect visitors approaching the house.
Refer to the table below for detecting visitors at an entrance or gate without detecting cars in the street.

 Front door camera

 Outdoor camera

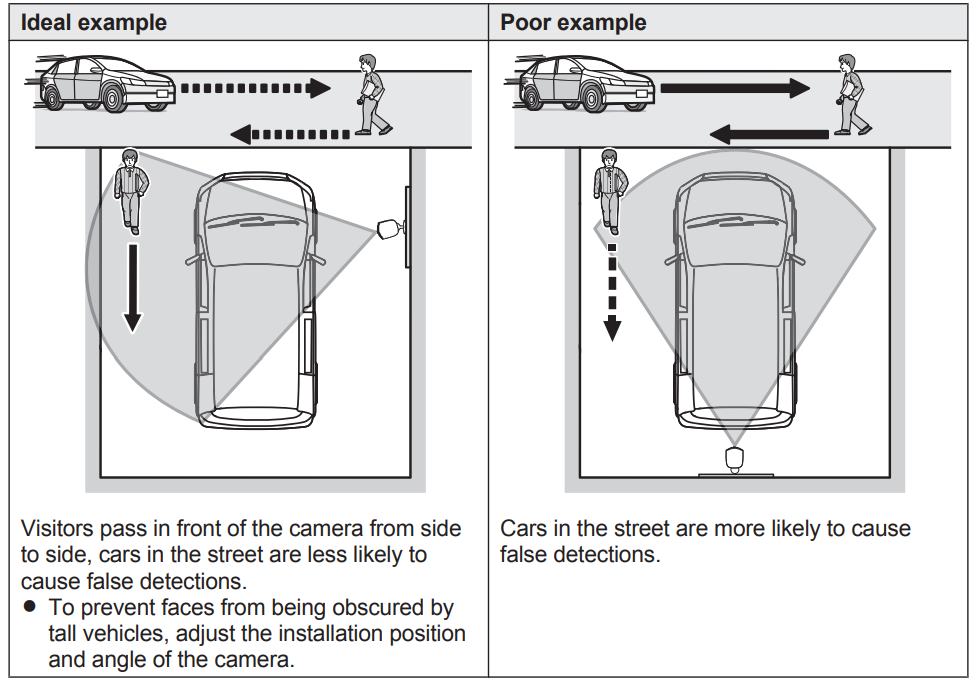

I want to detect people entering the garage
Refer to the table below for detecting people entering a garage without detecting cars in the street.

Do not install in these locations

Installing in the following areas may cause deformation, discoloration, malfunction, or operational failure..e

• In direct sunlight or directly under an outdoor light (even if the surroundings are within the operational temperature range, parts of the product may become hot.
• Areas subject to frequent vibration, shock, or impact
• Near fire, heating devices, or air conditioners (including outdoor equipment such as unit compressors)
• Areas exposed to grease or steam
• Near devices that emit strong radio waves, such as mobile phones
• Areas subject to extreme temperature changes (which can lead to condensation). If condensation occurs, wipe the outer surface of the product with a soft dry cloth.
• Near coasts directly subjected to sea breezes, or near sulfuric hot springs (exposure to salt can shorten the life of the product)
• Near TVs, radios, automated office equipment such as computers, air conditioners, water heater panels (with intercom), or home security equipment (these may cause noise)
• Near satellite broadcasting receivers such as tuners, TVs with built-in satellite tuners, and recorders (broadcast images may be distorted)
• Areas where hydrogen sulfide, ammonia, dust, or toxic gases are present

Installing in the following areas may cause false detections

• Areas where people approach directly from the front of the camera, such as narrow walkways (outdoor camera)
• Areas where objects such as trees or hanging laundry move due to wind (temperature variation and motion may cause false detections)
• Areas affected by breezes from fans, air conditioning unit compressors, water heaters, or car exhaust (severe temperature variations may cause false detections)
• Areas subject to severe weather, such as strong wind (camera shake can cause false detections) or rain (strong rain may be detected as an object moving in front of the camera)
• Areas with reflective objects, such as glass, interfere with the detection of temperature variation
• Areas where brightness changes easily.. R Areas where backlight occurs (faces appear dark and are difficult to identify), such as the following
  • Areas where most of the background is the sky
  • Areas where direct sunlight reflects off a white wall or background
  • Bright areas,s, such as those exposed to direct sunlight

Part names and functions

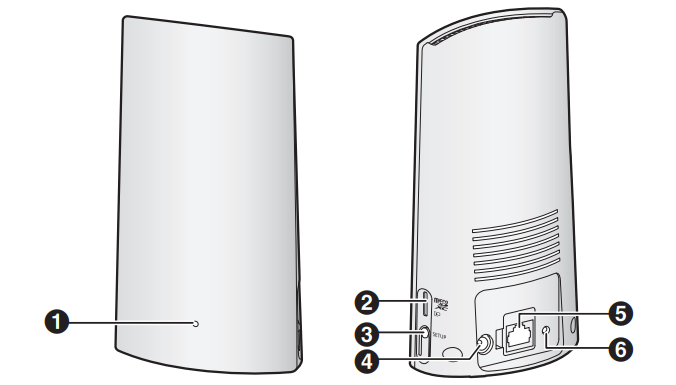

Access Point

1. LED indicator
2. microSD card slot
3. SETUP
4. DC jack
5. LAN jack
6. Reset button

Setup

Camera

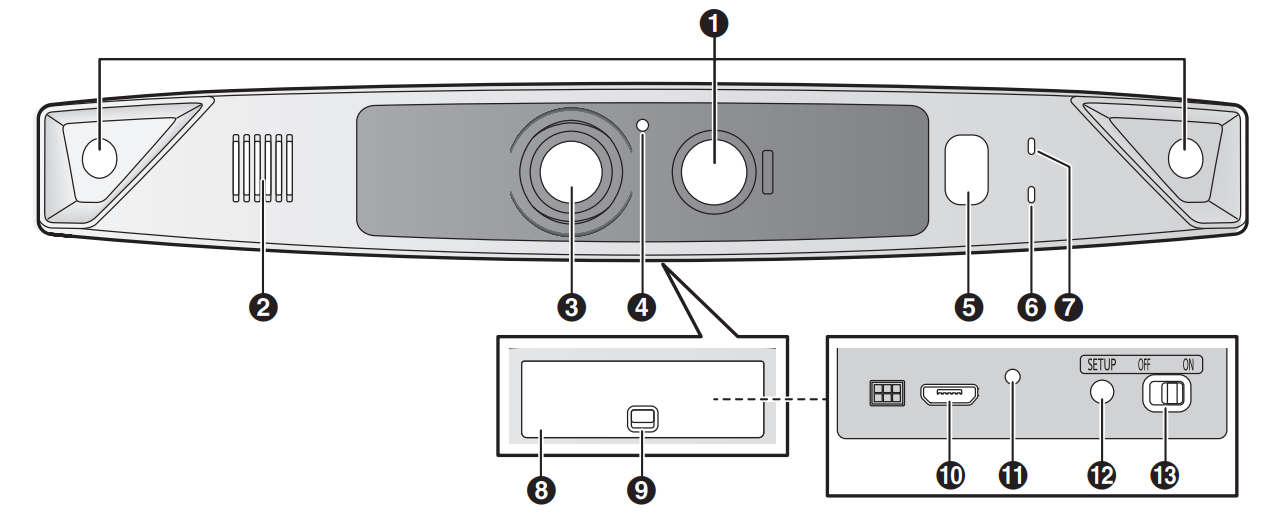

•  Front door camera

1. Infrared sensor
2. Speaker
3. Lens
4. Light sensor
5. White LED lens
6. LED indicator
7. Microphone
8. Interface cover
9. Lock key
10. micro-USB connector
11. Charging LED indicator
12. SETUP
13. Power slide switch

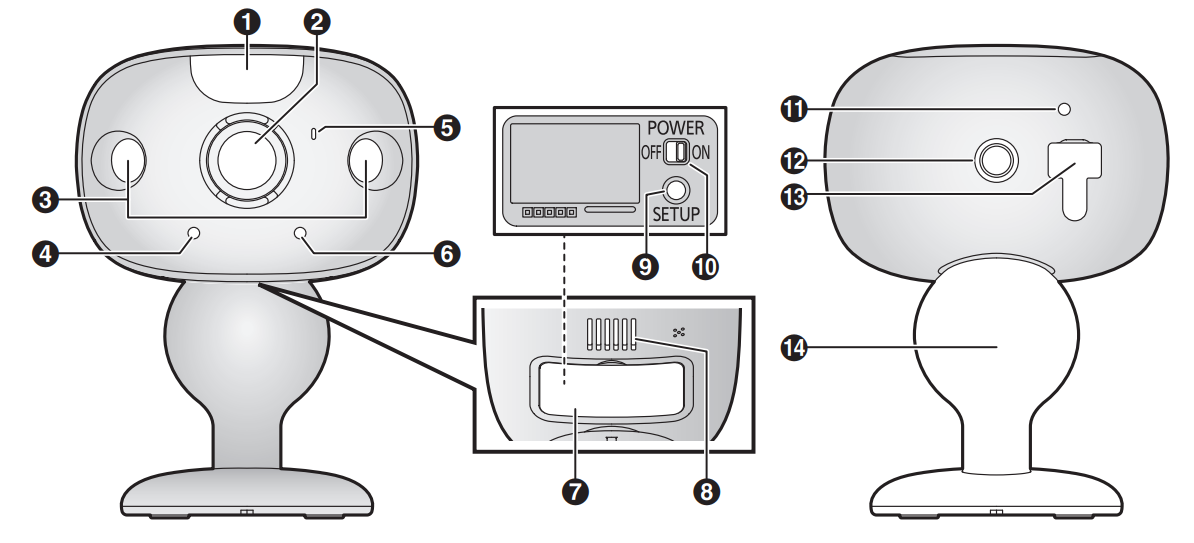

 Outdoor camera (KX-HN7052)

1. White LED lens
2. Lens
3. Infrared sensors
4. LED indicator
5. Microphone
6. Light sensor
7. Interface cover
8. Speaker
9. SETUP
10. Power slide switch
11. Charging LED indicator
12. Camera nut
13. USB cover/micro-USB connector N Wall mounting adaptor

Setup overview

1. Charging the cameras
   Make sure the battery is fully charged before you set up the cameras
2. Turning the power on for the camera..... ..Tu Turning power on.
3. Downloading the application
   Download the [HomeHawk] app to your mobile device.
4. Connection fothe r the access point
   Connect the AC adaptor and Ethernet cable to the access point.
5. Initial setup
   Make sure you can access the system using your mobile device.
6. Registration
   Required only if the camera was purchased separately (i.e., not as part of a bundle).
7. Confirm the installation area..
   Read the information in this document to confirm that the desired installation area is suitable for proper operation.
8. Installation
   Install the camera in the desired location...

Camera installation

Installation precautions

• Do not use an impact driver. (This may lead to damaged screws or over-tightening.)
• Mount the camera in a stable location with a height of 2.2 m (7 feet 3 inches) where the unit can be adequately supported when installing.
• Do not mount the camera on a soft material. It may fall down, break,, or cause injury.

Wall material information

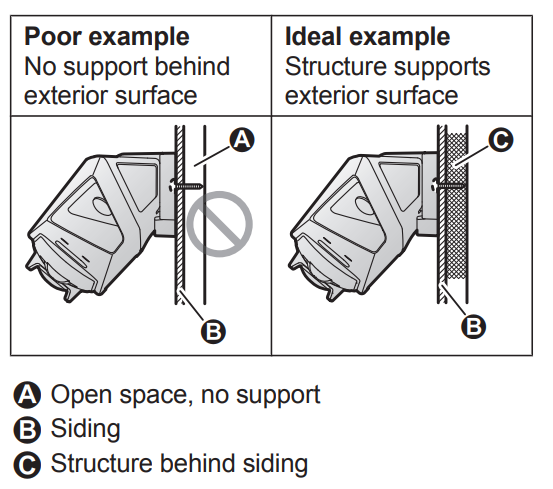

Siding
Use the included screws ø4 mm ´ 25 mm (ø5/32 inches ´ 1 inch). Make sure the pull-out capacity of each screw is at least 294 N (30 kgf).

• If the weight of the camera is supported by the siding only, the siding could become damaged. Make sure you mount the camera in a location where the structure behind the siding can be used to support the weight of the camera. If this is not possible due to the thickness of the siding, commercially available screws ø4 mm´ longer than 25 mm (ø5/32 inches ´ longer than 1 inch).

•  Drill a pilot hole using a drill bit that is appropriate for the type of siding. Remove any debris after drilling the pilot hole. Do not drill the pilot hole into the structure behind the siding.



Concrete

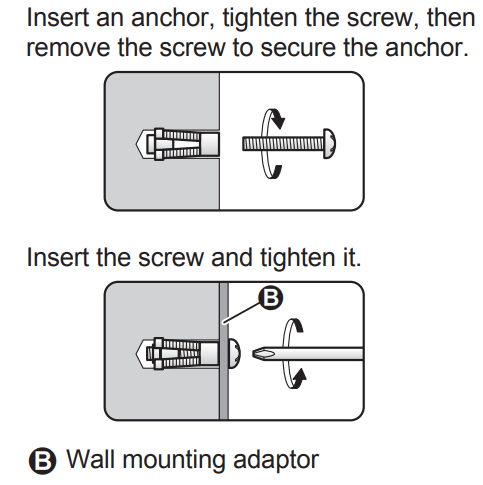

• Do not use the included screws. Use screw anchors (screw ø4 mm (5/32 inches)) designed for concrete walls.
• Carefully read the instructions supplied with the anchors. Follow instructions regarding drill bit diameter, hole depth, etc.

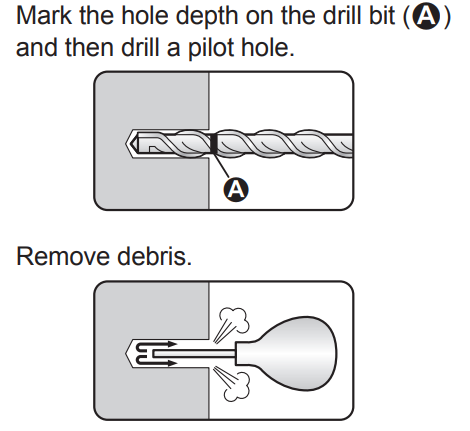

• Drill a pilot hole. Remove any debris after drilling the pilot hole.

ALC (autoclaved lightweight cellular concrete)

• Depending on the type of ALC panel, you may not be able to attach the camera.
• Consult the ALC panel manufacturer. R Do not use the included screws. After consulting the manufacturer of the ALC panel, use only commercially available metal screw anchors (screw ø4 mm..
  (5/32 inches)) designed for ALC panels. R Carefully read the instructions supplied with the anchors. Follow instructions regarding drill bit diameter, hole depth, etc.
• Drill a pilot hole. Remove any debris after drilling the pilot hole.
• Seal the pilot hole with a commercially available waterproof sealant.

Other materials (mortar, tile, etc.)

• Do not use the included screws.
• Consult the builder or licensed professional regarding the type of anchor appropriate for the installation location and materials.
• Do not install on gypsum board or concrete blocks.

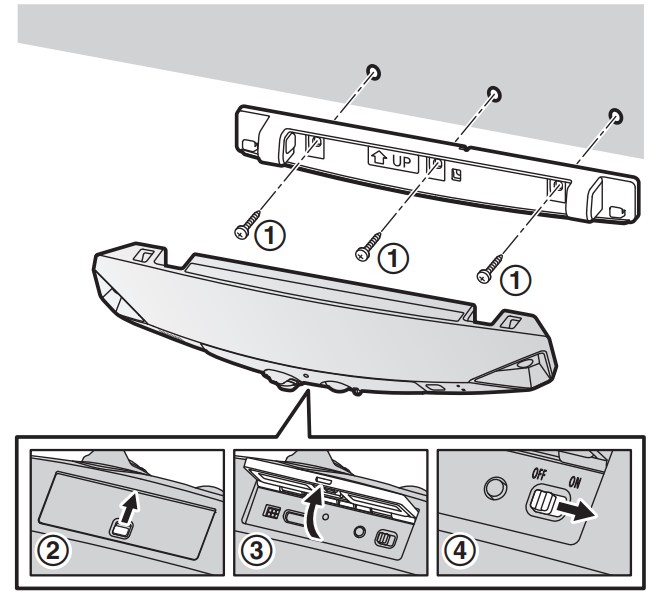

Installing the front door camera

1. Attach the wall mounting adaptor to a porch wall.
   1. Secure the wall mounting adaptor to the wall by tightening the 3 supplied screws (A).
   2. The spacer can be used to adjust the installation angle of the camera as necessary (“Using the spacer”, page 27).
   3. Do not attach the wall mounting adaptor at an angle or vertically. (This will result in the sensors being unable to correctly make detections.)

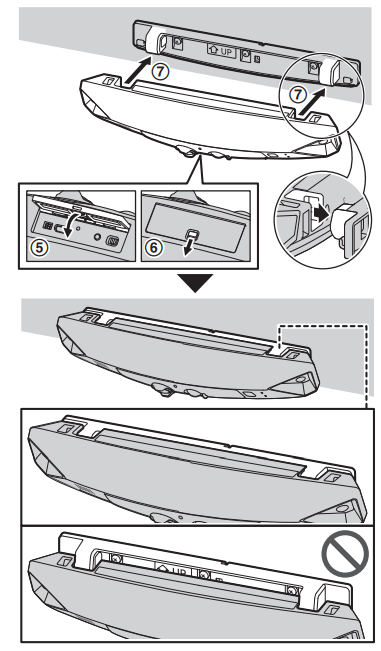

2. Slide the lock key of the interface cover on the bottom of the camera (B).
3. Open the interface cover (C).
4. Slide the power slide switch to ON (D).
5. Close the interface cover (E) and the lock key (F).
6. Match the positions of the hooks of the camera and wall mounting adaptor (G).
7. Rotate the camera until you hear a click and the camera is securely mounted.

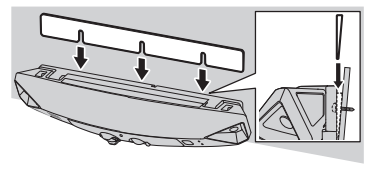

Using the spacer
Use the supplied spacer to adjust the installation angle of the camera. Insert the spacer between the wall mounting adaptor and the wall.

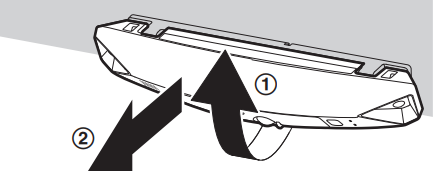

Removing the front door camera
Rotate the camera towards the wall (A), and then pull it away from the wall mounting adaptor (B).

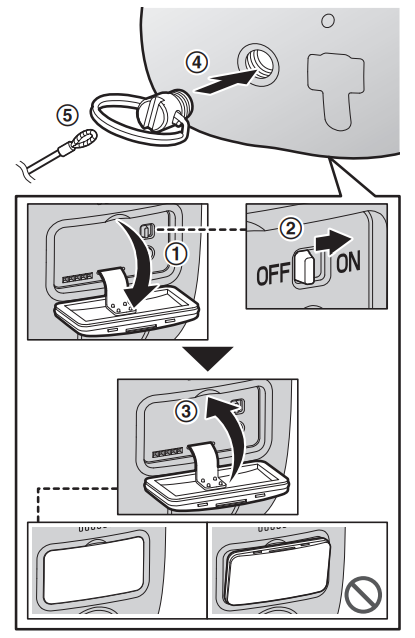

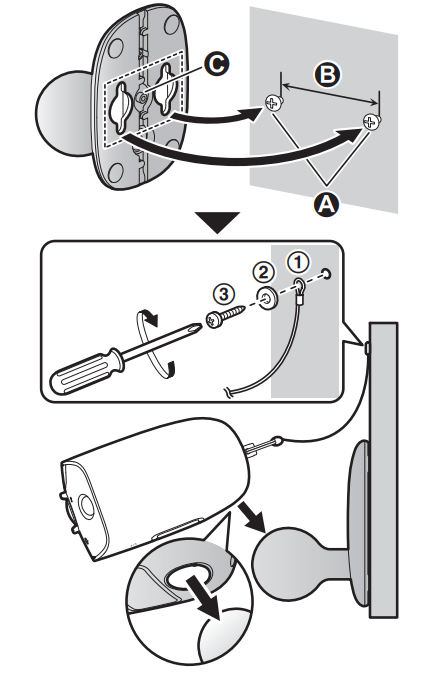

Installing the outdoor camera

1. Open the interface cover (A), and then slide the power slide switch to ON (B) .
2. Close the interface cover (C).
3. Secure the safety wire ring to the camera nut of the camera using a driver (D), and then pass the safety wire through the ring of the safety wire ring (E).

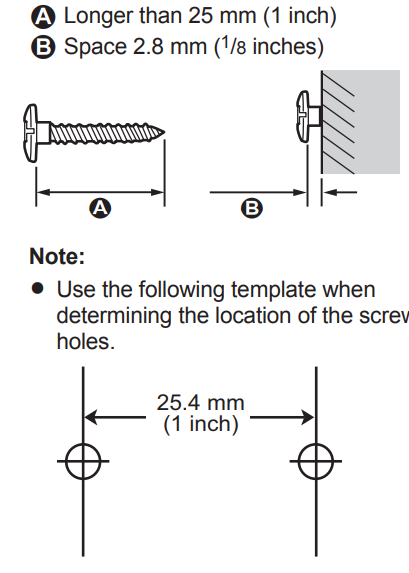

4. Drive the wall mounting screws into the wall.
5. Mount the wall mounting adaptor to the wall. Next, attach the safety wire to the wall, and then attach the camera to the wall mounting adaptor.
   1. Wall mounting screws
   2. 25.4 mm (1 inch)
   3. Hole
      You can prevent the camera from falling by passing a string through the hole in the wall mounting adaptor.
6. Adjust the camera angle.
   Note:
   1. Attach the safety wire while it is bent.
   2. Attach the safety wire high on the wall so that the camera does not strike anyone if the camera detaches from the wall
   3. Do not hang from the camera owall-mountingng adaptor.

Specifications

• Frequency range
  Wireless LAN: 2.412 GHz – 2.462 GHz (channels 1 – 11)

RF transmission power

• Wireless LAN:
  • Access point: 200 mW (peak transmission power)
  • Front door camera/Outdoor camera: 100 mW (peak transmission power)

Power source

• Access point: 120 V AC, 60 Hz
• Front door camera/Outdoor camera: 5.0 V, 1.0 A*1

Power consumption

•  Access point:
  • Standby: 1.2 W
    Maximum: 6 W

Battery performance

• Front door camera/Outdoor camera:
  • Operating time: 7 hours approx. 3 months (when used 5 minutes a day*2
• Operating conditions
  •  Access point: 0 °C – 40 °C (32 °F – 104 °F) 20 % – 80 % relative air humidity (dry)
  • Front door camera/Outdoor camera: -20 °C – 50 °C (-4 °F – 122 °F) up to 90 % relative air humidity (non-condensing)
• Image sensor
  Front door camera/Outdoor camera: 1.0 megapixel CMOS

Minimum illuminance required

• Front door camera/Outdoor camera:
  • IR-LED: 0 lx*3
  • White LED: 1 lx
• Focal length
  Front door camera/Outdoor camera: Fixed 0.2 m (0.7 feet) – infinity

Angular field of view (camera angle)

• Front door camera/Outdoor camera: 172°
  • Motion detection method
  • Pyroelectric infrared sensor (PIR sensor) and visual sensor
• PIR sensor detection range (when the surrounding temperature is approximately 25 °C (77°F))
• Front door camera:
  • Horizontal: 170°
  • Vertical: 36°
  • Detection range: 2.5 m (8 feet 2 inches)
  • Outdoor camera:
  • Horizontal: 170°
  • Vertical: 19.1°
  • Detection range: 6 m (19 feet 8 inches)

Visual sensor detection range

• Front door camera/Outdoor camera:
  • Horizontal: 150°Vertical: 85°

R IP rating

• Front door camera/Outdoor camera:
  • IP65*4
• Dimensions (height × width × depth)
• Access point:
  • Approx. 179 mm ´ 94 mm ´ 52 mm  (7 1/16 inches ´ 3 11/16 inches ´ 2 1/16 inches)
• Front door camera:
  • Approx. 58 mm ´ 271 mm ´ 61 mm (2 5/16 inches ´ 10 11/16 inches ´ 2 3/8 inches)*5
• Outdoor camera:
  • Approx. 98 mm ´ 71 mm ´ 94 mm (3 7/8 inches ´ 2 13/16 inches ´ 3 11/16 inches)*5 Mass (weight)
• Access point: Approx. 200 g (0.44 lb)
• Front door camera: Approx. 390 g (0.86 lb)*5
• Outdoor camera: Approx. 490 g (1.08 lb)*5
  1. Only when charging.
  2. Battery performance changes depending on the surrounding temperature, frequency of use, and the actual usage environment. For more information, refer to the User’s Guide (page 31).
  3. The infrared LEDs that surround the camera lens will illuminate in low-light conditions.
  4. Weatherproofness is only assured if the camera is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
  5. Including the wall mounting adaptor.

Warranty

• 5770 Ambler Drive, Mississauga, Ontario L4W 2T3
• PANASONIC PRODUCT - LIMITED WARRANTY
• EXCHANGE PROGRAM
• Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace cancel, cancel,c cancele or refund will be made by Panasonic Canada Inc.
• Home Network System Products – One (1) year
• microSD card (Included model only) – One (1) year
• This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
  TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE,, REQUIRED..ED LIMITATIONS AND EXCLUSIONS
• This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.
• Dry cell batteries are also excluded from coverage under this warranty. Rechargeable batteries are warranted for ninety (90) days from the rom date of original purchase.
• THIS EXPRESS, LIMITED WARRANTY IS INSTEAD OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT,, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY.
• (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, da,, ta or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)
  In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rightsrights,s, and you may have other rights which vary depending on your province or territory.

Troubleshooting Common Issues with the Panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C

Users of the Panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C may encounter common challenges such as connectivity problems, motion detection false alarms, or battery life concerns.

• Connectivity Issues: Ensure the camera is within range of your Wi-Fi router and that your network supports 2.4 GHz or 5 GHz bands. Restarting the camera and router often resolves temporary disconnections.
• Motion Detection False Alerts: Customize the detection zones in the app to exclude areas with frequent irrelevant movement (e.g., trees or pets). Adjust motion sensitivity levels to reduce false positives.
• Battery Life: The rechargeable battery can last several,,ths depending on usage. For optimal performance, recharge when prompted by the app and avoid extreme weather exposure beyond recommended operating temperatures (0°C to 40°C).

Error codes, if displayed, usually relate to network or firmware issues; updating the camera firmware via the Panasonic HomeHawk app often resolves these errors. Preventive maintenance includes regular cleaning of the lens and camera housing to avoid obstructed views.

Panasonic provides a one-year limited warranty covering manufacturing defects. For technical support, users can contact Panasonic customer service through their official website or support hotline, ensuring prompt assistance and replacement options.

Pros & Cons of panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C

• Pros:
  • High-definition 1080p video with a wide 172° viewing angle for comprehensive front door coverage.
  • Full-color night vision using white LED illumination, enabling clear identification of visitors or packages after dark.
  • Wireless installation with rea rechargeable battery eliminates the need for wiring, simplifying setup and placement.
  • Smart features include motion and person detection, voice alerts for suspicious activity, and package monitoring.
  • Expandable system supports up to 16 additional HomeHawk cameras for full property surveillance.
• Cons:
  • Battery life varies significantly depending on activity and settings; frequent recharging might be necessary in high-traffic areas.
  • Requires ambient light for optimal color night vision; completely dark environments may reduce image clarity.
  • Price point is higher than some basic outdoor cameras, reflecting its advanced features but potentially limiting budget-conscious buyers.
  • Lacks native cloud storage, relying on local storage options,, which could be lost if the device is tampered with.

Customer Reviews of the Panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C

Customer feedback highlights the Panasonic HomeHawk™ Front Door-Outdoor KX-HN7051C as a reliable and feature-rich solution for front door security. Many users praise the camera's vibrant color,, night vision  , ion a,, nd wide-angle lens, affirming its effectiveness in identifying visitors and monitoring packages. The wireless setup receives positive remarks for ease of installation and flexibility.

Common complaints include occasional false motion alerts, variable battery longevity, and the need for sufficient lighting at night to maintain image quality. Most users rate the camera highly, averaging around 4.5 out of 5 stars, recommending it especially for those wanting premium outdoor security without the hassle of wiring. Several testimonials emphasize the peace of mind gained from receiving timely voice alerts and live monitoring on mobile devices.
