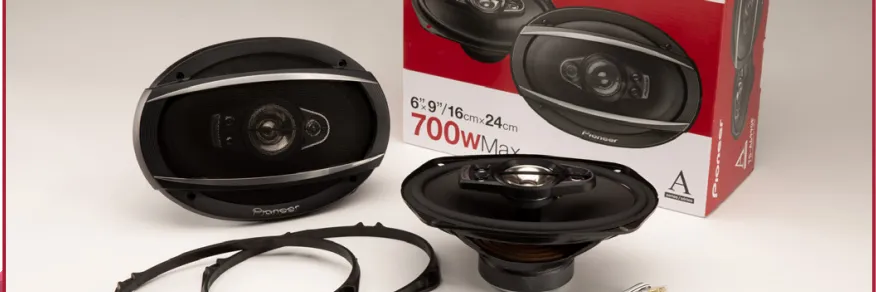

Introduction of Pioneer 5-Way Coaxial Speaker System TS-A6990F

The Pioneer 5-Way Coaxial Speaker System is a high-performance audio solution for car enthusiasts who demand the best in sound quality. These Pioneer 5-Way Coaxial Speaker Systems deliver powerful, clear, and accurate audio reproduction, making them an ideal choice for any car audio system. With an estimated price of $150 per pair and a launching date of January 2021, the TS-A6990F is a worthy investment for any music lover on the road.

Detailed Specifications

The Pioneer TS-A6990F features a 6 x 9-inch design with a multi-layer Mica Matrix cone and Elastic Polymer Surround for improved sound linearity and durability. The speakers also boast a 5-way design, featuring a 1-5/8 inch tweeter, a 1-1/2 inch midrange, and a pair of 1-1/2 inch super tweeters for a full range of audio frequencies. The speakers have a sensitivity of 90 dB, an impedance of 4 ohms, and a frequency response of 27 Hz to 37 kHz. With a maximum power output of 600 watts and a recommended power range of 50 to 200 watts RMS, the TS-A6990F can handle even the most demanding audio signals.

FEATURES AND TECHNOLOGY

Dimensions

Description of 5-Way Coaxial Speaker System

The Pioneer  Coaxial Speaker System delivers powerful and clear sound, making it an excellent choice for any car audio system. The speakers' multi-layer Mica Matrix cone and Elastic Polymer Surround provide improved sound linearity and durability, ensuring reliable performance even in harsh environments. The 5-way design, featuring a 1-5/8 inch tweeter, a 1-1/2 inch midrange, and a pair of 1-1/2 inch super tweeters, provides a full range of audio frequencies, resulting in a rich and detailed sound. The speakers' sensitivity, impedance, and frequency response are all optimized for maximum performance, making them a versatile and high-quality audio solution for any car.
A-series sound design

• Powerful and well-controlled bass
• High sensitivity and wide dynamic range
• Natural and clear vocals
• Triple polyethylene terephthalate (PET) hard dome tweeters
  • 9mm super tweeter
  • 11mm tweeter
  • 18mm tweeter
• 2-1/4˝ polyetherimide (PEI) film cone midrange
• 6˝ x 9˝ carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
• Deep woofer basket and oversized motor structuredesign for maximum bass and sound quality

Setup Guide

To install the Pioneer TS-A6990F, follow these steps

1. Disconnect the negative battery terminal to prevent short circuits.
2. Remove the factory speakers by unscrewing the mounting screws and disconnecting the wiring harness.
3. Connect the wiring harness of the TS-A6990F speakers to the factory wiring harness.
4. Mount the speakers in the desired location using the included mounting hardware.
5. Reconnect the negative battery terminal and test the speakers to ensure proper operation.

EASILY UPGRADE TO HIGH PERFORMANCE

Upgrade Your Sound

• OPEN & SMOOTH delivers smooth frequency response and an expansive soundstage
• Clear high frequencies
• Deep, rich bass
• Low distortion, even at high output

Pioneer’s OPEN & SMOOTH sound concept provides a seamless and smooth transition between the woofer and midrange/tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
Extreme bass performance
Deep woofer basket and oversized motor structure design for maximum bass and sound quality

WARNING: Over time, your hearing “comfort level” adapts to higher volumes of sound, so that what sounds “normal” can actually be doing harm. To protect against hearing loss, set your equipment’s volume at a low setting, slowly increase it until you can hear it comfortably and clearly, and leave it there. Do not turn up the volume so high that you can’t hear what’s around you.

Troubleshooting of Pioneer 5-Way Coaxial Speaker System TS-A6990F

If the Pioneer 5-Way Coaxial Speaker System is not producing sound, check the following

1. Make sure the speakers are properly connected to the wiring harness.
2. Check the polarity of the wiring harness to ensure the speakers are wired correctly.
3. Check the speakers' impedance and power range to ensure they are compatible with the amplifier.
4. Make sure the amplifier is turned on and properly connected to the speakers.
5. Check the volume level and equalization settings on the amplifier to ensure they are not set too low or too high.

Pros & Cons

• Pros

  • Full range of audio frequencies
  • Multi-layer Mica Matrix cone and Elastic Polymer Surround
  • High power handling capacity
  • Versatile and high-quality sound

• Cons

  • May require modification to install in some vehicles
  • May not be compatible with some factory audio systems

Customer Reviews of 5-Way Coaxial Speaker System

Customers have praised the Pioneer for its powerful and clear sound, as well as its durability and reliability. However, some have noted that the speakers may require modification to install in some vehicles and may not be compatible with some factory audio systems. Overall, the TS-A6990F is a high-quality and versatile audio solution for any car.

Most Common Complaints

The most common complaints about the Pioneer include the need for modification to install in some vehicles and the incompatibility with some factory audio systems. However, these complaints are relatively rare, and most customers have reported a positive experience with the speakers.
