Introduction

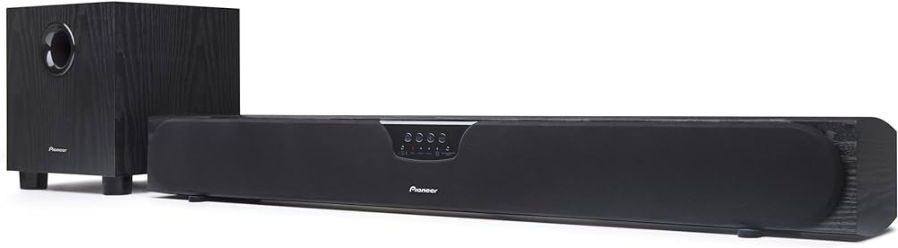

The Pioneer Speaker Bar System SP-SB23W is a premium audio solution designed to deliver powerful and immersive sound for your home entertainment system. This speaker bar is perfect for enhancing your TV's audio capabilities and for enjoying high-quality music from various sources. With an estimated price range of $150 to $200 and a launching date of January 2021, the SP-SB23W is a fantastic choice for those seeking an affordable and stylish speaker bar system.

About Your SP-SB23W Speaker Bar System

Thank you for choosing the SP-SB23W Speaker Bar System from Pioneer Electronics. Please read through this Owner’s Manual before using your Speaker Bar System to optimize performance. After you have finished reading this Owner’s Manual, store it in a  safe place for future reference. The Speaker Bar utilizes technology and components  derived from our award-winning home theater speakers,  with a primary goal of producing the most immersive, natural, and room filling sound experience for both movies and music.
The curved wood cabinetry houses six speakers, individually amplified, for the best audio experience. Utilizing a three-way active crossover network, the speaker bar delivers a tailored response for all your favorite sources. Bluetooth® wireless technology allows for playback of music from your smartphone, tablet or other compatible device. Learning mode enables you to use your favorite remote to control the functions of your Speaker Bar.  Like every subwoofer we build, this wireless  subwoofer is engineered to offer incredible design and amazing low-end frequency sound quality,  ideal for music and movies. This Speaker Bar provides Dolby® Digital decoding, the standard for high definition sound.

SP-SB23W Speaker Bar Specifications

PLEASE TAKE  INVENTORY

Please check to ensure you have everything in your Pioneer SP-SB23W Speaker Bar System carton.  Inside, you should find:

BAR CONTROLS (Front Panel)

1. Power—Turns on the bar or puts it in standby mode.
2. Volume Up and Down ( + / - ) —Adjusts the volume of the Speaker Bar.
3. Source—Changes which input source you are listening to.
   • Source 1: Analog. LED color will be a steady Blue.
   • Source 2: Digital/optical. LED color will be a steady Blue.
   • Source 3: Bluetooth: Bluetooth® wireless technology (See “PAIR AND CONNECT YOUR BLUETOOTH DEVICE” on page 10) LED color will be a steady Blue. PLEASE NOTE: Only one Source connection will be active during use of the Speaker Bar System.

4. Listening Mode (Second Row Left)



5. BLUETOOTH/PAIRING/LEARN (Second Row Right)

SPEAKER BAR POWER INDICATOR

Powering Up

• Blue Steady: Power is on; all is well.
• No Lights: Main power switch is off or the speaker bar is in standby mode.
• Blue Slow Blinking: System is muted.

SOURCE LED

• Blue Solid: Movies preset. Ideal for special effects and movie soundtracks.
• Red Solid: Music preset. Ideal bass balance for the most natural music reproduction.
• Green Solid: Dialogue preset. Ideal for late night viewing or  dialogue heavy content. In this mode, the subwoofer is inactive.

BAR CONTROLS (Back Panel)

1. Power Connection—The bar power cord connects here.
2. SYNC—The SYNC button ensures the subwoofer and bar are communicating. (See “HOW TO PAIR YOUR SUBWOOFER TO THE SPEAKER BAR” on page 8.)
3. Analog Input—Allows for the connection of most legacy audio devices.
4. Optical Input—Allows for the connection of digital audio from modern electronics such as TV's, Disc Players, Cable Boxes, and Satellite Boxes.
5. Power Switch — Main power switch for the Speaker Bar.

SUBWOOFER CONTROLS (Rear Panel)

Subwoofer Power LED

• Red Steady—The subwoofer is plugged in/in standby mode.
• Green Steady—The subwoofer is on and producing sound.

Subwoofer Sync LED

• Blue Flashing—The subwoofer is searching for the speaker bar.
• Blue Steady—The subwoofer and speaker bar are synced.

REMOTE CONTROL

1. Power: Turns on the bar or puts it in standby mode.
2. Source 1, 2, 3: Changes which input source you are listening to.
3. Volume Up and Down ( + / - ): Adjusts the master volume of the system.
4. Mute: Mutes and unmutes the audio coming from the speaker bar and subwoofer.
5. Bluetooth®: Track Forward, Play, Pause, Track Backward.
6. SUB Volume Up and Down ( + / - ): Adjusts the volume of the subwoofer
7. Mode: Music, Movie, Dialogue.

HOW TO CONNECT YOUR SPEAKER BAR AND SUBWOOFER TO YOUR TV

The simplest approach is to connect the optical audio output of your TV to the optical input on the back of the bar. This method will provide the highest quality audio. If your TV does not have an optical output, you can use the optical output from your DVD player or your cable/satellite box to connect to the optical input on the bar or use an analog cable (Not Supplied).

HOW TO PAIR YOUR SUBWOOFER TO THE SPEAKER BAR

Make sure that both the Speaker Bar and  subwoofer are plugged into an AC outlet.

1. Power on the Speaker bar.
2. Press and hold the Sync button on the rear of the Speaker Bar until the Sync LED begins to flash red rapidly.
3. Press and hold the Sync button on the rear of the subwoofer until the blue LED begins to flash rapidly.
4. After a couple of seconds both Sync LEDs should become solid.
5. If the LEDs continue to blink then move the subwoofer closer to the Speaker Bar.

CONCERNING THE PLACEMENT OF THIS SYSTEM
CAUTION: When assembling the system, lay them down flat on their side to avoid accidents or injury. Make sure to use a stable surface when assembling, setting up,  and placing the system.

WHERE TO LOCATE YOUR BAR FOR THE BEST SOUND Correct placement is important for maximizing the sound  quality of your Speaker Bar. Take time to experiment with positioning according to these guidelines.
The speaker bar may be positioned above or below the TV. For best results align the front of the speaker bar with the front of the TV. Due to the well-controlled vertical directivity, it is not normally necessary to vertically aim the loudspeaker towards the listener. If, however, the speaker bar is placed under the TV and very close to the floor, then tilting upwards may be beneficial. To achieve optimum audio performance, place the main unit beneath the television monitor.

USING THE RUBBER FEET WITH THE SPEAKER BAR

Included in the SP-SB23W Speaker Bar carton are (2) feet for the Speaker bar to rest on. Place the feet at the desired location of the speaker. They can be spaced a variety of widths apart for installation flexibility. Once placed on the feet, tilt the speaker to the desired angle, depending on the location of the speaker in relation to the desired listening position.

NOTE

• Spacing between the rubber feet should be at least  20 inches apart to avoid the Speaker Bar from tipping over.
• Do not use adhesive or screws to attach the feet to the speaker. Doing this will damage the cabinet and void the warranty.

Product Disposal

Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For further detailed information, please contact the retailer where you purchased this product or the in your country.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to  radio or television reception, which can be determined  by turning the equipment off and on, the user is  encouraged to try to correct the interference by one  or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between  the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

• The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Description

The Pioneer Speaker Bar System SP-SB23W boasts a sleek and compact design, making it an ideal addition to any living space. The system features a four-channel amplifier, delivering 90 watts of total power, and a dedicated low-range subwoofer channel for deep and impactful bass. The SP-SB23W also offers Bluetooth connectivity, allowing you to wirelessly stream music from your smartphone, tablet, or computer. Additionally, the speaker bar is compatible with various audio formats, ensuring optimal sound quality for all your entertainment needs.

Troubleshooting

Problem: The speaker bar isn't producing any sound.

Solution: Ensure the power cord is securely connected and that the system is turned on. Verify that the volume is not set to zero and that the correct input source is selected.

Problem: The Bluetooth connection is unstable or drops frequently.

Solution: Move any interfering devices away from the speaker bar and your Bluetooth source. Make sure your Bluetooth source is within the recommended connection range (approximately 5 feet). If the issue persists, try resetting both the speaker bar and the Bluetooth source.

WARRANTY

THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OR ANY SUBSEQUENT OWNER OF THIS PIONEER PRODUCT DURING THE WARRANTY PERIOD PROVIDED THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOUR RENTAL CONTRACT SHOWING THE PLACE AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION PREPAID, ONLY FROM WITHIN THE COUNTRY OF PURCHASE AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE PRODUCT. PUSA OR POC, AS APPROPRIATE, WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TO YOU WITHIN THE COUNTRY OF PURCHASE.

Pros & Cons

Pros

• Sleek and compact design
• Affordable price point
• Powerful 4-channel amplifier
• Dedicated subwoofer channel
• Bluetooth connectivity

Cons

• No HDMI inputs
• Limited customization options

Customer Reviews

Customers have praised the Pioneer Speaker Bar System SP-SB23W for its excellent sound quality and value. The compact design has also been well-received, making it a popular choice for those with limited space. Common complaints include the lack of HDMI inputs and the limited customization options.
