Razer Blade Stealth UltraBook User Manual | Settings & Configuration
Content

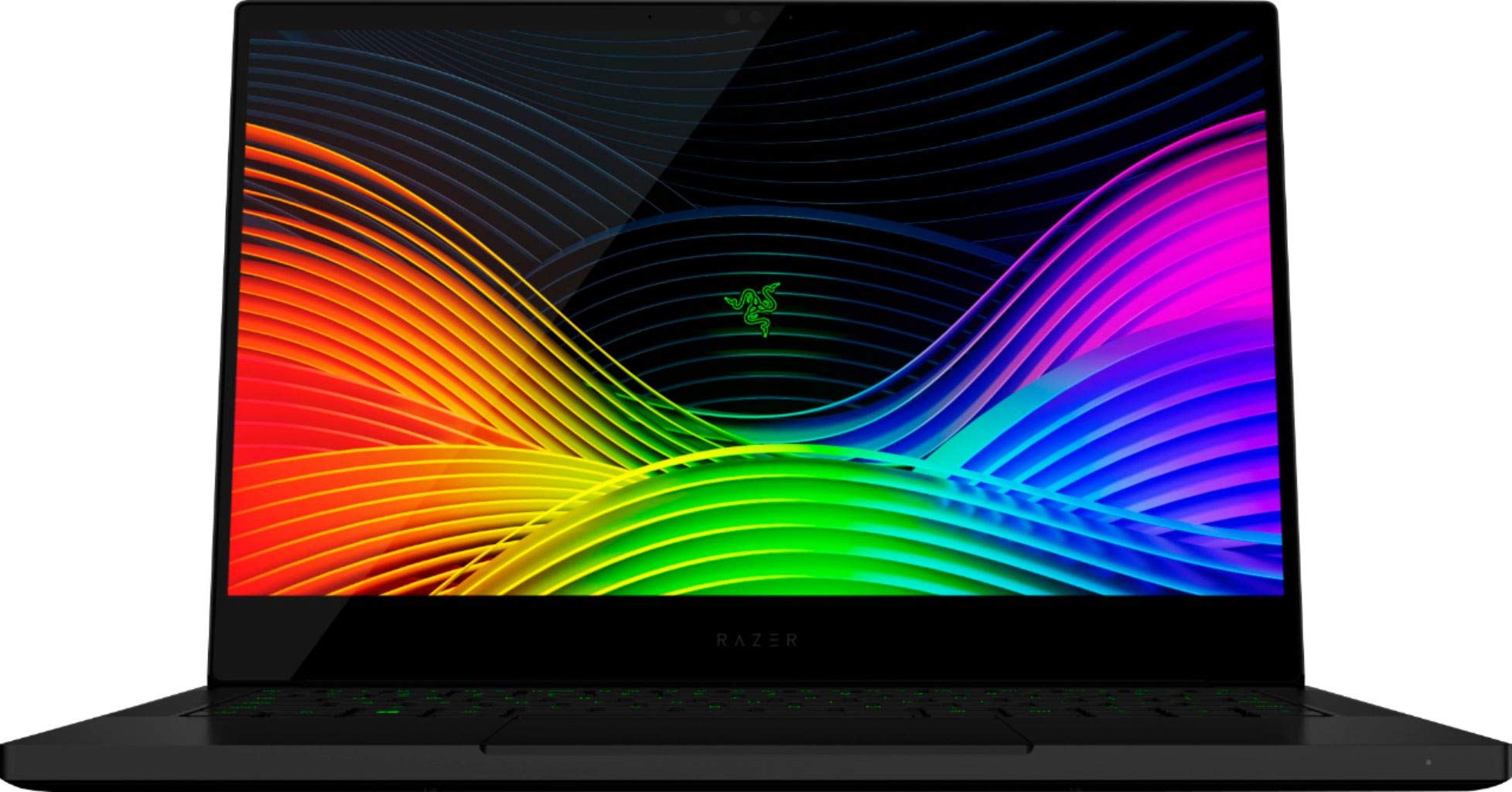

Introduction of Razer Blade Stealth Ultrabook
Get ready to experience the ultimate gaming experience with the Razer Blade Stealth Ultrabook. This powerful and portable device is designed to cater to gamers and professionals who are always on the go. With its sleek and stylish design, this Ultrabook is definitely a head-turner. The Razer Blade Stealth Ultrabook is available for an estimated price of $1,799.99 and was launched on January 3, 2022.
Detailed Specifications
The Razer Blade Stealth Ultrabook boasts impressive features that will surely satisfy even the most discerning users. This Ultrabook is equipped with a 12th Gen Intel Core i7-1280P Processor, NVIDIA GeForce RTX 3050 Ti Laptop GPU, 16GB dual-channel SO-DIMM DDR5 memory, and 1TB PCIe NVMe M.2 SSD. It also has a 13.4-inch UHD (3840 x 2160) display with a 120Hz refresh rate and 100% sRGB color gamut. The Razer Blade Stealth Ultrabook weighs only 3.09 lbs and has a battery life of up to 10 hours.
Razer Blade Package Contents
- Razer Blade Stealth
- USB-C power adapter
- Micro-fiber cleaning cloth
- Important Product Information Guide
DEVICE LAYOUT
- A. Array microphone
- B. Infrared sensor
- C. Built-in webcam
- D. Webcam indicator light
- E. 13.3" Display
- F. Stereo speakers incorporating Dolby Atmos
- G. Backlit keyboard
- H. Power key
- I. Multi-touch trackpad
- J. Front LED power indicator
- K. Power port / USB-C™ port
- L. USB 3.1 ports
- M. 3.5 mm combo port
- N. Power port / Thunderbolt 3 port (USB-C)
Setting Up Razer Blade Stealth Ultrabook
CONNECT THE POWER ADAPTER AS Razer Blade Stealth Ultrabook :
- Make sure that the AC plug is properly inserted into the power outlet and the power adapter. Insert the power adapter's USB-C connector into any of the Razer Blade Stealth's power ports. Press the power key to turn on your Razer Blade Stealth.
- Use the appropriate power cord for your region.
For first time use, please fully charge your Razer Blade Stealth or connect it to a power outlet before turning it on. It takes at least 2 hours to fully charge the Razer Blade Stealth.
The screens shown are subject to change based on the current version of your Operating System.
Click the wireless network icon (a) to bring up the Wireless network list. The system will automatically search for wireless networks in range.
Click the network you wish to connect to and click Connect.
Enter the network password (if any) and select whether to enable network sharing. Click Next.
- Once you are connected to the wireless network, click anywhere outside the window to return to the desktop.
RAZER SYNAPSE 3 ACCOUNT CREATION & INSTALLATION
Razer Synapse 3 allows your Razer Blade Stealth and other supported Razer peripherals to download drivers and firmware updates. Razer Synapse 3 also enables your custom settings to be stored on cloud servers so that they can be accessed anytime, anywhere.
- Razer Synapse 3 will start automatically once you enter Windows 10.
- Register for a Razer Synapse 3 account and confirm your new account.
- Open Razer Synapse 3 and login to your account.
- Wait until Razer Synapse 3 automatically downloads and installs the necessary drivers.
USING YOUR RAZER BLADE STEALTH
Status Indicator of Stealth Ultrabook
KEYBOARD FEATURES
Pressing the "n" key in combination with the function keys will activate their secondary functions.
CONFIGURING YOUR RAZER BLADE STEALTHI
The features listed here require you to log in to Razer Synapse 3. These features are also subject to change based on the current software version and your Operating System.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse 3.
Dashboard
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer devices, modules, and online services.
Modules
The Modules subtab displays all installed and available modules for installation.
Razer Blade System Tab
The System Tab is your defaulttab when you first install Razer Synapse 3. This tab allows you to customize your device's profiles, key assignments, gaming mode settings, trackpad options, lighting, and power saving features.
Customize
The Customize subtab is for modifying your device's key assignments, primary function key option, and gaming mode settings.
- Profile: Profile is a data storage for keeping all your Razer peripheral's settings. By default, the profile name is based on yoursystem's name. To add, rename, duplicate, or delete a profile, simply press the profile's corresponding Miscellaneous button (•••).
- Gaming Mode: Gaming Mode enables you to customize which keys to disable when Gaming Mode is activated. Depending on your settings, you may choose to disable the Windows key, Alt + Tab and Alt + F4.
- Hyper shift: Hyper shift mode is a secondary set of key assignments that is activated when the Hyper shift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse 3 supported keyboard however, you can also assign any key as a Hypershift key.
- Function Key Primary: Function Key Primary allows you to switch between the primary keys and secondary keys. Primary keys are activated with a single key press while secondary keys require an additional step pressing the fn key.
- Trackpad Properties: Use the links under this option to set the scroll behavior, change the touchpad delay, edit gestures, access cursor pointing options, and other advanced features.
Sidebar: Clicking the Sidebar button () will reveal all current key assignments for your Razer Blade Stealth.
Alternatively, you can skip to a specific key assignment by selecting it on the Customize tab.
Upon selecting a key assignment, you may then change it to one of the following functions:
Default
This option enables you to return the selected key to its original setting,
Keyboard Function
This option changes the key assignment into a keyboard function. You can also choose to enable Turbo mode which allows you to emulate a repeated keyboard function while the key is held down.
Mouse Function
This option allows you to change any key into a mouse function. Listed below are the functions which you can choose from:
- Left Click: Performs a left mouse click using the assigned button.
- Right Click: Performs a right mouse click using the assigned button.
- Scroll Click: Activates the universal scrolling function.
- Double Click: Performs a double left click using the assigned button.
- Mouse Button 4: Performs a "Backward" command for most internet browsers.
- Mouse Button 5: Performs a "Forward" command for most internet browsers.
- Scroll Up: Performs a "Scroll Up" command using the assigned button.
- Scroll Down: Performs a "Scroll Down" command using the assigned button.
- Scroll Left: Performs a "Scroll Left" command using the assigned button.
- Scroll Right: Performs a "Scroll Right" command using the assigned button.
You can also choose to enable Turbo mode in some of the mouse functions which allow you to emulate repeatedly pressing and releasing said function while the key is held down.
Macro
Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting the key function to Macro, you can conveniently execute a chain of commands. Do take note that this function will only be visible if you have installed the Macro module from the Modules tab. Click here to learn more about Macros
Switch Profile
Switch Profile enables you to quickly change profiles and load a new set of key assignments An on-screen notification will appear whenever you switch profiles.
P: Switch Lighting
Switch Lighting allows you to easily switch between all advanced lighting effects. Do take note that this function will only be visible if you have installed the Chroma module from the Modules tab. Click here to learn more about Advanced Chroma Effects
Razer Hyper shift
Setting the key to Razer Hyper shift will allow you to activate Hyper shift mode as long as the key is held down.
Launch Program
Launch Program enables you to open an app or a website using the assigned key. When you select Launch Program, two choices will appear which requires you to search for a specific app you want to open, or write the address of the website you want to visit.
Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:
- Volume Down: Decreases the audio output.
- Volume Up: Increases the audio output.
- Mute Volume: Mutes the audio.
- Mic Volume Up: Increases the microphone volume.
- Mic Volume Down: Decreases the microphone volume.
- Mute Mic: Mutes the microphone.
- Mute All: Mutes both microphone and audio output.
- Play / Pause: Play, pause, or resume playback of the current media.
- Previous Track: Play the previous media track.
- Next Track: Play the next media track.
Windows Shortcuts
This option allows you to assign your preferred key into a Windows Operating System shortcut command.
Text Function
Text Function enables you to type a prewritten text with a touch of a key. Simply write your desired text on the given field and your text will be typed whenever the assigned key is pressed. This function has full Unicode support and you can also insert special symbols from character maps.
Disable
This option renders the assigned key unusable. Use Disable if you do not want to use the selected key or if it interferes with your gaming.
Lighting
The Lighting subtab enables you to modify your Razer device's light settings.
- System Lighting
You can turn off your Razer device's lighting by toggling the Brightness option or increase/decrease the luminance using the slider. - Switch Off Lighting
This power saving tool which allows you to disable your device's lighting in response to your system's display turning off and/or automatically power down when your Razer Blade Stealth has been idle for a set amount of time. You may also set the lighting to tum off when the device's battery level is below a certain percentage.
Quick Effects
A number of quick effects can be selected and applied to your device's lighting, as listed here:
Name | Description | How to set up |
---|---|---|
Spectrum cycling | The lighting will cycle between 16.8 million colors indefinitely | Default effect. No further customization required |
Static | The LEDs will remain lit in the selected color | Select a color |
Breathing | The lighting fades in and out of the selected color(s) | Select up to 2 colors or randomize colors |
If you have other supported Razer Chroma-enabled devices, you can synchronize their quick effects with your Razer device by clicking the Chroma Sync button ().
NOTE: Only devices that support the selected lighting effect will synchronize.
Advanced Effects
The Advanced Effects allow you to choose a Chroma Effect you want to use on your compatible devices. To start making Your own Chroma Effect, simply press the Chroma Studio button
Description of Razer Blade Stealth Ultrabook
The Razer Blade Stealth Ultrabook is a powerful device that combines portability and performance. Its sleek and stylish design makes it a perfect companion for gamers and professionals who are always on the go. The Ultrabook's display is designed to provide a stunning and immersive viewing experience, with its UHD resolution and 120Hz refresh rate. The Razer Blade Stealth Ultrabook is also equipped with a full-size keyboard and a large touchpad, making it easy to use and navigate.
Razer Blade Setup Guide
Setting up the Razer Blade Stealth Ultrabook is easy and straightforward. Once you have the device in your hands, simply turn it on and follow the on-screen instructions. Connect to Wi-Fi, sign in to your Razer account, and you're all set. To assemble or configure the device, simply follow the instructions in the manual. Pairing is also easy and can be done through Bluetooth.
SAFETY AND MAINTENANCE
SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Blade Stealth, we suggest that you adopt the following guidelines:
- Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
- Do not take apart the device (doing so may void your warranty) and do not attempt to operate it under abnormal current loads.
- Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C (32° F) to 40°C (104° F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.
COMFORT
Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Blade Stealth.
- Position your laptop directly in front of you. If you have an external mouse, position it next to the laptop. Place your elbows next to your side, not too far away and your mouse within easy reach.
- Adjust the height of your chair and table so that the laptop is at or below elbow height.
- Keep your feet well supported, posture straight and your shoulders relaxed.
- During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
- Do not rest your wrists on hard surfaces for long periods. When using an external mouse, use a wrist rest to support your wrist while gaming-
- Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.
- If you should experience any physical discomfort while using your laptop, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.
Razer Blade Stealth Ultrabook Warranty
For the latest and current terms of the Limited Product Warranty, please visit https://www.razer.com/warranty .
Pros & Cons
Pros:
- Sleek and stylish design
- Powerful and portable
- Stunning and immersive display
- Full-size keyboard and large touchpad
- Up to 10 hours of battery life
Cons:
- Price may be too steep for some users
- No Ethernet port
- Limited upgrade options
- Fans can get loud under heavy load
Customer Reviews about Razer Blade Stealth Ultrabook
Customers love the Razer Blade Stealth Ultrabook's sleek and stylish design, as well as its powerful performance. They also appreciate its stunning and immersive display, full-size keyboard, and large touchpad. However, some customers are not happy with the price, limited upgrade options, and the fans getting too loud under heavy load. The most common complaint is the lack of an Ethernet port.
Faqs
Which processors are offered by Razer in their Stealth Ultrabook lineup?
How can I keep my Razer Blade Stealth Ultrabook's battery healthy?
Is it possible to upgrade the RAM on my Ultrabook Razer Blade Stealth?
What is the Razer Blade Stealth Ultrabook's graphics capability?
How can I troubleshoot my Razer Blade Stealth Ultrabook's Wi-Fi connectivity issues?
How can I make the most of my Razer Blade Stealth Ultrabook's storage capacity?
How can I keep the screen and keyboard of my Razer Blade Stealth Ultrabook clean?
What options does the Razer Blade Stealth Ultrabook have for audio input/output?
Can you create and edit videos on a Razer Blade Stealth Ultrabook?
What applications is the Razer Blade Stealth Ultrabook pre-installed with?
