How to Use: Razor EcoSmart Metro HD SUP Scooter User Guide

Razor EcoSmart Metro HD SUP Scooter

Introduction

The razor EcoSmart Metro HD SUP Scooter is a premium stand-up electric scooter designed for adult riders seeking a powerful, eco-friendly, and stylish urban mobility option. Featuring a wide bamboo deck for ample foot space, this scooter blends comfort with performance, making it ideal for city commuting, leisure rides, and short-distance errands. Its quiet yet high-torque 350-watt brushless motor delivers smooth acceleration and a top speed of up to 15.5 mph (25 km/h), allowing riders to move efficiently without noise pollution.

With a maximum range of up to 12 miles (19 km) on a single charge and a continuous runtime of 60 minutes, the EcoSmart Metro HD SUP supports daily use with reliability. The scooter’s durable steel frame, pneumatic 16-inch tires, and rear-wheel drive provide a stable and traction-enhanced ride across various urban terrains. Its ergonomic twist-grip throttle and hand-operated rear brake offer intuitive control and safety.

This model targets riders aged 16 and up who need a convenient transportation alternative that combines eco-conscious design with practical features such as a retractable kickstand and soft rubber grips. The scooter is readily available through Razor’s official website and selected retailers, with prices typically ranging from $430 to $610, reflecting competitive value for its specifications and build quality.

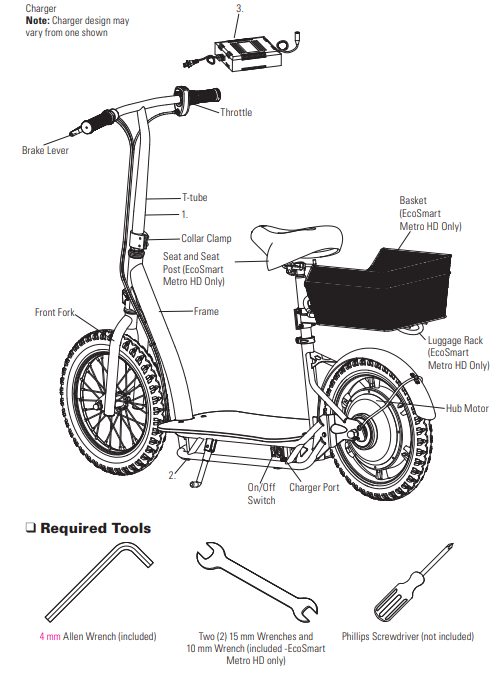

Specifications of the Razor EcoSmart Metro HD SUP Scooter

• Motor: 350-watt, brushless, rear-wheel hub-driven with high torque
• Maximum Speed: Up to 15.5 mph (25 km/h)
• Range: Up to 12 miles (19 km) per charge
• Run Time: Up to 60 minutes of continuous use
• Battery: 36V (three 12V) sealed lead-acid rechargeable battery with included charger
• Frame: Robust tubular steel construction for enhanced durability
• Deck: Wide bamboo deck for standing comfort and style
• Wheels: 16-inch (406 mm) pneumatic tires with a spoked front wheel
• Throttle: Twist-grip for smooth speed control
• Brake: Hand-operated rear brake for reliable stopping power
• Weight Limit: Supports riders up to 220 lbs (100 kg)
• Dimensions: 57.28″ x 20.67″ x 45.28″ (L x W x H)
• Product Weight: Approximately 62.72 lbs (28.51 kg)
• Age Recommendation: 16 years and older

Compared to similar adult electric scooters, the Razor EcoSmart Metro HD SUP stands out with its large bamboo deck and pneumatic tires that offer superior comfort and shock absorption. Its rear-wheel drive enhances traction, especially on inclines, making it a solid alternative for urban and suburban riders looking for a stable stand-up scooter option.

HAESSEADLMIBNLEY AND SET-UP

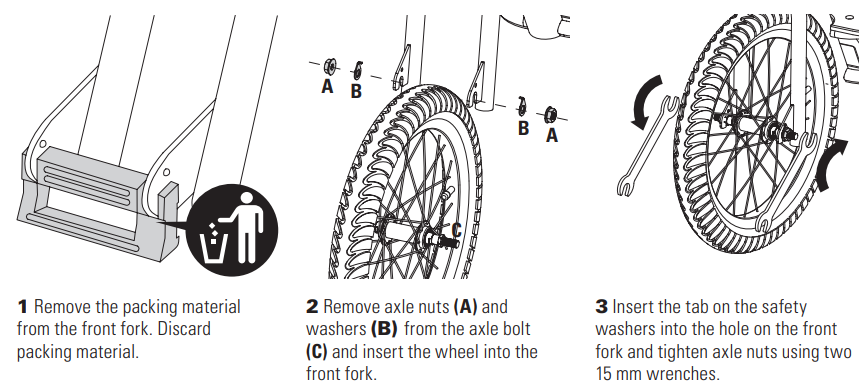

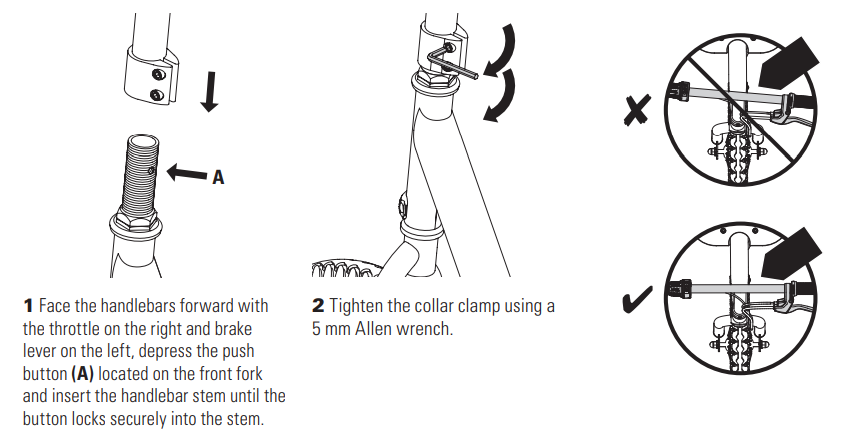

 Attaching the Front Wheel

 Attaching the Seat and Luggage Rack (EcoSmart Metro HD Only)

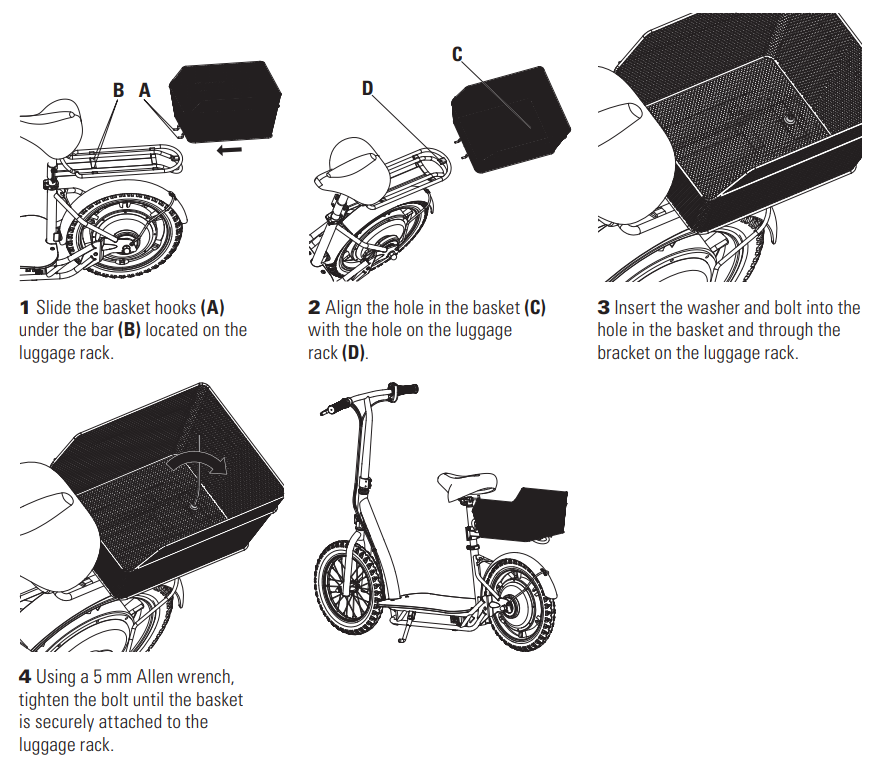

Attaching the Basket (EcoSmart Metro HD Only)

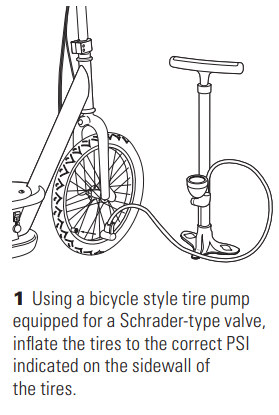

Inflating the Tires

HEADLINE 8 REPAIR AND MAINTENANCE

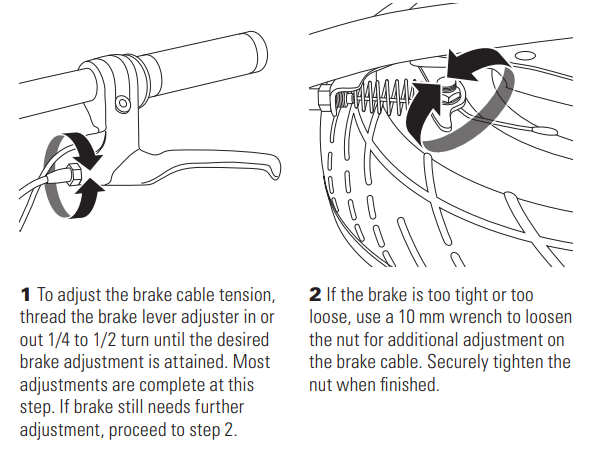

Adjusting the Brake

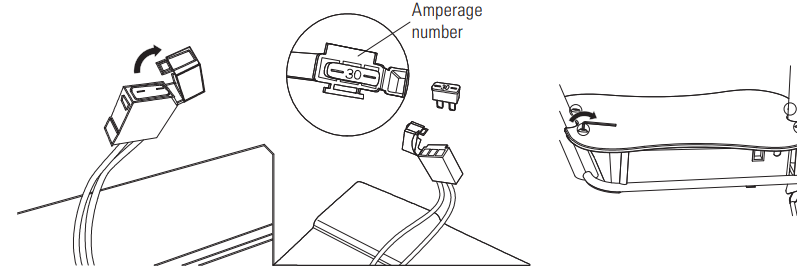

Replacing the Fuse

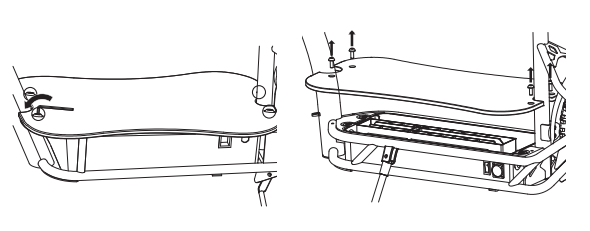

1. Using a 4 mm Allen wrench, remove the four (4) screws on the deck and remove the deck plate.
2. Open the fuse cover to expose the fuse. Remove the damaged,, burned-out fuse and replace it with a new one of equal amperage.
3. Close the fuse box and reattach the deck plate by reversing the instructions in Step# 1.

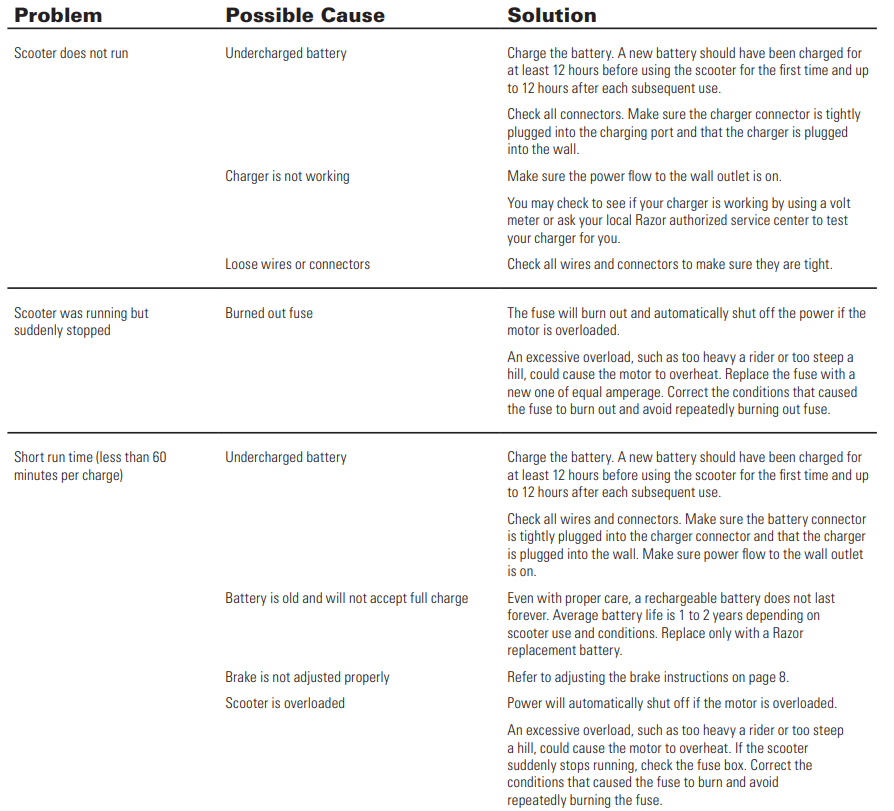

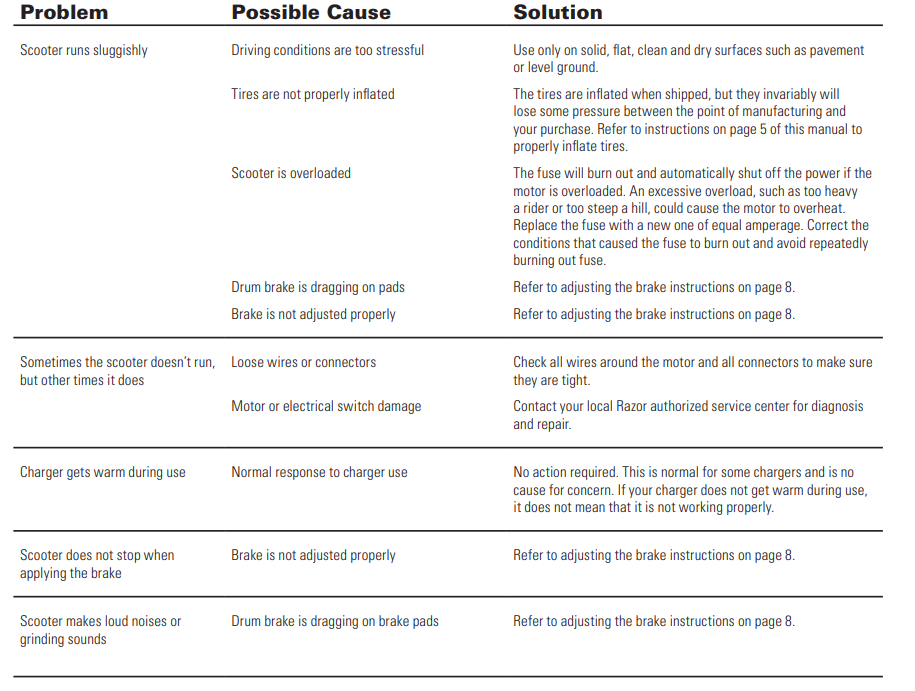

Troubleshooting the Razor EcoSmart Metro HD SUP Scooter

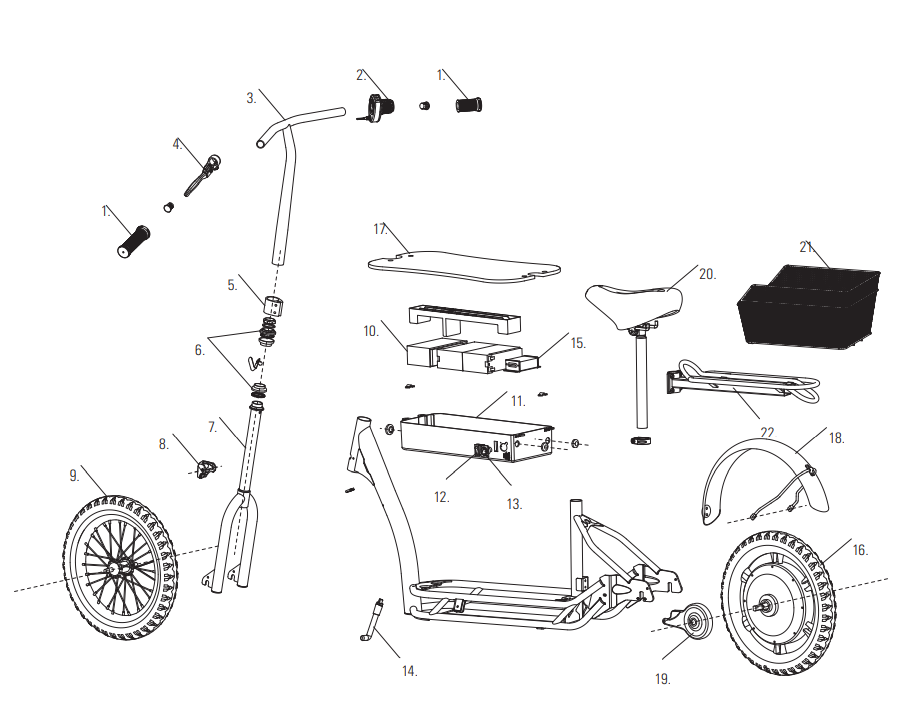

ECOSMART METRO HD PARTS

1. Handlebar Grips (x2)
2. Twist-Grip Throttle
3. Handlebar Stem
4. Brake Lever Assembly
5. Collar Clamp
6. Headset (Upper/Lower)
7. Front Fork
8. Limiter Cover
9. Front Wheel Complete
10. Battery w/ (1) 30 Amp Fuse (3 - 12v/6Ah)
11. Battery Tray
12. On/Off Switch
13. Charger Port
14. Kickstand
15. Control Module
16. Rear Wheel Complete
17. w/ Hub Motor
18. Deck Plate
19. Rear Fender
20. Brake
21. Seat|
22. Basket
23. Luggage Rack

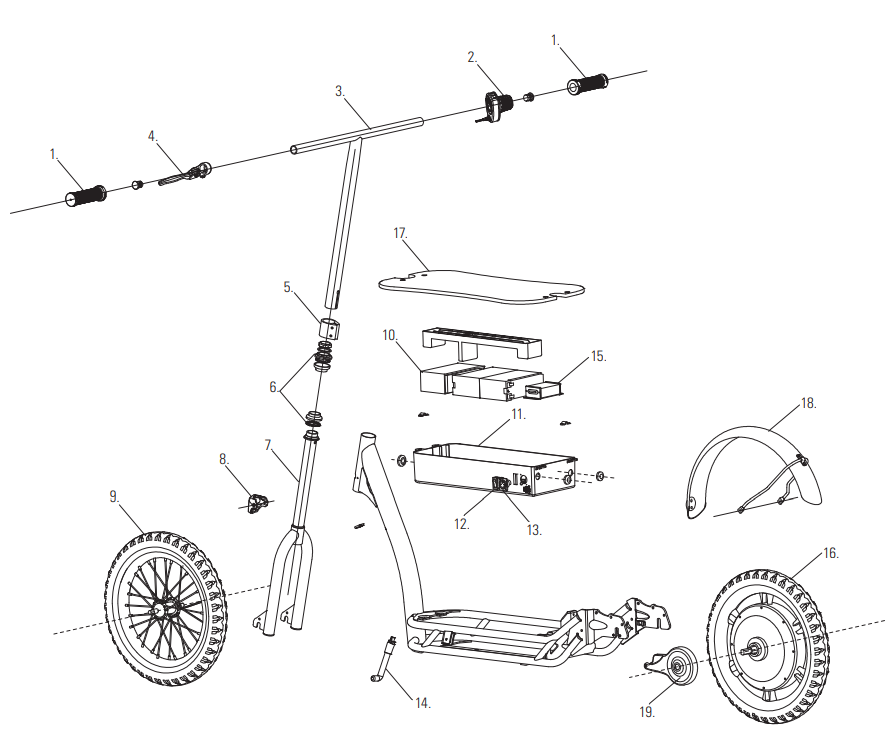

ECOSMART SUP PARTS

1. Handlebar Grips (x2)
2. Twist-Grip Throttle
3. Handlebar Stem
4. Brake Lever Assembly
5. Collar Clamp
6. Headset (Upper/Lower)
7. Front Fork
8. Limiter Cover
9. Front Wheel Complete
10. Battery w/ (1) 30 Amp Fuse (3 - 12v/6Ah)
11. Battery Tray
12. On/Off Switch
13. Charger Port
14. Kickstand
15. Control Module
16. Rear Wheel Complete w/ Hub Motor
17. Deck Plate
18. Rear Fender
19. Brake

Pros & Cons of the Razor EcoSmart Metro HD SUP Scooter

• Pros
  • Comfortable,, wide bamboo deck provides excellent foot room for a standing rider..s
  • Quiet, efficient 350W motor with smooth, responsive throttle control
  • Long-range capability up to 12 miles with a decent 60-minute runtime
  • Durable steel frame and pneumatic tires for a stable, smooth ride
  • Rear-wheel drive enhances traction and maneuverability
  • Includes practical features like a retractable kickstand and ergonomic grips
  • Competitive pricing for the quality and features offered
• Cons
  • The battery is a sealed lead-acid type, which is heavier and less efficient than lithium-ion alternatives.
  • Some users may find the scooter's weight (approx. 62.7 lbs) less portable
  • Lacks built-in lighting or reflectors for night riding safety
  • No adjustable handlebar height, which may affect rider comfort on longer trips
  • Assembly required, which might be challenging for beginners

Customer Reviews of the Razor EcoSmart Metro HD SUP Scooter

Users frequently praise the razor EcoSmart Metro HD SUP Scooter for its smooth ride and comfortable wide deck, with many highlighting the scooter’s quiet motor and impressive range. The spacious deck is often noted as a significant advantage for stand-up electric scooters, especially for longer commutes. Star ratings average around 4.3 out of 5, reflecting high overall satisfaction.

Common complaints include the scooter’s weight, making it less convenient to carry, and the absence of integrated lights or bells, which some users find limits safety during low-light conditions. Several reviewers appreciate the large rear basket on the seated EcoSmart Metro HD model, but note that the SUP version focuses on standing comfort instead.

Many customers recommend the EcoSmart Metro HD SUP for urban riders aged 16+ looking for an affordable, reliable, and stylish electric scooter option. Warranty support and customer service from Razor receive positive remarks for responsiveness.
