How to Use: Razor Power Core E-90 Electric Hub Motor Scooter User Manual

Content

Razor Power Core E-90 Electric Hub Motor Scooter

Razor Power Core E-90 Electric Hub Motor Scooter-product

Introduction

The razor Power Core E-90 Electric Hub Motor Scooter is an innovative electric scooter designed to deliver fun, convenience, and extended ride time for kids aged 8 and above. Featuring Razor’s exclusive Power Core technology, this scooter offers up to 75% more battery life than many comparable models, allowing for up to 65 to 80 minutes of continuous use on a single charge. Its sleek and sturdy design, highlighted by a steel frame and fork, ensures durability while remaining lightweight enough for easy handling by young riders.

With a top speed of 10 mph, the Power Core E-90 provides a perfect balance of safety and excitement for children and beginners looking to explore outdoor riding. The electric hub motor integrated into the rear wheel enhances ride smoothness and traction, making it suitable for neighborhood rides, parks, and smooth pavements. An intuitive push-button throttle and hand-operated front brake give young riders simple yet precise control.

Priced approximately between $170 and $180, this electric scooter is widely available online and in retail stores, making it accessible for families seeking a reliable and fun electric scooter. Its target audience includes children starting at age 8, parents prioritizing safety and battery life, and anyone seeking an affordable, maintenance-free electric mobility option for kids.

BEFORE YOU BEGIN

  • Remove contents from box. Remove the separators that protect the components from damage during shipping. Inspect the contents of the box for scratches in the paint, dents or kinked cables that may have occurred during shipping. Because the scooter was 95 percent assembled and packed at the factory, there should not be any problems, even if the box has a few scars or dents.
  • MAKE SURE POWER SWITCH IS TURNED “OFF” BEFORE CONDUCTING ANY ASSEMBLY OR  MAINTENANCE PROCEDURES.
  • Estimated Assembly and Set-Up Time
  • Razor recommends assembly by an adult.
  • Allow up to 10 minutes for assembly, not including initial charge time.
  • Allow up to 12 hours for charge (see page 3 for charging information).
Razor Power Core E-90 Electric Hub Motor Scooter-product-a

ASSEMBLY AND SET-UP

Attaching the Handlebars
Tool Required: 5 mm Allen Wrench

Razor Power Core E-90 Electric Hub Motor Scooter-product-b

USAGE

Starting the Scooter
Turn power switch “ON”; put kickstand up and place both hands on the handlebars.
Place one foot on the deck plate and with the other foot, push (kick start) scooter while pressing the push  button throttle.  Place other foot on deck plate once motor has engaged.

Razor Power Core E-90 Electric Hub Motor Scooter-use

Stopping the Scooter
Release the push button throttle and apply the hand brake until scooter comes to a complete stop.

Razor Power Core E-90 Electric Hub Motor Scooter-use-a

REPAIR AND MAINTENANCE

Rear Wheel/Hub Motor/Battery Replacement
Tools Required: Phillips Screwdriver and Two (2) 13 mm Wrenches
(Battery Replacement Steps 1-3)

Razor Power Core E-90 Electric Hub Motor Scooter-maintainance
Razor Power Core E-90 Electric Hub Motor Scooter-maintainance-a

TROUBLESHOOTING GUIDE

Razor Power Core E-90 Electric Hub Motor Scooter-troubleshoot

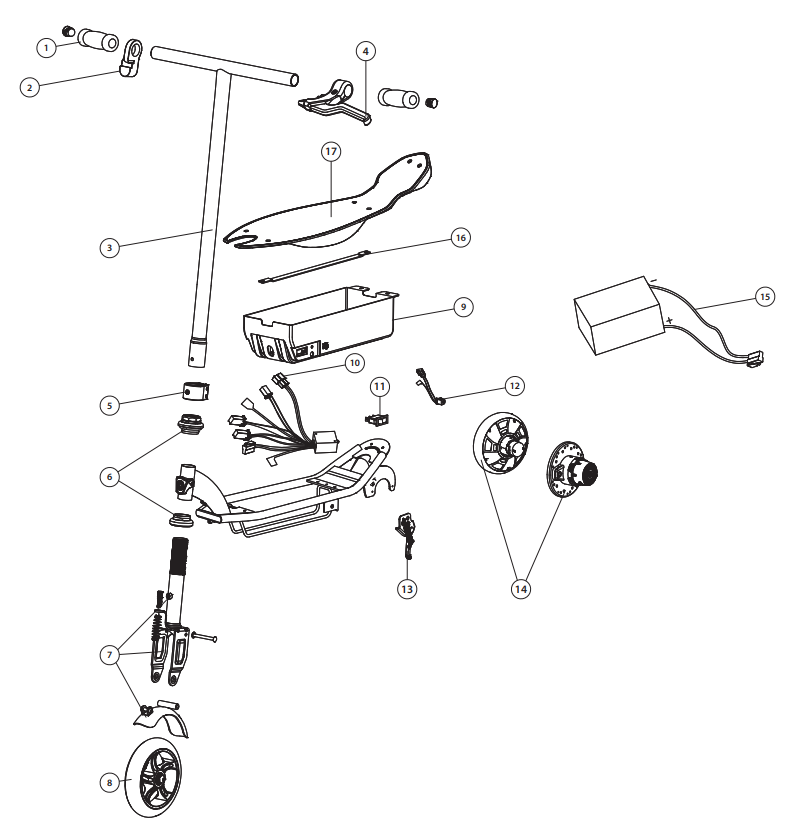

POWER CORE E90 ELECTRIC SCOOTER PARTS

  1. Handlebar Grips (Right/Left)
  2. Push Button Throttle
  3. Stem
  4. Brake Lever
  5. Collar Clamp
  6. Headset (Upper/Lower)
  7. Front Fork with Limiter And Fender Brake
  8. Front Wheel Complete (See Pg. 5 For Hardware Sequence)
  9. Battery Tray
  10. Control Module
  11. On/Off Switch
  12. Charger Port
  13. Kickstand
  14. Rear Wheel with Motor Complete (See Pg. 5 For Hardware Sequence)
  15. Battery (1-12V/7Ah)
  16. Battery Strap
  17. Deck Plate
Razor Power Core E-90 Electric Hub Motor Scooter-parts

WARRANTY

Razor Limited Warranty
The manufacturer warranties this product to be free of manufacturing defects for a period of 90 days from date of purchase. This Limited Warranty does not cover normal wear and tear, tire, tube or cables, or any damage, failure or loss caused by improper assembly, maintenance, storage or use of the Razor Power Core E90.

This Limited Warranty will be void if the product is ever:

  • used in a manner other than for recreation or transportation;
  • modified in any way;
  • rented.
  • The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.
  • Razor does not offer an extended warranty. If you have purchased an extended warranty, it must be honored by the store at which it was purchased.

Specifications of the Razor Power Core E-90 Electric Hub Motor Scooter

  • Motor: 90-watt high-torque maintenance-free rear hub motor
  • Battery: 12V sealed lead-acid rechargeable battery with included charger
  • Top Speed: Up to 10 mph (16 km/h)
  • Battery Life: Up to 65-80 minutes of continuous use per charge
  • Weight Capacity: Supports riders up to 120 lbs (54 kg)
  • Construction: Durable all-steel frame and fork
  • Wheels: Solid urethane front wheel and flat-free rubber rear wheel for puncture resistance
  • Controls: Push-button throttle and hand-operated front brake
  • Dimensions: Approximately 31.5″ (L) × 14″ (W) × 33″ (H)
  • Weight: Around 23 lbs (10.4 kg)

Compared to other scooters in its class, the Power Core E-90 excels in battery efficiency and maintenance-free operation due to its hub motor design and Power Core technology. It offers significantly longer ride time than earlier models like the standard E90, and outperforms many competitors in terms of torque and ease of use.

Pros & Cons of the Razor Power

PDF

Faqs

How do I set up and assemble the Razor Power Core E-90 Electric Hub Motor Scooter for first use?

Setting up your Razor Power Core E-90 Electric Hub Motor Scooter is straightforward. Unbox and attach the handlebar to the deck using the included hardware—no tools are required for this step. Make sure the handlebar is secure before riding. The scooter comes with a 12V sealed lead acid battery and charger; fully charge the battery before your first ride. Some minor assembly, like attaching the kickstand, may be required. Always check all connections and brakes before use for safety[3].

What should I do if my Razor Power Core E-90 Electric Hub Motor Scooter won’t start or loses power suddenly?

If your Razor Power Core E-90 Electric Hub Motor Scooter won’t start, first ensure the battery is fully charged. Check that all connections are secure and the charger is functioning. If the scooter loses power while riding, it may be due to a low battery—recharge and try again. The scooter requires a slight kick start to engage the motor; simply pressing the throttle won’t work unless you’re already moving. For persistent issues, consult the user manual or contact Razor support[3][6].

How long does the battery last on the Razor Power Core E-90 Electric Hub Motor Scooter, and how can I maximize ride time?

The Razor Power Core E-90 Electric Hub Motor Scooter offers up to 80 minutes of continuous ride time on a full charge, thanks to its efficient 12V sealed lead acid battery and Power Core technology[3][4]. To maximize battery life, avoid frequent stops and starts, ride on smooth surfaces, and keep the scooter at moderate speeds. Always fully charge the battery before storage and recharge after each use for optimal performance.

Is the Razor Power Core E-90 Electric Hub Motor Scooter suitable for beginners, and what safety features does it have?

Yes, the Razor Power Core E-90 Electric Hub Motor Scooter is ideal for beginners, especially kids ages 8 and up. It features a hand-operated front brake for safe stopping, a sturdy steel frame, and a moderate top speed of 10 mph for added safety[2][5]. The scooter’s solid, airless tires require no maintenance and won’t go flat. Its low maintenance, easy-to-use design, and responsive brakes make it a safe choice for new riders learning the basics of electric scooters[5][7].

Can adults or heavier riders use the Razor Power Core E-90 Electric Hub Motor Scooter?

The Razor Power Core E-90 Electric Hub Motor Scooter is designed for riders up to 120 lbs, making it best suited for children and lighter teens[3]. Heavier riders may experience reduced speed, battery life, and overall performance, and could risk damaging the scooter. Always adhere to the weight limit specified in the manual to ensure safety and longevity of your electric scooter.

How do I maintain and care for my Razor Power Core E-90 Electric Hub Motor Scooter to ensure it lasts?

Maintaining your Razor Power Core E-90 Electric Hub Motor Scooter is simple. Regularly check the battery charge and keep it stored in a cool, dry place. Wipe down the scooter after use to remove dirt and debris. Inspect the brakes, tires, and frame for wear. The hub motor and solid tires require no chain or tire inflation, reducing maintenance needs. Avoid riding in wet conditions to protect electrical components. Following these steps will help extend the life of your scooter[3][7].

What are the key differences between the Razor Power Core E-90 and other Razor electric scooters?

The Razor Power Core E-90 Electric Hub Motor Scooter stands out with its maintenance-free hub motor (no chain, alignment, or tensioner), offering up to 80 minutes of ride time—significantly longer than many other models[1][3]. It features a robust steel frame, push-button throttle, and a kick-start mechanism. The E90’s solid, airless tires and hand-operated front brake provide a safe, low-maintenance ride, making it a top choice for kids who want reliability and simplicity in an electric scooter[3][5].

Can the Razor Power Core E-90 Electric Hub Motor Scooter be ridden on rough or uneven surfaces?

While the Razor Power Core E-90 Electric Hub Motor Scooter is built with a durable steel frame and solid tires, it is best suited for smooth, paved surfaces. Rough or uneven terrain can reduce battery life, strain the motor, and make for a less comfortable ride due to the small, solid wheels[5]. For safety and optimal performance, stick to sidewalks, bike paths, and other smooth areas, and avoid gravel, dirt, or bumpy roads.
