Introduction

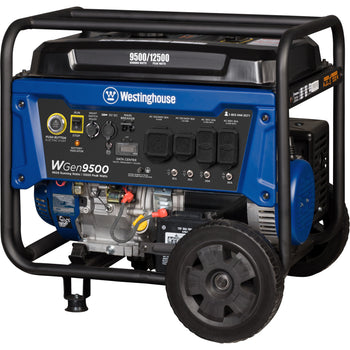

The Westinghouse Electric Generator WGen9500 is a portable generator that boasts a robust and dependable capability of 9,500 operating watts and 12,500 peak watts. Its 6.6-gallon fuel tank, which can run the gadget for up to 12 hours at 50% load, makes it ideal for outdoor events, labor sites, and home backup. It offers the practical feature of remote starting and complies with CARB emissions requirements in California. Reliable electricity is something that the WGen9500 is made to deliver whenever and wherever it's needed. It is easy to use and very sturdy.

TOOLS YOU WILL NEED

• Utility Knife (not included)



• Fresh clean unleaded gasoline (not included)



• Funnel (included)



• 10mm Wrench (not included)



• 4-stroke engine oil (included)



• Wheel and feet bolts



MECHANICAL SPECIFICATIONS

Description

A long-lasting, efficient generator, the Westinghouse Electric WGen9500 is sure to see you through any storm. You can keep an eye on the generator's voltage, frequency, and lifetime hours thanks to its cast-iron sleeve and VFT data center. You have a few options for starting this generator: an electric start, a recoil start, and so on. Furthermore, it is easy to connect to your home power supply thanks to its GFCI protected outlets and transfer switch ready outlet.

BEFORE STARTING

1. Install Feet to Frame
   • Tip the generator onto its side. The engine should be on the bottom.
   • Install the mounting feet to the frame using M8 flange bolts and nuts.
2. Install Wheels
   • Install the axle pin, wheel, and washer through the axle bracket on the frame.

   • Install the hairpin cotter through the axle pin to lock it in place.



3. Add Engine Oil
   • Remove oil fill plug/dipstick.
   • Using the supplied 4-cycle engine oil and funnel, slowly add engine oil to the engine until full.
   • Replace oil fill plug/dipstick.
4. Add Unleaded Gasoline to Gas Tank
   • Unscrew gas cap on top of the tank and insert a clean funnel into the tank.
   • Slowly add gasoline into the fuel tank. The gasoline level should NOT be higher than the filler neck.

   • Secure gas cap.



ELECTRIC STARTING

(Electric Start Units Only)

1. Make sure nothing is plugged into power outlets.
2. Verify the battery is installed and both battery cables are attached to their corresponding polarity.
   • Positive (+) Battery Cable (Red)

   • Negative (-) Battery Cable (Black)



3. Make sure the circuit breakers are properly set to operating.
4. Move the fuel shutoff valve to the ON position.
5. Push and hold the engine control switch in the START position. Once the engine starts, release.
6. For remote start, click the “START” button on the wireless remote.

7. Plug in electronic devices.



MANUAL STARTING WGen9500

1. Make sure nothing is plugged into power outlets.
2. Make sure the circuit breakers are properly set to operating.
3. Move the fuel shut off valve to the ON position.

4. Move the choke lever to the ON position.



5. Push the engine control switch into the RUN position.
6. Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling up and slightly away from the generator.
7. As the engine starts and stabilizes, gradually move the choke lever back to the OFF position.

8. Plug in electronic devices.



Setup Guide

Setting up the Westinghouse Electric Generator WGen9500 is easy and straightforward. First, make sure the generator is on a level surface and the fuel valve is in the "off" position. Next, add oil and fuel to the respective tanks and check the air filter. Then, turn the fuel valve to the "on" position and press the electric start button to start the generator. Finally, connect the generator to your power supply using the appropriate cords and outlets.

MAINTENANCE SCHEDULE

Following the maintenance schedule is important to keep the generator in good operating condition. The following is a summary of maintenance items by periodic maintenance intervals. Refer to the Maintenance section in the Owners Manual to find out how to properly perform maintenance.

TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED

 *Service more frequently if operating in dry and dusty conditions.

TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE SERVICE DEALER PERFORMED

SPARK PLUG REPLACEMENT

BATTERY REPLACEMENT

ENGINE OIL

Only use 4-stroke/cycle engine oil. NEVER USE 2-STROKE/CYCLE OIL. Synthetic oil is an acceptable substitute for conventional oil.

Westinghouse Electric Generator WGen9500 Troubleshooting

Excessive Vibration or Noise

• Possible Causes
  • Loose parts
  • Engine or generator mounting issues
  • Uneven surface
• Solutions
  • Inspect and tighten any loose parts.
  • Ensure the generator is mounted securely.
  • Place the generator on a flat, stable surface.

Battery Not Charging (Electric Start Models)

• Possible Causes
  • Faulty charging system
  • Loose or disconnected battery cables
• Solutions
  • Check the charging system and replace any faulty components.
  • Ensure battery cables are securely connected.

Pros & Cons

Pros

• Powerful and reliable with a maximum output of 9500 watts
• Remote start feature for easy operation
• VFT data center for monitoring voltage, frequency, and lifetime hours
• Transfer switch ready outlet for easy connection to home power supply

Cons

• Heavy and not easily portable
• Noise level is relatively high
• May require regular maintenance
