Introduction

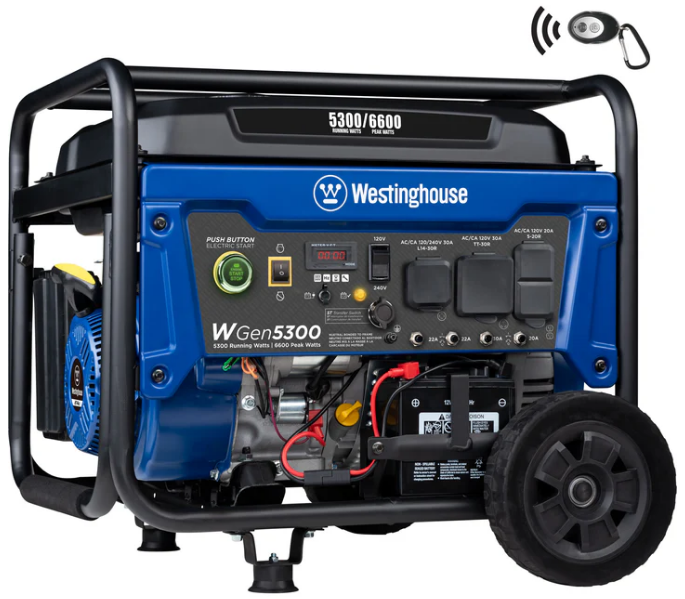

The Westinghouse Portable Generator WGen5300V is a robust and reliable power source ideal for home backup or outdoor use. With a rated output of 5,300 watts and a peak output of 6,600 watts, this generator can run for up to 14.5 hours on a full tank of gasoline. Its durable 274cc engine and user-friendly control panel make it easy to operate. Priced at approximately $550, it offers an excellent combination of performance and convenience for various power needs.

TOOLS YOU WILL NEED

• Utility Knife (not included)



• Fresh clean unleaded gasoline (not included)



• Funnel (included)



• 10mm Wrench (not included)



• 4-stroke engine oil (included)



• Wheel and feet bolts (Not included with WGen2000/ WGen3600v)



Description

The Westinghouse WGen5300V is engineered with durability and efficiency in mind. Its 4-stroke OHV engine ensures a smooth operation and extends the lifespan of the generator. The unit features multiple outlets to accommodate various power needs, including a 120V and a 240V outlet for heavy-duty appliances. The robust steel frame and reinforced roll bars provide added protection against rugged environments. Additionally, it includes an electric start option for easy ignition and a remote start capability for added convenience.

BEFORE STARTING

1. Install Feet to Frame (not applicable to WGen2000 or WGen3600v)
   1. Tip the generator onto its side. The engine should be on the bottom.
   2. Install the mounting feet to the frame using M8 flange bolts and nuts.
2. Install Wheels (not applicable to WGen2000, WGen3600v)
   1. Install the axle pin, wheel and washer through the axle bracket on the frame.

   2. Install the hairpin cotter through the axle pin to lock it in place.



3. Add Engine Oil
   1. Remove oil fill plug/dipstick.
   2. Using the supplied 4-cycle engine oil and funnel, slowly add engine oil to the engine until full.

   3. Replace oil fill plug/dipstick.



4. Add Unleaded Gasoline to Gas Tank
   1. Unscrew gas cap on top of tank and insert a clean funnel into the tank.
   2. Slowly add gasoline into the fuel tank. The gasoline level should NOT be higher than the filler neck.
   3. Secure gas cap.

ELECTRIC STARTING

(Electric Start Units Only)

1. Make sure nothing is plugged into power outlets.
2. Verify the battery is installed and both battery cables are attached to their corresponding polarity.
   1. Positive (+) Battery Cable (Red)
   2. Negative (-) Battery Cable (Black)
3. Make sure the circuit breakers are properly set to operating.

4. Move the fuel shutoff valve to the ON position.



5. Switch the engine switch to “Run”.

6. Push and hold the engine start push button for 1 second and release. Reference Troubleshooting in Owners Manual if engine fails to start.



7. For remote start click the “START” button on the wireless remote
8. Plug-in electronic devices

MANUAL STARTING

1. Make sure nothing is plugged into power outlets.
2. Make sure the circuit breakers are properly set to operate.
3. Move the fuel shut-off valve to the ON position.

4. Move the choke lever to the ON position.



5. Push the engine control switch into the RUN position.
6. Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling up and slightly away from the generator.

7. As the engine starts and stabilizes, gradually move the choke lever back to the OFF position.



8. Plug-in electronic devices.

WGen MECHANICAL SPECIFICATIONS

MAINTENANCE SCHEDULE

Following the maintenance schedule is important to keep the generator in good operating condition. The following is a summary of maintenance items by periodic maintenance intervals.  Refer to the Maintenance section in the Owners Manual to find out how to properly perform maintenance.

TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED

Service more frequently if operating in dry and dusty conditions.

TABLE 2: MAINTENANCE SCHEDULE AUTHORIZED WESTINGHOUSE SERVICE DEALER PERFORMED

SPARK PLUG REPLACEMENT

BATTERY REPLACEMENT

ENGINE OIL

• Only use 4-stroke/cycle engine oil. NEVER USE 2-STROKE/CYCLE OIL.
• Synthetic oil is an acceptable substitute for conventional oil.

Setup Guide

To set up and operate the Westinghouse WGen5300V, follow these steps:

1. Unpacking:** Carefully unpack the generator and all included accessories.
2. Oil and Fuel:** Check the oil level and fill it if necessary. Then, add the recommended type and amount of fuel.
3. Assembly:** Attach the handle and wheels according to the user manual instructions.
4. Start-Up:** Use the electric start or remote start feature to ignite the engine.
5. Load Connection:** Connect your appliances to the appropriate outlets.
6. Safety Check:** Ensure proper ventilation and follow all safety guidelines provided in the user manual.

Troubleshooting

Common issues with the Westinghouse WGen5300V include:

• Engine Not Starting:** Check oil levels, fuel quality, and spark plug condition.
• Overheating:** Ensure proper ventilation and check for blockages in air vents.
• Power Output Issues:** Verify that you are not overloading the generator and check for faulty connections.
• Noise Levels:** Regular maintenance such as oil changes and cleaning can help reduce noise.

Always refer to the user manual for detailed troubleshooting steps and safety instructions.

Westinghouse Portable Generator WGen5300V Pros & Cons

Pros

• High Power Output: Capable of powering multiple heavy-duty appliances.
• Durable Construction: Robust steel frame with reinforced roll bars.
• Long Run Time: Up to 12 hours on a single tank at 25% load.
• Multiple Outlets: Versatile connectivity options.
• Easy Start-Up: Electric start and remote start capabilities.

Cons

• Weight: Heavier than some other portable generators.
• Noisy Operation: Can be louder than some competing models.
• Maintenance Required: Regular oil changes and maintenance are necessary.

Customer Reviews

Customers generally praise the Westinghouse WGen5300V for its reliability, high power output, and ease of use. However, some users have noted that it can be quite heavy and noisy during operation. Common complaints include difficulties with starting in cold weather and occasional issues with the remote start feature. Overall, it remains a popular choice among users who need a dependable portable generator.
