Setup: Beurer Upper Arm Blood Pressure Monitor BM-54 User Manual

Introduction — Overview of the beurer Upper Arm Blood Pressure Monitor BM-54

The beurer Upper Arm Blood Pressure Monitor BM 54 is a fully automatic, Bluetooth-enabled upper-arm monitor designed for home and clinical-style use, combining large, easy-to-read display feedback with mobile app connectivity for long‑term tracking of blood pressure and pulse values. The BM 54 offers WHO-style traffic‑light risk classification and an arrhythmia detection warning, making it suitable for users who want fast, clear readings and simple data sharing with caregivers or clinicians.

Key benefits and unique selling points include automatic pressure preselection and deflation for comfortable measurements, a colour-coded risk indicator for immediate interpretation, two-user memory (2 × 60 values), and wireless syncing to the beurer HealthManager Pro app via Bluetooth Low Energy for trend tracking and exportable records.

Target audiences and use cases: older adults monitoring hypertension, people with cardiovascular risk factors who require regular home monitoring, couples sharing a single device (two user profiles), and clinicians who need patient-supplied home measurement logs. The BM 54 is commonly used for daily self-checks, morning/evening monitoring protocols, and preparation of measurement logs for medical appointments.

Estimated price range and availability: the BM 54 is a mid-range consumer medical device typically sold through online retailers and pharmacies; typical retail prices (varies by market and retailer) fall in the mid‑to‑low hundreds in local currency with frequent promotions and multi-vendor availability (major retailers and Beurer’s distribution partners). Check local sellers for exact pricing and stock.

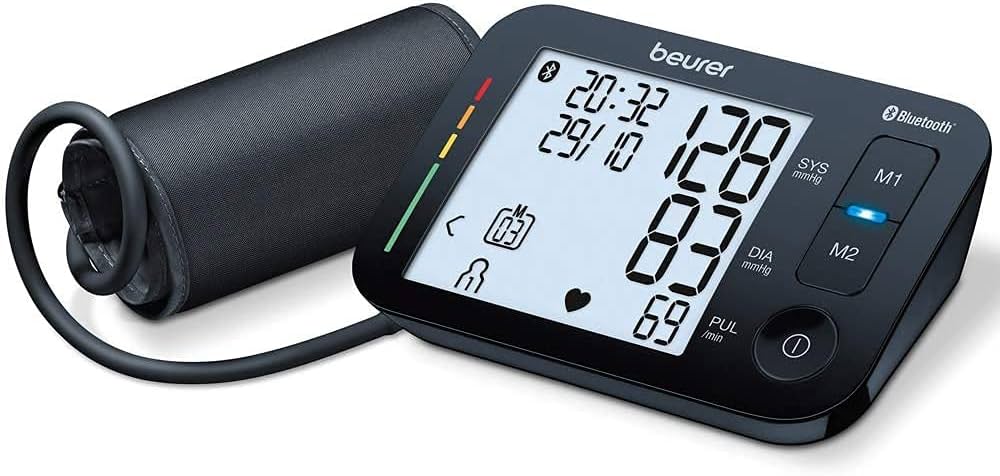

DEVICE DESCRIPTION

1. Cuff
2. Cuff line
3. Cuff connector
4. Display
5. Memory buttons M1/M2
6. START/STOP button
7. Risk indicator
8. Connection for cuff connector (left-hand side)

Information on the Display:

1. Time/date
2. Systolic pressure
3. Diastolic pressure
4. Calculated pulse value
5. Cardiac arrhythmia symbol
6. Pulse symbol
7. User memory
8. Risk indicator
9. Number of memory space/memory display for average value, morning, and evening
10. Release air (arrow)
11. Battery display symbol
12. Symbol for Bluetooth® transfer

Specifications — Technical details and capabilities of the beurer BM 54

• Measurement method: Oscillometric, fully automatic measurement on the upper arm.
• Measurement ranges: Systolic 50–250 mmHg; Diastolic 30–200 mmHg; Pulse 40–180 beats/minute; cuff pressure 0–250 mmHg.
• Accuracy: Display accuracy ±3 mmHg for systolic/diastolic; pulse ±5% of displayed value; maximum permissible standard deviation up to 8 mmHg as specified in product data.
• Cuff: Universal upper‑arm cuff for arm circumferences 22–44 cm (fits larger arms up to 44 cm).
• Memory & users: Two user profiles, 60 measurements each (2 × 60); averages include overall stored average and morning/evening 7‑day averages.
• Display & indicators: XL display, traffic‑light risk classification per WHO guidelines, arrhythmia detection, date/time stamp.
• Connectivity: Bluetooth Low Energy (BLE) for wireless sync with beurer HealthManager Pro app; compatible with modern iOS/Android devices (Bluetooth ≥4.0 required).
• Power: 4 × 1.5 V AAA batteries included; battery life roughly ~200 measurements; low battery indicator; automatic power-off after inactivity
• Physical: Unit dimensions approx. 139 × 94 × 48 mm; weight ~349–364 g (device with cuff, without batteries varies by spec sheet).
• Regulatory & warranty: CE‑marked medical device; 5‑year manufacturer guarantee in many markets (verify local warranty terms).

INTENDED USE

Intended Purpose

The blood pressure monitor (hereinafter referred to as the device) is intended for the fully automatic, non-invasive measurement of arterial blood pressure and pulse values on the upper arm. It is designed for self-measurement by adults in a domestic environment.

Intended Users

The blood pressure measurement is suitable for adult users whose upper arm circumference is within the range printed on the cuff.

Clinical Benefits

The user can record their blood pressure and pulse values quickly and easily using the device. The recorded values are classified according to internationally applicable guidelines and evaluated graphically. Furthermore, the device can detect any irregular heartbeats that occur during measurement and inform the user via a symbol on the display. The device saves the recorded measurements and can also output average values of previous measurements. The recorded data can provide healthcare service providers with support during the diagnosis and treatment of blood pressure problems and therefore plays a part in the long-term monitoring of the user's health.

Indications

In the event of hypertension or hypotension, the user can independently monitor their blood pressure and pulse values at home. However, the user does not need to be suffering from hypertension or arrhythmia to use the device.

Contraindications

WARNING

• Do not use the blood pressure monitor on newborns, children, or pets.
• Persons with reduced physical, sensory, or mental capabilities should be supervised by a person responsible for their safety and receive instructions from that person on how to use the device.
• Do not use the device if you are using electrical implants (e.g., pacemakers).
• Do not use the device if you have metal implants.
• Do not use the cuff on people who have undergone a mastectomy.
• Do not place the cuff over wounds, as this may cause further injury.
• Make sure that the cuff is not placed on an arm whose arteries or veins are undergoing medical treatment, e.g., intravascular access or intravascular therapy, or an arteriovenous (AV) shunt.
• Do not use the device on people with allergies or sensitive skin.

Unforeseen Side Effects

• Skin irritation.
• Negative influence on blood circulation.

WARNINGS AND SAFETY NOTES

WARNING

The measurements you take are for your information only. They are not a substitute for a medical examination. Discuss your measured values with your doctor and never make your own medical decisions based on them (e.g., regarding medicine doses). The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or incorrect use.

• Using the blood pressure monitor outside your home environment or while on the move (e.g., while travelling in a car, ambulance, or helicopter, or while undertaking physical activity such as playing sport) can influence the measurement accuracy and cause incorrect measurements.
• Cardiovascular diseases may lead to incorrect measurements or have a detrimental effect on measurement accuracy.
• If you have any of the following conditions, you must consult your doctor before using the device: cardiac arrhythmia, circulatory problems, diabetes, pregnancy, pre-eclampsia, hypotension, chills, or shaking.
• Do not use the device at the same time as other medical electrical devices (ME equipment). This could cause the measuring device to malfunction and/or produce an inaccurate measurement.
• Do not use the device outside of the specified storage and operating conditions. This could lead to incorrect measurements.
• Only use the cuffs included in the delivery or described in these instructions for use with the device. Using a different cuff may lead to inaccurate measurements.
• Note that when inflating the cuff, the functions of the affected limb may be impaired.
• Do not perform measurements more frequently than necessary. Due to the restriction of blood flow, some bruising may occur.
• Blood circulation must not be stopped for an unnecessarily long time during the blood pressure measurement. If the device malfunctions, remove the cuff from the arm.

General Precautions

CAUTION

• The blood pressure monitor is made from precision and electronic components. The accuracy of the measurements and service life of the device depend on its careful handling.
• Protect the device from impacts, moisture, dirt, marked temperature fluctuations, and direct sunlight.
• Ensure the device is at room temperature before taking a measurement. If the measuring device has been stored close to the maximum or minimum storage and transport temperatures and is placed in an environment with a temperature of 20°C, it is recommended that you wait approximately 2 hours before using the measuring device.
• Do not use the device in the vicinity of strong electromagnetic fields, and keep it away from radio systems or mobile telephones.
• We recommend removing the batteries if the device is not going to be used for a prolonged period of time.
• Avoid any mechanical restriction, compression, or bending of the cuff line.

Notes on Handling Batteries

WARNING

• If your skin or eyes come into contact with battery fluid, rinse the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Therefore, store batteries out of the reach of small children.
• Seek medical attention immediately if a battery is swallowed.
• Risk of explosion! Do not throw batteries into a fire.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Do not disassemble, open, or crush the batteries.
• Observe the plus (+) and minus (-) polarity signs.

CAUTION

• Protect batteries from excessive heat.
• Do not charge or short-circuit the batteries.
• If the device is not going to be used for a long period of time, remove the batteries from the battery compartment.
• Use identical or equivalent battery types only.
• Always replace all batteries at the same time.
• Do not use rechargeable batteries.

Notes on Electromagnetic Compatibility

CAUTION

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.
• The device may not be fully usable in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.

Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly. The use of accessories or replacement parts other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity. This can result in faulty operation. Performance benchmarks and comparison: the BM 54 is clinically validated to accepted standards for oscillometric home monitors and offers features comparable to similarly priced mid‑range cuffs (e.g., dual users, app sync, arrhythmia detection). Compared with basic non‑Bluetooth upper-arm models, it adds wireless logging and larger memory capacity, while high‑end models may include rechargeable batteries, multiple cuff sizes, or cloud integration for clinics.

USAGE

Initial Use

Inserting the Batteries

• Remove the battery compartment cover on the back of the device (A).
• Insert the batteries (see chapter “Technical Specifications”). Make sure the batteries are inserted with the correct polarity according to the label (A).
• Close the battery compartment cover.

If the battery symbol is displayed and does not disappear, measurement is no longer possible. Replace all the batteries. Once the batteries have been removed from the device, the date and time must be set again. Any saved measured values are retained.

Adjusting the Settings

Make sure that the device's settings have been set correctly so you can make full use of all its functions. Otherwise, you will not be able to save your measured values with the date and time and access them later.

There are two different ways to access the settings menu:

• Before initial use and after each battery replacement: When inserting batteries into the device, you will be taken to the relevant menu automatically.
• If the batteries have already been inserted: With the device switched off, press and hold the START/STOP button for approximately 5 seconds.

Set these settings in the order shown below:

Press the START/STOP button to confirm your selection each time.

Time Format

The time format flashes:

• Press M1/M2 to select the time format.

Date

The year flashes:

• Press M1/M2 to select the year.

The month flashes:

• Press M1/M2 to select the month.

The day flashes:

• Press M1/M2 to select the day.

If the time format is set to the 12-hour format, the order in which the day and month are displayed is reversed.

Time

The hour flashes:

• Press M1/M2 to select the hour.

The minutes flash:

• Press M1/M2 to select the minutes.

Bluetooth®

The Bluetooth® symbol flashes on the display.

• Press M1/M2 to select whether automatic Bluetooth® data transfer is activated or deactivated, and confirm this by pressing the START/STOP button.

Bluetooth® data transfers will shorten the battery life.

Before the Blood Pressure Measurement

General Rules When Measuring Your Own Blood Pressure

To generate an informative profile of changes in your blood pressure that can be used for comparisons, you should measure your blood pressure regularly and always at the same time of day.

Measure your blood pressure twice a day: once in the morning after getting up and once in the evening.

• Always perform the measurement when you are sufficiently physically rested. Avoid taking measurements at stressful times.
• Do not measure within 30 minutes of eating, drinking, smoking, or exercising.
• Before the initial blood pressure measurement, make sure to rest for about 5 minutes.
• If you want to take several measurements in succession, always make sure that you leave 5 minutes between each measurement.
• Repeat the measurement if you have doubts about the measured value.

Attaching the Cuff

You can measure your blood pressure on either arm. Some deviations between the values in the right and left arm are perfectly normal. Always measure the arm with the higher blood pressure values. Consult your doctor about this before starting self-measurement. Always measure your blood pressure on the same arm. Only use the device with the cuff supplied, based on your upper arm circumference.

• Before taking the measurement, check the fit using the index mark described below.
• Expose your upper arm. The circulation of the arm must not be hindered by tight clothing or similar.
• The cuff must be placed on the upper arm so that the bottom edge is positioned 2–3 cm above the elbow and over the artery. The line should point to the centre of the palm (B).

The cuff should be fastened so that two fingers fit under the cuff when it is closed (C).

• Now insert the cuff line into the connection for the cuff connector.
• The cuff is suitable for you if the index mark is within the OK range after fitting the cuff.

Adopting the Correct Posture

• Sit in a comfortable upright position when taking the blood pressure measurement. Lean back so that your back is supported.
• Place your arm on a surface (D).
• Place your feet flat on the ground next to one another.
• The cuff must be level with your heart.
• Stay as still as possible during the measurement and do not talk.

Selecting the User

This device can have up to 2 users with 60 memory spaces each, allowing you to separately save measurements from 2 different people. If multiple people are using the device, make sure that the correct user has been selected before each measurement: - Using the memory button M1 or M2, select the desired user memory when the device is switched off. If you do not select a user memory, the measurement is stored in the most recently used user memory. The relevant user memory symbol (M1 or M2) appears on the display. - Press the START/STOP button to switch off the blood pressure monitor. The measurement is then stored in the selected user memory. If you forget to turn off the device, it will switch off automatically after approximately 3 minutes. In this case, too, the value is stored in the selected or most recently used user memory.

Taking a Blood Pressure Measurement

Requirement: Cuff attached, user selected.

Measurement

1. Press the START/STOP button. All display elements are briefly displayed. The cuff inflates automatically. The measurement process starts. The pulse symbol is displayed as soon as a pulse is detected.
2. To cancel the measurement, press the START/STOP button.
3. The systolic pressure, diastolic pressure, and pulse measurements are displayed.

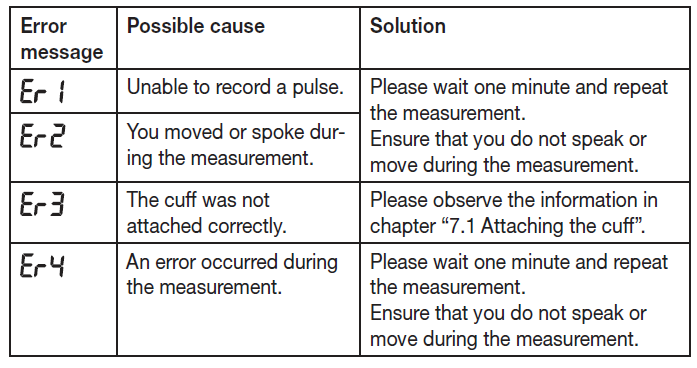

4. "Er_" is displayed if the measurement could not be performed properly. In this case, please refer to the "Troubleshooting" section.
5. If necessary, reattach the cuff after 1 minute.
6. The device switches off automatically after approximately 1 minute. The value is saved to the selected or most recently used user memory.

Evaluating the results

General information about blood pressure

• Blood pressure is the force with which the bloodstream presses against the arterial walls. Arterial blood pressure constantly changes in the course of a cardiac cycle.
• Blood pressure is always stated in the form of two values: -
  • The highest pressure is the systolic blood pressure. This occurs when the heart muscle contracts and blood is pumped into the blood vessels.
  • The lowest pressure is the diastolic blood pressure. This occurs when the heart muscle has completely relaxed again, and the heart is filling with blood.
• Fluctuations in blood pressure are normal. Even during repeat measurements, there may be considerable differences between the measured values. One-off or irregular measurements therefore do not provide reliable information about the actual blood pressure. Reliable assessment is only possible when you perform the measurement regularly under comparable conditions.

Cardiac Arrhythmia

The device can identify heart rhythm abnormalities during the blood pressure measurement. If the cardiac arrhythmia symbol is displayed after the measurement, this indicates that an irregularity has been detected in your pulse. Repeat the measurement if the cardiac arrhythmia symbol is displayed. When assessing your blood pressure, only use the results that have been recorded without any irregularities in your pulse. Consult your doctor if the cardiac arrhythmia symbol is displayed frequently. Only they can determine, through an examination, whether there is an abnormality.

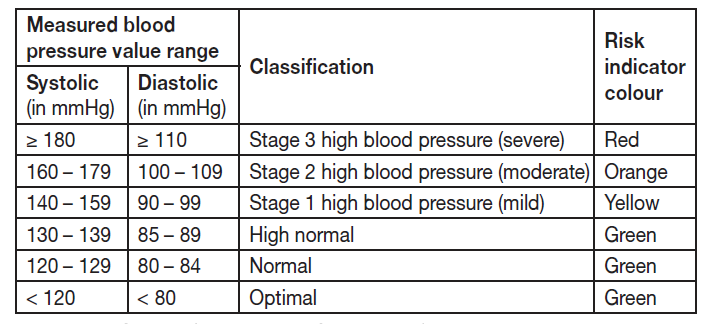

Risk indicator

The risk indicator (7/16) indicates which category the recorded blood pressure values fall into. If the measured values are in two different categories (e.g., systolic pressure in the “high normal” range and diastolic pressure in the “normal” range), the risk indicator always indicates the higher range, “high normal” in the example described. Note that these default values are for general guidance only, as individual blood pressures may vary. Please note that self-measurement at home usually results in values lower than those recorded at a doctor’s surgery. Consult your doctor at regular intervals. Only they can give you personal target values for controlled blood pressure, particularly if you are receiving medical therapy.

Low Blood Pressure

WARNING

Low blood pressure (hypotension) can be a health hazard and cause dizziness or fainting. Blood pressure is considered low if systolic and diastolic pressure are below 90/60 mmHg (source: National Health Service, 2023). Seek medical attention if you suddenly suffer from low blood pressure.

Displaying and Deleting Measured Values

User

The results of every successful measurement are saved with the date and time. If there are more than 60 saved measurements, the oldest measurement records are deleted.

• To clear individual measurements from the relevant user memory, you must first select a user memory.
• Using the memory button M1 or M2, select the desired user memory when the device is switched off.

If you have selected user memory 1, the M1 memory button must be pressed. If you have selected user memory 2, the M2 memory button must be pressed.

Average Value

Bluetooth® activated in the display: Measurement data is transferred automatically.

The average value symbol flashes:

The average value of all this user's saved measured values is displayed.

• Press M1/M2.

The morning average symbol flashes:

The average value of the morning measurements for the last 7 days is displayed (morning: 5:00–9:00).

• Press M1/M2.

The evening average symbol flashes:

The average value of the evening measurements for the last 7 days is displayed (evening: 18:00–20:00).

Individual Measured Values

1. If you press M1/M2 again, the last individual measurement is displayed.
2. If you press M1/M2 again, you can view the individual measured values.
3. Press the START/STOP button to switch the device off again.

Press the START/STOP button to exit the menu.

Deleting Measured Values

1. To delete all of a user's measured values, select the corresponding user. Start the retrieval of the average measured values. The average value symbol flashes on the display, and the average value of all this user's saved measured values is displayed.
2. Press and hold the memory button M1 or M2 for 5 seconds, depending on the user memory you are in.

The deletion confirmation appears on the display. All this user's values are deleted.

Deleting Individual Measurements

1. To clear individual measurements from the relevant user memory, you must first select a user memory.
2. Start the retrieval of the individual measured values.
3. Press and hold the memory button M1 or M2 for 5 seconds (depending on the user memory you are in).
4. The selected value is deleted. The device briefly displays the deletion confirmation.
5. If you would like to delete other values, repeat the process described above.

You can switch off the device at any time by pressing the START/STOP button.

Transfer of Measured Values

Transfer via Bluetooth®

• Download the free “beurer HealthManager Pro” app from the Apple App Store or Google Play.
• Activate Bluetooth® in your smartphone's settings.
• Start the app.
• Select BM 54 in the app and follow the instructions.

• A PIN code is displayed on the device when connecting for the first time. Enter the PIN code on the smartphone. After successfully entering the code, the device will be connected to your smartphone.

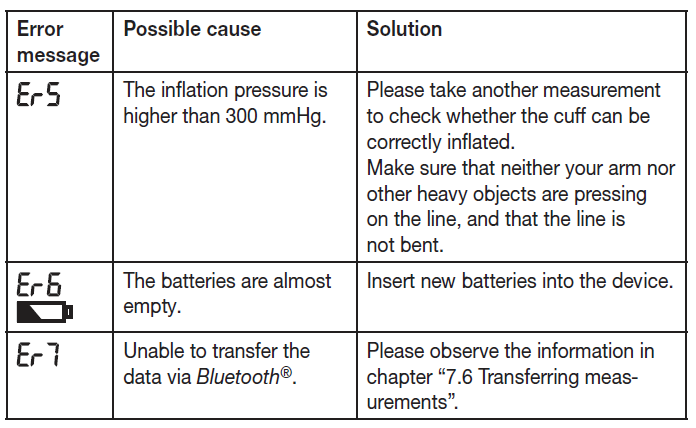

Troubleshooting — Common problems, error codes, and fixes for the BM 54

• Problem: Device shows “application error” or incorrect reading.

  Solution: Ensure cuff is placed on the upper arm at heart level, tighten but don’t overwrap the cuff, remain still and silent during measurement, avoid measuring immediately after exercise or caffeine intake; repeat measurement after 5 minutes.

• Problem: Irregular pulse/arrhythmia indicator displayed.

  Solution: The arrhythmia indicator warns of possible rhythm disturbances—record several measurements, consult a physician for ECG confirmation; do not rely solely on home BP devices for arrhythmia diagnosis.

• Problem: Bluetooth pairing or data sync fails.

  Solution: Confirm Bluetooth ≥4.0 on smartphone, enable Bluetooth and location permissions if required by OS, close and reopen the beurer HealthManager Pro app, remove and re-pair device in phone Bluetooth settings, ensure firmware/app are up to date.

• Problem: Low battery or device won’t power on.

  Solution: Replace all 4 AAA batteries with fresh alkaline batteries; check correct polarity; remove batteries for long storage; use high-quality batteries for optimal battery life (approx. 200 measurements per set).

• Error codes & indicators: The manual indicates specific symbols for low battery, application error, and cuff fit problems—refer to user manual diagrams for symbol definitions and follow the listed corrective steps (reposition cuff, check batteries, retry measurement).

• Preventive measures: Store the device in its pouch, avoid extreme temperatures, clean cuff surface with a damp cloth (no solvents), replace batteries before they fully deplete to avoid data loss, calibrate/validate against clinical measurement if readings seem inconsistent.





• Warranty & support: Beurer typically offers a 5‑year guarantee (region-dependent); for service or technical support contact Beurer customer service or your point-of-purchase; keep serial number and proof of purchase handy for warranty claims.

Pros & Cons — Balanced assessment of the beurer BM 54

• Pros — Clear strengths

  - Intuitive XL display and WHO traffic‑light risk indicator for immediate interpretation of BP results, helpful for users with limited technical confidence.

  - Bluetooth connectivity and the beurer HealthManager Pro app allow long‑term tracking, two user profiles, and exportable measurement logs for physicians

  - Universal cuff (22–44 cm) accommodates larger arms without requiring separate cuff purchases, increasing value for many household

  - Clinically validated accuracy and arrhythmia detection add diagnostic value beyond basic models

• Cons — Limitations to consider

  - Uses disposable AAA batteries rather than a rechargeable pack, so recurring battery replacement is required (battery life ~200 measurements).

  - Bluetooth setup may require troubleshooting for older smartphones or restrictive OS permissions; some users report occasional sync issues until pairing is correctly configured.

  - While accurate for home monitoring, device arrhythmia alerts are indicative only and not a replacement for clinical ECG; users must consult a clinician when alerts appear.

  - Compared with premium clinic-grade monitors, it lacks multi-cuff compatibility and some advanced cloud/clinic integrations.

• Value for money

  The BM 54 sits in the mid‑range category and offers strong value where wireless logging, two-user capability, and a wide-fitting cuff are priorities; buyers seeking the lowest-cost basic monitor or a rechargeable high-end system may prefer alternative models depending on priorities.

Customer Reviews — Typical user feedback for the beurer Upper Arm Blood Pressure Monitor BM 54

Overall user feedback highlights reliability, ease of use, and the convenience of Bluetooth syncing to the beurer app; many reviewers praise the XL display and the wide cuff fit for larger arms, and users appreciate the 2 × 60 memory feature for couples.

Common praises: consistent readings that match clinical values, straightforward app pairing after initial setup, and helpful traffic‑light risk indicator for quick interpretation.

Common complaints: occasional Bluetooth pairing issues on some phone models, the need to replace AAA batteries periodically, and reminders that arrhythmia detection is an indicator—not a diagnostic tool.

Representative ratings/testimonials: product listings and specification sheets indicate strong independent test results and favorable user scores in online retail channels; customers seeking reliable home monitoring and app history typically recommend the device

SEO & Keywords — Optimized headings and semantic terms for search

This manual has been optimized to naturally include the primary keyword beurer Upper Arm Blood Pressure Monitor BM 54 along with related phrases and long‑tail keywords such as Bluetooth blood pressure monitor, upper arm BP monitor 22–44 cm cuff, beurer HealthManager Pro app sync, arrhythmia detection home monitor, and traffic light risk indicator blood pressure to improve discoverability for users and voice search queries.

Need more help?

For official product documentation, full error‑code tables and latest firmware/app guidance refer to the Beurer product page or the supplied user manual. For warranty service and technical support, contact Beurer customer service in your region or the retailer where you purchased the unit; keep the device serial number and proof of purchase available for faster assistance.
