Setup: Motorola Corded Telephone Machine CT610 User Guide

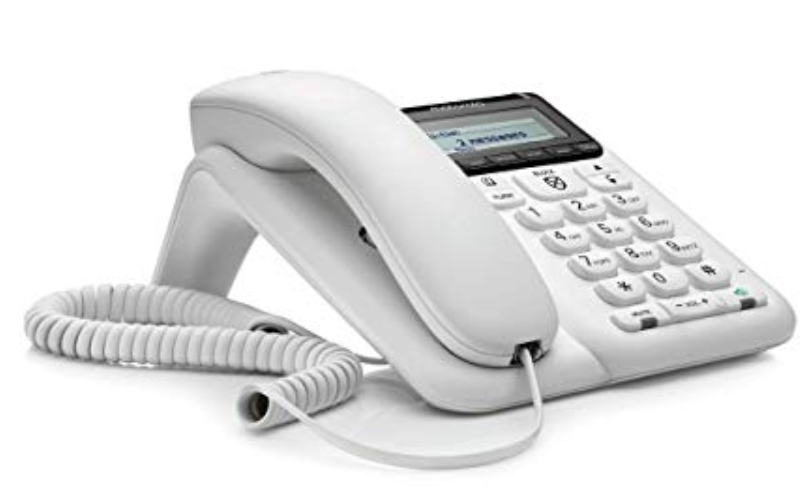

Motorola Corded Telephone Machine CT610

Introduction

The Motorola Corded Telephone Machine CT610 is a reliable and feature-rich landline phone designed to meet the communication needs of both home and office users. Launched in recent years, this phone has quickly gained popularity for its durability, clear sound quality, and user-friendly interface. The estimated price of the Motorola CT610 is around $50-$70, making it an affordable option for those seeking a dependable corded telephone.

This phone is ideal for individuals who prefer the simplicity and reliability of a corded connection over wireless or VoIP solutions. With its sleek design and robust build, the CT610 is suitable for high-traffic areas such as offices, reception desks, or busy households. It also features a built-in answering machine, allowing users to manage their calls and messages efficiently.

Detailed Specifications (Key Features)

• Full-duplex speakerphone for clear hands-free conversations
• Integrated digital answering machine with up to 20 minutes of recording time
• Large LCD with caller ID and call waiting
• Volume control and mute function
• Memory for up to 50 phonebook entries
• Redial and flash functions
• Wall-mountable design for flexible placement

Setting up your CT610

1. Once connected to the AC power, the setup wizard will then begin. Follow the prompts to finish set-up. To select OK, press the left soft key below the display.
   Set the time and date
2. Use the keypad to enter the time. The default time format setting is 12 hours, but you can change this to 24 hours under Time format in the Time & Date menu.
3. Press Next, then enter the date, in the format MM/DD/YYYY.
4. Press Save.
   Finish set-up
5. If you want to carry on using the set-up wizard, select Yes. If you don’t,  select No, and you can start using your phone straight away. You can change the settings in the menu later.
   Turn on Call blocking.g
6. The setup wizard will ask you to turn Call blocking on or off. When on, you can block unwanted calls. For more about this, see page 16.
7. To switch it on, press the left soft key button. To leave it off, select the right soft key button . You can turn it on later in the main menu.
   Note
   When Call blocking is switched on, you’ll see it on the top right-hand of the display.
   You need to have a Caller Display service from your network provider to use all the features available, e.g,. Call blockingcall lists,t and other CalleDisplay-enabled features. Charges may apply.
   Adding contacts
8.  Select Yes to add contacts now (or press the right option button to skip to the next step).
9.  Use the number buttons on the keypad to enter the name of a new contact. To select the correct letter, press the number button it appears on, e.g., for Emma, press twice and do the same thing to complete the rest of the name.

10.  When you’ve finished the name you want to save, press Next.

    Note
    If you make a mistake, go back a digit by selecting Clear.

11. Then use the keypad to enter the telephone number and press Save.
    To add another, select Yes and then repeat steps 9 to 11.
    Note
    If you have important numbers that will always need to get through, e.g., Doctors' surgery, National Floodline, Carer Line numbers, etc, make sure you’ve added them to your Contacts or Allowed list.
12.  If you don’t want to add more contacts now, select No to finish the set-up wizard. You can now start using your phone. To find out how to use the most popular features of your CT610, please read the rest of this user guide.
    Note
    Please note that if you have any other telephones connected to your telephone line, they may still ring, before the CT610 intercepts the call.

Getting to know your phone

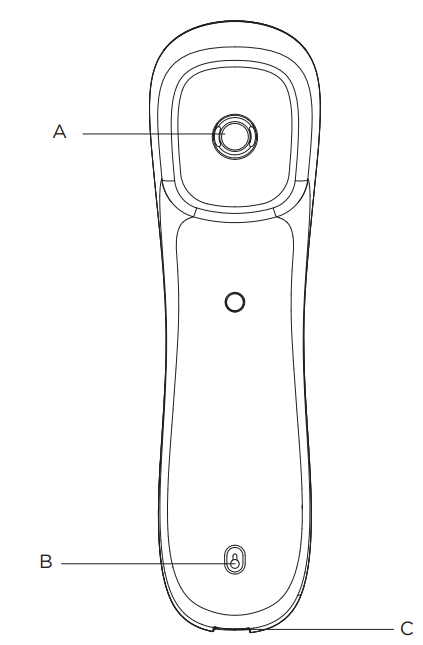

Overview of the handset

• A Earpiece
  To listen to your caller.
• B Microphone
  To speak to your caller.
• C Curly cord socket, where you plug in your curly cord.

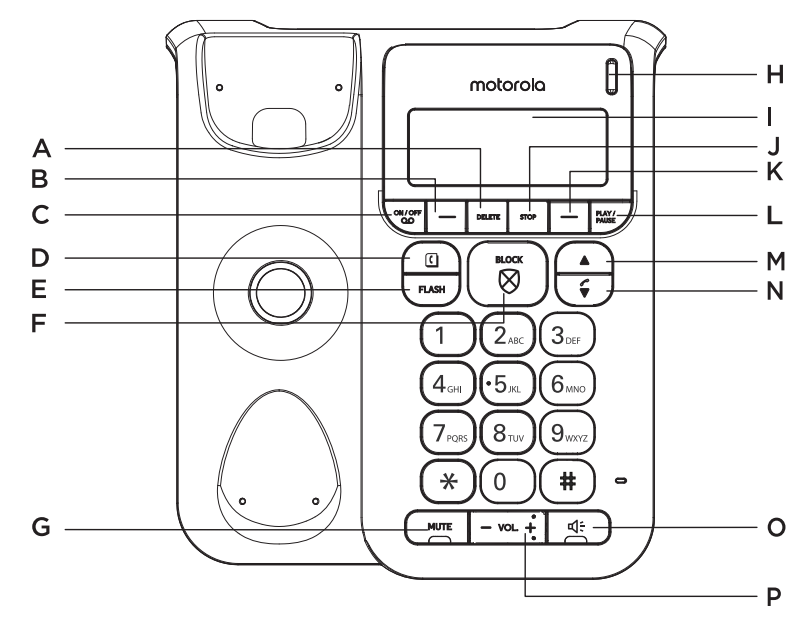

Overview of the base

• A Delete answer phone messages
  Press to exit the menu and return to standby. Delete answer phone messages.
• B Left soft key / Skip back
  Press to open the Menu.
  Skip backwards when playing messages on the answer phone.
• C Answer machine On/Off
  Switches the answering machine on/off.
• D Phonebook
  Press to open the phonebook.
• E Flash
  Use flash (F) functions.
• F Call Block
  One-touch call blocking and access to the call blocking features.
• G Mute
  During a call, press to turn mute on / off.
• H Ringer LED
  Red light flashes to indicate an incoming call.
• I Display
• J Stop
  Press to stop message playback.
• K Right soft key / Back / Skip forward Go back to the previous Menu level.
  Skip forward when playing messages on the answer phone.
• L Play / Pause
  Press to play recorded messages . Press again to pause message playback.
• M Up
  Press to scroll up through the Menu. Down / Call list
  Press to scroll up through the Menu.
  Press d to enter the Call list.
• N Hands-free volume up
  Activate and deactivate hands-free during a call.
• O Volume up / Volume down
  Increase and decrease the volume.

Save these instructions

Product disposal instructions

Product disposal instructions for residential users

• When you have no further use for it, please dispose of the product according to your local authority’s recycling processes. For more information, please contact your local authority or the Retailer where the product was purchased.
• Product disposal instructions for business users
• Business users should contact their suppliers and check the terms and conditions of the purchase contract , and ensure that this product is not mixed with other commercial waste for disposal.

Consumer Products and Accessories Warranty

• Thank you for purchasing this Motorola-branded product manufactured under license by Meizhou Guo Wei Electronics Co., Ltd., AD1 section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China. (“MZGW”)

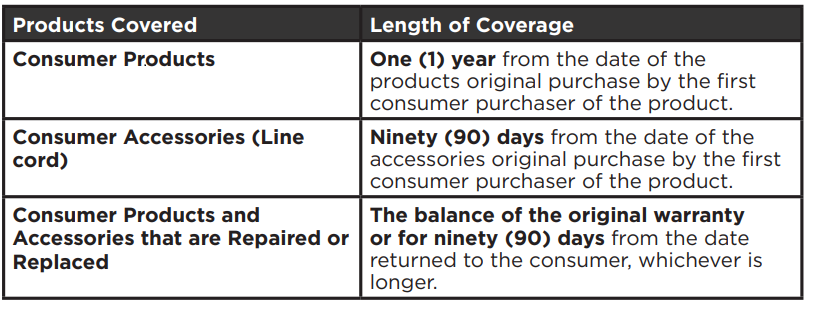

What Does this Warranty Cover?

• Subject to the exclusions contained below, MZGW warrants that this Motorola-branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product, which it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below. This Limited Warranty is your exclusive warranty and is not transferable.

Who is covered?
This warranty extends only to the first consumer purchaser, and is not transferable.

What will MZGW do?
MZGW or its authorized distributor, at its option and within a commercially reasonable time, will at no charge repair or replace any Products or Accessories that do not conform to this limited warranty. We may use functionally equivalent reconditioned/refurbished / pre-owned or new Products, Accessories,s or parts.

What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY.TY, OTHERWISE THE REPAIR OR REPLACEMENT PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED INSTEAD OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR MZGW BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF INFORMATION OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

• Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from one jurisdiction to another.

•

Exclusions

• Normal Wear and Tear. Periodic maintenance, repair, and replacement of parts due to normal wear and tear are excluded from coverage.
  Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage
  (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola or MZGW, are excluded from coverage.
• Use Non-Motorola-branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
• Unauthorized Service or Modification. Defects or damages resulting
  from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, MZGW, or its authorized service centers, are excluded from coverage.
• Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered,d or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming on-Motorola branded housings, or parts, are excluded from coverage.
• Communication Services. Defects, damages, or the failure of Products or Accessories due to any communication service or signal you may subscribe to or use with the Products or Accessories is excluded from coverage.

How to Obtain Warranty Service or Other Information?

• To obtain service or information, please call: 1-833-468-1468.
• You will receive instructions on how to ship the Products or Accessories at your expense and risk, to an MZGW Authorized Repair Center.
• To obtain service, you must include: (a) the Product or Accessory; (b) the original proof of purchase (receipt) which includes the date, place and seller of the Product; (c) if a warranty card was included in your box, a completed warranty card showing the serial number of the Product; (d) a written description of the problem; and, most importantly; (e) your address and telephone number.

Troubleshooting

If you encounter issues with your Motorola CT610, here are some common problems and their solutions:

• No Dial Tone: Check if the phone is properly connected to the wall jack and ensure that there is no issue with your landline service.
• Adjust the volume settings or check for any interference from other electronic devices.
• Ensure that the power adapter is plugged in and that the answering machine is set to record mode.

Always refer to the user manual for detailed troubleshooting steps and instructions.

Pros & Cons

Pros:

• Reliable corded connection with no need for battery recharging
• Clear sound quality and full-duplex speakerphone
• Integrated digital answering machine with ample recording time
• Easy-to-use interface with a large LCD
• Affordable price point compared to other feature-rich phones

Cons:

• Limited mobility due to being a corded phone
• No advanced features like VoIP or smartphone integration
• Dependence on landline service, which may be subject to outages
• No headset or Bluetooth connectivity options

Customer Reviews

Customers have generally praised the Motorola CT610 for its reliability, clear sound quality, and ease of use. Many users appreciate the built-in answering machine and the phone's overall durability. However, some users have noted the limitation of being a corded phone and the lack of advanced features compared to modern smartphones or VoIP phones.

Common complaints include issues with the answering machine's recording quality and occasional problems with the speakerphone's volume levels. Despite these minor issues, the majority of customers are satisfied with the performance and value offered by the Motorola CT610.
