Panasonic Garage Door Sensor KX-HNS107

Introduction

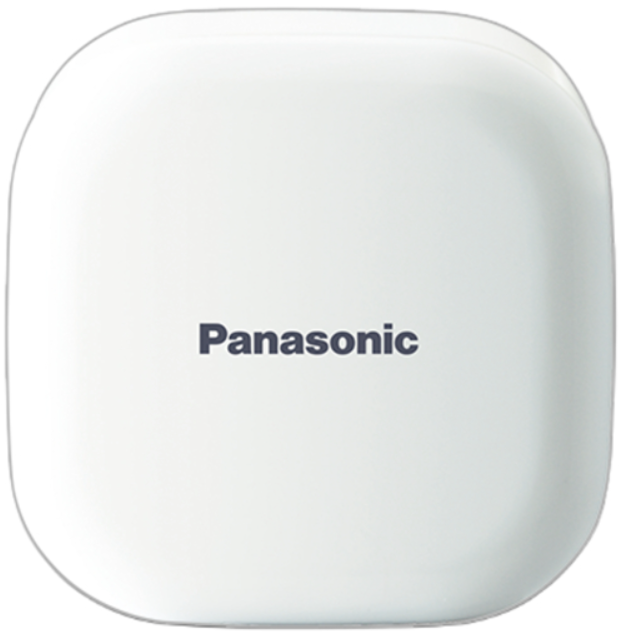

The Panasonic Garage Door Sensor KX-HNS107 is a smart, wireless device designed to enhance home security and convenience by monitoring the status of your garage door. As part of Panasonic’s Home Network System, this sensor provides real-time alerts to your smartphone or tablet, letting you know whether your garage door is open or closed—no matter where you are

Key benefits include remote monitoring, instant notifications, and seamless integration with other smart home devices. For example, the KX-HNS107 can trigger actions such as recording video or turning on lights when the garage door opens, adding an extra layer of security and automation to your home.. Its compact, battery-powered design ensures easy installation without the need for complex wiring.

This product is ideal for homeowners seeking peace of mind, especially those who often forget to close their garage or want to monitor access while away. It’s also a valuable addition for families with children or pets, and for anyone looking to build a connected, automated home environment. The Panasonic Garage Door Sensor KX-HNS107 must be used with the KX-HNB600 Hub (sold separately or included in Panasonic Home Monitoring Kits), making it compatible with a broader ecosystem of Panasonic smart home products..

While official pricing may vary by region and retailer, the KX-HNS107 typically falls in the mid-range for smart garage door sensors. Availability can be checked through Panasonic’s official channels and authorized dealers, though it may be listed as discontinued in some markets..

With its user-friendly setup, reliable performance, and integration capabilities, the Panasonic Garage Door Sensor KX-HNS107 stands out as a practical and affordable solution for modern home security needs.

Setup

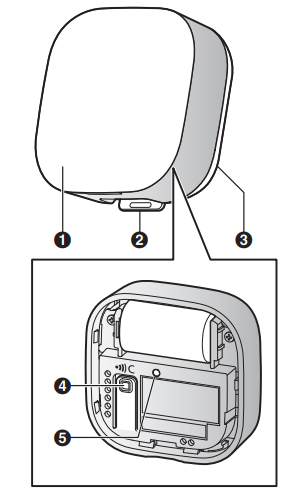

Part names and functions

1. Front cover
2. Mounting adaptor release lever
3.  Mounting adaptor
4.
5. Used to confirm the status of the sensor or register the sensor to the hub.
6. LED indicator

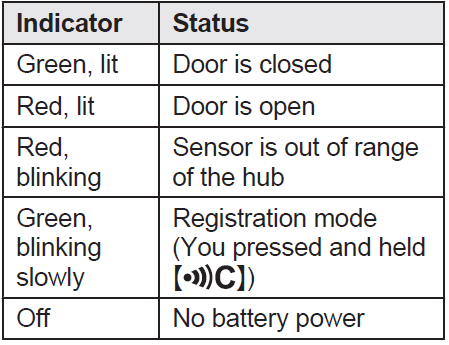

LED indicator
You can press and check the LED indicator to confirm the sensor’s status. After confirming the sensor’s status, we recommend turning the LED indicator off by pressing the gain as soon as possible; otherwise,, battery life may be reduced.

Note:
The LED indicator does not indicate sensor status if the sensor has not been registered (page 10).

Setup overview

1. Initial setup
2. Make sure you can access the system using your mobile device. For details, refer to the System Setup Guide included with your hub.
3. Insert the battery
   The sensor is battery-powered.
4. Registration
   Required only if the sensor was purchased separately (i.e., not as part of a bundle).
5. Confirm the installation area..Read the information in this document to confirm that the desired installation area is suitable for proper operation..

Installation

Install the sensor in the desired location.

Inserting the battery

Use ONLY a CR2 Lithium battery. R Confirm the polarities (+ ,- ).

1. Remove the front cover.

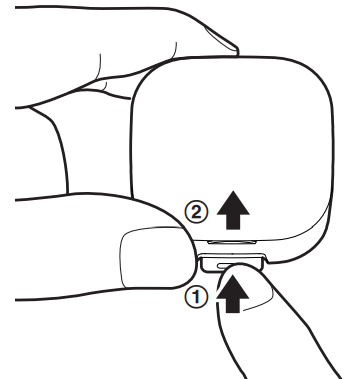

   Lift from the indented area (1) and remove the cover (2).

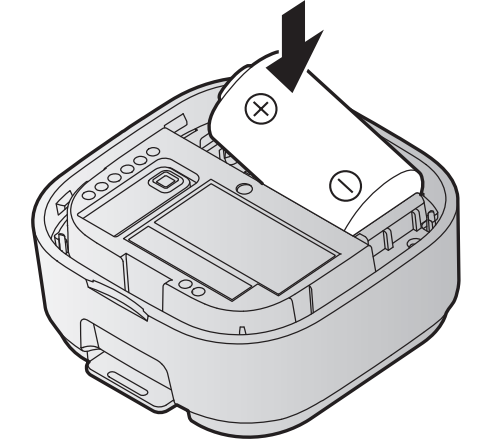

2. Insert the battery.
3. Attach the front cover.

Replacing the battery

Use this procedure when replacing the battery after installation.

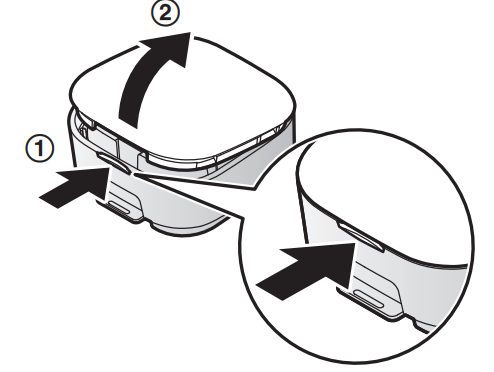

1. Remove the sensor from the mounting adaptor by pressing the release lever, sliding the sensor up, and lifting it away from the mounting adaptor.
2. Remove the front cover.
3. Replace the battery with a new one.
4. Attach the front cover.
5. Attach the sensor to the mounting adaptor.
6. The sensor will click into place when it is secured.
7. Make sure the “UP” mark on the back of the sensor and the inside of the mounting adaptor point in the same direction.

Registering the sensor

• This procedure is not required for devices that were included as part of a bundle.
• Before you can use the sensor, it must be registered with the hub.
• If you purchased devices separately (i.e., not as part of a bundle), you must register each device to the hub.
• You can register each device by using the registration buttons or the [Home Network] app.

Using registration buttons

1. Hub:
   Press and hold OTHER DEVICEN until the LED indicator blinks slowly in green.
2. Sensor:
   Remove the front cover, and then press and hold until the LED indicator blinks slowly in green (page 8).
   When registration is complete, the hub sounds one long beep.
   Note:
   To cancel without registering the sensor, press on the hub and on the sensor again.
   If registration fails, the hub sounds several short beeps.

Using the app
When you register the sensor by using the [Home Network] app, you can assign it a name and location. For more information, refer to the User’s Guide (page 16).

Information about sensor features

The garage door sensor utilizes an accelerometer to detect its orientation. Please read the following information before deciding where to install the garage door sensor.

Note:

• The sensor is not designed to be used in situations that require high reliability. We do not recommend d the use of the sensor in these situations.
• Panasonic takes no responsibility for any injury or damage caused by the use of the garage door sensor.

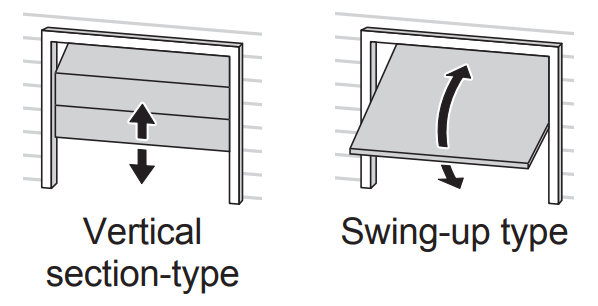

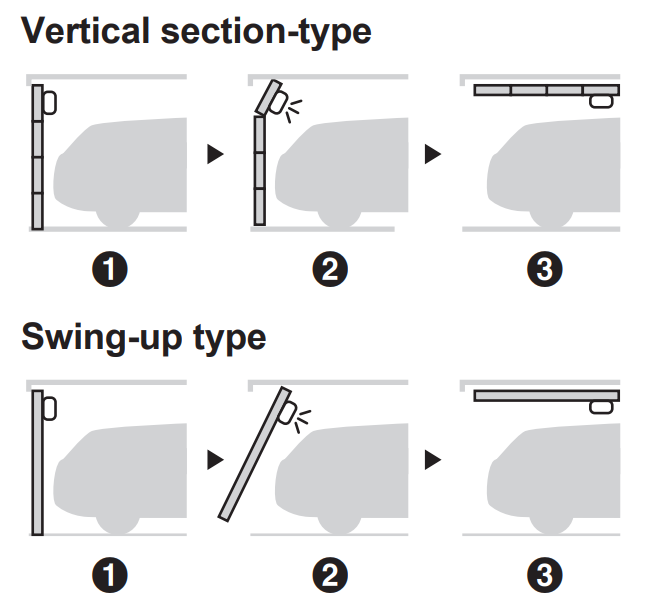

Compatible garage doors

How an open door is detected
The sensor is installed by mounting it to the interior side of your garage door. It should be mounted in such a way that it is perpendicular to the ground when the garage door is closed, and is tilted when the garage door is opened. When the garage door has opened far enough to tilt the sensor beyond the detection threshold (page 17), the sensor is triggered.

Note:
The sensor is not triggered if the door is opened slightly.

1. Door closed
2. As the door opens, the sensor is triggered
3. Door fully open

Confirming the usage area

Wireless communication range
The wireless communication range of each device in the system from the hub is approximately 50 m (160 feet) indoors and approximately 300 m (1,000 feet) outdoors. Wireless communication may be unreliable when the following obstacles are located between the hub and other devices.

• Metal doors or screens
• Walls containing aluminum-sheet insulation
• Walls made of concrete or corrugated iron
• Double-pane glass windows
• Multiple walls
• When using each device on separate floors or in different buildings

Note:
You can check the sensor’s communication status by pressing.  I the LED indicator is lit in green or red, the sensor is communicating properly with the hub. If the LED indicator blinks in red, it is out of range of the hub.

Usage area cautions
Using the sensor in the following areas may cause deformation, malfunction, or operational failure.

• In direct sunlight
• Areas exposed to grease or steam, such as kitchens
• Near fire or heating devices
• Near magnetic fields (such as near microwaves and magnets) R,, Areas subject to extreme temperature changes, such as next to air conditioners

Mounting the sensor

In most cases, you can mount the sensor to the garage door using double-sided tape. In some cases, such as when mounting the sensor to a wooden surface, you can use screws.

Installation precautions

• Observe the following to avoid the risk of falling, which could cause injury or damage to property.
• Mount the sensor on a stable surface where the sensor will be adequately supported.
• Do not mount the sensor on plywood less than 25.4 mm (1 inch) thick.
• Install the sensor on the inside of he garage door.

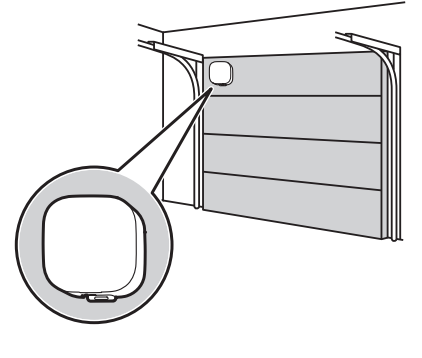

• Mount the sensor near the top of the garage door. Additionally, we recommend mounting the sensor near the left or right edge of the garage door, so that the sensor is not directly above the car when the garage door is open.

Securing with double-sided tape

Important:

• Make sure the surfaces of the mounting adaptor and the installation area of the garage door are clean and dry before applying double-sided tape. Take particular care to remove any oil or grime that has accumulated on the garage door.
• Install the sensor on a smooth area of the garage door. Ideally t,,  here should be no pits or grooves deeper than 0.5 mm (0.02 inches).
• Once you have used the double-sided tape, do not reuse it.  When mounting the sensor in cold temperatures, observe the following to ensure optimal adhesion.
• Affix the double-sided tape to the mounting adaptor indoors, when the tape and the adaptor are at room temperature.
• Use a hair dryer or other low-heat emitting device to warm the installation surface of the garage door immediately before adhesion; otherwise,, adhesion may be poor and the sensor may fall.
  1. Make sure that the front cover and the mounting adaptor are firmly attached to the sensor.

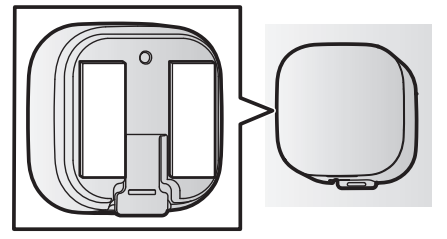

  2. Affix the double-sided tape to the mounting adaptor.
     Make sure the tape covers the screw holes on the mounting adaptor.
  3. Attach the sensor to the inside of the garage door.
     Make sure the mounting adaptor release lever is facing down when the garage door is closed.
  4. Press firmly to ensure solid adhesion to the installation surface.

Removing when secured with double-sided tape

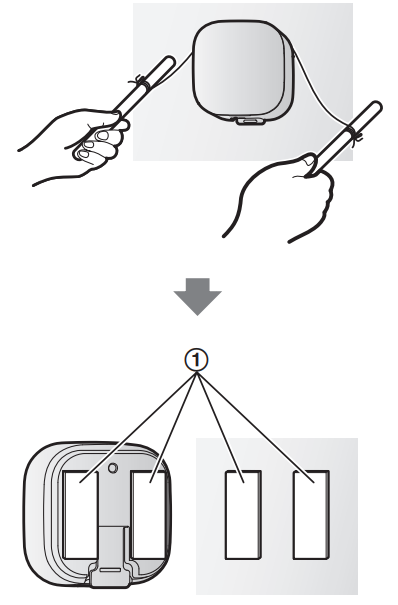

1. Tie a piece of thread to two sticks, screwdrivers, etc.
2. Pull the thread tight and use it to cut the double-sided tape, and then remove any excess tape (A).

Securing with screws

Important:
Make sure the screws are shorter than the thickness of the installation surface.

1.  Remove the sensor from the mounting adaptor by pressing the release lever (A), sliding the sensor u,,p and lifting it away from the mounting adaptor (B).

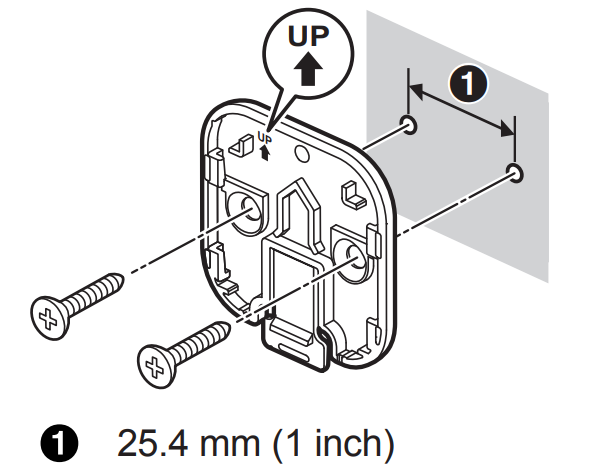

2. Use the screws to attach the mounting adaptor to the inside of the garage door.
   Make sure the “UP” mark on the mounting adaptor points upwards when the garage door is closed.

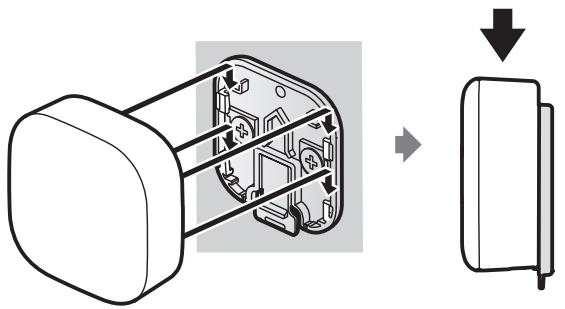

3. Attach the sensor to the mounting adaptor.
   1. The sensor will click into place when it is secured.
   2. Make sure the “UP” marks on the back of the sensor and the inside of the mounting adaptor point in the same direction.

Specifications

• Standards
• DECT (Digital Enhanced Cordless Telecommunications)
• Frequency range
  DECT: 1.92 GHz – 1.93 GHz
• RF transmission power
  DECT: 115 mW (max.)
• Power source
• Lithium battery CR2 (CR15H270) (1 ´ 3.0 V, 850 mAh)
• Battery life
  Up to 18 months (when the sensor is triggered 5 times a day and the surrounding temperature is approx.25 °C (77 °F))
• Detection method
  3-axis accelerometer
• Operating conditions
  -20 °C – 50 °C (-4 °F – 122 °F)
• Detection threshold
  When opening the door: Approx. 26°
  When closing the door: Approx. 20°
• Dimensions
  (height ´ width ´ depth) 50 mm ´ 50 mm ´ 24 mm (1 31/32 inches ´ 1 31/32 inches ´15/16 inches) with the mounting adaptor attached
• Mass (weight)
  Approx. 30.3 g (1.07 ounces), excluding the battery, with the mounting adaptor attached

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace,, or refund will be made by the warrantor.

• During the “Labor” warranty period,, od there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States.
• This warranty is extended only to the original purchaser of a new product that was ot sold “as is”.
• Mail-In Service--Online Repair Request
• Online Repair Request
• To submit a new repair request and for quick repair status,, visit our website at
• When shipping the unit, carefully pack, include all supplied accessories listed in the Owner’s Manual, and send it prepaid, adequately insured,, anwell-packedll in a carton box. When shipping Lithium Ion batteries, please visit our website. Panasonic is committed to providing the most up-to-date information. Include a letter detailing the complaint, a return address,, and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.
• IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID, ID, AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

• This warranty ONLY COVERS failures due to defects in materials or workmanship,  and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty  ALSO DOES NOT COVER damages which occurred in shipment, or failures whic re caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business r rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.
• THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER  “LIMITED WARRANTY COVERAGE”.
• THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT  OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, travel to and from the servicer,  loss of or damage to media or images, data ,   or other memory or recorded content.
• The items listed are not exclusive, but for illustration only.)
• ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
• Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legalrightss,,s and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Troubleshooting Common Issues with the Panasonic Garage Door Sensor KX-HNS107

Even reliable devices like the Panasonic Garage Door Sensor KX-HNS107 can encounter occasional issues. Below are common problems, their solutions, and tips to keep your sensor running smoothly.

Common Problems and Solutions

• Sensor Not Detecting Door Status: Ensure the sensor is mounted securely and perpendicular to the ground, as it uses an accelerometer (gyroscopic sensor) to detect orientation. Reposition if necessary.
• No Notifications Received: Verify that the sensor is properly paired with the KX-HNB600 Hub and that your smartphone app notifications are enabled. Check internet connectivity and hub status.
• Battery Life Issues: The sensor is battery-operated; replace the battery if performance drops. Use high-quality batteries for longer life.
• Connectivity Problems: Move the hub and sensor closer to reduce interference. Avoid placing them near large metal objects or other wireless devices.

Error Codes and Fixes

While the KX-HNS107 does not display error codes on the device itself, connectivity or pairing issues may appear in the companion app. Consult the app’s help section or the installation manual for specific guidance..

Preventive Measures

• Regularly check battery levels and replace as needed.
• Keep firmware and app software up to date.
• Ensure the sensor and hub are within the recommended range.

Pros and Cons of the Panasonic Garage Door Sensor KX-HNS107

Advantages

• Remote Monitoring: Check garage door status from anywhere using your smartphone
• Smart Home Integration: Triggers other devices like lights or cameras for enhanced security
• Easy Installation: Wireless, battery-powered design with simple mounting options
• Reliable Detection: Uses an accelerometer for accurate door position sensing
• Peace of Mind: Alerts you if the garage door is left open, reducing security risks.

Disadvantages

• Hub Required: Must be used with the KX-HNB600 Hub, sold separately
• Battery Maintenance: Regular battery replacement is necessary.
• Limited Range: Performance may degrade if the sensor is too far from the hub.
• Discontinued in Some Markets: May be harder to find or support in certain regi..ons

Value for Money: The Panasonic Garage Door Sensor KX-HNS107 offers solid functionality at a reasonable price, especially when bundled with other Panasonic smart home products. However, buyers should compare with newer, hub-free alternatives for the latest features.

Customer Reviews and Feedback for the Panasonic Garage Door Sensor KX-HNS107

Users generally praise the Panasonic Garage Door Sensor KX-HNS107 for its reliability and ease of use. Many highlight the convenience of receiving instant alerts when the garage door is left open, which has helped prevent potential security issues. The simple installation process and integration with other Panasonic smart home devices are also frequently mentioned positives.

Common complaints include the need for a separate hub, occasional connectivity issues, and the inconvenience of battery replacement. Some users note that the sensor is now discontinued, which may affect long-term support and availability.

Star ratings from various tech forums average around 4 out of 5, reflecting a good balance of performance and value. Testimonials often recommend the KX-HNS107 for those already invested in the Panasonic ecosystem, but suggest newer, standalone sensors for users seeking the latest technology.

If you frequently forget to close your garage or want to monitor access remotely, the Panasonic Garage Door Sensor KX-HNS107 is a solid choice—just be aware of its hub requirement and check local availability before purchasing.
