Panasonic Home Monitoring Shelf Camera KX-HNC810

Introduction

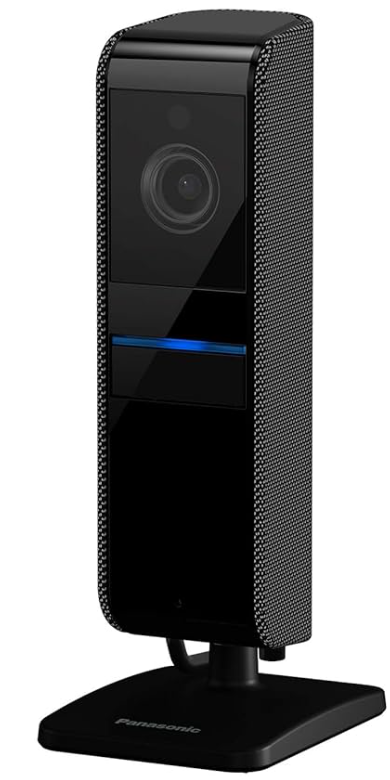

The Panasonic Home Monitoring Shelf Camera KX-HNC810 is a sleek, versatile indoor security camera designed to enhance home monitoring with advanced smart features. Perfect for homeowners, renters, and small business operators, this camera blends seamlessly into home decor thanks to its shelf-friendly design while delivering high-definition video surveillance. It offers users peace of mind through real-time monitoring, intelligent motion detection, and two-way communication, making it ideal for keeping an eye on loved ones, pets, or valuable possessions.

Equipped with a 1080p HD image sensor and a wide 120-degree viewing angle, the KX-HNC810 captures clear, detailed footage both day and night, supported by its excellent infrared night vision capabilities. It also includes smart sensors for motion, sound, and temperature, which enable proactive alerts and customized monitoring modes such as Away, Home, and Basic. Integration with voice assistants like Amazon Alexa and Google Assistant further enhances convenience, allowing voice control and easy access to live feeds.

Available in major markets with an estimated price range of approximately $120 to $150 USD, the camera is accessible through online retailers and authorized Panasonic dealers. Its compatibility with the HomeHawk app ensures seamless remote viewing and management via smartphones or tablets. The Panasonic Home Monitoring Shelf Camera KX-HNC810 is a compelling choice for users seeking a reliable, feature-rich indoor security solution designed for flexible placement and intelligent home protection.

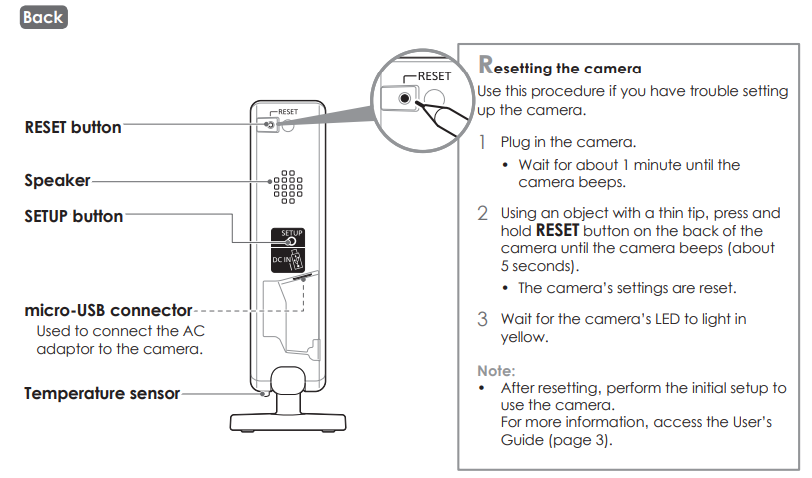

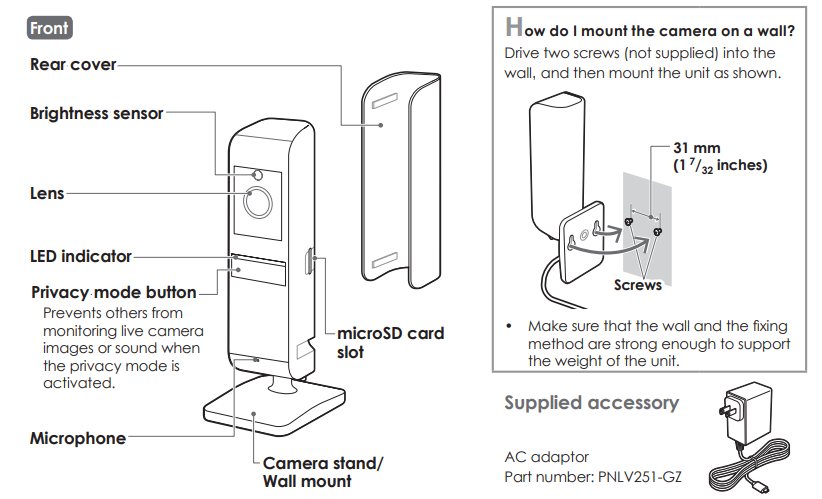

Part names and functions

About this system

• Panasonic will not be held responsible in the event that property loss occurs while this system is in operation.
• This product should not be used as substitute  for a medical or caregiver’s supervision. It is the caregiver’s responsibility to stay close enough to handle any eventuality.
• The system’s wireless features are subject to interference‚ therefore functionality in all situations cannot be guaranteed.
• Privacy and rights of portrait
• Please take into consideration the rights of others’ privacy. Generally said that “privacy” means the ability of an individual or group to stop information about themselves from becoming known to others. “Rights of portrait” means the right to be safe from having your own image taken and used indiscriminately without consent.

Security cautions

• Take appropriate measures to avoid the following security breaches when using this product.
• Leaks of private information
• Unauthorized use of this product
• Unauthorized interference or suspension of the use of this product
• Configure the wireless router that connects your mobile device to this product to use encryption for all wireless communication.
• Do not use the default password continuously. Change it to your own setting and set new one periodically. Do not use passwords that could be easily guessed by a third party. If you keep a record of your passwords‚ protect that record.
• If you lose your mobile device‚ change the password used to access this product.
• If you enable the product’s auto login feature‚ enable the screen lock or similar security feature on your mobile device.
  Performing the reset will delete all information. To avoid losing your previous setting‚ we recommend to write down the information.
• To prevent disclosure of personal information‚ enable the screen lock or similar security feature on your mobile device.
• When submitting the product for repair‚ make a note of any important information stored in the product‚ as this information may be erased or changed as part of the repair process.
• Use only trusted repair services authorized by Panasonic.
• Before disposing of the product‚ perform a factory data reset to erase any data stored in the product. Remove and erase the microSD card.
• If your mobile device will no longer be used with the product‚ delete your mobile device’s registration from the product and delete the corresponding app from your mobile device.
• This product may be used in ways that violate the privacy or publicity rights of others. You are responsible for the ways in which this product is used.
• For your safety
  To prevent severe injury and loss of life/property‚ read this section carefully before using the product to ensure proper and safe operation of your product.

 WARNING

Power connection

• Use only the power source marked on the product.
• Do not overload power outlets and extension cords. This can result in the risk of fire or electric shock.
• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust‚ etc. from the AC adaptor/power plug by pulling it from the power outlet‚ then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture‚ etc. resulting in a fire.
• Unplug the product from power outlets if it  emits smoke‚ an abnormal smell‚ or makes  an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke  has stopped emitting and contact us
• Unplug from power outlets and never touch the inside of the product if its casing has been broken open. Danger of electric shock exists.
• Never touch the plug with wet hands. Danger of electric shock exists.
• Do not connect non-specified devices. Operating safeguards
• Unplug the product from power outlets before cleaning. Do not use liquid or aerosol cleaners.
• Do not disassemble the product.
• Never put metal objects inside the product. If metal objects enter the product‚ turn off the circuit breaker and contact an authorized service center.
• Keep small parts‚ such as microSD cards‚ out of the reach of children. There is a risk of swallowing.

Medical

• Consult the manufacturer of any personal medical devices‚ such as pacemakers or hearing aids‚ to determine if they are adequately shielded from external RF (radio frequency) energy. Wireless LAN features operate between the frequencies listed below‚ with a peak transmission power of 100mw:
  • 2.412 GHz – 2.462 GHz
  • 5.180 GHz – 5.320 GHz
  • 5.500 GHz – 5.700 GHz
  • 5.745 GHz – 5.825 GHz
• Do not use the product in Healthcare facilities if any regulations posted in the area instruct you not to do so. Hospitals or Healthcare facilities may be using equipment that could be sensitive to external RF energy.
• CAUTION

Installation and location

• Never install wiring during a lightning storm.
• The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.
• Mount the product on the stable location where the camera can be adequately supported when installing.
• Do not mount the product on soft material. It may fall down‚ break or cause injury.
• Do not mount the product on the following materials: gypsum board‚ ALC (autoclaved lightweight cellular concrete)‚ concrete block‚ plywood less than 25 mm (1 inch) thick‚ etc.

For best performance
Product location/avoiding noise

• This product uses radio waves to communicate with a wireless router.
• For maximum coverage and noise-free communications‚ place this product:
• at a convenient‚ high‚ and central location with  no obstructions between this product and the wireless router.
• away from electronic appliances such as TVs‚ radios‚ personal computers‚ wireless devices‚ or other phones.
• facing away from radio frequency transmitters‚ such as external antennas of mobile phone cell stations (Avoid putting this product on a bay window or near a window.)
• Coverage and transmission quality depends on the local environmental conditions.
• If the transmission quality is not satisfactory‚ move this product to another location.

Environment

• Keep the product away from electrical noise generating devices‚ such as fluorescent lamps and motors.
• The product should be kept free from excessive smoke‚ dust‚ high temperature‚ and vibration.
• Do not expose this product to direct sunlight or other forms of powerful light such as halogen lights for long periods of time. (This may damage the image sensor.)
•  Do not place heavy objects on top of the product.
• When you leave the product unused for a long period of time‚ unplug the product from the power outlet.
• The product should be kept away from heat  sources such as heaters‚ kitchen stoves‚ etc.
• It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided.
• The maximum communication range may  be shortened when the product is used in the following places: Near obstacles such as hills‚ tunnels‚ underground‚ near metal objects such as wire fences‚ etc.
• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine‚ thinner‚ or any abrasive powder.

Camera image quality

• Camera image and its quality may be affected on the mobile device based on surroundings such as lighting‚ brightness of the room.

Protecting your recordings

• Do not remove the microSD card or disconnect the product’s AC adaptor while reading or writing data to the microSD card. Data on the card could become corrupted.
• If a microSD card malfunctions or is exposed to  electromagnetic waves or static electricity‚ data on the card could become corrupted or erased. Therefore we recommend backing up important data to a computer or other device.

Notice for product disposal‚ transfer‚ or return

• This product can store your private/confidential information. To protect your privacy/confidentiality‚ we recommend that you erase information from the memory before you dispose of‚ transfer‚ or return the product.

Specifications

• Standards: IEEE 802.11a/b/g/n
• Frequency range: 2.412 GHz – 2.462 GHz (channels 1 – 11) / 5.180 GHz – 5.320 GHz (channels 36–64) / 5.500 GHz – 5.700 GHz (channels 100–140) / 5.745 GHz – 5.825 GHz (channels 149–165)
• RF transmission power: 100 mW (peak transmission power)
• Encryption: WPA2™-PSK (TKIP/AES)‚ WPA™-PSK (TKIP/AES)‚ WEP (128/64 bit)
• Power source: 120 V AC‚ 60 Hz
• Power consumption: Standby: 3.6 W / Maximum: 6.3 W
• Operating conditions: 0 °C – 40 °C (32 °F – 104 °F) / 20 % – 80 % relative air humidity (dry)
• Resolution: 1920 x 1080 pixel (Full HD)‚ 1280 x 720 pixel (HD)‚ 640 x 480 pixel (VGA)
• Image sensor: 2.0 megapixel CMOS
• Minimum illuminance required*1: 0 lx
• Focal length: Fixed (0.2 m (8 inches) – infinity)
• Camera field of view: Diagonal 140°
• microSD card:
• Type: microSDHC card (4 GB - 32 GB)‚   microSDXC card (64 GB - 256 GB)
• Speed: Class10‚ or UHS Speed Class 1 or higher
• Motion detection method: Visual sensor
• Adjustable mounting angles: Vertical: facing forward - facing down‚ approx. +90° to -40°
• Dimensions (height × width × depth): Approx. 140 mm × 50 mm × 64 mm (5 33/64 inches × 1 31/32 inches ×  2 33/64 inches)
• Mass (weight): Approx. 180 g (0.39 lb)
• The infrared LEDs that surround the camera lens  will illuminate in low-light conditions.

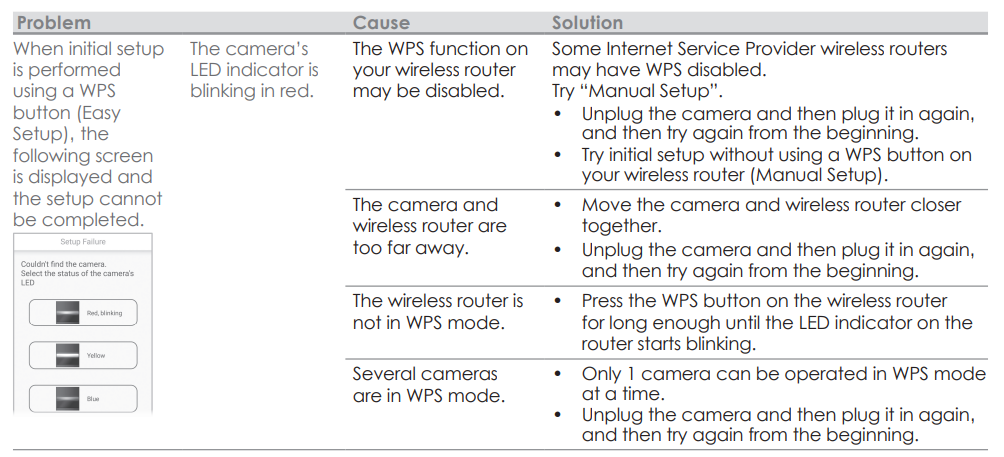

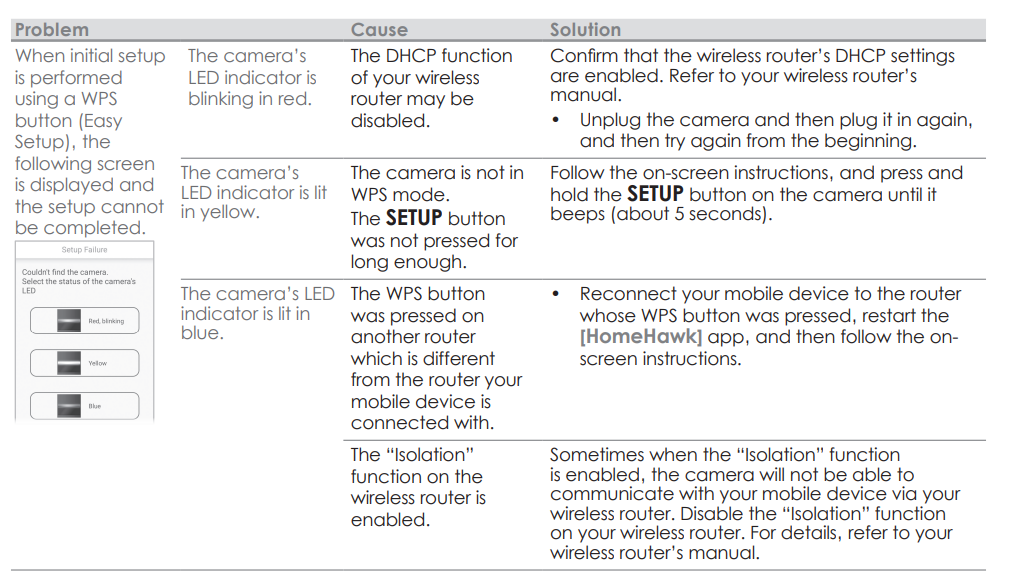

Troubleshooting (Initial setup by Easy Setup)

What is WPS?
WPS is a function of wireless routers that is used to easily connect wireless devices to wireless routers.

A WPS button on a wireless router indicates that it has the WPS function. (Depending on the type of wireless router‚ the WPS function may be disabled on the wireless router even if there is a WPS button.)
If you have trouble during the initial setup‚ check the following causes/solutions fi rst‚ and then turn off the camera and restart it.

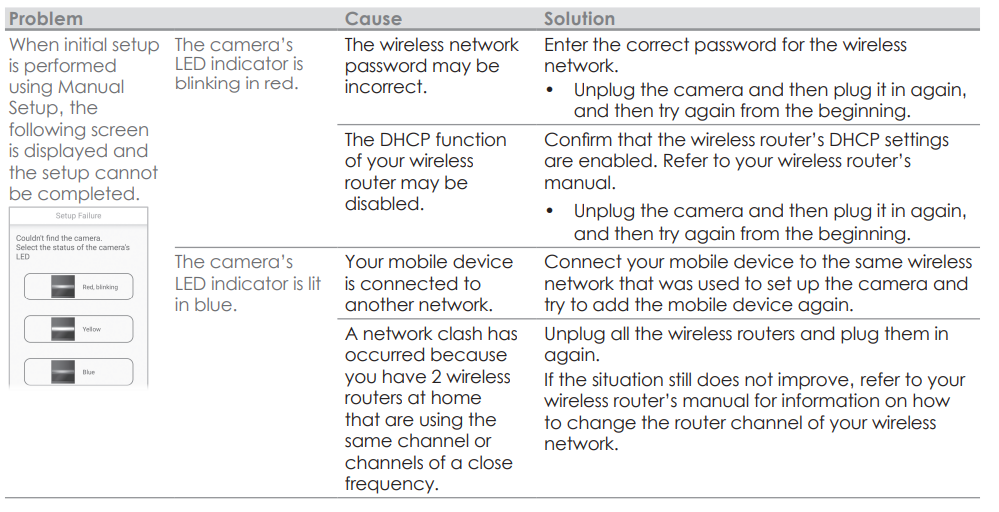

Troubleshooting (Initial setup by Manual Setup)

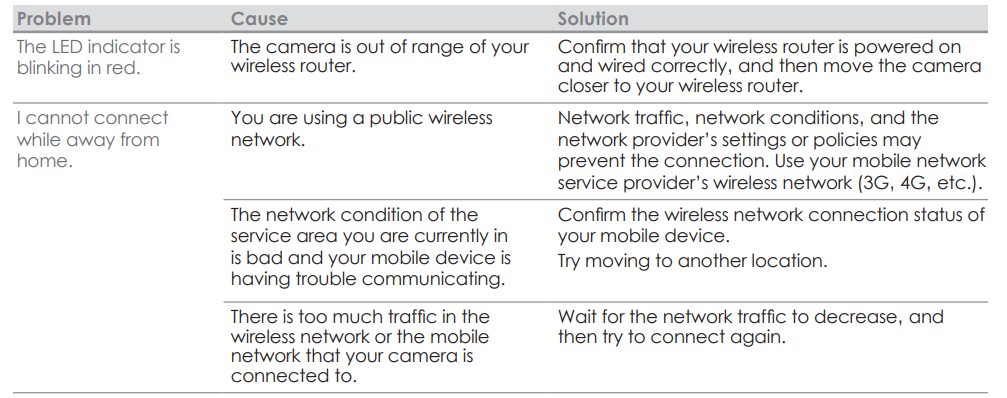

Troubleshooting (Connection)

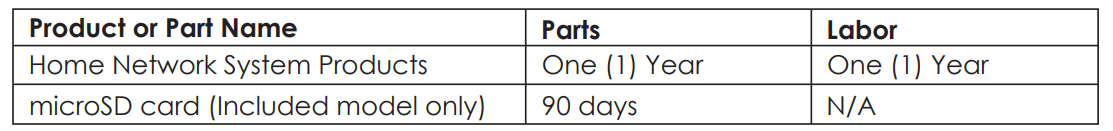

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,(b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Pros & Cons of the Panasonic Home Monitoring Shelf Camera KX-HNC810

Pros

• High-definition video quality: Provides clear 1080p HD resolution for detailed indoor surveillance.
• Wide viewing angle: Approximately 120 degrees coverage reduces blind spots, ideal for monitoring larger rooms.
• Multi-sensor detection: Motion, sound, and temperature sensors enhance event detection accuracy and alert customization.
• Two-way communication: Built-in microphone and speaker support real-time interaction through the HomeHawk app.
• Smart home integration: Compatible with Amazon Alexa and Google Assistant for voice commands and smart control.
• Privacy mode: Allows users to disable video and audio recording when desired, ensuring control over monitoring.

Cons

• No continuous recording: Records only when motion or sound is detected, which may miss some events unless cloud or SD card storage is used.
• Limited outdoor use: Not waterproof; designed strictly for indoor shelf or wall mounting.
• App dependency: Full functionality requires the HomeHawk app, which may have occasional connectivity or interface limitations.
• Price considerations: Slightly higher priced compared to basic indoor cameras but justified by advanced sensor features and smart integrations.

Compared to similar indoor cameras like those from Arlo or Ring, the Panasonic KX-HNC810 stands out for its integrated temperature sensor and privacy mode, providing a more holistic home monitoring experience, though it lacks continuous recording found in some competitors.

Customer Reviews of the Panasonic Home Monitoring Shelf Camera KX-HNC810

Users generally praise the Panasonic Home Monitoring Shelf Camera KX-HNC810 for its crisp HD video and intuitive HomeHawk app interface, with star ratings commonly around 4 to 4.5 out of 5. Customers appreciate the wide-angle lens that effectively covers entire rooms and the clear night vision performance. Many highlight the convenience of two-way audio for communicating with family members or pets remotely.

Common compliments include the camera’s discreet shelf design and the effective multi-sensor alert system that reduces false alarms by combining motion, sound, and temperature triggers. Several reviews recommend the camera for families and small business owners seeking dependable indoor monitoring.

However, some users report occasional app connectivity issues and desire more flexible recording options beyond motion-triggered capture. A few mention the price as slightly premium but acknowledge the value brought by smart home compatibility and privacy features. Overall, the consensus supports the Panasonic KX-HNC810 as a solid, reliable indoor security camera worth considering for comprehensive home protection.
