Panasonic Vacuum Cleaner MC-UL671

Introduction

The Panasonic Vacuum Cleaner MC-UL671 is a powerful and versatile bagless upright vacuum designed to provide efficient cleaning for both carpets and bare floors. With its robust 12-amp motor and advanced HEPA filtration system, this vacuum ensures a clean and healthy environment by capturing 99.97% of dust, pollen, and other allergens as small as 0.3 microns. Key features include automatic height adjustment, a 15-inch powerhead, and onboard attachments such as an extension wand, crevice tool, and dusting brush. The MC-UL671 is ideal for homeowners seeking a reliable and easy-to-use vacuum for daily cleaning tasks.

This model is particularly suited for those who value ease of use and comprehensive cleaning capabilities. Priced competitively between $55 and $80, the Panasonic MC-UL671 offers excellent value for money, making it accessible to a wide range of consumers. It is readily available at various online retailers and in-store locations.

Specifications of the Panasonic Vacuum Cleaner MC-UL671

The following are the key specifications of the Panasonic MC-UL671:

• Motor Amperage: 12.0 Amps
• Motor Protection System: Yes
• Nozzle Size: 15 inches
• Agitator Type: Plastic
• Automatic Height Adjustment: Yes
• Edge Cleaning: Dual
• Attachments Included: Extension Wand, Crevice Tool, Dusting Brush, Air Turbine Brush
• Cord Length: 24 feet
• Handle Type: Ergonomic and Telescopic
• HEPA Filter: MC-V199H
• Weight: 24 lbs

Compared to similar models like the Panasonic MC-UL810, the MC-UL671 offers a more powerful motor and a larger powerhead, making it more effective for larger spaces.

IMPORTANT SAFETY INSTRUCTIONS

When using your vacuum cleaner, basic precautions should always be followed, including the following:
Read all instructions in this manual before assembling or using your vacuum cleaner.

WARNING: To reduce the risk of fire, electrical shock, and injury:

1. Use your vacuum cleaner only as described in this manual. Use only with Panasonic-recommended attachments.
2. Disconnect the electrical supply before servicing or cleaning out the brush area. Failure to do so could result in the brush unexpectedly starting, causing personal injury from moving parts.
3. Do not leave the vacuum cleaner when plugged in. Unplug from the outlet when not in use and before servicing.
4. To reduce the risk of electrical shock, do not use outdoors or on wet surfaces.
5. Do not allow it to be used as a toy. Close attention is necessary when used by or near children.
6. Do not use with a damaged cord or plug. If the vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a Panasonic Service Center.
7. Do not pull or carry by cord,  use cord as a handle,  close a door on cord, or pull cord around sharp edges or corners. Do not run a vacuum cleaner over the cord. Keep the cord away from heated surfaces.
8. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
9. Do not handle the plug or the vacuum cleaner with wet hands.
10. Do not put any objects into openings.
11. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
12. Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs. Do not put on chairs, tables, etc. Keep on the floor.
15. Do not use a vacuum cleaner to pick up flammable or combustible liquids (gasoline, cleaning fluid, perfumes, etc.), or use it in areas where they may be present. The fumes from these substances can create a fire hazard or explosion.
16. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
17. Do not use a vacuum cleaner without a dust bin and/or filters in place.
18. Unplug before connecting the Air Turbine.
19. Hold the plug when rewinding onto the cord reel. Do not allow the plug to whip when rewinding.
20. Do not operate the vacuum cleaner without the exhaust filter or the exhaust filter cover in place.
21. You are responsible for making sure that your vacuum cleaner is not used by anyone unable to operate it properly.

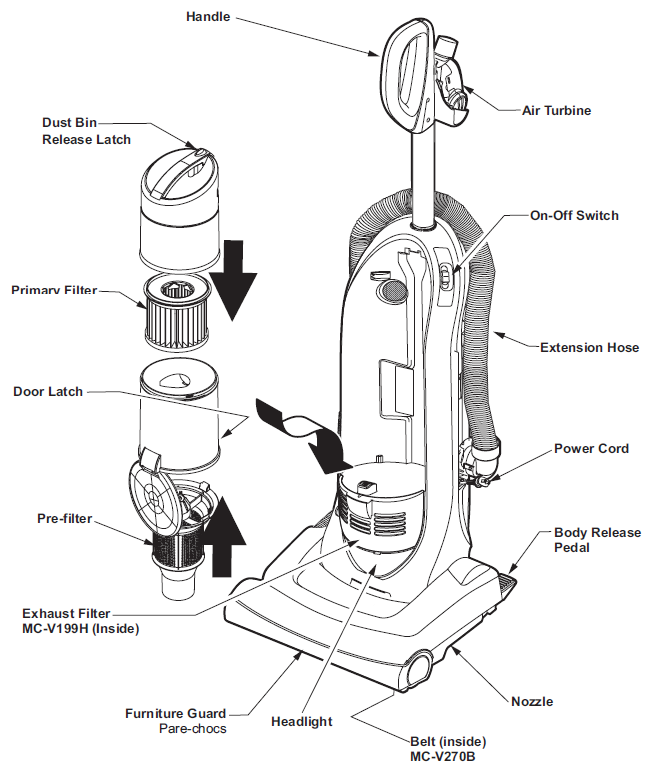

PARTS IDENTIFICATION

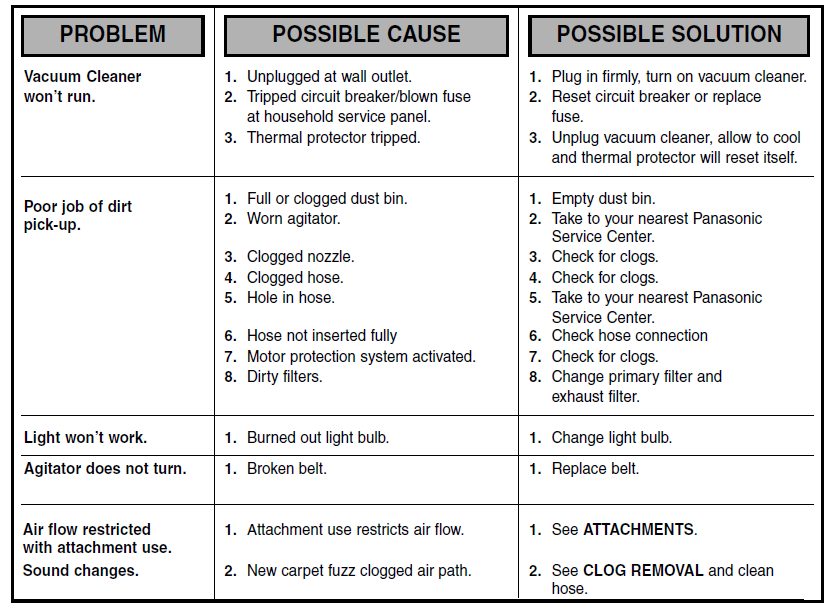

BEFORE REQUESTING SERVICE

WARNING: Electrical Shock or Personal Injury Hazard

Disconnect the electrical supply before servicing or cleaning the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from a vacuum cleaner suddenly starting.

Review this chart to find do-it-yourself solutions for minor performance problems. Any service needed, other than those described in these Operating Instructions, should be performed by an authorized service representative.

FEATURE CHART

FEATURES

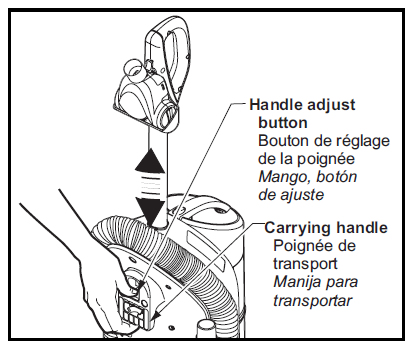

Adjustable Handle
Press the Handle Adjust button and raise the handle to a comfortable operating position. You should hear a click to ensure he handle is secure in position.

CAUTION: DO NOT carry the vacuum cleaner by the adjustable handle or dust bin handle. Use ONLY the carrying handle located on the back of the vacuum cleaner.

Automatic Self-Adjusting Nozzle

• The nozzle of your Panasonic vacuum cleaner automatically adjusts to any carpet pile height.
• The feature allows the nozzle to float evenly over carpet pile surfaces.
• No manual adjustments required.

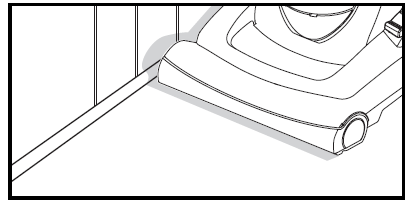

Edge Cleaning

• Edge cleaning feature enables improved cleaning of carpets near walls and furniture.

Cleaning Exterior and Tools

• Unplug the cord from the wall outlet.
• Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water and wrung dry.
• DO NOT drip water on the vacuum cleaner and wipe dry after cleaning.
• DO NOT clean tools in the dishwasher or clothes washer.
• Wash tools in warm, soapy water, rinse, and air dry.
• DO NOT use tools if they are wet.

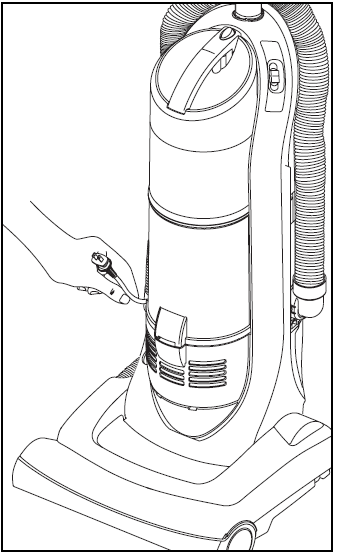

Filter Cleaning System

Your Panasonic vacuum cleaner is equipped with the latest technology.

• Filter Cleaning System is activated by the cord reel.
• Each time the power cord is pulled out, the filter is cleaned.
• Before use, pull the power cord out until the end is reached

NOTE:

• DO NOT use a vacuum cleaner if the power cord is not pulled out to the end.

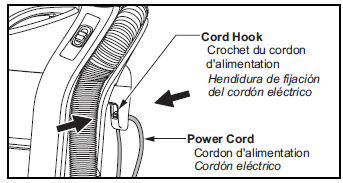

Cord Hook

• Make sure the power cord is placed into the cord hook as shown.

Note: This helps keep the power cord out from under the vacuum cleaner agitator.

Troubleshooting the Panasonic Vacuum Cleaner MC-UL671

Common issues and solutions for the Panasonic MC-UL671 include:

• Loss of Suction: Check and clean the HEPA filter, ensure the dust cup is empty, and inspect the hose for blockages.
• Motor Overheating: Ensure proper airflow by keeping the vacuum away from walls and furniture, and check for blockages in the air vents.
• Warranty and Support: The MC-UL671 comes with a 1-year limited warranty. For technical support, contact Panasonic's customer service.

Preventive measures include regular cleaning of filters and checking for blockages in the vacuum's pathways.

CONSUMER INFORMATION

Please read the IMPORTANT SAFETY INSTRUCTIONS on page 5 before use. Read and understand all instructions.

TO OUR VALUED CUSTOMER

• We are very pleased to welcome you to the Panasonic family of products. Thank you for purchasing this product. Our intent is that you become one of our many satisfied customers.
• Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum cleaner is intended only for household use. The vacuum cleaner should be stored in a dry, indoor area. Read the Operating Instructions carefully for important use and safety information.
• Special care is required when vacuuming certain types of carpet or floor covering. Always check the carpet or floor covering manufacturer's recommended cleaning instructions before vacuuming.

PLEASE PAY CLOSE ATTENTION TO ALL WARNING AND CAUTION STATEMENTS.

WARRANTY

Panasonic Canada Inc.
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Vacuum Cleaner -  One (1) year, parts and labour

LIMITATIONS AND EXCLUSIONS
This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Parts such as disposable dust bags, filters, belts, light bulbs,s, and agitator brushes are also excluded from coverage under this warranty . A purchase receipt or other proof of the f date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS INSTEAD OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES.
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

WHAT TO DO WHEN SERVICE IS NEEDED

If your Panasonic Vacuum Cleaner needs service, look in the yellow pages of the telephone book under HOME APPLIANCE SERVICE for your nearest Panasonic Services Company (“PASC”) Factory Servicenter, or PASC authorized Servicenter, or call, 1-800-211-PANA (7262) toll-free to find a convenient servicenter. DO NOT send the product to the Executive or Regional Sales offices . They are NOT equipped to make repairs.
If you ship the product
Carefully pack and send it prepaid, adequately insured, and preferably in the original carton. Attach a postage-paid letter to the outside of the carton, which contains a description of your complaint. DO NOT send the product to the Executive or Regional Sales Offices. They are NOT equipped to make repairs.

Pros & Cons of the Panasonic Vacuum Cleaner MC-UL671

Pros:

• Powerful Suction: The 112-amp motor provides strong cleaning performance.
• HEPA Filtration: Captures allergens and dust effectively.
• Automatic Height Adjustment: Easy transition between carpet and bare floors.
• Onboard Attachments: Convenient tools for various cleaning tasks.

Cons:

• Weight: At 24 lbs, it may be heavier than some users prefer.
• No Electronic Dirt Sensor: Requires manual adjustment for different surfaces.

Overall, the Panasonic MC-UL671 offers excellent value for its price, making it a solid choice for those seeking a reliable upright vacuum.

Customer Reviews of the Panasonic Vacuum Cleaner MC-UL671

Users appreciate the Panasonic MC-UL671 for its powerful suction and ease of use. Common praises include the vacuum's ability to handle various floor types effectively and its convenient onboard attachments. However, some users note that the vacuum's weight can make it less portable. Overall, the MC-UL671 is well-regarded for its performance and value.

For those looking for a reliable and affordable upright vacuum, the Panasonic MC-UL671 is a strong recommendation. It is available for purchase at a competitive price and offers a comprehensive cleaning solution for home environments.
