Introduction

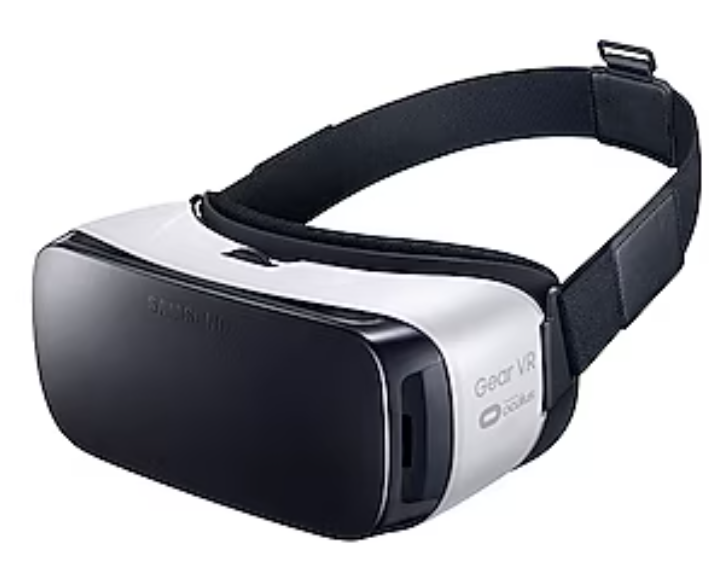

The Samsung SM-R322 Gear VR is a virtual reality headset that allows users to experience immersive virtual reality content on their compatible Samsung smartphones.

Specifications

• Compatibility: Samsung smartphones
• Display: Depends on the connected smartphone
• Field of View: 96 degrees
• Connectivity: Micro USB
• Controls: Touchpad, Back button, Volume key
• Sensors: Accelerometer, Gyro Sensor, Proximity Sensor

Instructions

1. Insert your compatible Samsung smartphone into the Gear VR headset.
2. Adjust the straps to ensure a comfortable fit.
3. Use the touchpad and buttons on the headset to navigate through menus and interact with content.
4. Follow the on-screen instructions to download and install the Gear VR app.
5. Launch the Gear VR app and select the desired virtual reality experience.
6. Enjoy the immersive virtual reality content.

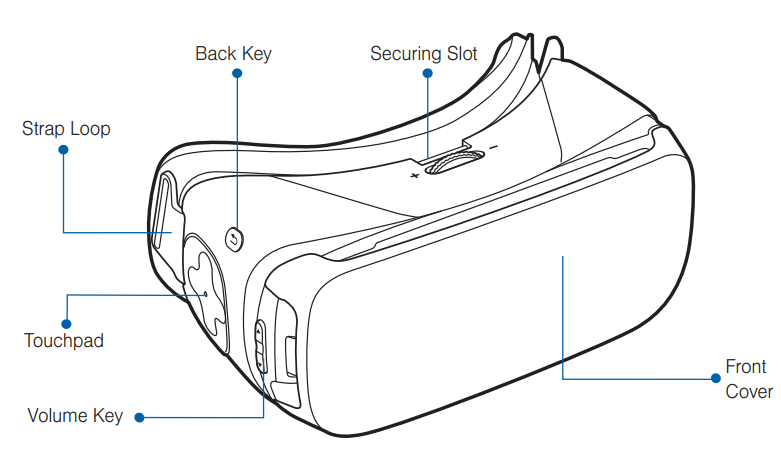

Device Functions

Replace the front cover when you finish using the Gear VR.

Caution: Take care not to stand up or move around while the Gear VR is “plugged in”, as this may cause injury to the user or damage the device.”

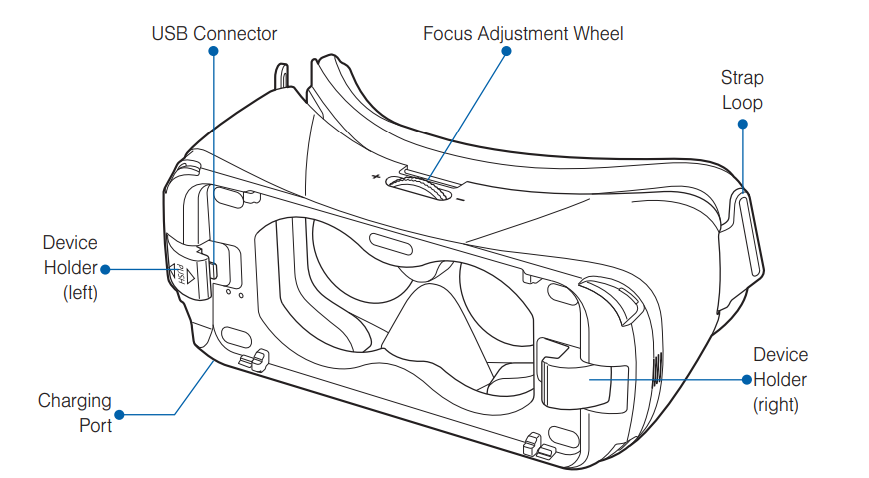

• You can connect the charger to the charging port on the Gear VR. Use only Samsung-approved USB cables and 2A power adapters.
• If you use the Gear VR while the charger is connected, it is powered by the charger and does not use the mobile device’s battery. When you use content that has high power demand (more than 1.0A) while the charger is connected, the Gear VR uses two power sources. In high-power demand situations, the Gear VR is powered by the charger and the mobile device’s battery at the same time.
•  If the Gear VR is disconnected from the charger while the Gear VR is in use, the image on the screen may be briefly inactive. During this period, the screen recalibrates, and the Gear VR may not recognize your head movements.
•  If you do not use the Gear VR while the charger is connected, the mobile device’s battery charges.

Setting Up the Device

Installing the straps

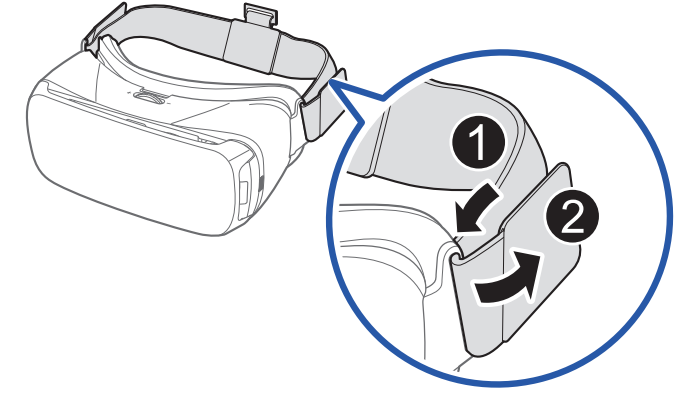

1. Insert each end of the strap through the main strap loop on the Gear VR (1).

2. Use the Velcro to fasten each end (2).

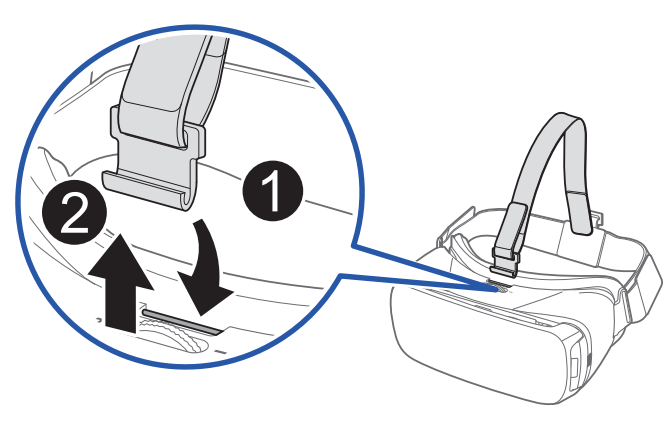

3. Carefully insert the hook (from the top head strap) into the front bar of the Gear VR (1), then pull it upward until it locks in place (2). The hook snaps when secured.
   Note: The head strap contains a longer velcro strip and is used to secure the front of the Gear VR frame.

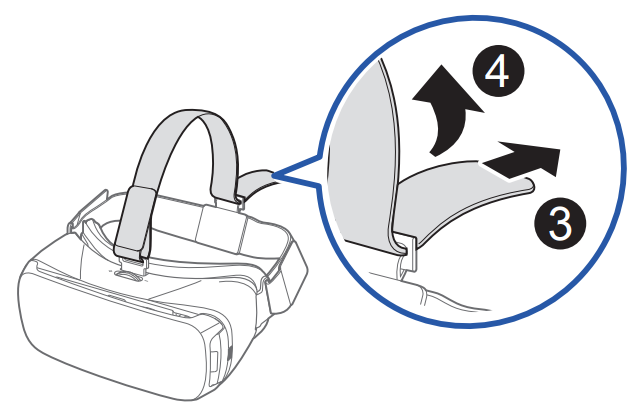

4. Slide the top head strap through the loop (3) and use the velcro to fasten it (4).



   Note: The head strap contains a longer velcro strip and is used to secure the front of the Gear VR frame.

Installing the Mobile Device

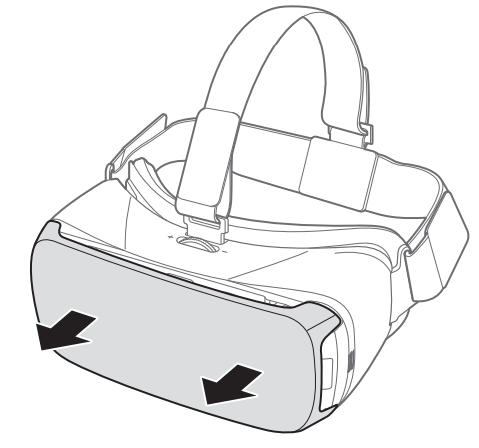

1. Gently pull the front cover toward you to remove the protective front cover.

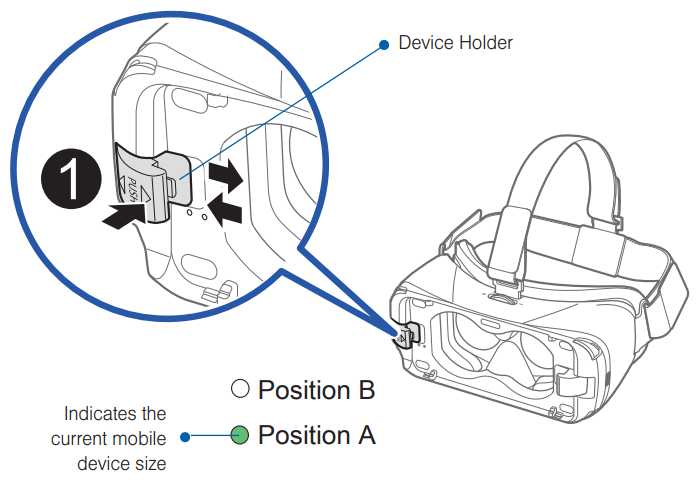

2. Gently push the device holder towards the left (1) and slide it into either position A or B (2), depending on the size of the mobile device you want to use.
   1. Position A: is used for either a Samsung Galaxy Note 5 or a Samsung Galaxy S6 edge+.

   2. Position B: is used for a Samsung Galaxy S6 or Samsung Galaxy S6 edge.



3. Verify that your device volume is on and not set to silent.
   Caution: If you insert the mobile device tilted to one side, it may cause discomfort.

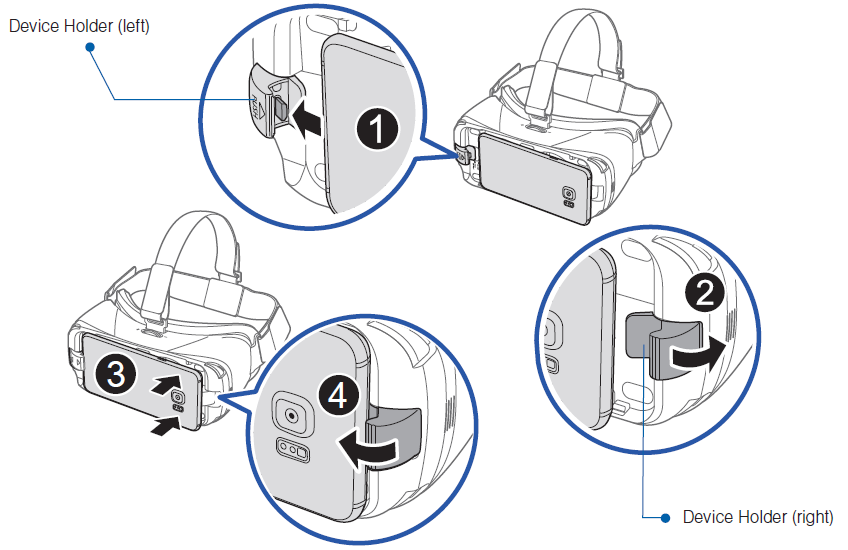

4. Carefully insert the mobile device (face down) at an angle into the center of the Gear VR, and then insert the Gear VR connector (1) into the mobile device’s USB port.
   Note: Ensure that the connector is fully inserted into the mobile device’s USB port. The device makes a sound when properly connected.
   Caution: Do not forcefully insert the connector into the mobile device,e as this may damage the connector. Improper installation can scratch the mobile device.
5. While pulling the device holder (right) outward (2), carefully push the opposite end of the mobile device downward (3).

6. Gently push down on the device holder (right) (4) until the mobile device locks into place.
   Caution: If the mobile device is not securely locked, the mobile device may accidentally separate from the Gear VR and be damaged. Do not twist or bend the Gear VR’s connector when you connect or disconnect the mobile device. Doing so may damage the connector.

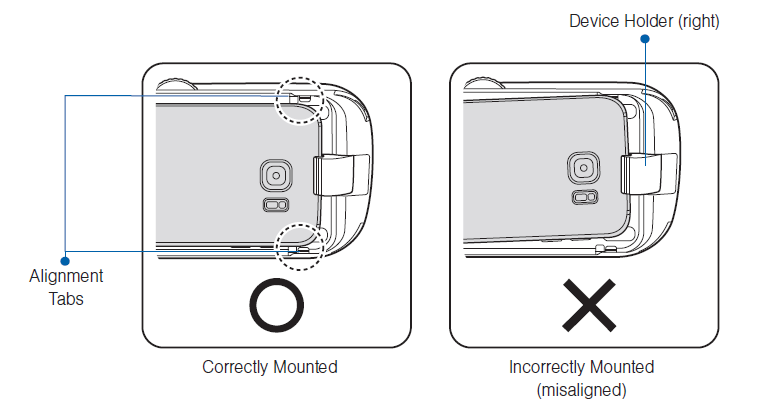

7. Verify the orientation of the mobile device.
   Caution: If you insert the mobile device tilted to one side, it may cause discomfort. In this case, the mobile device screen will not be aligned properly with the lenses.
   Note: Verify that your device volume is on and not set to silent. If the sound is not emitted when you insert the connector into the mobile device, the Gear VR did not recognize the connection. Carefully reconnect the mobile device until you hear the sound.
   Caution: Do not leave the Gear VR in direct sunlight. Exposure to direct sunlight can damage the Gear VR and the connected mobile device.

Maintenance Guide

Cleaning

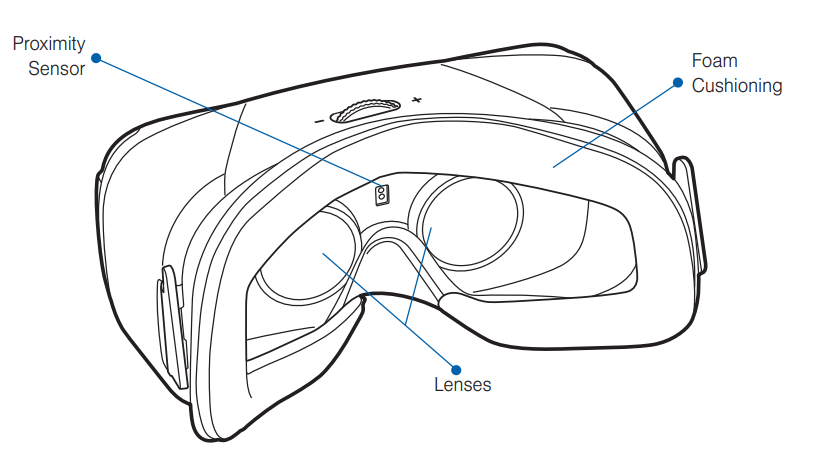

• Lens:
  • Use a microfiber cloth only.
  • Do not use water or alcohol; instead, gently wipe in a circular motion.
• Foam Padding:
  • Use a slightly damp cloth or antibacterial wipes (not soaking wet).
  • Allow to dry completely before use.
• Body:
  • Wipe with a soft dry cloth; avoid chemicals and direct sunlight.

 Phone Care (when using)

• Ensure the phone isn’t overheating — remove the case before use.
• Close all background apps before connecting to VR.
• Charge the phone before use (VR consumes power quickly).

Storage

• Store in a cool, dust-free area.
• Avoid placing heavy items on it.
• Keep away from direct sunlight and moisture
