Introduction

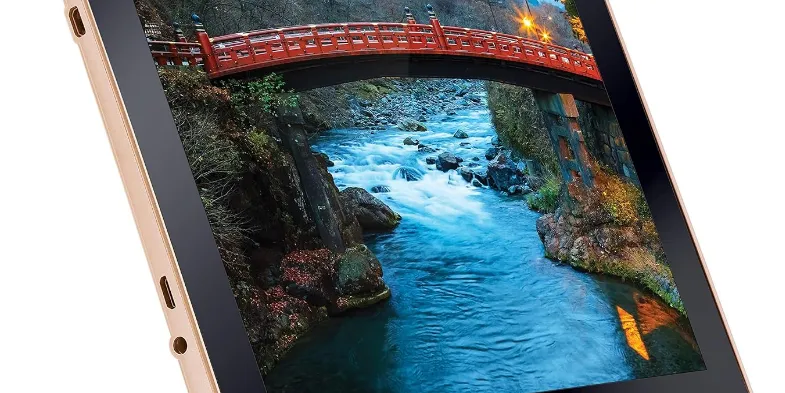

The iBall Slide Brace XJ Tablet is a versatile and feature-rich device designed to cater to a wide range of user needs, from entertainment and education to productivity. Launched in 2023, this tablet is estimated to be priced at $200, making it an affordable option for those seeking a reliable Android tablet. The iBall Slide Brace XJ is equipped with a 10.1-inch HD display, providing clear visuals and an immersive viewing experience. It runs on Android 11, ensuring users have access to the latest apps and features. The tablet is powered by a quad-core processor and comes with 3GB of RAM, making it suitable for multitasking and smooth performance.

The iBall Slide Brace XJ also features a 5MP rear camera and a 2MP front camera, allowing users to capture moments and engage in video calls. With a battery capacity of 6000mAh, this tablet offers extended usage time, making it ideal for on-the-go use. Additionally, it supports expandable storage up to 512GB via a microSD card slot, providing ample space for storing media and files.

Detailed Specifications

Details	Description
CPU	Powerful Octa Core 1.3GHzARM Cortex A5364bit Processor
Memory	3GB RAM
Storage	32GB Built-in Storage (Approx. 9GBof Built in storage usedby OS &other application files & 23GB free for file storage.
Storage	Micro SD Support up to 64 GB Note: Filesystem of theSD card shouldbe FAT32.
Operating System	7.0 Nougat
Connectivity	Wi-Fi 802.11a/b/g/n, Micro USB Port, Bluetooth 4.0, USB OTG Function, USB Tethering, Cast Screen support & Micro HDMI Port.
Network	FDD-LTE- B1/B3/B5/B8 , TDD-LTE- B40/B41 , (3G)WCDMA- 900/2100MHz , (2G)GSM- 900/1800MHz, Single SIM,4G Support VoLTE Support, 4G Downlink up to 150 Mbps, uplink up to 50 Mbps,
Sensor	G-Sensor
Camera	8 MP AF rearcamera with LED Flash &5 MP Front Camerafor video Chatting
Display	25.5cm (10.1)IPS Full Capacitive Multi-Touch (1280*800) (149.45 PPI) Display with built-in-metal stand
SupportVideo	Support 3g2, 3gp, avi,mp4, mkv, m2ts,webm, mov
SupportImage	Support bmp, jpg,gif, png,wbmp
Support Audio	Support aac, amr, flac,midi, mp2, mp3, oog, wav
Battery	7800mAh Li- Polymer Battery*, 3.7V
HardwareKeys	Power Switch& Volume Control
Power	Input: 100-240V ~ 50/60Hz, 0.3A Output: 5.0V---2A
Dimension & weight	257.68 x 177.32 x 10.14mm , 717 grams

Know Your Device

1	Volume Up / Down Key	9	SIM Card Slot
2	On/Off PowerKey	10	Metal Stand
3	Rear Camera	11	Mic
4	Front Camera	12	Micro HDMIPort
5	Led Flash	13	Micro USB Port
6	Dual Speakers	14	3.5mm AudioJack
7	Reset	15	Round DC Pin Charging Port
8	SD Card

Clear all: You can dismiss all your notifications at once by touching the Dismiss icon at the bottom . If you aren't ready to dismiss a notification, you can swipe up to close the notifications shade.

Description

The iBall Slide Brace XJ Tablet is designed with a sleek and durable build, featuring a metallic finish that enhances its aesthetic appeal. The 10.1-inch HD display offers vibrant colors and crisp visuals, making it perfect for watching movies, browsing the web, or reading e-books. The tablet's quad-core processor and 3GB of RAM ensure smooth performance, allowing users to multitask efficiently without lag.

The device also includes dual speakers that deliver clear and loud audio, enhancing the overall multimedia experience. With support for Bluetooth 5.0 and Wi-Fi, users can stay connected and enjoy seamless connectivity. The expandable storage option provides flexibility in managing files and media, while the long-lasting 6000mAh battery ensures extended usage without frequent recharging.

iBall Slide Brace XJ Tablet Settings

Wi-Fi
You can connect to Wi-Fi networks with your device, as well as add networks you use often or remove networks you don't use any longer. You can also change the settings for saved Wi-Fi networks on your device.

Turn on Wi-Fi and connect to a network

Keep in mind that your device will remember the networks you connect to, along with security details, and connect automatically when in range.

Steps to connect to Wi-Fi on your Slide device:

Open your device’s Settings app.
Under "Wireless & networks," click Wi-Fi.
Click the Wi-Fi switch icon to turn it On.
You'll see a list of saved and available networks.
Click a network name from the list of available networks to connect to it. You'll see a lock icon if the network is secured and you need to enter a password to connect.
Once connected, your device will say "Connected" under the network name and it will show up in your saved networks list. Your device will automatically connect to it when in range.

Tip: If the saved network you want to connect to isn't showing up in the list of networks, click the Menu icon in the top right corner of the screen. Then click Refresh to reload the list of networks. Click Add network and enter the network's name (SSID) and other security details, if needed, then click Save.

Add, change, or remove saved Wi-Fi networks

Add a Wi-Fi network

You can add a Wi-Fi network that isn't showing up in the list of networks on your screen, doesn't broadcast its name (SSID), or is out of range. To add a Wi-Fi network, follow these steps:

Open your device’s Settings app.
Under "Wireless & networks," click Wi-Fi.
Make sure the Wi-Fi is switched On. Click the Menu icon in the top right corner of the screen. Then, click Add Network.
Enter the network name (SSID) and other security details, if needed.
Click Save.
Once connected, your device will say "Connected" under the network name.

Your device will connect to this network automatically the next time you are in range.

Remove Wi-Fi network

You can forget a saved Wi-Fi network if you don't want your device to connect to it automatically. To remove a Wi-Fi network from your device, follow these steps:

Open your device’s Settings app.
Under "Wireless & networks," click Wi-Fi.
Make sure the Wi-Fi is switched On.
In the Wi-Fi settings screen, click the name of a saved network. If you don't see the network in the list, click the Menu icon, then click Saved Networks and click the network.
Click Forget.

View Wi-Fi network details and change network settings

You can view your saved Wi-Fi networks' details and change network settings by following these steps:

Open your device’s Settings app.
Under "Wireless & networks," click Wi-Fi.
Connect to the network you want to view details for.
Click the network name. You can see information about:
- Connection status
- Signal strength
- Link speed
- Frequency
To change network settings, touch and hold the network name. You can choose to:
- Forget network
- Modify network

Advanced Wi-Fi settings

Configure proxy settings

For each Wi-Fi network you add, you can connect via a proxy by following these steps:

Open your device’s Settings app.
Under "Wireless & networks," click Wi-Fi.
Touch and hold a Wi-Fi network in the list of networks.
Click Modify network.
Select Show Advanced Options. (You may have to lower the keyboard first. To do so, click the modified back button
Click None under Proxy Settings, then click Manual in the menu that opens.
Enter the proxy settings.
Click Save.

Proxy settings for each Wi-Fi network must be set up separately.

You can choose to change the advanced Wi-Fi settings on your device. Follow these steps to edit advanced Wi-Fi options:

Open your device’s Settings app.
- Network notification: Turn ON to receive a notification in the Status bar when your device finds a Wi-Fi network it can connect to.
- Keep Wi-Fi on during sleep: Touch to choose how your device handles Wi-Fi when it's asleep. You can choose to keep Wi-Fi on all the time, only if your device is charging, or turn it off completely. If you turn Wi-Fi off, you may increase the amount of slide data you use.
- MAC address: The Media Access Control (MAC) address of your device when connected to a Wi-Fi network.
- IPv4 & IPv6 address: The Internet Protocol (IP) address assigned to the device by the Wi-Fi network you are connected to (unless you used the IP settings to assign it a static IP address).
Click Wi-Fi.
In the Wi-Fi settings screen, touch the Menu > Advanced. Click one of the setting options below
- Install certificates: You can use digital certificates to identify your device for a variety of purposes, including VPN or Wi-Fi network access.
- Wi-Fi Direct: Allow your devices to connect with other Wi-Fi Direct-capable devices.
- WPS Push Button: Select to turn on Wi-Fi protected setup for a Wi-Fi protected setup capable network.
- WPS Pin Entry: Any wireless computer or wireless adapter that will connect to the modem router wirelessly is a client. The client must support a WPS PIN, and must have a WPS configuration utility.

Bluetooth

To connect to a Bluetooth device, first turn ON your device's Bluetooth. Then, the first time you use a new Bluetooth device, you need to "pair" it with your device so that both devices know how to connect securely to each other. After that, they connect automatically.

Turn Bluetooth ON or OFF

Open your device's Settings menu.
Click Bluetooth.
Click the switch to turn Bluetooth ON or OFF.
A Bluetooth icon at the top of your screen will indicate when Bluetooth is turned ON.

Bluetooth visibility

Your device will be visible to nearby devices while Bluetooth settings are open.

Note: To extend the life of your battery between charges, turn OFF Bluetooth when you're not using it. Bluetooth is turned OFF when you switch to Airplane mode.

Pair your Slide with a Bluetooth device

You have to pair your Slide with a Bluetooth device before you can connect to it. Once you pair your Slide with a Bluetooth device, they'll stay paired until you unpair them.

Pair with a Bluetooth device

Open your Slide Settings menu.
Click Bluetooth.
Make sure Bluetooth is turned ON and your device is set to visible.
Your device will scan for and display all available Bluetooth devices in the range under "Available devices." If your Bluetooth device isn't showing in the list, click the Menu icon, then click Refresh.
Click the name of the Bluetooth device you want to pair your device with.

Connect to a Bluetooth device

Once you've paired with a Bluetooth device, you can connect to it manually—for example, to switch devices or to reconnect after it's back in range.

Connect to a Bluetooth device

Open your device's Settings menu.
Click Bluetooth.
Make sure Bluetooth is turned ON.
In the list of paired devices, click a paired but unconnected device.
When your device and the Bluetooth device are connected, the device is displayed as connected in the list.

Configure or unpair a Bluetooth device

Some Bluetooth devices have multiple profiles. You can also change the name of the Bluetooth device as it appears on your device.

Configure or unpair a Bluetooth device

Open your device's Settings menu.
Click Bluetooth.
Make sure Bluetooth is turned ON.
Select the Bluetooth device you want to configure.
Click the Settings icon beside the paired Bluetooth device you want to configure.
On the screen that opens, you can change the device's name, unpair it, or select profiles. Click the back button when you're finished.

Change your device's Bluetooth name

Your device has a generic Bluetooth name by default, which is visible to other Bluetooth devices when you connect them. You can change the name so that it's more recognizable to you.

Change your device's Bluetooth name

Open your device's Settings menu.
Click Bluetooth.
Make sure Bluetooth is turned ON.
Click the Menu icon .
Click Rename this device.
Enter a new name for your device.
Click Rename.

Ethernet

Now user can connect a LAN cable to access the network/internet through a USB port {USB to LAN converter required}

Data Usage

It provides a graphical representation of the data usage for a specified Data Usage cycle through SIM Internet or Wi-Fi.

Data usage refers to the amount of data uploaded or downloaded by your device during a given period. Depending on the device and your wireless plan, you may be charged additional fees when your data usage exceeds your plan's limit. To monitor your data usage, adjust your data usage settings. First,, check your plan and determine what data limits may apply.

Warning! The usage displayed on the data usage settings screen is measured by your handset. Your carrier's data usage accounting may differ. Usage over your carrier plan's data limits can result in steep overage charges. The feature described here can help you track your usage, but is not guaranteed to prevent additional charges.

Data usage settings allow you to:
- Set the data usage level at which you'll receive a warning.
- Set a data usage limit.
- View or restrict data usage by app.

To adjust the settings described here:

Click the Settings icon on a Home or All Apps screen. Click Data usage.
By default, you see the settings for cellular data, that is, the data provided by your network carriers.

More Settings…

Airplane mode on/off: When airplane mode is selected, all wireless connectivity will be turned OFF. This icon will display in the status bar when airplane mode is selected.

Tethering & portable hotspot: The device is used as a wireless modem for a PC, when it’s connected to the PC using a USB cable.

Tethering refers to connecting one device to another. In the context of mobile phones or Internet tablets, tethering allows sharing the Internet connection of the phone or tablet with other devices such as laptops. Connection of the phone or slide with other devices can be done over wireless LAN (Wi-Fi), over Bluetooth,, or by physical connection using a cable for example, through USB.

Using a hotspot, you can share your Slide network with other Wi-Fi-enabled devices. Also,, You can connect and block the User.

Wi-Fi hotspot: Select the Wi-Fi networks which are Slide hotspots. Apps can be restricted from using these networks when in the background. Apps may also warn before using these networks for large downloads.

USB tethering: Tethering refers to connecting one device to another. Tethering allows sharing the Internet connection of the phone or slide with other devices such as laptops. Sharing an internet connection using a USB cable is called USB tethering.

Steps to perform USB tethering

USB tethering allows sharing the Internet connection of the phone or slide with other devices such as laptops via USB.
In Slide⇥go to Settings⇥More settings Tethering & portable hotspot⇥select USB tethering. You will get an indication on the laptop/PC that the USB is connected.
Right-click on Update Drivers⇥Install from a list or specific location (Advanced)⇥next⇥Search for the best drivers in these locations⇥browse⇥iBall tethering drivers⇥ok⇥next⇥finished.
Now you can use the Slide’s internet on your system using a USB connection.
Bluetooth Tethering: Tethering refers to connecting one device to another. Tethering allows sharing the Internet connection of the phone or slide with other devices such as laptops. Sharing an internet connection using Bluetooth is called Bluetooth tethering.

Steps to perform Bluetooth tethering

Bluetooth tethering allows sharing the Internet connection of the phone or tablet with other devices such as laptops via Bluetooth.

In Slide⇥go to settings⇥and turn on Bluetooth.
In settings⇥go to More Setting⇥tethering & portable hotspot⇥check Bluetooth tethering.
In PC⇥turn on the system's Bluetooth.
Dial-up⇥and search for all available Bluetooth devices⇥add your Bluetooth device⇥and select your device (Slide). Now go to the network access point service⇥perform pairing of the devices.
Now you can use the Slide’s internet on your system using Bluetooth connection.

VPN: VPN stands for Virtual Private Mode. Using this feature, you can connect to your private network through a public network in a secure way. You can add a VPN connection, customize it as per your requirement,, and then save the settings. Once the network is created, select the network again to connect to it.

Add a VPN

To add a VPN, you need to get the details from your network administrator. Your organization may need you to install a VPN app from Google Play or your administrator, which you may need to configure directly from that application.

To add a VPN from the Settings apps:

Open the Settings app.
Click MoreSettings> VPN.
From the top right, click Add VPN +.
Enter the information from your network administrator.
Click Save.
You'll see the VPN listed on the VPN screen.

Connect to a VPN

Open the Settings app.
Click More Settings > VPN.
Click the name of the VPN.
Enter your username and password and click Connect. If you're using a VPN app, the app will open and then you can connect.
Once you're connected, your notification drawer will show the VPN On icon.

Disconnect a VPN

Open the Quick Settings menu by swiping down from the top of the screen using two fingers.
Next to "Network may be monitored," click the VPN icon.
Next to the VPN,, if if you want to disconnect, touch Settings.
Click the VPN you want to disconnect.
Click Disconnect.

Edit a VPN

Open the Settings app.
Click More Settings > VPN.
Next to the VPN name, click the Settings icon. If you're using a VPN app, it'll open and then you can make changes.
Edit the VPN settings.
Click Save.

Delete a VPN

Open the Settings app.
Click More Settings> VPN.
Next to the VPN name, click Settings.
Click Delete.

Cellular network

Data roaming: This prevents your device from transmitting data over other carriers’ networks when you leave an area that is covered by your own carrier’s networks. This is one way to control expenses if your cellular data contract doesn’t include data roaming. When you disable "Data roaming,", you can still transmit data over Wi-Fi.
Network mode: Select your preferred network type from options like 2G, 3G, and 4G
Enhanced 4G LTE Mode: Use LTE services to improve voice and other communication.
Access Point Names: You can create a new APN for using the internet facility on your handset
Network operators: Choose your network operator from available networks.

Display

Mira Vision: This feature makes the picture quality optimized for a better experience.
HDMI setting: To make the HDMI connection, plug your tablet into an HDMI-equipped monitor or HDTV. You need a special HDMI cable to make the connection; such an item can be found on the Internet or wherever you purchase your tablet. You need to select HDMI mode on your TV or monitor
Brightness level: To set your screen's brightness level, tap Brightness level and move the slider.
Wallpaper: Choose from Gallery, Live wallpapers,, and Wallpapers on your device.
Gallery: You can set the Wallpapers from Gallery, which will include wallpapers as well as your camera images present in the gallery.
Wallpapers: You can set the default embedded Wallpapers present in the handset.
Screen Time out: Select to decide how long your phone must be inactive before the screen turns OFF.
Press the power button twice for the camera: Quickly open the camera without unlocking your screen
Screen saver: You can select from the provided widgets to be displayed when the screen is left idle for a long time.
Font Size: Select to choose the font size of characters on your screen.
Display size: Select to choose the display size of characters on your screen.
When the device is rotated: Whether you want to rotate the contents of the screen when the orientation of the screen changes.
Cast screen: Cast screen is a technology that allows a person to display whatever is visible on his/her device's screen on another screen, wirelessly using Wi-Fi as a medium for sharing the screen

Notification

Notifications appear at the top of the screen. You can change the notification alert settings for applications.

Sound

Media, Alarm & Ringtone Volume: Drag your finger along the volume bar to set an incoming call ringtone & alarm volume.
Do not disturb: You’ll have options for “Total Silence,” “Alarms Only,” and “Priority Only,” and you can set time limits for how long you want Do Not Disturb to last.
Voice call ringtone: Select to decide on a ringtone to use for incoming calls. Note that you can override this setting for individual contacts in the Edit contact details screens.
Default Notification sound: Select a ring tone to use for a notification (e.g., new message). Note that you can override this setting for new Calendar event notifications, text,, and multimedia message notifications. Go to the applications settings screens to select specific ringtones.
Default alarm ringtone: Select a ringtone to use Alarm.

Other sounds

Dial pad tones: You can select from here if you want the dial pad touch tones to be activated.
Screen locking sounds: On activating this option the screen lock sound is activated.
Touch sounds: You can activate this option if you want the touch tones to be activated on your device.

Sound enhancement

BesAudEnh & BesLoudness: This tool enhances audio for earphones and the loudness of loudspeakers.
BesSurround: You can choose as per your requirement as Movie mode or Music mode for a better experience.

Apps

Get information on app memory usage

You can use the Apps screen to adjust several aspects of the way your device uses memory. To view these settings, follow these steps:

Open your device's Settings from the main menu.
Under "Device," click Apps.

Here you will see all applications present in the slide, you can manage the app from here, you can uninstall, view storage, and grant permission from this option.

Show system: On selecting this option, it will show all system applications
Reset app preferences: On selecting this option it will reset all app preferences set earlier.

Storage

This option helps you to view and manage the data stored on your device. You can view the total internal storage capacity and the capacity of the external memory card here.

Default Write disk: You can change the default write disk location to SD card/internal memory for captured images/videos, received files, downloaded files, etc.

If you're running out of free space on your device or see the error "Insufficient storage available," you can check your device's storage:

Open your device's Settings app.
Scroll down and click Storage.
You'll see a breakdown of how your storage is being used.
Click an item from the list to see more details. For example, click Apps to see the storage used by each app or Explore to see the files on your device.

Internal storage: Monitor and manage the use of your internal phone memory from this screen

External Storage : Monitor and manage the use of your Memory card from this screen:

View how much space you are using on your memory card.
Select to use your memory card as USB mass storage when your Slide is connected to your computer (selected by default)
Format as portable/eject your memory card from your Slide. Note that when your Slide is connected to your computer via USB, you cannot view pictures or play any media stored on the card from your Slide.

External USB Storage: Monitor and manage the use of your Pen Drive from this screen:

View how much space you are using on your memory card.
Unmount/eject your PEN Drive from your slide.

Battery

It gives you the current battery level, along with the distribution of battery consumption by different apps.

Check battery life and usage

Swipe down from the top of the screen to open Quick Settings.
Click the battery. You can also open your device’s Settings app Battery.
You can check the following settings:
- Percent of battery life left
- How long until your battery dies
- How have you used your battery since the last full charge

Turn ON battery saver

Open your device's Settings app .
Click Battery.
Click the menu , then Battery Power Saving
At the top, set the switch ON. The top and bottom of your screen will turn orange when the battery saver is turned ON.
To turn ON the battery saver automatically when your battery is low, click Turn on automatically and select "at 5% battery" or "at 15% battery."

Turn OFF battery saThe battery saver turns OFF automatically when you connect the charger to your device. You can also turn OFF the battery saver from the notification at the top of your screen.

Warning! If you stop some apps or services, your device may not work correctly. Battery status (charging, discharging) and level (as a percentage of fully charged) are displayed at the top of the screen. The discharge graph shows the battery level over time since you last charged the device, and how long you've been running on battery power.

Memory

You can see here the total RAM and distribution of RAM across applications for a specified period.

Users

This gives the information of the owner logged in to the device. Here you can set the owner name & Add another user.

Location

My Location: Select a source for determining your location, Wireless networks, or GPS satellites. Typically GPS will be more accurate (to street level) but it consumes more battery power.

Steps to turn location ON or OFF for your device

On your mobile device, open the Settings menu.
Click Location.
Use the switch to turn Location services ON or OFF. When the switch at the top of the screen is OFF, your device location isn’t shared with any apps. When the switch at the top of the screen is ON, you can choose one of the following modes:
- High accuracy: High accuracy mode uses GPS, Wi-Fi, and cellular networks to get the highest accuracy location for your device. It uses Google's location service to help estimate your location faster and more accurately.
- Battery saving: Battery saving mode estimates your location using low battery-intensive location sources, such as Wi-Fi and cellular networks. It uses Google's location service to help estimate your location faster and more accurately.
- Device only: Device-only mode estimates your location using GPS only. It doesn’t use Google's location service to provide location information. This mode may use more battery power and take longer to determine your location.

You’ll see the location icon at the top of your screen when your device’s precise location is being used by any app. This icon doesn’t necessarily indicate GPS activity — it just means that a mode using more power to determine your location is turned ON.

Security

You can manage most of the security settings for your device by following these steps:

Open your device's Settings app .
Scroll down to Security.

Device security

Set up or change a screen lock
Open your device's Settings app .
Scroll down and click Security.
Click Screen lock. If you’ve already set a lock, you’ll need to enter the pattern, PIN, or password before you can choose a different lock.
Click the screen lock you’d like to use and follow the instructions.

Screen lock options

You can choose from the following screen locks:

None: Select this option if you don’t want a lock screen. It provides no protection, but lets you get to the Home screen quickly.
Swipe: Swipe your finger across the screen to unlock your device. It provides no protection, but lets you get to the Home screen quickly.
Pattern: Pattern lets you draw a simple pattern with your finger to unlock the device.
PIN: PIN requires four or more numbers. Longer PINs tend to be more secure.
Password: Password requires four or more letters or numbers. This is the most secure option, as long as you create a strong password.

Remove screen lock device protection

Using a screen lock is important for securing your device, so we recommend continuing to use a screen lock method like Pattern or password. However, if you don't want to use a PIN, pattern, or password, you can follow these steps:

Open the Settings app .
Scroll down to Security > Screen lock.
Choose None or Swipe.

Make pattern visible: Enable it to show pattern lock while unlocking.
Automatically lock: You can set automatically lock your device after a certain time of screen sleep except when the device is unlocked by Smart Lock.
Power button instantly locks: Tap the Power button instantly locks to enable the device to instantly lock the screen by pressing the Power/Lock Key or touch to disable it.
Lock screen message: The information of the owner can be stored and then can be displayed on the lock screen.
Smart Lock: Set up your device to automatically unlock when you have a trusted Bluetooth device connected, when you're at a trusted location, when you're carrying it with you, or when it recognizes your face.
SIM card lock: You can lock your device's SIM cards to prevent someone else from using them. After you set it up, you'll need to enter a PIN on the lock screen for each SIM that's locked.
Set up SIM lock: Lock your SIM card for extra security. You can also change your SIM card PIN from this screen. If you don’t know your SIM PIN, you can obtain it from your SIM service operator.
Make password visible: Make passwords visible as you type, which helps you to enter a password that is more complex and secure.
Device administrators: Manage device administrators, allow apps to be installed from sources other than the Play Store, and choose to verify apps from all sources.
Unknown Sources: Manage installation of apps from sources other than the Play Store.
Data Protection: Protect your data from unwanted access.
Credential storage: Manage, install, or clear certificates on your devices.
Trust agents: Manage trust agents for features like Smart Lock.
Screen pinning: You can use screen pinning to keep an app's screen in view until you unpin it. For example, you could pin a game so that you don't accidentally exit the game while you're playing. Then, when you're done with the app, you can unpin the screen to get back to the rest of your apps.

Turn screen pinning on or off

Before you start pinning screens, you'll need to turn on the screen pinning setting for your device:

Open your device's Settings app .
Scroll down and click Security.
Click Screen pinning.
At the top, switch the setting ON or OFF.
If you turn screen pinning ON, you'll also see an option to “Ask for unlock pattern before unpinning.”

Pin a screen

Make sure that screen pinning is turned ON for your device (see directions above).
Open an app and go to the screen you want to pin.
At the bottom, click the Overview button .
Swipe up to reveal the pin icon . It will be in the bottom right corner of your selected screen.
Click the pin icon .

Unpin a screen

When you're on the pinned screen, touch and hold Back and Overview at the same time.
Release both buttons and the screen will be unpinned.
If you require that the lock screen show after an app is unpinned, you will need to enter your pattern, PIN, or password.

Account

Apps with usage access: Manage what apps have access to app-usage data on your device.

This option allows you to add a new account on to your device. You can add a new Gmail or personal webmail account. You can also add your account to Email, Due, Google, and many more. You will find this option in settings. All your accounts that are present on the device will be displayed here. You can also remove the account from the device from this location.

Note: Removing the account will not delete the account permanently. It will just remove the account from the device. You can log in to that account from any other device or the same device also.

For removing the account, go to settings select the account that you want to remove tap on that particular account select the option key. Here, you will get two options sync now & remove the account. Select Remove account, it will ask for confirmation. Select Remove account again and your account will be removed from the device.

Google

Google Search for Android is an application by Google that integrates Google Search and Google Now into an application for Android devices. Search for Android implements Google Now, Google's voice recognition and intelligent personal assistant software for Android, into a Google Search application. Users can speak to their slide in the app to search. Users can, alongside normal Google Search results, receive interactive weather results and flight information, among calculations and more features.

In this Ads, Location, Nearby, Search & Now, Security,, and Set up nearby device options are present.

Language & input

Language: On selecting this option you can choose the required system language of the slide from the given list of languages. This slide supported 22 Indian Regional languages.
Spell Checker: On selecting this option you can turn ON the Android spell check feature on your slide.
Personal Dictionary: With Google Keyboard, you can see word suggestions from dictionaries in different languages. You can even add words to your own personal dictionary.

Keyboard & input methods

Android keyboard(ASOP): It is the default input method on your slide.
Google voice typing: On selecting this option, you can convert the voice message into a text message.

Speech

Text-to-Speech output: Here you can change the text-to-speech-out engine settings like Speech rate and default language status.

Use your voice to type text

Click where you want to type.
In the onscreen keyboard, click the Microphone key.
When you see the microphone image, speak what you want to type. Say "comma," "period," "question mark," "exclamation mark," or "exclamation point" to enter punctuation.
When you pause, your device's speech-recognition service transcribes what you said into words in the text field. What you said last will be underlined.
To delete what you last said, click Delete.

Mouse/trackpad

Pointer speed: On selecting this option, you can control the pointer speed.

Backup & Reset

Back up my data: You can use Android Backup Service to back up data connected to one or more of your Google accounts. If you had to replace your device or erase its data, you can restore your data using any account that you backed up.
Backup account: You can set backup account
Automatic restore: When re-installing an app, restore backed-up settings and data.
Network settings reset: This will reset all network settings including: Wi-Fi, Cellular data,, and Bluetooth.
Factory Data Reset: You can select this option to reset your Slide to factory settings. This will erase all your data from the internal memory of your device and the settings also will be restored to default. It will require you to sign in and go through the set-up screens to use any of the applications. You will also need to sign in with your Google account to use any application that requires your email account. All the accounts that you were using will also get removed and you will have to set up all the accounts again including Play Store.

Date & Time

According to the pre-set, the system will voluntarily apply the date, zone, and time provided by the Internet. Manually set date, time,, and time zone.

Automatic date & time: You can set your Slide date & time settings, which can detect automatically by following the option
Automatic time zone: The time zone will detect automatically with this option If you do not select this, then you have to set the date & time with the zone manually.
Set date: Slide up or down to adjust the date, month, and year, and click OK when you finish the selection.
Set time: slide your figure in the clock or anti-clock direction to adjust the hour and minute, and click OK when you finish the selection.
Select time zone: Set it to GMT+05:30, India Standard Time.
Use 24-hour format, and switch between 12-hour or 24-hour format, the time format you choose will be used on the alarm clock.

Scheduled power ON & OFF

This option lets you select the time duration during which you want your device to shut down and then start up. This is useful in enhancing the battery life of the device. You can set the fixed time at which you want it to switch OFF and when you want to switch it ON again. You will find this option in settings.

Accessibility

These are certain special features that help people with certain disabilities. These options help the users who are visually impaired and cannot access through the functions properly. These features are a great help for such users. You can activate the talk back function which guides the user by speaking feedback or you can set the font size as extra-large for low vision users.

Mentioned below are all the options that are present in the handset for the users to guide them.

Services

Talk back: Talk Back is a screen reader that's included on your Android device. Talk Back uses spoken feedback to describe your actions and to tell you about alerts and notifications.
Select to Speak: It is a built-in accessibility feature of Android that enables you to select any text (such as emails and messages) and have it read aloud.
Switch Access: Switch access enables you to control your device with one or more switches. For users with limited mobility, switch access provides an alternative to using the touch screen.

iBall Slide Brace XJ Tablet System

Captions: To set global captioning preferences, such as whether to show captions and what language, text size, and text style to use.
Magnification gestures: Using his feature you can zoom in & out by triple tapping the screen.
Font Size: Select to choose the font size of characters on your screen.
Display size: Select to choose the display size of characters on your screen.
Click after the pointer stops moving: After connecting the USB Mouse if you turn on this function and place the cursor on any option then that option gets selected automatically. You do not need to click it with the mouse
High contrast text: High contrast makes text easier to read on your device. This feature fixes the text color as either black or white, depending on the original text color.
Power button ends call: When this setting is enabled, you can simply press your device's power button to end a call. This setting can make it faster and easier to hang up.
Auto-rotate screen: When this setting is enabled, the screen automatically rotates when you move your Slide between portrait mode and landscape mode.
Speak Password: This setting controls Talk Back spoken feedback as you type passwords.
- Enabled: Password characters are announced audibly like any other typed characters.
- Disabled: Password characters are only audible via headset. (To protect your privacy, this setting is disabled by default.
Large mouse pointer: After connecting the USB Mouse if you turn on this function, the cursor size gets increased on the tablet screen.
Mono Audio: Combine channels when playing audio
Accessibility Shortcut: The accessibility shortcut allows you to enable Talk Back quickly, without the use of sight.
Text-to-speech output: The text is spoken for theuser'ss convenience.
Touch & hold delay: This lets you adjust the delay required for the slide to notice that you're touching and holding an item (for example, to move an app to a Home screen).

Display

Color inversion: exchanges color values. For example, black text on a white screen becomes white text on a black screen.

To enable or disable color inversion, follow these steps:

Go to Settings>Accessibility.
Turn on Color inversion.

Color inversion is currently an experimental feature, so it might not work correctly everywhere on your device.

Color correction: The color correction setting enables your device to compensate for color blindness.

To enable or disable color correction, follow these steps:

Go to Settings > Accessibility > Color correction.
Set the switch to the on or off position.
To change the color correction mode, select Correction mode, then choose one of the following options:
- Deuteranomaly (red-green)
- Printing Protanomaly (red-green)
- Tritanomaly (blue-yellow)

Color correction is currently an experimental feature, and may affect performance.

Printing

Some printers let you print from your Android tablet over a Wi-Fi, Bluetooth, or USB connection. However, if your printer does‟ t have such capabilities, you can register your printer to Google Cloud Print, a technology and service that lets you connect your printer to the Web, making your printers accessible wherever you are.

Note: All the printers may not be compatible. Please contact your printer manufacturer for details

Developer Options

This option comes after you go to settingsàabout iBall Slideàbuild numberàtap on this option 6 to 7 times Take bug report : This will collect information about your current device state, to send as an e-mail message. Desktop backup password : Set a password to secure your backup data.

Stay Awake : The screen will never sleep while charging.
Enable Bluetooth HCI snoop : Capture all Bluetooth HCI packets in a file.
OEM unlocking : Allow the bootloader to be unlocked.
Running services : View and control currently running services.
USB debugging : When you connect your slide to a laptop/PC, the following image will pop up on your screen, it will sync your slide with the Laptop/Pc through USB connectivity.
Revoke USB debugging authorizations : Revoke access to USB debugging from all computers you’ve previously authorized.
Bug report shortcut : Show a button in the power menu for taking a bug report
Select mock location app : Select mock location and service information to be sent to a location manager service for testing.
Enable view attribute inspection : Inspect views’ attributes in Android System Manager.
Select debug app : set the application for debugging.
Wait for debugger : The debugged application waits for the debugger to attach before executing.
Verify apps over USB : Check apps installed via ADB/ADT for harmful behavior.
Logger buffer sizes : Select logger sizes per log buffer.
Wireless display certification : Show options for wireless display certification
Enable Wi-fi Verbose Logging : Increase Wi-Fi logging level, show per SSID RSSI in Wi-Fi Picker
Aggressive Wi-Fi to Cellular handover : When enabled, Wi-Fi will be more aggressive in handing over the data connection to cellular, when the Wi-Fi signal is low
Always allow Wi-Fi Roam Scans : Allow/ Disallow Wi-Fi Roam Scans based on the amount of data traffic present at the interface
Cellular data always active : Always keep mobile data active, even when Wi-Fi is active (for fast network switching).
Select USB Configuration : MTP (Media Transfer Protocol).
Show taps : Set to show visual feedback for taps.
Pointer Location : Set the coordinates & traces of the pointer when you touch the screen.
Show surface updates : Flash entire window surfaces when they update.
Show layout bounds : Show clip, bounds, margins, etc.
Force RTL layout direction : Force screen layout direction to RTL for all locales.
Window animation scale : The ratio by which the animation scale is applied.
Transition Animation Scale : To speed up transitions (and your slide’s reaction time), either turn off animations, or reduce the scale.
Animator duration scale : The ratio in which the animation scale is measured.
Simulate secondary displays : Select one option out of the provided four.
Force GPU rendering : Force use of GPU for 2d drawing.
Show GPU view updates : Flash views inside the window when drawn with the GPU.
Show hardware layers update : Flash hardware layers green when they update
Debug GPU overdraw : with options OFF, Show overdraw areas, and Show areas for Deuteranomaly.
Debug non-rectangular clip operations : with options OFF, Draw the non-rectangular clip region in blue and Highlight commands in green.
Force 4x MSAA : Enable 4x MSAA in OpenGL ES 2.0 apps.
Disable HW overlays : Always use GPU for screen compositing.
Disable USB audio routing: Disable automatic routing to USB audio peripherals. Strict mode enabled : Flash screen when apps do long operations on the main thread. Show CPU usage : Screen overlay shows the current CPU usage
Profile GPU rendering : Measure rendering time in adb shell dump system graphics info. Don’t keep activities : Set to end a running application when you launch a new application. Background process limit : Set the standard limit of processes that run in the background.
Show all ANRs: Show apps not responding dialog for background apps

About iBall Slide

View the model number and version information for your Slide.

iBall Care: Here you can check if any system update is available or not, if available you can download the update and install it it.
Status: You will get the current status like Battery status, Battery level, SIM status, IMEI information, Wi-Fi MAC address, Bluetooth address, IP address, Serial number & Uptime.
Legal information: You will get open-source licenses & Google legal information.
Model Number: It is showing device model number
Android version: It will show you the current version of Android.

It will also show you other options like the Baseband version, kernel version, and the build number of the Slide. These options help you to know whether your slide is updated to the latest firmware version or not.

Setup Guide

To set up your iBall Slide Brace XJ Tablet, follow these steps:

Unboxing: Carefully remove the tablet from the packaging and ensure all accessories are included (charger, USB cable, user manual).
Charging: Connect the charger to the tablet and let it charge for at least 30 minutes before first use.
Power On: Press and hold the power button until the device boots up.
Initial Setup: Follow the on-screen instructions to set up your language, Wi-Fi connection, and other preferences.
Pairing Accessories: Connect any additional accessories like Bluetooth headphones or keyboard by going to Settings > Bluetooth.

Safety Precautions

Operate Safely

Please do not use Slide while charging. Disconnect the Slide from the charger before use.
Make sure to charge the battery full for the first time usage.
Keep the Slide at least an inch away from your body while dialing/answering calls.
Do not use the Slide if the screen is cracked or broken. Cracked and/or broken screens could cause injury to hands and/or face.
To reduce the risk of motion injuries:
While using your Slide, hold it with a relaxed grip and press the keys lightly.
Do not handle the Slide with wet hands.
The use of special keys/features reduces the number of keys pressed
Take regular breaks in between calls.
Use hands-free accessories.
Switch off the Slide before cleaning it.
Switch off the Slide and external power sources before any attempt to change SIM Cards or any other accessories.
Keep your Slide and all accessories out of reach of small children and animals.
WARNING: When using the device, mind the following
Hold the device upright, as you would with a traditional Slide.
Speak directly into the microphone.

Careful handling

Avoid potential damage to your Slide under:

Keep away from liquids.
Avoid using and/or storing in dusty and/or dirty places/environments.
Do not drop, knock, throw,, or otherwise handle the Slide roughly.
Avoid exposing your Slide to extreme temperatures. Extreme temperatures reduce the charging capacity and life of batteries and Slide.
Never use damaged chargers.
Do not use chemicals or other cleaning solutions to clean the Slide.
Use moist or anti-static cloth.
Avoid using a Slide with a camera flash or light close to the eyes.
Do not dismantle the Slide and accessories without permission.
Avoid handling by unauthorized personnel.
Do not use damaged power cords or plugs, or loose electrical sockets.
Do not use your device outdoors during a thunderstorm.
Do not use your device near devices or apparatuses that emit radio frequencies, such as sound systems or radio towers.

Troubleshooting

If you encounter any issues with your iBall Slide Brace XJ Tablet, here are some common problems and solutions:

Screen Not Turning On: Ensure the battery is charged. Try pressing the power button for an extended period or perform a hard reset by pressing and holding the power button along with the volume down button for 10 seconds.
Wi-Fi Connectivity Issues: Restart your router and tablet. Check if the Wi-Fi network is available and properly configured in Settings > Wi-Fi.
App Crashes: Clear the app's cache and data from Settings > Apps & notifications > [App Name] > Storage > Clear Storage/Clear Cache.

Instructions & Warnings:

Avoid exposing the device to extreme temperatures or moisture.
Use the provided charger to avoid damaging the battery.

Customer Reviews

Customers have praised the iBall Slide Brace XJ for its value-for-money proposition, citing its good display quality, smooth performance, and long battery life. However, some users have reported issues with app compatibility and occasional lag with heavy usage.

Common Complaints

App compatibility issues with certain apps.
Occasional lag during heavy usage.

Search Manuals in: tablet

Read More

Read More

Read More

Read More
